BCP5410TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCP5410TA

BCP5410TA: DescriptionBipolar Transistors - BJT Pwr Mid Perf Transistor SOT223 T&R 1K; CategoryDiscrete semiconductor The transistor; File Size372KB，7 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

BCP5410TA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BCP5410TA	-	-	View	Buy Now

BCP5410TA Overview

Bipolar Transistors - BJT Pwr Mid Perf Transistor SOT223 T&R 1K

BCP5410TA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	COLLECTOR
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	63
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power dissipation(Abs)	2 W
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

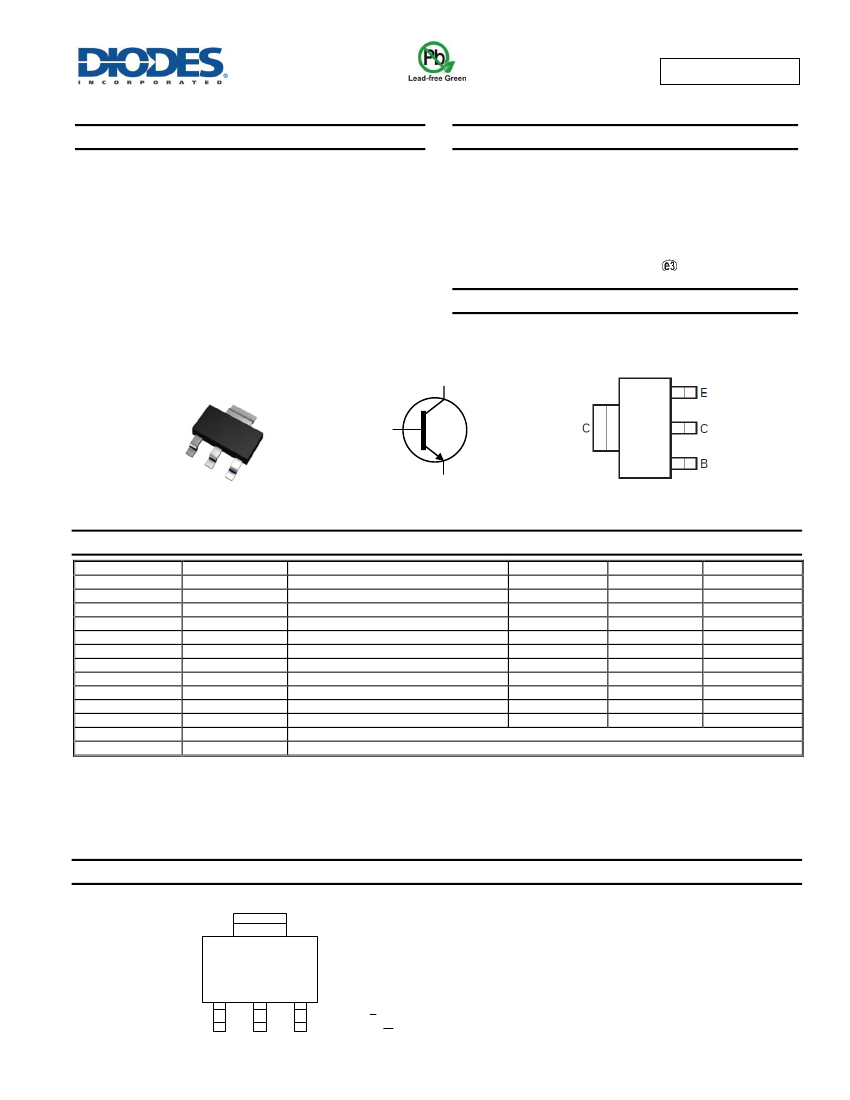

BCP 54/ 55/ 56

NPN MEDIUM POWER TRANSISTORS IN SOT223

Features



CEO

> 45V, 60V & 80V

= 1A High Continuous Collector Current

= 2A Peak Pulse Current

2W Power Dissipation

Low Saturation Voltage V

CE(sat)

< 500mV @ 0.5A

Gain Groups 10 and 16

Complementary PNP Types: BCP51, 52 and 53

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data



Case: SOT223

Case Material: Molded Plastic. “Green” Molding Compound;

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Plated Leads.

Solderable per MIL-STD-202, Method 208

Weight: 0.112 grams (Approximate)

Applications



Medium Power Switching or Amplification Applications

AF Driver and Output Stages

SOT223

Top View

Device Symbol

Top View

Pin-Out

Ordering Information

(Notes 4 & 5)

Product

BCP54TA

BCP5410TA

BCP5416TA

BCP5416QTA

BCP55TA

BCP5510TA

BCP5516TA

BCP56TA

BCP5610TA

BCP5616TA

BCP5616TC

BCP5616QTA

BCP5616QTC

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

Marking

BCP 54

BCP 5410

BCP 5416

BCP 55

BCP 5510

BCP 5516

BCP 56

BCP 5610

BCP 5616

Reel size (inches) Tape width (mm) Quantity per reel

1,000

4,000

Refer to http://diodes.com/datasheets/BCP5616Q.pdf

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

BCP = Product Type Marking Code, Line 1

XXXX = Product Type Marking Code, Line 2 as follows:

YWW

BCP

XXXX

BCP54 = 54

BCP5410 = 5410

BCP5416 = 5416

BCP55 = 55

BCP5510 = 5510

BCP5516 = 5516

BCP56 = 56

BCP5610 = 5610

BCP5616 = 5616

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5= 2015)

WW or WW = Week Code (01~53)

BCP 54 / 55 / 56

Datasheet Number: DS35367 Rev. 6 - 2

1 of 7

www.diodes.com

June 2015
