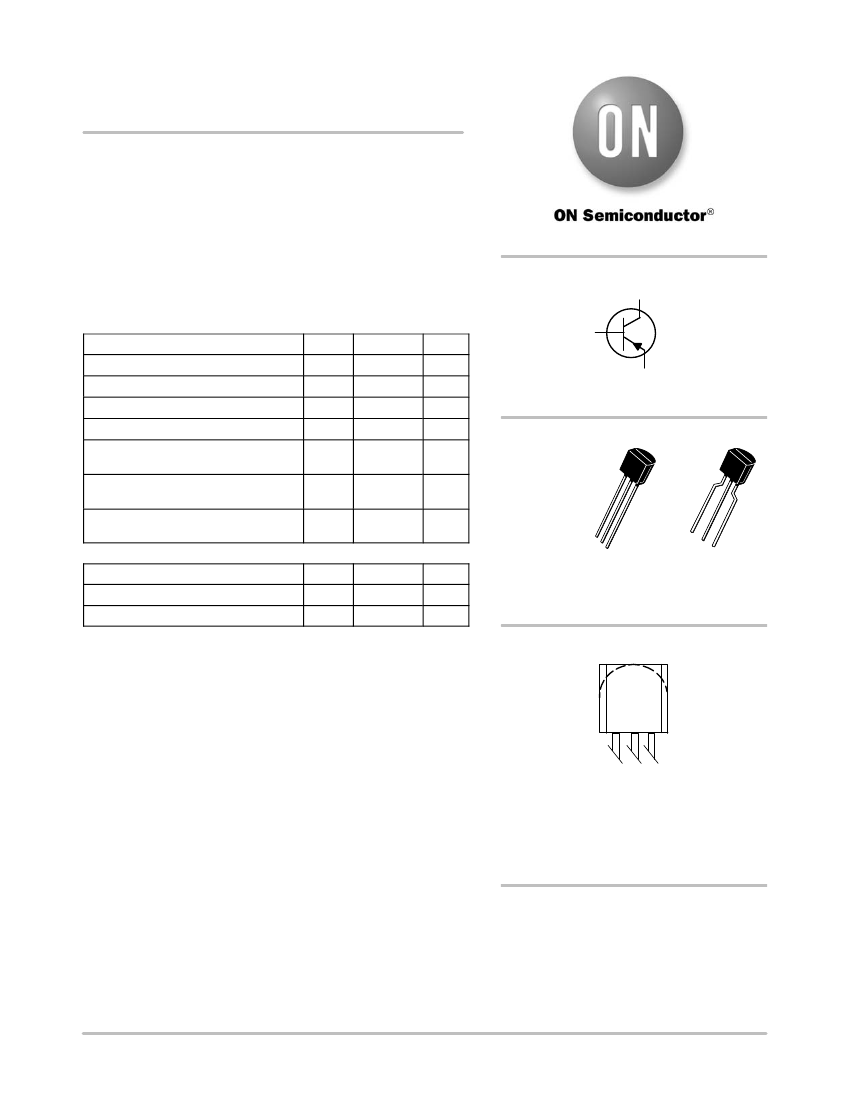

BC327, BC327-16,
BC327-25, BC327-40
Amplifier Transistors
PNP Silicon
Features
http://onsemi.com
COLLECTOR
1
2
BASE
3
EMITTER
•
These are Pb−Free Devices*
MAXIMUM RATINGS
Rating
Collector
−Emitter
Voltage
Collector
−Emitter
Voltage
Emitter−Base Voltage
Collector Current
−
Continuous
Total Power Dissipation @ T
A
= 25°C
Derate above T
A
= 25°C
Total Power Dissipation @ T
A
= 25°C
Derate above T
A
= 25°C
Operating and Storage Junction
Temperature Range
Symbol
V
CEO
V
CES
V
EBO
I
C
P
D
P
D
T
J
, T
stg
Value
−45
−50
−5.0
−800
625
5.0
1.5
12
−55
to +150
Unit
Vdc
Vdc
Vdc
mAdc
mW
mW/°C
W
mW/°C
°C
TO−92
CASE 29
STYLE 17
12
1
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction−to−Ambient
Thermal Resistance, Junction−to−Case
Symbol
R
qJA
R
qJC
Max
200
83.3
Unit
°C/W
°C/W
3
STRAIGHT LEAD
BULK PACK
3
BENT LEAD
TAPE & REEL
AMMO PACK
2
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
MARKING DIAGRAM
BC
xxx
AYWW
G
G
BCxxx = Device Code
A
= Assembly Location
Y
= Year
WW = Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering, marking, and shipping information in
the package dimensions section on page 4 of this data sheet.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2011
September, 2011
−
Rev. 6
1
Publication Order Number:
BC327/D
BC327, BC327−16, BC327−25, BC327−40

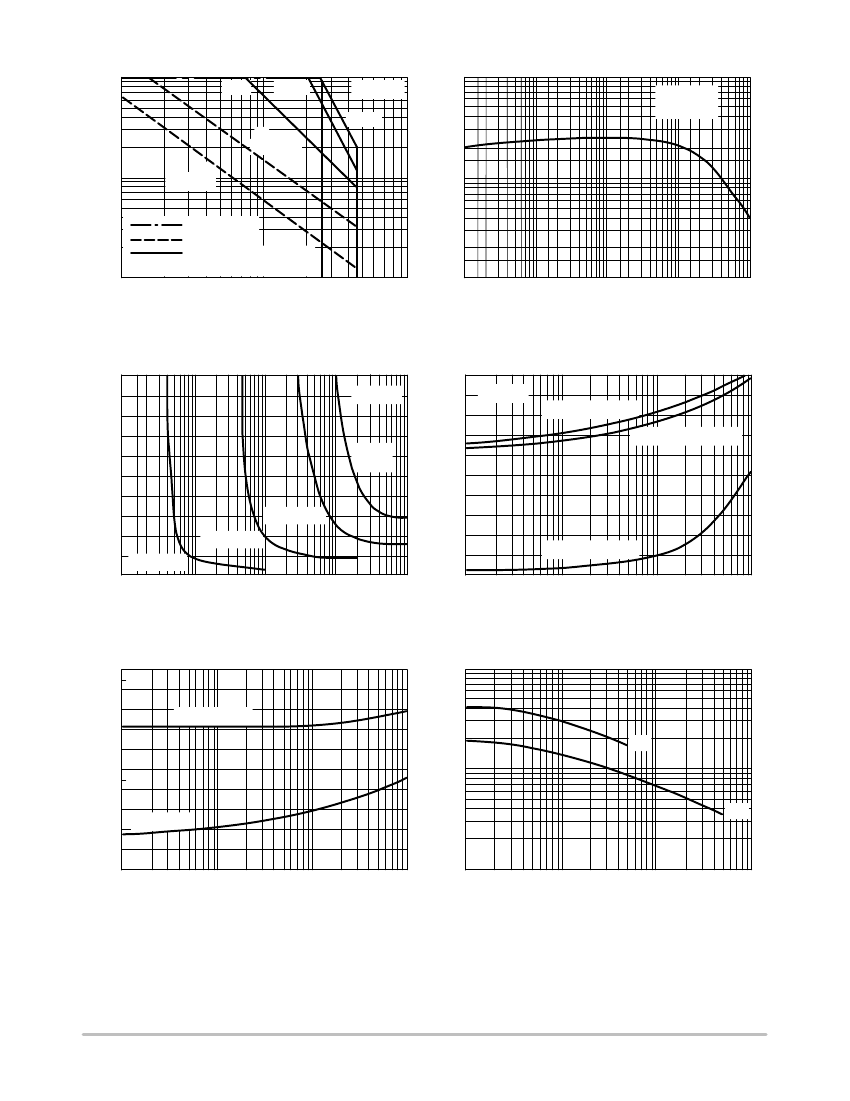

-1000
IC, COLLECTOR CURRENT (mA)
1.0 s
1.0 ms
1000
T
J
= 135°C
hFE, DC CURRENT GAIN
100
ms
dc
T
C
= 25°C
-100
dc
T
A
= 25°C
V
CE
= -1.0 V
T
A
= 25°C
100
-10
-1.0
CURRENT LIMIT
THERMAL LIMIT
SECOND BREAKDOWN LIMIT
(APPLIES BELOW RATED V
CEO
)
-3.0
-10
-30
V
CE
, COLLECTOR-EMITTER VOLTAGE
-100
10
-0.1
-1.0
-10
-100
I
C
, COLLECTOR CURRENT (mA)
-1000
Figure 2. Active Region
−
Safe Operating Area
Figure 3. DC Current Gain
VCE , COLLECTOR-EMITTER VOLTAGE (VOLTS)
-1.0
T
J
= 25°C
-0.8
I
C
=
-500 mA
V, VOLTAGE (VOLTS)
-1.0
T
A
= 25°C
-0.8
V
BE(sat)
@ I
C
/I
B
= 10
V
BE(on)
@ V
CE
= -1.0 V
-0.6
-0.6
-0.4
I
C
= -300 mA
-0.2
0
-0.01
I
C
= -10 mA
-0.1
-1.0
-10
I
B
, BASE CURRENT (mA)
-100
I
C
= -100 mA
-0.4
-0.2
V
CE(sat)
@ I
C
/I
B
= 10
0
-1.0
-10
-100
I
C
, COLLECTOR CURRENT (mA)
-1000
Figure 4. Saturation Region
Figure 5. “On” Voltages
θ
V, TEMPERATURE COEFFICIENTS (mV/
°
C)
+1.0
q
VC
for V
CE(sat)
0
100
C, CAPACITANCE (pF)
C
ib
10
-1.0
-2.0
q
VB
for V
BE
C
ob
-1.0
-10
-100
I
C
, COLLECTOR CURRENT
-1000
1.0
-0.1
-1.0
-10
V
R
, REVERSE VOLTAGE (VOLTS)
-100
Figure 6. Temperature Coefficients
Figure 7. Capacitances
http://onsemi.com
3
BC327, BC327−16, BC327−25, BC327−40
PACKAGE DIMENSIONS
TO−92 (TO−226)
CASE 29−11
ISSUE AM
A
R
P
L
SEATING
PLANE
B
STRAIGHT LEAD
BULK PACK
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. CONTOUR OF PACKAGE BEYOND DIMENSION R
IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P AND
BEYOND DIMENSION K MINIMUM.
INCHES
MIN
MAX
0.175
0.205
0.170
0.210
0.125
0.165
0.016
0.021
0.045
0.055
0.095
0.105
0.015
0.020
0.500
---
0.250
---
0.080
0.105
---
0.100
0.115
---
0.135
---
MILLIMETERS
MIN
MAX
4.45
5.20
4.32
5.33
3.18
4.19
0.407
0.533
1.15
1.39
2.42
2.66
0.39
0.50
12.70
---
6.35
---
2.04
2.66
---
2.54
2.93
---
3.43
---
K
X X
H
V
1
D
G
J
C
N
N
SECTION X−X
DIM
A
B
C
D
G
H
J
K
L
N
P
R
V
R
A
B
BENT LEAD
TAPE & REEL
AMMO PACK
P
T
SEATING
PLANE
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. CONTOUR OF PACKAGE BEYOND
DIMENSION R IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P
AND BEYOND DIMENSION K MINIMUM.
MILLIMETERS
MIN
MAX
4.45
5.20
4.32
5.33
3.18
4.19
0.40
0.54
2.40
2.80
0.39
0.50
12.70
---
2.04
2.66
1.50
4.00
2.93
---
3.43
---
K
G
X X
V
1
D
J
C
N
SECTION X−X
DIM
A
B
C
D
G
J
K
N
P
R
V
STYLE 17:
PIN 1. COLLECTOR
2. BASE
3. EMITTER
