SMBJ4763e3/TR13 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> SMBJ4763e3/TR13

SMBJ4763e3/TR13: DescriptionZener Diodes Zener Voltage Regulator Diode; CategoryDiscrete semiconductor diode; File Size111KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric View All

SMBJ4763e3/TR13 Overview

Zener Diodes Zener Voltage Regulator Diode

SMBJ4763e3/TR13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.25 W
Nominal reference voltage	91 V
surface mount	YES
technology	ZENER
Terminal surface	MATTE TIN
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	10%
Working test current	2.8 mA

Preview

Download Datasheet

View All

SMBG4728 thru SMBG4764A, e3

SMBJ4728 thru SMBJ4764A, e3

SILICON 2.0 Watt ZENER DIODES

SCOTTSDALE DIVISION

DESCRIPTION

The SMBJ4728A-4764A and SMBG4728A-4764A series of surface mount

2.0 watt Zeners provides voltage regulation in a selection from 3.3 to 100

volts with different tolerances as identified by suffix letter on the part

number as well as RoHS Compliant with an e3 suffix. This surface mount

product series with lower thermal resistance features is equivalent to the

JEDEC registered 1N4728 thru 1N4764A with identical electrical

characteristics except it is rated at 2.0 W instead of 1.0 W. It is available

in J-bend design (SMBJ) with the DO-214AA package for greater PC

board mounting density or in Gull-wing design (SMBG) in the DO-215AA

for visible solder connections. Microsemi also offers numerous other

Zener products to meet higher and lower power applications.

IMPORTANT:

For the most current data, consult

MICROSEMI’s

website:

http://www.microsemi.com

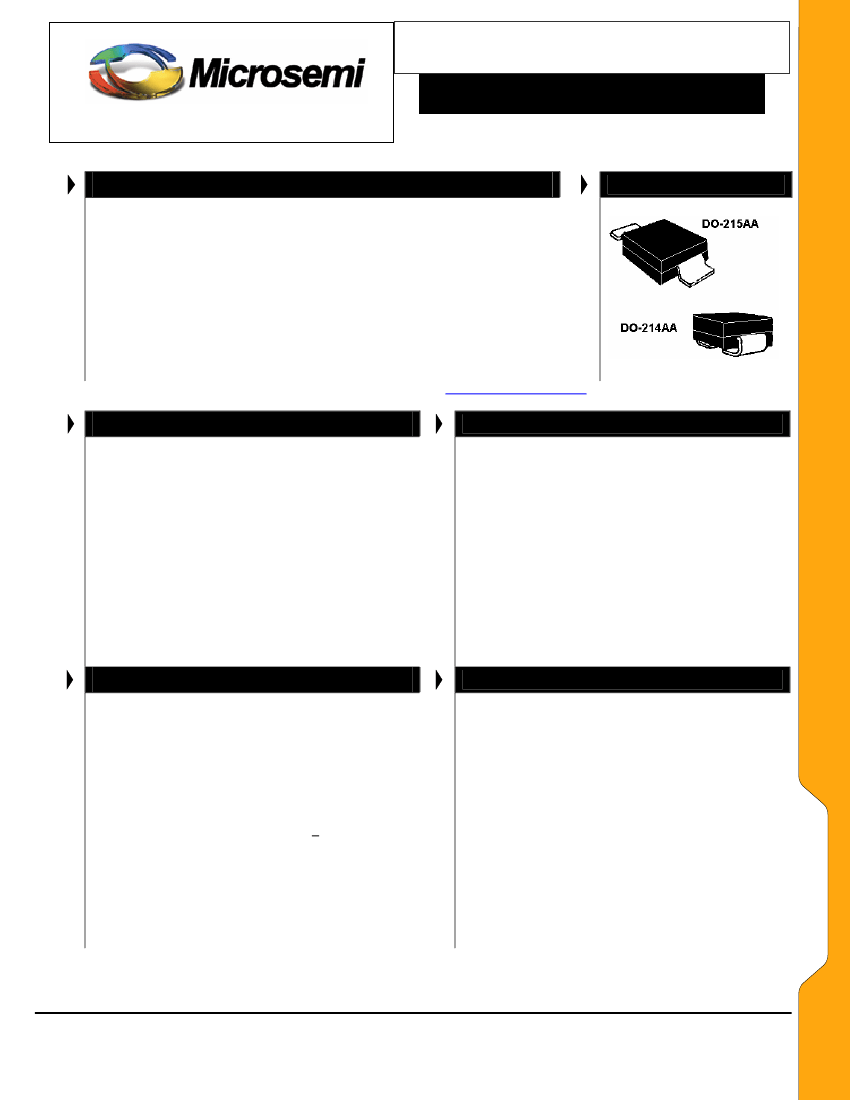

APPEARANCE

WWW .

Microsemi

NOTE: All SMB series are equivalent

to prior SMS package identifications.

FEATURES

•

Surface mount equivalent to 1N4728 to 1N4764A

Ideal for high-density and low-profile mounting

Zener voltage available 3.3V to 200V

Standard voltage tolerances are plus/minus 5% with

A suffix and 10 % with no suffix identification

•

Tight tolerances available in plus or minus 2% or 1%

with C or D suffix respectively

•

Options for screening in accordance with MIL-PRF-

19500 for JAN, JANTX, and JANTXV are available

by adding MQ, MX, or MV prefixes respectively to

part numbers.

•

RoHS compliant devices available by adding an e3

suffix.

•

APPLICATIONS / BENEFITS

Regulates voltage over a broad operating current

and temperature range

Wide selection from 3.3 to 100 V

Popular DO-214AA or DO-215AA packages and

footprints for either high density J-bend or Gull-wing

designs for visible solder joints

Nonsensitive to ESD per MIL-STD-750 Method

1020

Moisture classification: Level 1 per IPC/JEDEC J-

STD-020B with no dry pack required

•

MAXIMUM RATINGS

•

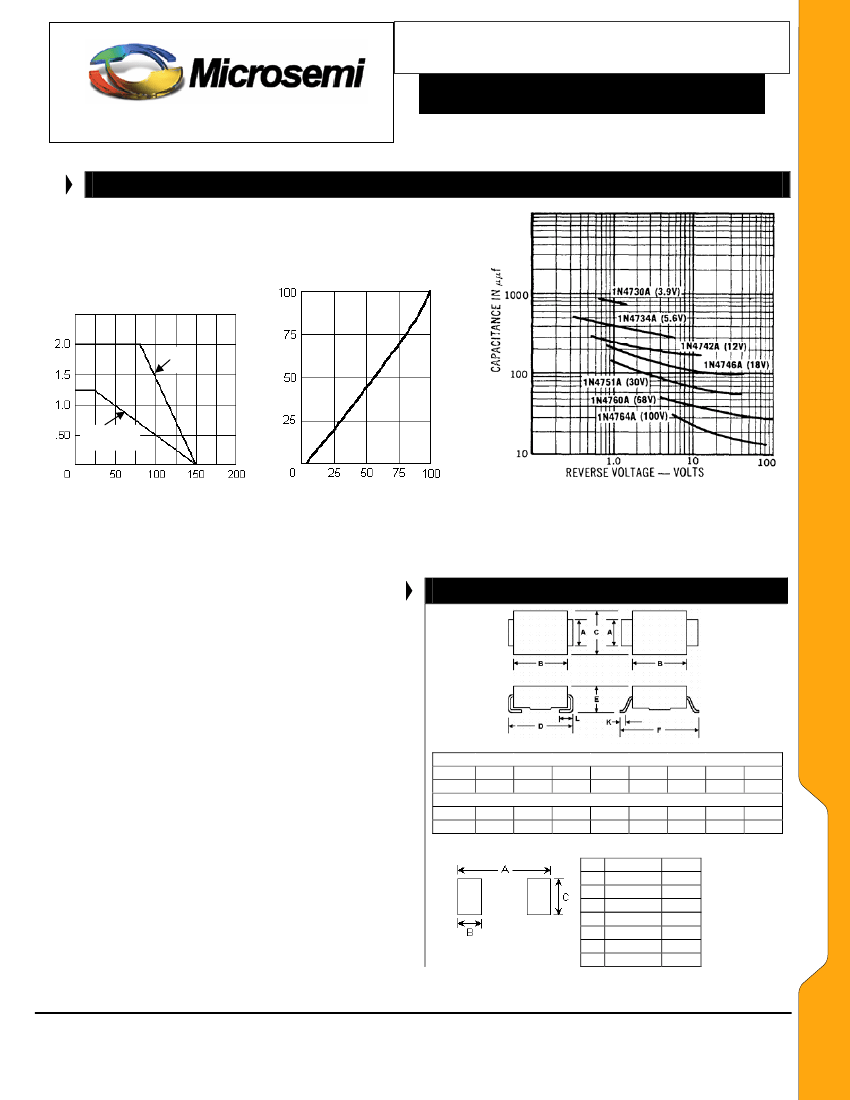

Power dissipation at 25

C: 2.0 watts (also see

derating in Figure 1).

Operating and Storage temperature: -65

C to

+150

Thermal Resistance: 35

C/W junction to lead, or

100

C/W junction to ambient when mounted on FR4

PC board (1oz Cu) with recommended footprint

(see last page)

Steady-State Power: 2 watts at T

< 80

C, or 1.25

watts at T

= 25

C when mounted on FR4 PC board

with recommended footprint (also see Figure 1)

Forward voltage @200 mA: 1.2 volts (maximum)

Solder Temperatures: 260

C for 10 s (maximum)

MECHANICAL AND PACKAGING

•

CASE: Void-free transfer molded thermosetting

epoxy body meeting UL94V-0

•

TERMINALS: Gull-wing or C-bend (modified J-

bend) leads, tin-lead plated or RoHS compliant

annealed matte-tin plating solderable per MIL-STD-

750, method 2026

•

POLARITY: Cathode indicated by band. Diode to

be operated with the banded end positive with

respect to opposite end for Zener regulation

•

MARKING: Includes part number without prefix

(e.g. 4728A, 4728Ae3, 4734C, 4764D, etc.)

•

TAPE & REEL option: Standard per EIA-481-1-A

with 12 mm tape, 750 per 7 inch reel or 2500 per 13

inch reel (add “TR” suffix to part number)

•

WEIGHT: 0.1 grams

•

See package dimensions on last page

SMBG(J)4728–4764A, e3

•

2007

6-20-2007 REV E

Microsemi

Scottsdale Division

8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503

Page 1
