AIUR-03-681K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> AIUR-03-681K

AIUR-03-681K: DescriptionFixed Inductors 680uH 10% -40C +105C; CategoryPassive components inductor; File Size1MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AIUR-03-681K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AIUR-03-681K	-	-	View	Buy Now

AIUR-03-681K Overview

Fixed Inductors 680uH 10% -40C +105C

AIUR-03-681K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
structure	Shrink Tube
core material	FERRITE
DC Resistance	1.6 Ω
Nominal inductance(L)	680 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.64 mm
Lead length	5 mm
lead spacing	5 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package diameter	8.5 mm
Package length	11 mm
Package form	Radial
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.38 A
self resonant frequency	1.6 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.796 MHz
Tolerance	10%

Preview

Download Datasheet

View All

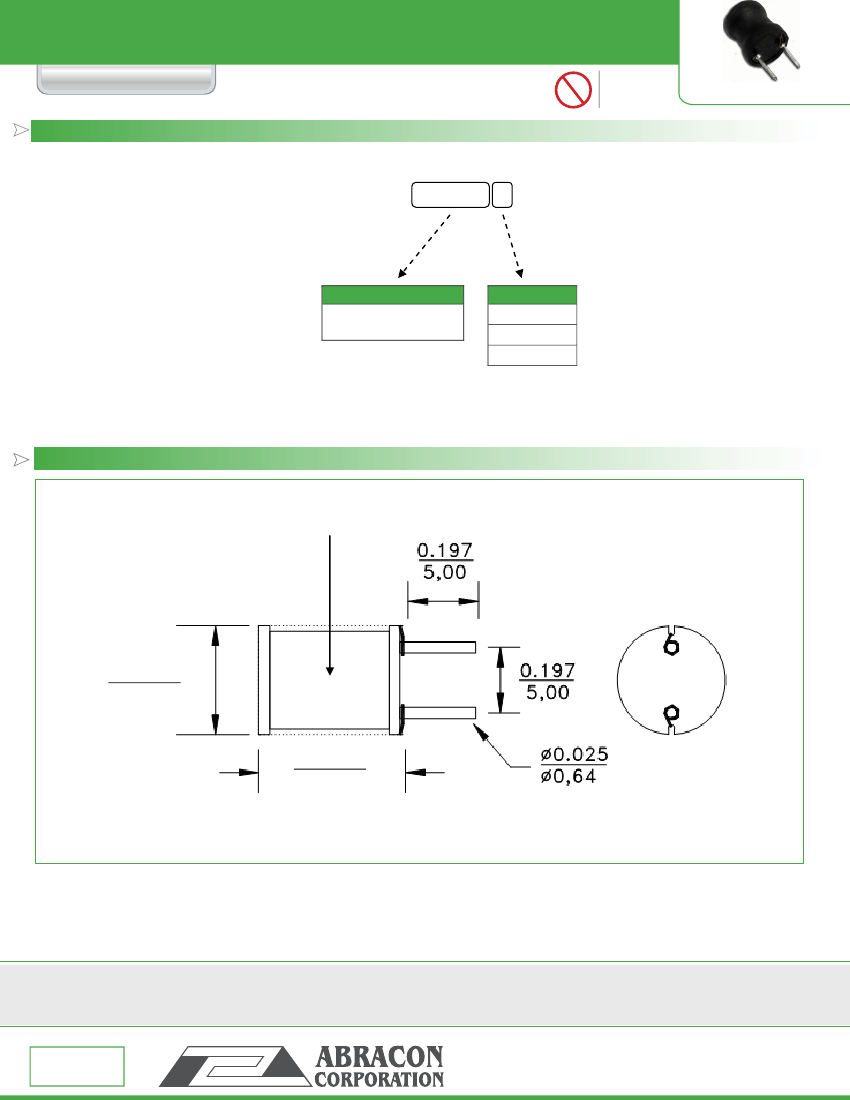

Mini Drum Core Inductor

AIUR-03 Series

FEATURES:

• Ferrite core with heat shrink tube

• High Reliability

RoHS/RoHS II Compliant

APPLICATIONS:

• Electronic Appliance

• Automotive system

12.0 x ϕ9.0 mm

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Operating temperature:

Storage temperature:

Part Number

Units

Symbol

AIUR-03-1R0

AIUR-03-1R5

AIUR-03-2R2

AIUR-03-3R3

AIUR-03-4R7

AIUR-03-6R8

AIUR-03-100

AIUR-03-120

AIUR-03-150

AIUR-03-180

AIUR-03-220

AIUR-03-270

AIUR-03-330

AIUR-03-390

AIUR-03-470

AIUR-03-560

AIUR-03-680

AIUR-03-820

AIUR-03-101

AIUR-03-121

AIUR-03-151

AIUR-03-181

AIUR-03-221

AIUR-03-331

AIUR-03-391

AIUR-03-471

AIUR-03-561

AIUR-03-681

AIUR-03-821

AIUR-03-102

Inductance

μH

1.0

1.5

2.2

3.3

4.7

6.8

100

120

150

180

220

330

390

470

560

680

820

1000

Tolerance

J, K, M

J, K

AIUR-03 Series

-25°C to + 85°C

-25°C to + 125°C

Q (Min)

Test

Frequency

MHz

7.96

2.52

0.796

0.252

DCR (Max)

DCR

0.013

0.016

0.021

0.025

0.030

0.035

0.045

0.050

0.056

0.061

0.070

0.080

0.090

0.10

0.16

0.18

0.21

0.23

0.28

0.32

0.37

0.58

0.65

0.85

1.00

1.10

1.40

1.60

1.80

2.90

Saturation

Current (Max)

Isat

10.0

8.5

6.5

5.5

4.3

3.7

3.0

2.7

2.3

2.2

2.0

1.7

1.6

1.5

1.4

1.3

1.2

1.1

0.91

0.84

0.75

0.69

0.64

0.54

0.48

0.46

0.41

0.38

0.35

0.29

Temperature

Rise Current

(Max)

3.5

3.3

3.2

2.9

2.5

2.3

2.0

1.9

1.8

1.6

1.4

1.3

1.1

0.99

0.90

0.81

0.76

0.72

0.67

0.61

0.54

0.50

0.39

0.37

0.32

0.30

0.27

0.24

0.22

SRF (Min)

MHz

150

130

100

9.2

8.5

7.8

6.9

6.5

5.4

4.9

4.1

3.7

3.4

3.2

2.8

2.7

2.3

2.1

1.9

1.8

1.6

1.5

1.3

1R0M

1R5M

2R2M

3R3M

4R7M

6R8M

100J/100K

120J/120K

150J/150K

180J/180K

220J/220K

270J/270K

330J/330K

390J/390K

470J/470K

560J/560K

680J/680K

820J/820K

101J/101K

121J/121K

151J/151K

181J/181K

221J/221K

331J/331K

391J/391K

471J/471K

561J/561K

681J/681K

821J/821K

102J/102K

Inductance

Code

Test Conditions and equipments

DCR: QuadTech Milliohmmeter

Isat: 10% inductance drops from initial

value

: The DC current at which the temperature rise is 40

C max

ABRACON IS

ISO 9001 / QS 9000

ISO 9001:2008

CE RTIFIED

Revised: 04.24.13

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
