3313S-1-104E Overview

Trimmer Resistors - SMD 3mm 100K OHM Horizontal Adj

3313S-1-104E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	SMT, 1421
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Rectangular
JESD-609 code	e3
Manufacturer's serial number	3313
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.77 mm
Package length	3.61 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	5.35 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	100000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	250 deg
series	3313
size code	1421
surface mount	YES
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

** *

HA R

LO oHS

AV EN COM

AI FR P

LA EE LIA

BL M N

E OD T

Features

Surface Mount 3 mm Square

Single-Turn Cermet / Sealed

Compatible with surface mount

manufacturing processes

(not recommended for wave soldering)

Rotor stop for “in-circuit” adjustment

100 cycle rotational and seal life

Plastic housing for RF applications

Reverse pin layout option (Model 3313X)

RoHS compliant* - see processing

information on RoHS compliant surface

mount trimmers

For trimmer applications/processing

guidelines, click here

Halogen free models available**

Electrical Characteristics

Standard Resistance Range

......................10 ohms to 2 megohms

(see standard resistance table)

Resistance Tolerance ........... ±20 % std.

End Resistance ..... 1 % or 3 ohms max.

(whichever is greater)

Contact Resistance Variation

.................................... 3 % or 3 ohms

Adjustability

Voltage Divider ........................ ±0.1 %

Rheostat .................................. ±0.2 %

Resolution ................................... Infinite

Insulation Resistance ............... 500 vdc.

100 megohms min.

Dielectric Strength

Sea Level................................ 500 vac

70,000 Feet ............................ 350 vac

Adjustment Angle .................. 220° nom.

Environmental Characteristics

Max. Soldering Exposure

............................. 250 °C/10 seconds

Power Rating (200 volts max.)

70 °C .................................. 0.125 watt

125 °C ....................................... 0 watt

Operating Temp. Range

............................... -55 °C to +125 °C

Temperature Coefficient

..................

≤100

ohms ±150 ppm/°C;

................... >100 ohms ±100 ppm/°C

Seal Test ..85 °C Fluorinert†/60 seconds

Humidity ...... MIL-STD 202, Method 106

(no vibration) TRS ±3 %;

IR 10 megohms

Vibration .....20 G TRS ±1 %; VRS ±1 %

Shock .......100 G TRS ±1 %; VRS ±1 %

Load Life...............................1000 hours

@ 70 °C Rated Power;TRS ± 3 %

Rotational Life ..... 100 cycles TRS ±3 %

Thermal Shock ..........................5 cycles

TRS ±2 %; VRS ±1 %

Physical Characteristics

Mechanical Angle ................. 250 ° nom.

Torque...............................50 g-cm max.

Stop Strength ..................200 g-cm min.

Pushover Strength (“S” Style only)

........ 1.6 Kilograms (3.5 lbs) minimum

Flammability ..........................U.L. 94V-0

Weight ......................... Approx. 0.01 oz.

Marking........................ Resistance code

and date code

Wiper ............... 50 % (Actual TR) ±10 %

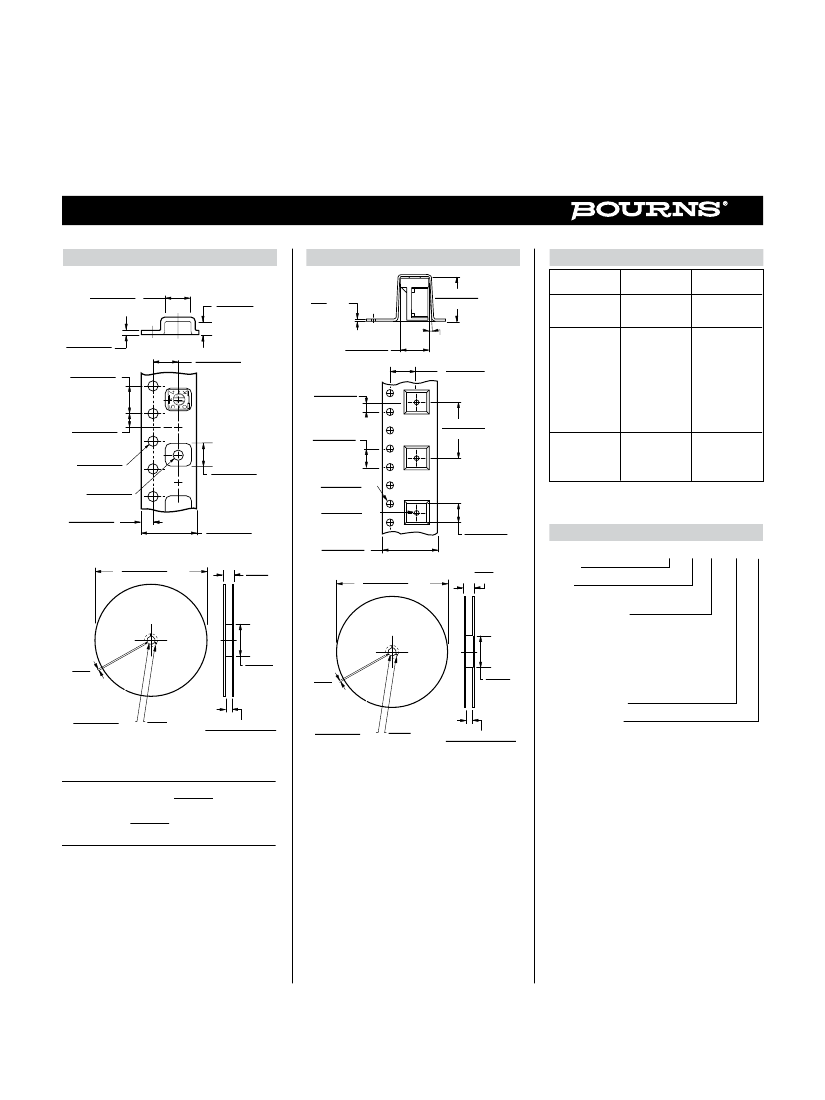

Standard Packaging

J, X Styles (MSL-1) ....1000 pcs./7 ” reel

S Style (MSL-1).......... 200 pcs./7 ” reel

Adjustment Tool..............................H-91

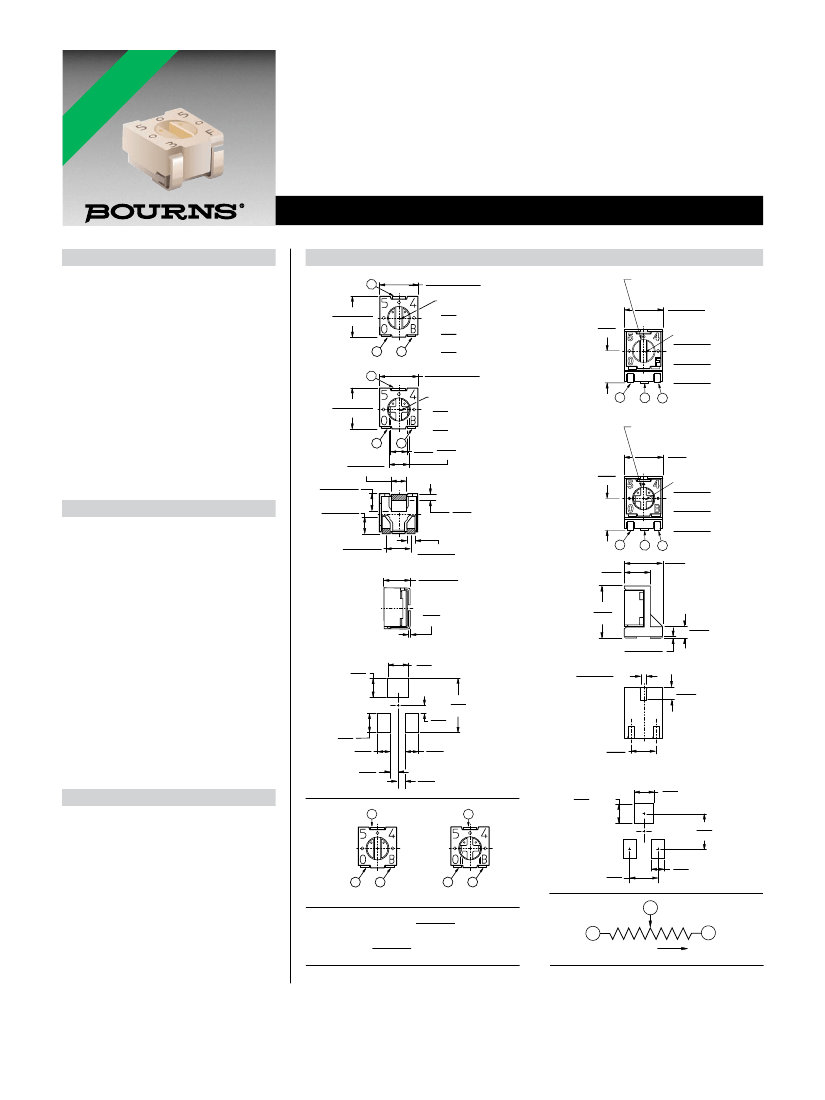

3313 - 3 mm Trimpot

Trimming Potentiometer

Product Dimensions

3313J-1

3.2 +0.4/-0.2

(.126 +.016/-.008)

ADJ. SLOT

0.52

WIDE

(.020)

1.93 LONG

(.076)

0.51

DEEP

(.020)

3.2 +0.4/-0.2

(.126 +.016/-.008)

3313S-1

3.5 ± 0.2

(.138 ± .008)

3.02

(.119)

Position Rotor As Shown

Within

±11°

Of Centerline

Of Terminal 2

3.61

.20

(.142

.008)

ADJ. SLOT

.52

0.03

WIDE

(.020

.001)

X 1.93

0.03

LONG

(.076

.001)

X .51

0.06

DEEP

(.020

.002)

3313J-2

3.5 ± 0.2

(.138 ± .008)

1.1 ± 0.1

(.043 ± .004)

1.47 ± 0.15

(.058 ± .006)

1.50 ± 0.15

(.059 ± .006)

2 PLCS

2.3 ± 0.2

(.091 ± .008)

ADJ. CROSS SLOT

0.45

WIDE

(.018)

0.51

DEEP

(.020)

1.42 1.68

(.056) (.066)

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

3313S-2

3.02

(.119)

SOLDERABLE

AREA

0.5

(.020)

3 PLCS.

0.66 ± 0.10

2 PLCS

(.026 ± .004)

2.2 ± 0.2

(.087 ± .008)

Position Rotor As Shown

Within

±11°

Of Centerline

Of Terminal 2

3.61

(.142)

ADJ. SLOT

.45

0.03

WIDE

(.018

.001)

X 1.93

0.03

LONG

(.076

.001)

X .51

0.06

DEEP

(.020

.002)

3.71

(.146)

2.77

(.109)

0.15

(.006)

5.35

(.211)

1.30

(.051)

RECOMMENDED LAND PATTERN

1.6

(.063)

0.15

0.03

(.006

.001)

0.71

0.20

TYP

(.028

.008)

4.5

(.177)

1.15

TYP

(.045)

1.60

(.063) 1.1

(.043)

0.6

(.024)

0.65

(.026)

1.1

(.043)

0.6

(.024)

2.39

(.094)

3313X-1

(Reverse

Layout)

3313X-2

(Reverse

Layout)

RECOMMENDED LAND PATTERN

1.57

(.062)

3 PLCS

(.062)

2.62

(.103)

1.12 2 PLCS

(.044)

2.39

(.094)

DIMENSIONS:

(INCHES)

0.25

TOLERANCES: ±

EXCEPT WHERE NOTED

(.010)

CCW

WIPER

CLOCKWISE

* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

**Halogen free product is identified by a black housing color. Bourns follows the prevailing definition of “halogen free” in the industry. Bourns considers a product to be “halogen

free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.

†“Fluorinert” is a registered trademark of 3M Co.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.
