MAL209637182E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> MAL209637182E3

MAL209637182E3: DescriptionAluminum Electrolytic Capacitors - Snap In 1800uF 450V 45x100mm 85 C 5000h; CategoryPassive components capacitor; File Size123KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

MAL209637182E3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAL209637182E3	-	-	View	Buy Now

MAL209637182E3 Overview

Aluminum Electrolytic Capacitors - Snap In 1800uF 450V 45x100mm 85 C 5000h

MAL209637182E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
capacitance	1800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	45 mm
dielectric materials	ALUMINUM (WET)
ESR	55 mΩ
JESD-609 code	e3
leakage current	1.624 mA
length	100 mm
Manufacturer's serial number	096PLL-4TSI
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
method of packing	CARDBOARD
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	8000 mA
series	096 PLL-4TSI
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

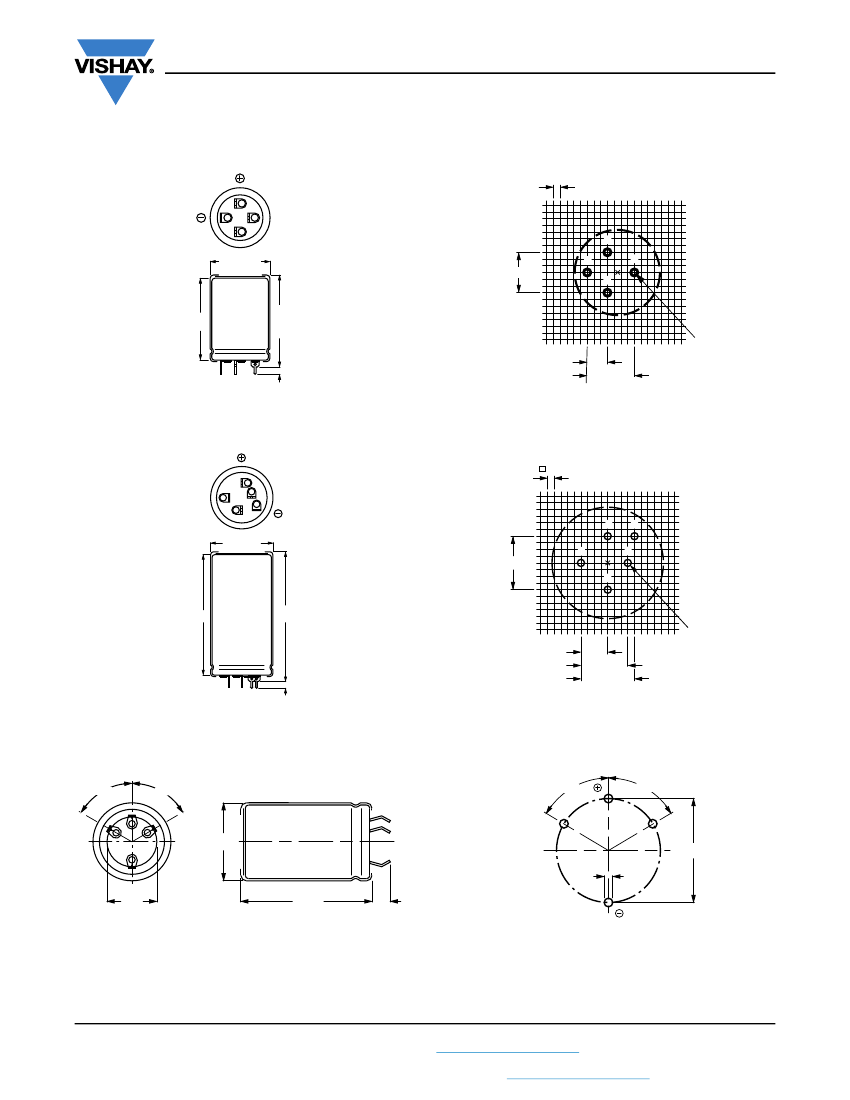

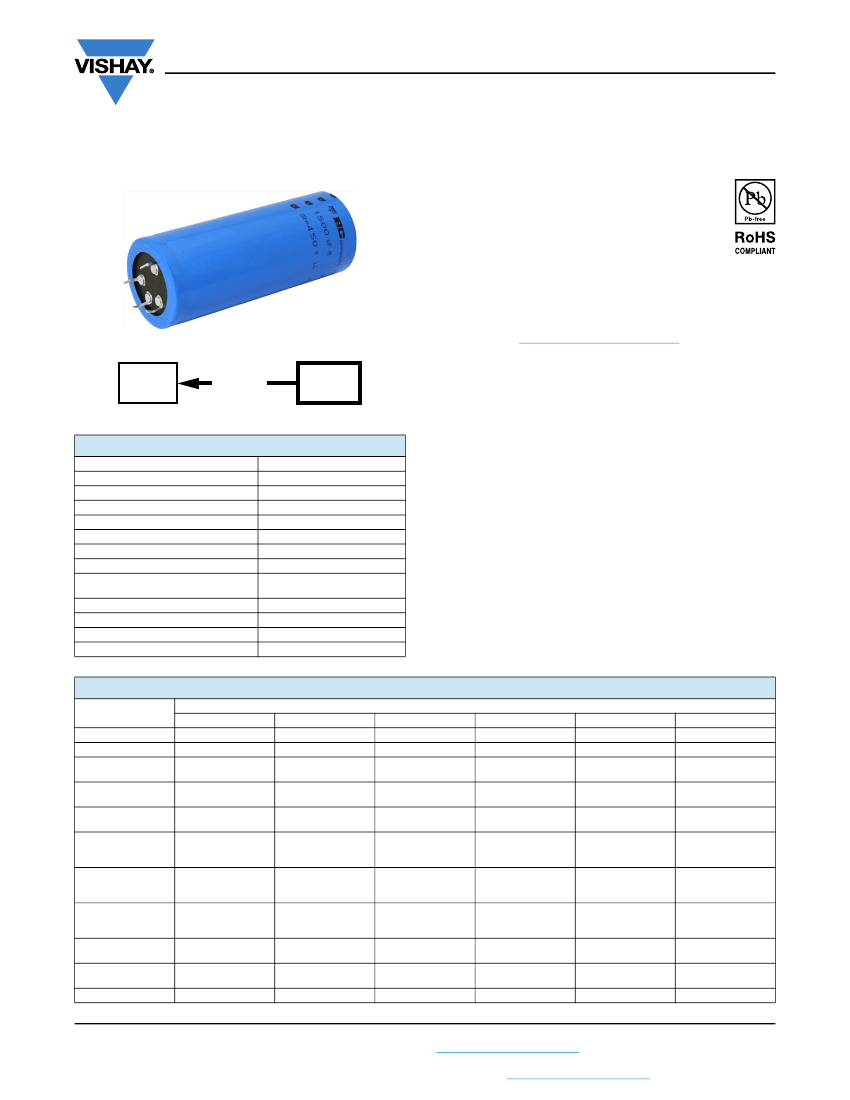

096 PLL-4TSI

www.vishay.com

Vishay BCcomponents

Aluminum Electrolytic Capacitors

Power Long Life 4-Terminal Snap-In

FEATURES

• Polarized aluminum electrolytic capacitors,

non-solid electrolyte

• Large types, minimized dimensions, cylindrical

aluminum case, insulated with a blue sleeve

• Pressure relief on the side of the aluminum case

• Very long useful life: 5000 h at 85 °C

• Temperature range up to 85 °C

• Keyed polarity

• Low ESR, high ripple current capability

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

APPLICATIONS

095

longer life

Fig. 1

096

QUICK REFERENCE DATA

DESCRIPTION

Nominal case size (D x L in mm)

Rated capacitance range C

Tolerance on C

Rated voltage range, U

Category temperature range

Endurance test at 85 °C

Useful life at 85 °C

Useful life at 40 °C,

1.4 x I

applied

Shelf life at 0 V, 85 °C

Max. RMS value of ripple voltage

Based on sectional specification

Climatic category IEC 60068

VALUE

35 x 50 to 45 x 100

390 μF to 2700 μF

± 20 %

350 V to 500 V

-40 °C to +85 °C

2000 h

5000 h

200 000 h

1000 h

12 V

IEC 60384-4 / EN130300

40 / 085 / 56

•

Telecommunication and industrial systems

Smoothing and filtering applications

Switched mode power supplies

Renewable energy power converters

Energy storage in pulse systems

For excellent mounting stability

MARKING

The capacitors are marked (where possible) with the

following information:

• Rated capacitance (in μF)

• Tolerance code on rated capacitance, code letter in

accordance with IEC 60062 (M for ± 20 %)

• Rated voltage (in V)

• Date code (YYMM)

• Name of manufacturer

• Code for factory of origin

• “-” sign to identify the negative terminal, visible from the

top and side of the capacitor

• Code number

• Climatic category in accordance with IEC 60068

SELECTION CHART FOR C

, U

, AND RELEVANT NOMINAL CASE SIZES

(Ø D x L in mm)

(μF)

390

470

560

680

820

1000

1200

1500

1800

2200

2700

Revision: 14-Oct-16

(V)

350

35 x 50

40 x 40

35 x 60

40 x 50

35 x 70

40 x 60

35 x 80

40 x 70

45 x 60

40 x 80

45 x 60

40 x 100

45 x 70

45 x 100

385

35 x 50

40 x 50

35 x 60

40 x 50

35 x 70

40 x 60

35 x 80

40 x 70

40 x 80

45 x 60

40 x 100

45 x 70

40 x 100

45 x 100

400

35 x 60

40 x 50

35 x 60

40 x 50

35 x 70

40 x 60

45 x 50

35 x 80

40 x 70

45 x 60

35 x 100

40 x 80

45 x 70

40 x 100

45 x 80

45 x 100

420

35 x 60

40 x 50

35 x 70

40 x 60

35 x 80

40 x 60

40 x 70

40 x 100

45 x 70

40 x 100

45 x 80

45 x 100

450

35 x 60

35 x 70

40 x 50

35 x 80

40 x 60

35 x 100

40 x 70

45 x 60

40 x 80

45 x 70

40 x 100

45 x 80

45 x 100

500

35 x 60

35 x 70

40 x 60

35 x 80

40 x 70

35 x 100

40 x 80

40 x 100

45 x 70

45 x 100

Document Number: 28392

For technical questions, contact:

aluminumcaps2@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
