51AAD-B24-B15L

Description
Potentiometers 10Kohms
CategoryPassive components    The resistor
File Size368KB,3 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric View All

51AAD-B24-B15L Online Shopping

Suppliers Part Number Price MOQ In stock
51AAD-B24-B15L - - View Buy Now

51AAD-B24-B15L Overview

Potentiometers 10Kohms

51AAD-B24-B15L Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerBourns
package instructionPCB Mount, 4965
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time8 weeks
Actuator directionHORIZONTAL
Actuator typeSHAFT
structureSquare
gang number1
JESD-609 codee3
Lead length6.6 mm
Manufacturer's serial number51
Installation featuresTHROUGH HOLE MOUNT
Number of terminals3
number of turns1
Maximum operating temperature125 °C
Minimum operating temperature1 °C
Package height13.25 mm
Package length12.5 mm
Package shapeRECTANGULAR PACKAGE
Package formPCB Mount
Package width8.89 mm
Rated power dissipation(P)0.5 W
Rated temperature70 °C
resistance10000 Ω
resistance lawLINEAR
Resistor typePOTENTIOMETER
rotation angle270 deg
series51
size code4965
surface mountNO
technologyCONDUCTIVE PLASTIC
Temperature Coefficient-1000,1000 ppm/°C
Terminal surfaceMatte Tin (Sn)
Terminal shapeWIRE
Tolerance20%
Base Number Matches1
PL
IA
N
Features
RoHS compliant*
Conductive plastic or cermet
Linear and audio tapers
PC board and bushing mount
Gangable
Metal bushing and shaft
Sealed for board washing
*R
oH
S
CO
M
T

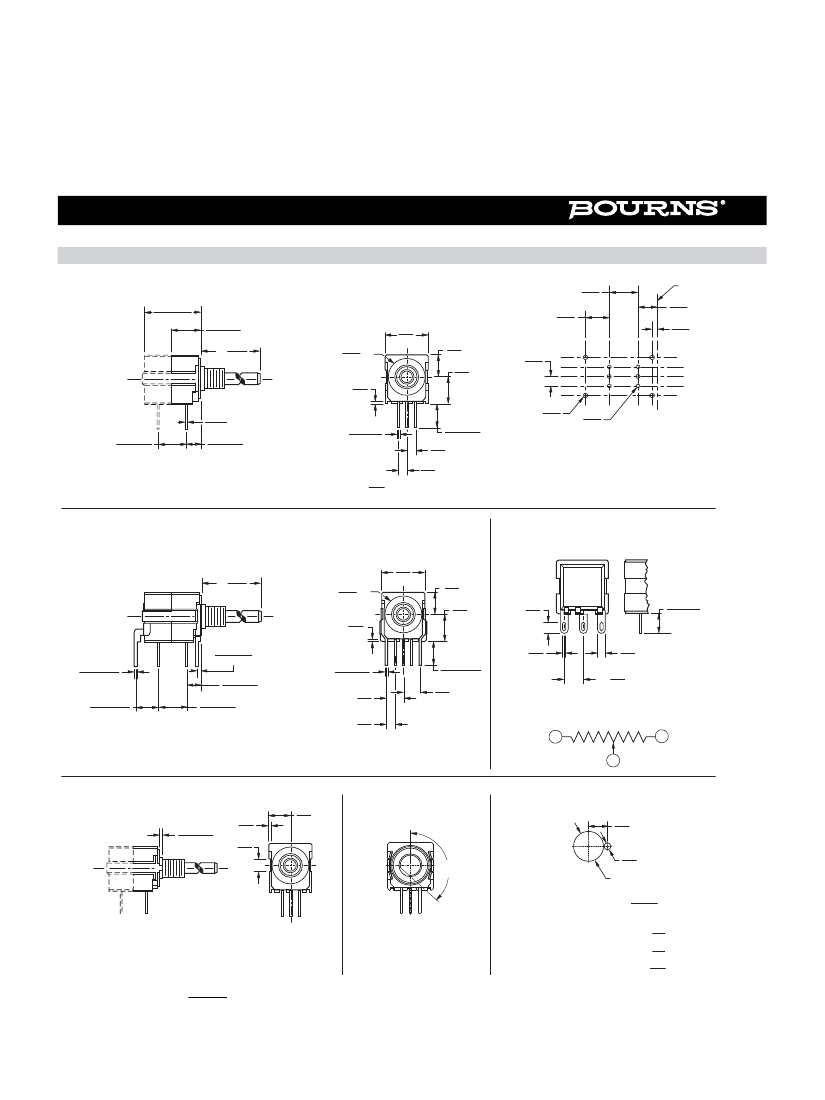

51/53 - Sealed 1/2 ” (12.5 mm) Square Control
Electrical Characteristics
1
Conductive Plastic
Cermet
Standard Resistance Range
Linear ...................................................................................................1 K ohms to 1 megohm ......................... 150 ohms to 1 megohm
Audio ....................................................................................................1 K ohms to 1 megohm ......................... 1 K ohms to 1 megohm
Total Resistance Tolerance
Linear Tapers ........................................................................................±10 % or ±20 % .................................... ±10 % or ±5 %
Audio Tapers ........................................................................................±10 % or ±20 % .................................... ±10 %
Independent Linearity .................................................................................±5 % ...................................................... ±5 %
Absolute Minimum Resistance ...................................................................2 ohms maximum .................................. 2 ohms maximum
Effective Electrical Angle ............................................................................270 ° ±5 ° .............................................. 270 ° ±5 °
Contact Resistance Variation .....................................................................2 % ........................................................ 2 %
Dielectric Withstanding Voltage (MIL-STD-202 – Method 301)
Sea Level ..............................................................................................1,500 VAC minimum .............................. 1,500 VAC minimum
70,000 ..................................................................................................500 VAC minimum ................................. 500 VAC minimum
Insulation Resistance .................................................................................1,000 megohms minimum ..................... 1,000 megohms minimum
Power Rating At 70 °C (Derate To 0 At 125 °C)
(Voltage Limited By Power Dissipation or 350 VAC, Whichever Is Less)
Linear Tapers ........................................................................................0.5 watt.................................................. 1.0 watt
Audio Tapers ........................................................................................0.25 watt................................................ 0.5 watt
Theoretical Resolution ................................................................................Essentially infinite .................................. Essentially infinite
Environmental Characteristics
1
Operating Temperature Range ...................................................................+1 °C to +125 °C ................................... +1 °C to +125 °C
Storage Temperature Range ......................................................................-55 °C to +125 °C.................................. -55 °C to +125 °C
Temperature Coefficient Over Storage Temperature Range ......................±1,000 ppm/°C ...................................... ±150 ppm/°C
Vibration (Single Section) ...........................................................................15 G ....................................................... 15 G
Total Resistance Shift ...........................................................................±2 % maximum ..................................... ±2 % maximum
Voltage Ratio Shift ................................................................................±5 % maximum ..................................... ±5 % maximum
Shock (Single Section) ...............................................................................30 G ....................................................... 30 G
Total Resistance Shift ...........................................................................+2 % maximum ..................................... ±2 % maximum
Voltage Ratio Shift ................................................................................±5 % maximum ..................................... ±5 % maximum
Load Life.....................................................................................................1,000 hours ........................................... 1,000 hours
Total Resistance Shift ...........................................................................±10 % TRS maximum ........................... ±5 % TRS maximum
Rotational Life (No Load) ............................................................................50,000 cycles ........................................ 25,000 cycles
Total Resistance Shift ...........................................................................±10 % TRS maximum ........................... ±10 % TRS maximum
Contact Resistance Variation @ 25,000 Cycles ...................................±2 % ...................................................... ±4 %
Moisture Resistance (MIL-STD-202, Method 103, Condition B)
Total Resistance Shift ...........................................................................±10 % TRS ............................................ ±5 % TRS
IP Rating
Entire Unit.............................................................................................IP64 ....................................................... IP64
Shaft/Bushing.......................................................................................IP65 ....................................................... IP65
Mechanical Characteristics
Stop Strength ............................................................................................................................................................................................... 56 N-cm (5 lb.-in.)
Mechanical Angle ...................................................................................................................................................................................................... 290 ° ±5 °
Torque
Starting (Dual Sections).............................................................................................................................................. +0.35 N-cm (+0.5 oz.-in.) maximum
Running (Single Section) ............................................................................................................................................. 0.15 to 1.4 N-cm (0.2 to 2.0 oz.-in.)
Running (Dual Section) ................................................................................................................................................ 0.35 to 1.8 N-cm (0.5 to 2.5 oz.-in.)
Detent (Single Section) ...................................................................................................................................................1.94 N-cm (2.75 oz.-in.) minimum
Mounting (Torque on Bushing) .......................................................................................................................... 1.7 to 2.0 N-m (15 to 18 lb.-in.) maximum
Weight (Single Section).............................................................................................................................................................................................. 5.5 grams
(Additional Section) ............................................................................................................................................................................................. 3.0 grams
Terminals ................................................................................................................................................................................................... PC pin or solder lug
Soldering Condition .................................................................. Recommended hand soldering using Sn95/Ag5 no clean solder, 0.025 ” wire diameter.
Maximum temperature 399 °C (750 °F) for 3 seconds. No wash process to be used with no clean flux.
Part can be wave soldered at 260 °C (500 °F) for 5 seconds, no wash process with no clean flux.
Marking.................................................................................................................. Manufacturer’s trademark, part number, resistance value and date code.
Ganging (Multiple Section Potentiometer) ............................................................................................................................................ 2 sections maximum**
Hardware ...........................................One lockwasher and one mounting nut is shipped with each potentiometer, except where noted in the part number.
1
At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.
** Additional sections available on special request with higher minimum order quantities.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
