HIN232, HIN236, HIN237, HIN238,
HIN239, HIN240, HIN241
Data Sheet
September 26, 2008
FN3138.16
+5V Powered RS-232
Transmitters/Receivers
The HIN232-HIN241 family of RS-232 transmitters/receivers
interface circuits meet all ElA RS-232E and V.28 specifications,
and are particularly suited for those applications where ±12V is
not available. They require a single +5V power supply (except
HIN239) and feature onboard charge pump voltage converters
which generate +10V and -10V supplies from the 5V supply.
The family of devices offer a wide variety of RS-232
transmitter/receiver combinations to accommodate various
applications (see “Selection Table” on page 1).
The drivers feature true TTL/CMOS input compatibility,
slew-rate-limited output, and 300Ω power-off source
impedance. The receivers can handle up to ±30V, and have
a 3kΩ to 7kΩ input impedance. The receivers also feature
hysteresis to greatly improve noise rejection.
Features
• Meets All RS-232E and V.28 Specifications
• Requires Only Single +5V Power Supply
- (+5V and +12V - HIN239)
• High Data Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . 120kbps
• Onboard Voltage Doubler/Inverter
• Low Power Consumption
• Low Power Shutdown Function
• Three-State TTL/CMOS Receiver Outputs
• Multiple Drivers
- ±10V Output Swing for 5V lnput
- 300Ω Power-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
- 30V/µs Maximum Slew Rate
• Multiple Receivers
- ±30V Input Voltage Range
- 3kΩ to 7kΩ Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection
• Pb-free Available (RoHS compliant)
Applications
• Any System Requiring RS-232 Communication Ports
- Computer - Portable, Mainframe, Laptop
- Peripheral - Printers and Terminals
- Instrumentation
- Modems
Selection Table
PART
NUMBER
HIN232
HIN236
HIN237
HIN238
HIN239
HIN240
HIN241
POWER SUPPLY
VOLTAGE
+5V
+5V
+5V
+5V
+5V and +7.5V to 13.2V
+5V
+5V
NUMBER OF
RS-232
DRIVERS
2
4
5
4
3
5
4
NUMBER OF
RS-232
RECEIVERS
2
3
3
4
5
5
5
EXTERNAL
COMPONENTS
4 Capacitors
4 Capacitors
4 Capacitors
4 Capacitors
2 Capacitors
4 Capacitors
4 Capacitors
LOW POWER
SHUTDOWN/TTL
THREE-STATE
No/No
Yes/Yes
No/No
No/No
No/Yes
Yes/Yes
Yes/Yes
NUMBER OF
LEADS
16
24
24
24
24
44
28
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 2004, 2005, 2008. All Rights Reserved.
All other trademarks mentioned are the property of their respective owners.
HIN232, HIN236, HIN237, HIN238, HIN239, HIN240, HIN241
Pin Descriptions
PIN
V
CC
V+
V-
GND
C1+
C1-
C2+
C2-
T
IN
T
OUT
R
IN
R
OUT
EN
Power Supply Input 5V ±10%.
Internally generated positive supply (+10V nominal), HIN239 requires +7.5V to +13.2V.
Internally generated negative supply (-10V nominal).
Ground lead. Connect to 0V.
External capacitor (+ terminal) is connected to this lead.
External capacitor (- terminal) is connected to this lead.
External capacitor (+ terminal) is connected to this lead.
External capacitor (- terminal) is connected to this lead.
Transmitter Inputs. These leads accept TTL/CMOS levels. An internal 400kΩ pull-up resistor to
V
CC
is connected to each lead.
Transmitter Outputs. These are RS-232 levels (nominally ±10V).
Receiver Inputs. These inputs accept RS-232 input levels. An internal 5kΩ pull-down resistor to GND is connected to each input.
Receiver Outputs. These are TTL/CMOS levels.
Enable input. This is an active low input which enables the receiver outputs. With EN = 5V, the receiver outputs are placed
in a high impedance state.
Shutdown Input. With SD = 5V, the charge pump is disabled, the receiver outputs are in a high impedance state and the
transmitters are shut off.
No Connect. No connections are made to these leads.
FUNCTION
SD
NC
2
FN3138.16
September 26, 2008
HIN232, HIN236, HIN237, HIN238, HIN239, HIN240, HIN241
Ordering Information
PART
NUMBER
HIN232CB*
HIN232CBZ*
(Note)
HIN232CP
HIN232CPZ
(Note)
HIN232IB*
HIN232IBZ*
(Note)
HIN232IP
HIN232IPZ
(Note)
HIN236CB
HIN236CBZ
(Note)
HIN237CB*
HIN237CBZ*
(Note)
HIN238CB*
HIN238CBZ*(Note)
HIN238CP
HIN238IB
HIN238IBZ
(Note)
HIN239CB*
HIN239CBZ*
(Note)
HIN239CP
HIN239CPZ
(Note)
HIN240CN
HIN240CNZ*
(Note)
HIN241CA
HIN241CAZ
(Note)
HIN241CB*
HIN241CBZ*
(Note)
HIN241IB
HIN241IBZ
(Note)
232CB
HIN232CBZ
HIN232CP
HIN232CPZ
HIN232IB
HIN232IBZ
HIN232IP
HIN232IPZ
HIN236CB
HIN236CBZ
HIN237CB
HIN237CBZ
HIN238CB
HIN238CBZ
HIN238CP
HIN238IB
HIN238IBZ
HIN239CB
HIN239CBZ
HIN239CP
HIN239CPZ
HIN240CN
HIN240CNZ
HIN241CA
HIN241CAZ
HIN241CB
HIN241CBZ
HIN241IB
HIN241IBZ
PART
MARKING
TEMP. RANGE
(°C)
0 to +70
0 to +70
0 to +70
0 to +70
-40 to +85
-40 to +85
-40 to +85
-40 to +85
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
-40 to +85
-40 to +85
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
0 to +70
-40 to +85
-40 to +85
PACKAGE
16 Ld SOIC
16 Ld SOIC
(Pb-free)
16 Ld PDIP
16 Ld PDIP**
(Pb-free)
16 Ld SOIC
16 Ld SOIC
(Pb-free)
16 Ld PDIP
16 Ld PDIP**
(Pb-free)
24 Ld SOIC
24 Ld SOIC
(Pb-free)
24 Ld SOIC
24 Ld SOIC
(Pb-free)
24 Ld SOIC
24 Ld SOIC
(Pb-free)
24 Ld PDIP
24 Ld SOIC
24 Ld SOIC
(Pb-free)
24 Ld SOIC
24 Ld SOIC
(Pb-free)
24 Ld PDIP
24 Ld PDIP**
(Pb-free)
44 Ld MQFP
44 Ld MQFP
(Pb-free)
28 Ld SSOP
28 Ld SSOP
(Pb-free)
28 Ld SOIC
28 Ld SOIC
(Pb-free)
28 Ld SOIC
28 Ld SOIC
(Pb-free)
M16.3
M16.3
E16.3
E16.3
M16.3
M16.3
E16.3
E16.3
M24.3
M24.3
M24.3
M24.3
M24.3
M24.3
E24.3
M24.3
M24.3
M24.3
M24.3
E24.3
E24.3
Q44.10X10
Q44.10X10
M28.209
M28.209
M28.3
M28.3
M28.3
M28.3
PKG.
DWG. #
*Add “-T” suffix for tape and reel. Please refer to TB347 for details on reel specifications.
NOTE: These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100%
matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations).
Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J
STD-020.
**Pb-free PDIPs can be used for through hole wave solder processing only. They are not intended for use in Reflow solder processing applications.
3
FN3138.16
September 26, 2008
HIN232, HIN236, HIN237, HIN238, HIN239, HIN240, HIN241

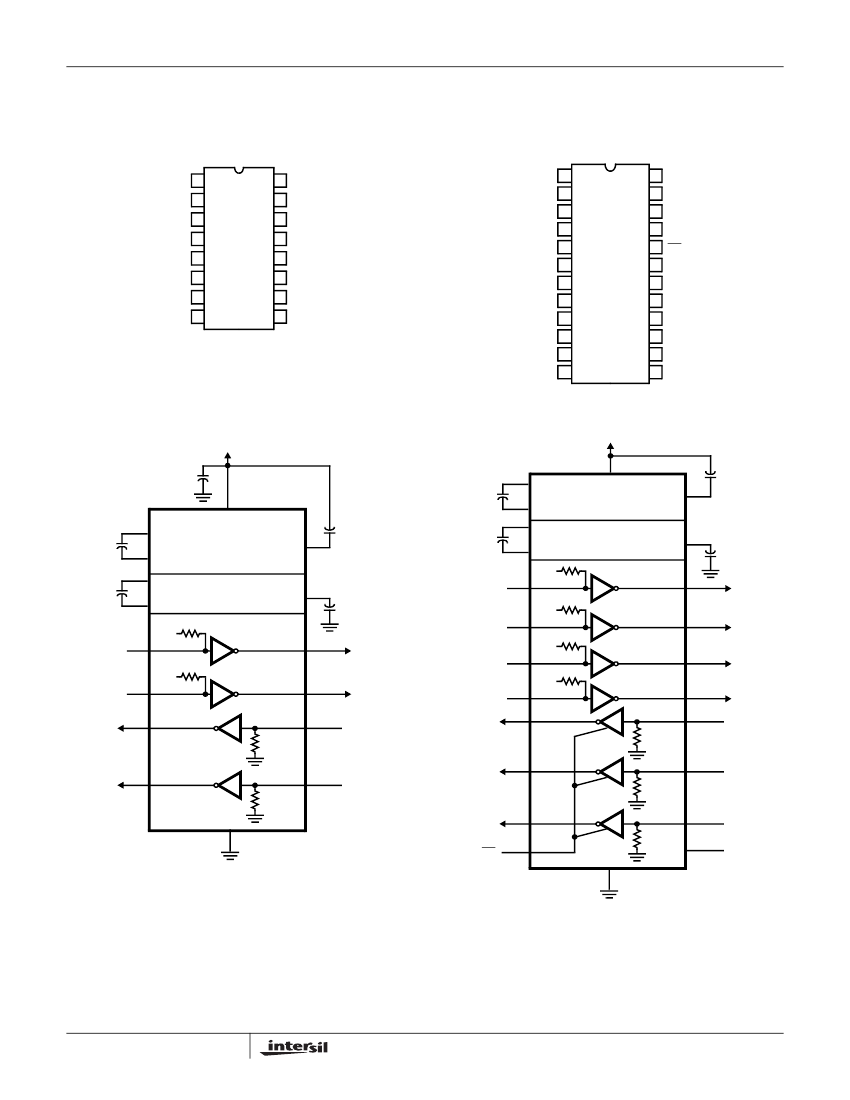

Pinouts
HIN232
(16 LD PDIP, SOIC)
TOP VIEW
T3
OUT
T1
OUT
T2
OUT
R1
IN
R1
OUT
T2
IN
T1
IN
GND
V
CC
1
2
3
4
5
6
7
8
9
HIN236
(24 LD SOIC)
TOP VIEW
24 T4
OUT
23 R2
IN
22 R2
OUT
21 SD
20 EN
19 T4
IN
18 T3
IN
17 R3
OUT
16 R3
IN
15 V-
14 C2-
13 C2+
C1+ 1
V+ 2
C1- 3
C2+ 4
C2- 5
V-
6
16 V
CC
15 GND
14 T1
OUT
13 R1
IN
12 R1
OUT
11 T1
IN
10 T2
IN
9 R2
OUT
T2
OUT
7
R2
IN
8
C1+ 10
V+ 11
C1- 12
+5V
1µF
+
16
1µF
1
NOTE 1
+
3
4
NOTE 1
+
5
V
CC
C1+
C1-
C2+
C2-
+5V TO 10V
VOLTAGE DOUBLER
V+
2
+
NOTE 1
+5V
9
10
V
CC
C1+
+
+5V TO 10V
12
C1- VOLTAGE DOUBLER
13
C2+
+
+10V TO -10V
14
VOLTAGE INVERTER
C2-
7
+5V
400kΩ
+5V
400kΩ
+5V
400kΩ
+5V
400kΩ
T1
+
1µF
V+
11
1µF
V- 15
+
2
1µF
T1
OUT
T2
OUT
+10V TO -10V
VOLTAGE INVERTER
T1
V- 6
+
14
NOTE 1
T1
IN
T2
IN
T1
OUT
T3
IN
6
T2
3
T1
IN
11
+5V
400kΩ
+5V
400kΩ
18
19
5
T3
T4
1
24
4
T3
OUT
T4
OUT
R1
IN
T2
IN
R1
OUT
10
12
T2
7
13
T2
OUT
R1
IN
T4
IN
R1
OUT
R1
9
R2
5kΩ
8
5kΩ
R3
OUT
15
EN
17
20
R2
OUT
22
R1
5kΩ
23
R2
IN
R2
OUT
R2
IN
R2
5kΩ
16
R3
IN
SD
R3
5kΩ
21
NOTE:
1. Either 0.1
µ
F or 1
µ
F capacitors may be used.
8
4
FN3138.16
September 26, 2008
