TG93-1505NZRL

Description
Audio Transformers / Signal Transformers T1/E1 Duet+ ISO MOD SMD 24P Dual Port
CategoryPassive components
File Size367KB，3 Pages
ManufacturerHALO Electronics
Environmental Compliance
Download Datasheet Parametric View All

TG93-1505NZRL Online Shopping

Suppliers Part Number Price MOQ In stock
TG93-1505NZRL - - View Buy Now

TG93-1505NZRL Overview

Audio Transformers / Signal Transformers T1/E1 Duet+ ISO MOD SMD 24P Dual Port

TG93-1505NZRL Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerHALO Electronics
Product CategoryAudio Transformers / Signal Transformers
RoHSDetails
Termination StyleSMD/SMT
Inductance500 nH
Isolation Voltage1.5 kV
Number of ChannelsDual
ProductWAN
TypeModule
ApplicationT1/E1 Line Interface
Package / CaseSMD-24
Length17.78 mm
Width12.19 mm
Height5.84 mm
PackagingTube
Maximum DC Resistance800 mOhms
Operating Temperature Range-
ShieldingShielded
Factory Pack Quantity28

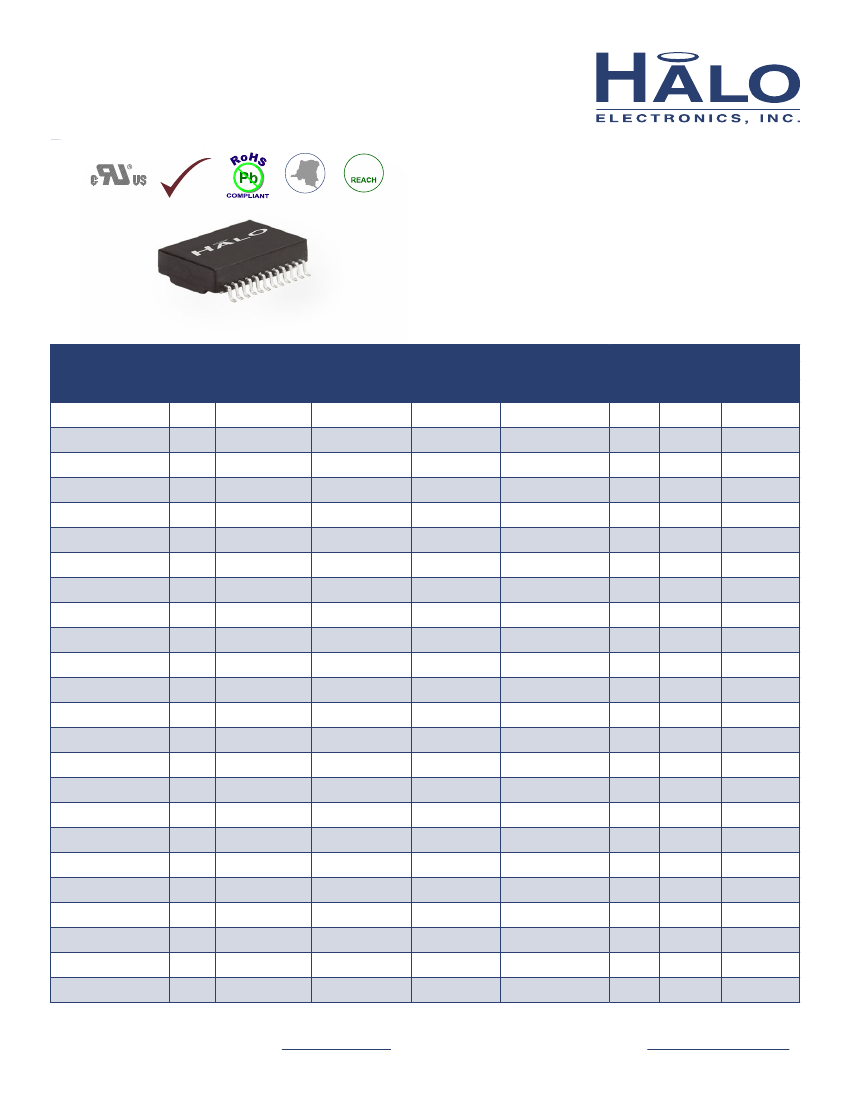

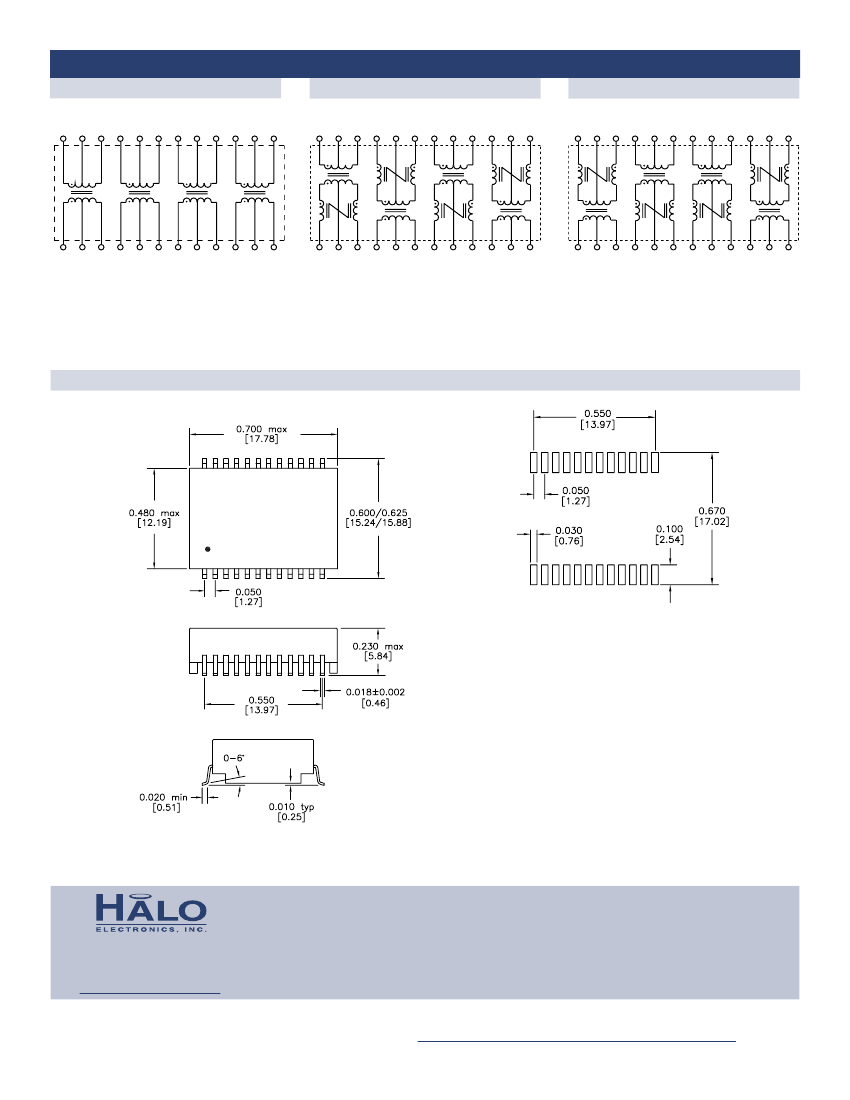

Preview

Download Datasheet
Duet
™
& Duet+
™
Isolation Modules
SMD Dual Port T1/E1 Transformers
RoHS
Compliant
Conflict
FREE
ü
Product Features:
DUET and DUET+ Telecom Transformers
UL/EN60950 & DEMKO Recognized
100% Electrical Testing
1500Vrms Hi-Pot
Patented Open Frame Construction
US Patent Numbers:
5,656,985
6,297,721 B1
6,297,720 B1 6,320,489 B1
6,344,785 B1 6,662.431 B1
DUET™
Part Number
TG08-1505NZLF
TG08-1505NZRL
TG25-1505NZLF
TG25-1505NZRL
TG26-1505NZLF
TG26-1505NZRL
TG27-S004NZLF
TG27-S004NZRL
TG28-1505NZLF
TG28-1505NZRL
TG37-S002NZLF
TG37-S002NZRL
TG38-1505NZLF
TG38-1505NZRL
TG42-1505NZLF
TG42-1505NZRL
TG63-1505NZLF
TG63-1505NZRL
TG63-S002NZLF
TG63-S002NZRL
TG74-1505NZLF
TG74-1505NZRL
TG91-1505NZLF
TG91-1505NZRL
Circuit
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Turns Ratio ±2%
TX
RX
1CT:2CT
1CT:2CT
1CT:1.26CT
1CT:1.26CT
1CT:2CT
1CT:2CT
1CT:1.36CT
1CT:1.36CT
1CT:1.36CT
1CT:1.36CT
1CT:1.14CT
1CT:1.14CT
1CT:1.15CT
1CT:1.15CT
1CT:1.41CT
1CT:1.41CT
1CT:1.15CT
1CT:1.15CT
1CT:1.15CT
1CT:2CT
1CT:2CT
1CT:2CT
1CT:2.4CT
1CT:2.4CT
1CT:2CT
1CT:2CT
1CT:1.26CT
1CT:1.26CT
1CT:2CT
1CT:2CT
1CT:2CT
1CT:2CT
1CT:1CT
1CT:1CT
1CT:1.14CT
1CT:1.14CT
1CT:1.15CT
1CT:1.15CT
1CT:1.41CT
1CT:1.41CT
1CT:2CT
1CT:2CT
1CT:2CT
1CT:1.15CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
Primary Pins
TX
RX
1-3 & 7-9
1-3 & 7-9
1-3 & 7-9
1-3 & 7-9
1-3 & 10-12
1-3 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
1-3 & 10-12
1-3 & 10-12
1-3 & 10-12
1-3 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
1-3 & 10-12
1-3 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
4-6 & 10-12
21-19 & 18-16
21-19 & 18-16
24-22 & 18-16
24-22 & 18-16
24-22 & 18-16
24-22 & 18-16
24-22 & 18-16
24-22 & 18-16
4-6 & 7-9
4-6 & 7-9
21-19 & 18-16
21-19 & 18-16
24-22 & 18-16
24-22 & 18-16
1-3 & 7-9
1-3 & 7-9
24-22 & 18-16
24-22 & 18-16
21-19 & 18-16
21-19 & 18-16
Cw/w PRI LL
(pF) (µH max)
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
RoHS
1
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb-Free
RoHS (7a)
Pb- Free
RoHS (7a)
Pb-Free
RoHS (7a)
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com
