AN5416 datasheet, PDF - EEWORLD Datasheet

AN5416: DescriptionColor TV Deflection Signal Processing Circuits; CategoryOther integrated circuit (IC) Consumption circuit; File Size159KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

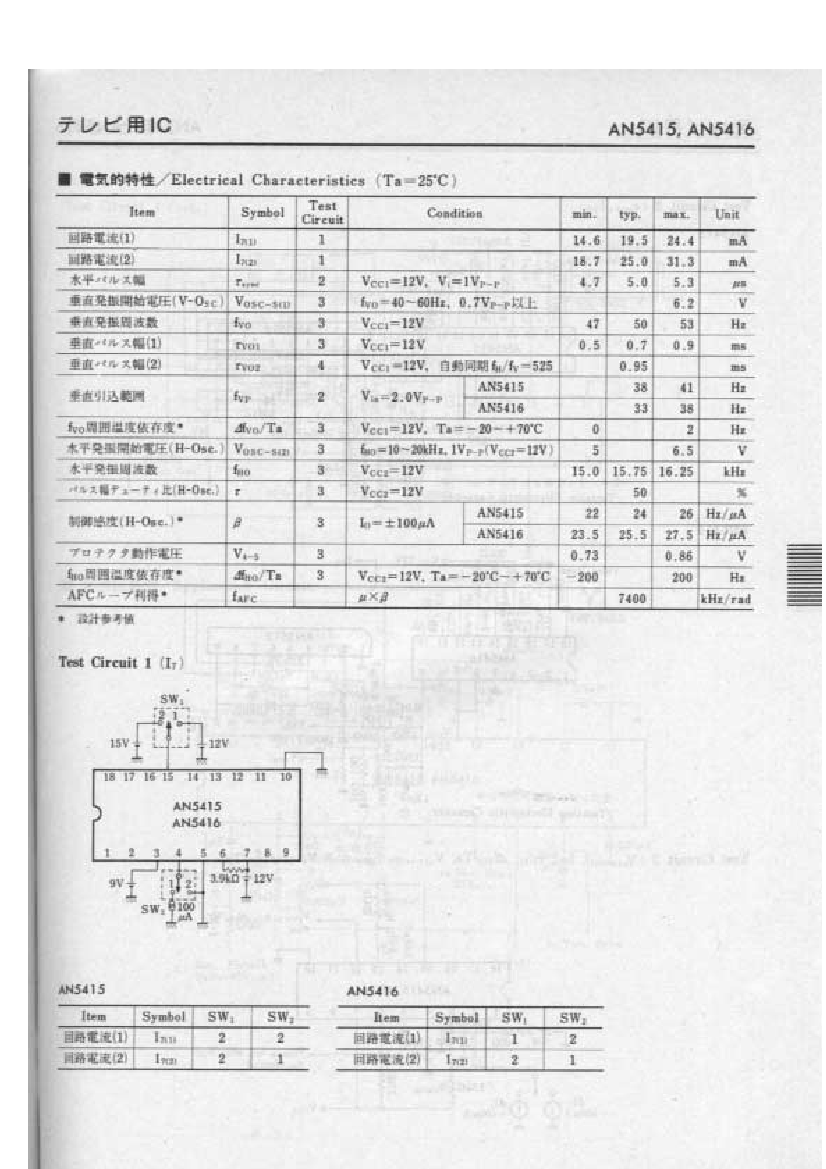

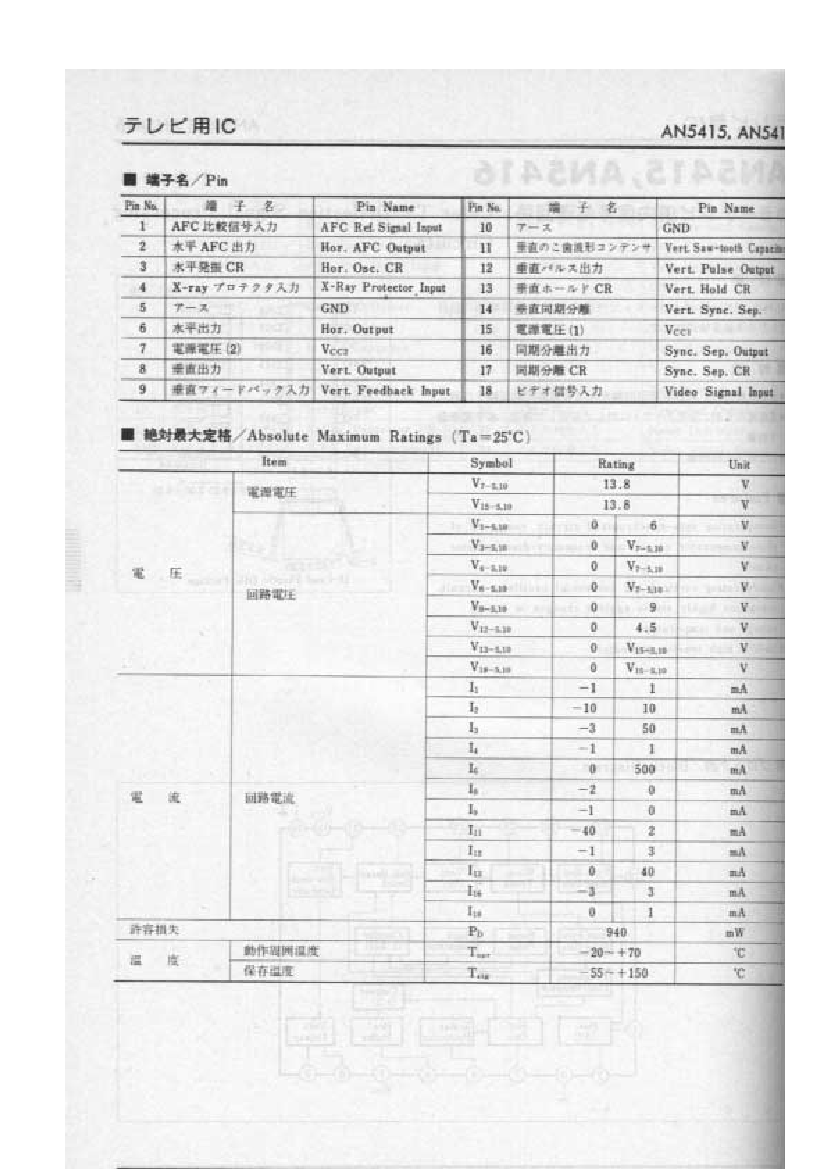

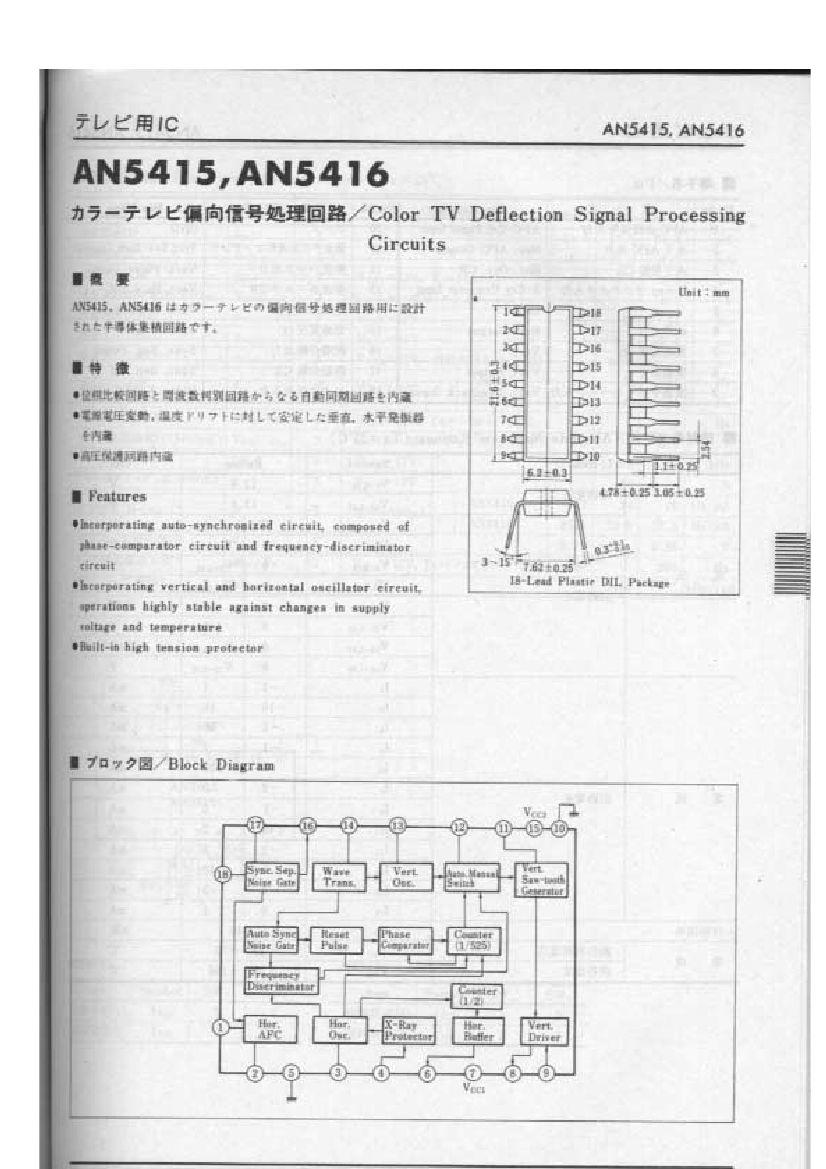

AN5416 Overview

Color TV Deflection Signal Processing Circuits

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Panasonic
Parts packaging code	DIP
package instruction	DIL-18
Contacts	18
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
length	21.6 mm
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum seat height	4.95 mm
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	12 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

	AN5416	AN5415
Description	Color TV Deflection Signal Processing Circuits	Color TV Deflection Signal Processing Circuits
Is it Rohs certified?	incompatible	incompatible
Maker	Panasonic	Panasonic
Parts packaging code	DIP	DIP
package instruction	DIL-18	DIL-18
Contacts	18	18
Reach Compliance Code	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T18	R-PDIP-T18
JESD-609 code	e0	e0
length	21.6 mm	21.6 mm
Number of functions	1	1
Number of terminals	18	18
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	12 V	12 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.95 mm	4.95 mm
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm
