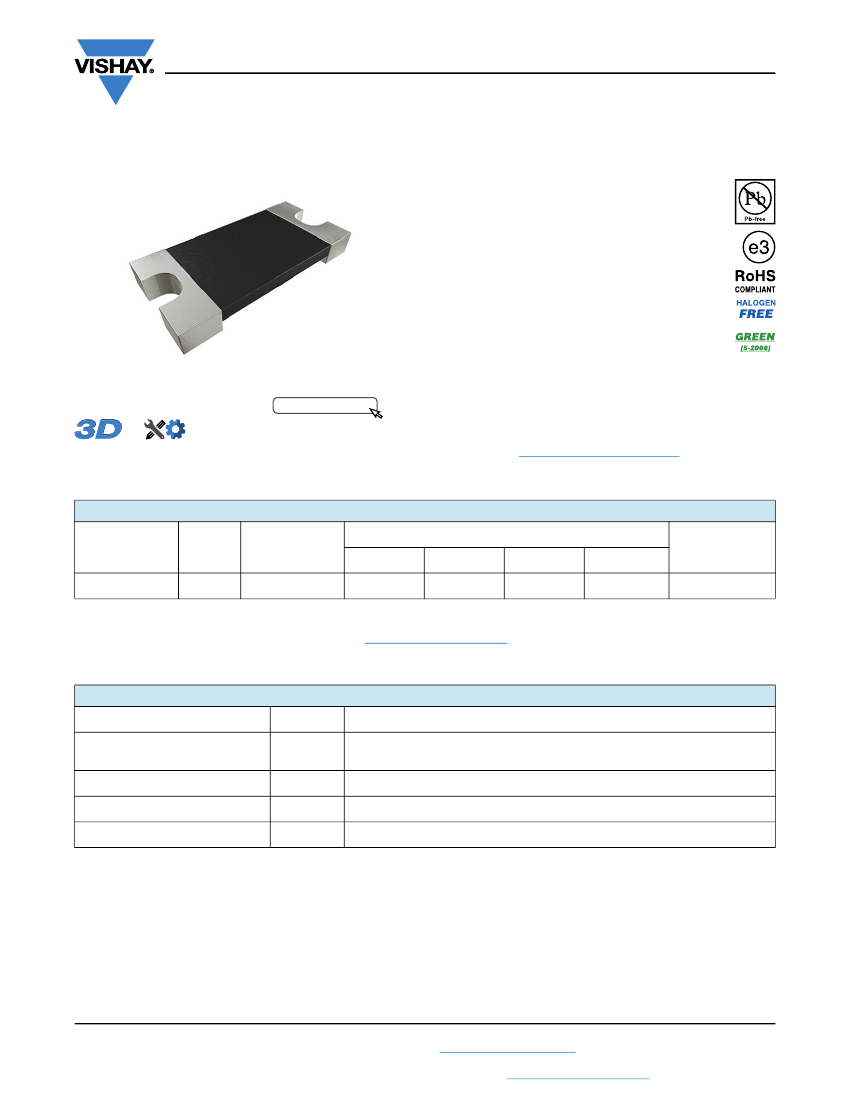

WSK1206...18 High Power
www.vishay.com
Vishay Dale
Power Metal Strip
®
Resistors, High Power,
Surface Mount, 4-Terminal
FEATURES
• 4-terminal design
• Ideal for all types of current sensing, voltage
division and pulse applications
• Proprietary processing technique produces
extremely low resistance values
• Sulfur resistance by construction that is
unaffected by high sulfur environments
• Durable with all-welded construction
• All welded construction
Available
Available
DESIGN SUPPORT TOOLS
Models
Available
Design Tools
click logo to get started
• Solid metal nickel-chrome or manganese-
copper resistive element with low TCR
ppm/°C)
• Low thermal EMF (< 3 μV/°C)
(< 20
Available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
WSK1206...18
SIZE
POWER RATING
P
70 °C
W
0.5
RESISTANCE VALUE RANGE
Tol. ± 0.1 %
0.04 to 0.05
Tol. ± 0.25 %
0.02 to 0.05
Tol. ± 0.5 %
0.01 to 0.05
Tol. ± 1.0 %
0.01 to 0.05
WEIGHT (typical)
g/1000 pieces
16
1206
Notes
• Part marking: due to resistor size limitation, parts will be marked with only the resistance value
• Resistance values are available per WSL decade table (www.vishay.com/doc?30117)
TECHNICAL SPECIFICATIONS
PARAMETER
Component temperature coefficient
(including terminal)
(1)
Element TCR
(2)
Operating temperature range
Maximum working voltage
(3)
UNIT
ppm/°C
ppm/°C
°C
V
RESISTOR CHARACTERISTICS
± 35
< 20
-65 to +170
(P x
R)
1/2
Notes
(1)
Component TCR - total TCR that includes the TCR effects of the resistor element and the copper terminal
(2)
Element TCR - only applies to the alloy used for the resistor element; refer to item 1 in the construction illustration on the following page
(3)
Maximum working voltage - the WSL is not voltage sensitive, but is limited by power / energy dissipation and is also not ESD sensitive
Revision: 16-Feb-18
Document Number: 30325
1
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSK1206...18 High Power
www.vishay.com
Vishay Dale
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: WSK1206R0150FEA
W
S
K
1
2
0
6
R
0
1
5
0
F
E
A
1
8
GLOBAL MODEL
WSK1206
RESISTANCE
VALUE
R
= decimal
R0100
= 0.01
TOLERANCE CODE
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
PACKAGING CODE
(1)
EA
= lead (Pb)-free, tape / reel
EK
= lead (Pb)-free, bulk
SPECIAL
18
= “high power”
option
Note
(1)
Packaging code: EB (lead (Pb)-free) and TB (tin / lead) are non-standard packaging codes designating 1000 piece reels. These non-standard
packaging codes are identical to our standard EA (lead (Pb)-free) and TA (tin / lead), except that they have a package quantity of 1000 pieces.

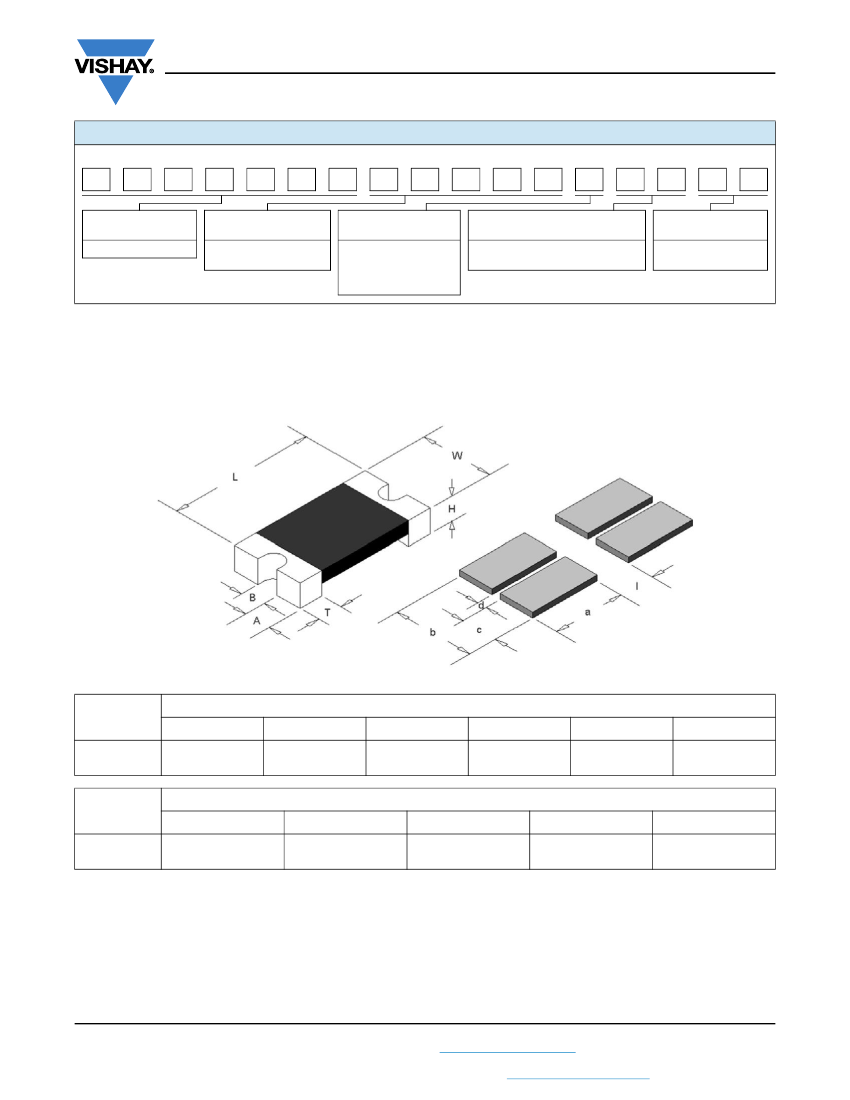

DIMENSIONS
DIMENSIONS
in inches (millimeters)
MODEL
L
WSK1206...18
0.126 ± 0.010
(3.20 ±0.254)
W
0.063 ± 0.010
(1.60 ± 0.254)
H
0.025 ± 0.010
(0.635 ± 0.254)
T
0.020 ± 0.010
(0.508 ± 0.254)
A
0.023 ± 0.010
(0.584 ± 0.254)
B
0.018 ± 0.010
(0.457 ± 0.254)
SOLDER PAD DIMENSIONS
in inches (millimeters)
MODEL
a
WSK1206...18
0.040
(1.01)
b
0.070
(1.778)
c
0.030
(0.762)
d
0.01
(0.254)
l
0.070
(1.778)
Revision: 16-Feb-18
Document Number: 30325
2
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSK1206...18 High Power
www.vishay.com
DERATING
Rated Power in %
120
Vishay Dale
PULSE CAPABILITY
click to get started
100
80
60
40
20
0
-65 -50
U
S
LL
I
-25
0
25
50
70
100
125
150 170
VE
TI
A
TR
S
S
E
O
RP
PU
LY
ON
Ambient Temperature in °C
www.vishay.com/resistors/power-metal-strip-calculator
PERFORMANCE
TEST
Thermal shock
Short time overload
Low temperature operation
High temperature exposure
Bias humidity
Mechanical shock
Vibration
Load life
Resistance to solder heat
Moisture resistance
CONDITIONS OF TEST
-55 °C to +150 °C, 1000 cycles, 15 min at each extreme
5x rated power for 5 s
-65 °C for 45 min
1000 h at +170 °C
+85 °C, 85 % RH, 10 % bias, 1000 h
100
g’s
for 6 ms, 5 pulses
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at +70 °C, 1.5 h “ON”, 0.5 h “OFF”
+260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence
MIL-STD-202, method 106, 0 % power, 7b not required
TEST LIMITS
± (0.5 %)
R
± (0.5 %)
R
± (0.5 %)
R
± (1.0 %)
R
± (0.5 %)
R
± (0.5 %)
R
± (0.5 %)
R
± (1.0 %)
R
± (0.5 %)
R
± (0.5 %)
R
PACKAGING
REEL
MODEL
TAPE WIDTH
WSK1206...18
8 mm/embossed plastic
DIAMETER
178 mm/7"
PIECES/REEL
4000
CODE
EA
Notes
• Embossed carrier tape per EIA-481
• Wirewound, Metal Film, and Power Metal Strip
®
Packaging (www.vishay.com/doc?20051)
Revision: 16-Feb-18
Document Number: 30325
3
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
