64ZR100KLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 64ZR100KLF

64ZR100KLF: DescriptionRESISTOR, TRIMMER, CERMET, 12 TURN(S), 0.25W, 100000ohm, 1/4 INCH, SQUARE, 3 PINS, ROHS COMPLIANT; CategoryPassive components The resistor; File Size805KB，4 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric View All

64ZR100KLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	64ZR100KLF	-	-	View	Buy Now

64ZR100KLF Overview

RESISTOR, TRIMMER, CERMET, 12 TURN(S), 0.25W, 100000ohm, 1/4 INCH, SQUARE, 3 PINS, ROHS COMPLIANT

64ZR100KLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1735385141
package instruction	PCB Mount,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.3
Actuator direction	HORIZONTAL
Actuator type	SCREW
Other features	RATED AC VOLTAGE (V): 200
structure	Rectangular
gang number	1
JESD-609 code	e3
Lead diameter	0.46 mm
Lead length	4.37 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	12
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	6.86 mm
Package length	6.35 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	4.19 mm
method of packing	TUBE
Rated power dissipation(P)	0.25 W
Rated temperature	85 °C
resistance	100000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	4320 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	TIN
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	200 V

Preview

Download Datasheet

View All

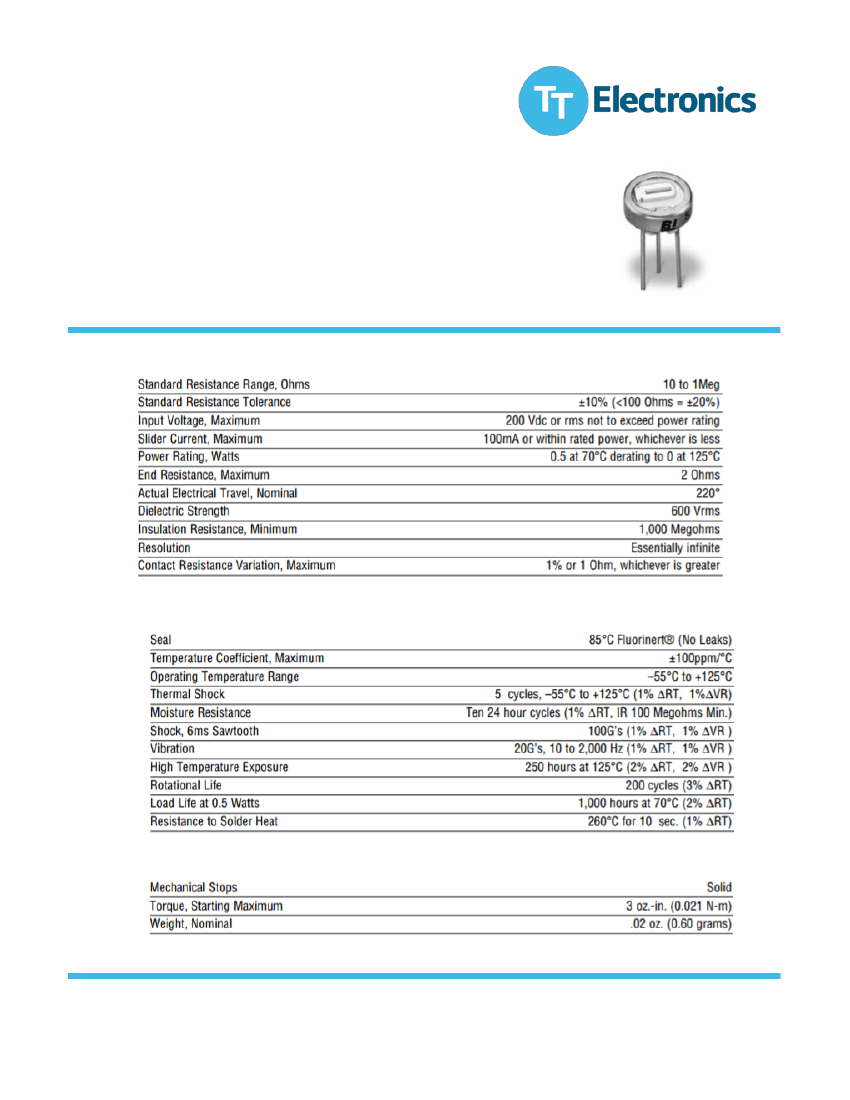

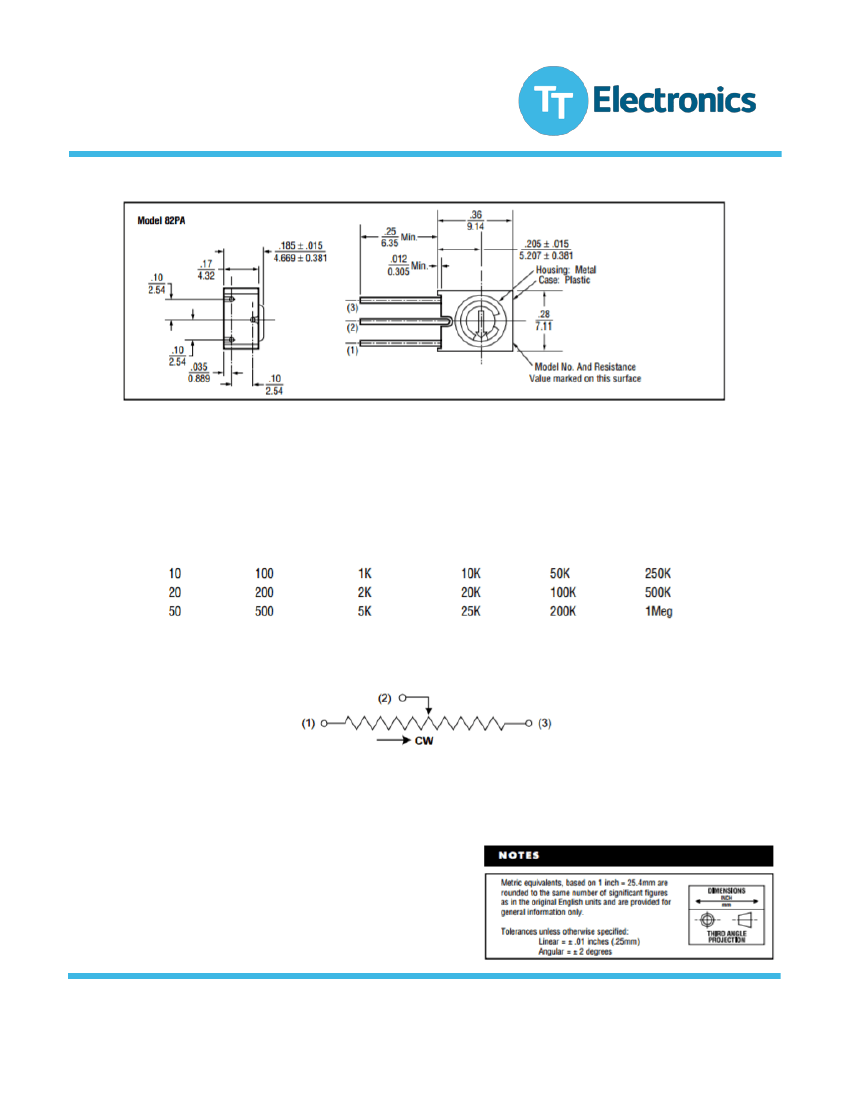

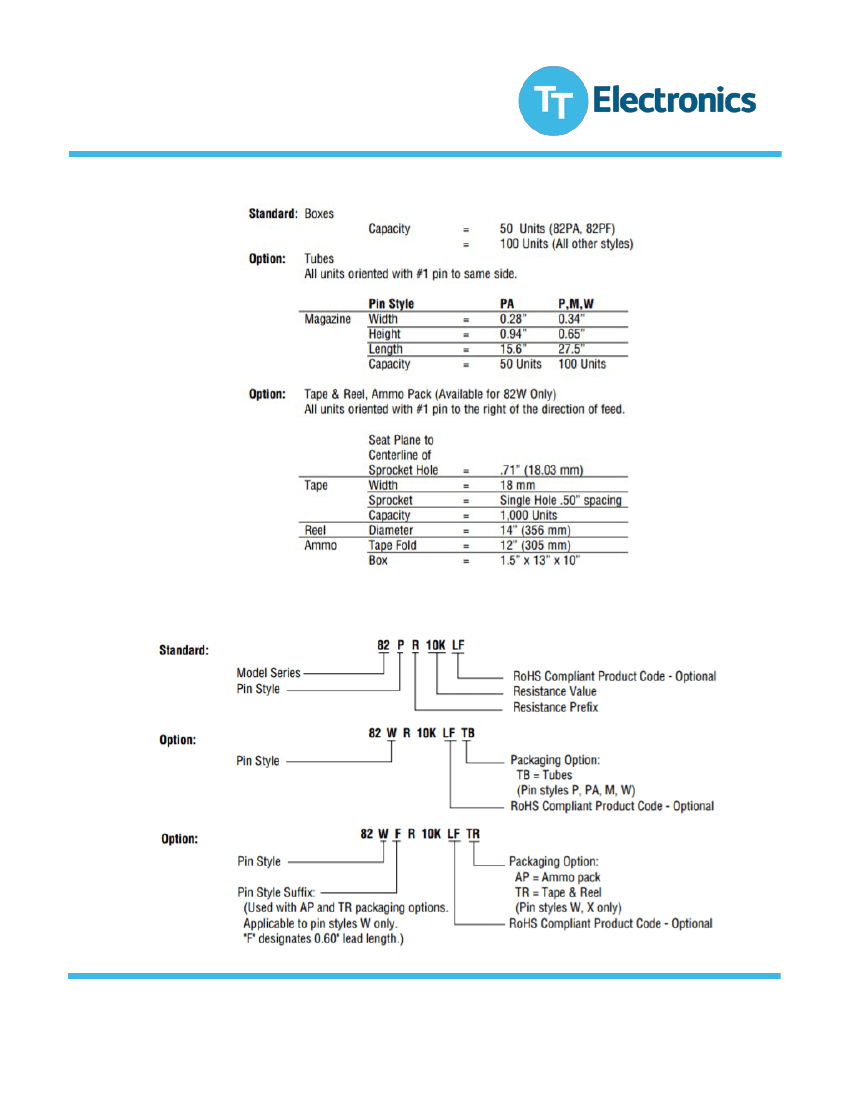

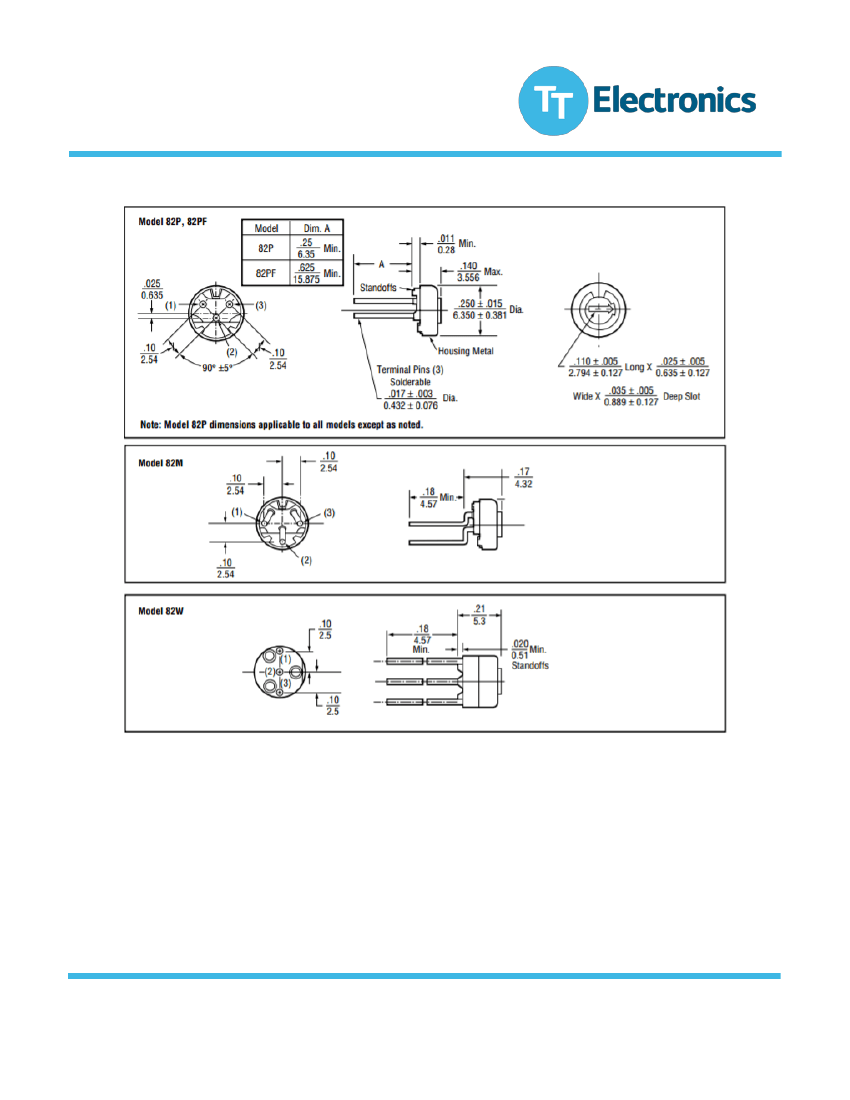

Single Turn Trimmer

Model 82

Features:



1/4” diameter



Single turn



Cermet

Electrical

Environmental

Mechanical

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835-1053 |Ph: +1 714-447-2300

www.ttelectronics.com | sensors@ttelectronics.com

Issue A

11/2016

Page 1
