Good attenuation characteristics in a wide frequency band.
For large current (2A to 4A) applications.
APPLICATIONS
For power lines of of telecommunication terminal devices including smartphones, audio-visual equipment, and information equipment.
PART NUMBER CONSTRUCTION
YFF
Series
name
15
LxW
dimensions
Code
15
18
21
31
mm
1.0×0.5
1.6×0.8
2.0×1.2
3.2×1.6
PC
Product
internal code
PC
PH
PW
STD
Thickness
0.8mm
Low ESL
0G
Rated
voltage
Code
0G
0J
1A
1C
1E
V
4
6.3
10
16
25
435
Capacitance
M
Tolerance
T
Taping
TDK
internal
code
0
Reel size
Code
0
9
mm
ø178
ø330
N
Internal
electrode
Ni
Code
104
105
435
226
pF
100,000
1,000,000
(1.0µF)
4,300,000
(4.3µF)
22,000,000
(22µF)
M
±20％
PACKAGING STYLE AND SPECIFICATIONS
Package quantity (piece/reel)
Type
YFF15PC
YFF15PC0G435M
YFF15PC0G755M
YFF15PC0G106M
YFF18PC
YFF18PH
YFF18PW
YFF21PC
YFF31PC
ø178
(mm)
10,000
10,000
10,000
10,000
4,000
4,000
4,000
4,000
2,000
ø330
(mm)
50,000
50,000
50,000
50,000
10,000
10,000
10,000
10,000
10,000
Unit weight
（g）
0.0008
0.0015
0.0027
0.0029
0.0038
0.0051
0.0038
0.0095
0.0342
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160708 / 3tf_commercial_yff-p_en.fm
(2/9)
E M C
C o m p o n e n t s
Overview of YFF-P series
RECOMMENDED SOLDERING CONDITION
REFLOW SOLDERING
Soldering
Preheating
Slow cooling
(Natural cooling)
REMINDERS FOR USING THESE PRODUCTS
Before soldering, be sure to preheat components. The
T
pre-
heating temperature must be 150°C max. with attention paid to
thermal shock.
Natural cooling of components in the air is recommended. On
the other hand, when dipping them in a solvent for purposes,
such as cleaning, make sure that the temperature difference
(T) is 100°C.
When performing hand soldering for circuit modification, apply
the soldering iron to the copper foil area of the printed circuit
board for 3 seconds or less. The temperature of the iron tip
should not exceed 300°C.
Use a wrist band to discharge static electricity in your body
through the grounding wire.
When incorporating the printed circuit board on which this prod-
uct is mounted into a frame, etc., do not apply stress to the prod-
uct through local bending of the board by tightening of screws,
etc.
260˚C max.
Temperature(˚C)
150˚C max.
60 seconds or more
10s max.
150˚C max.
Preheating
Make as short as possilble (within three seconds)
0
HAND SOLDERING
300
Temperature(˚C)
0
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160708 / 3tf_commercial_yff-p_en.fm
(3/9)
E M C
C o m p o n e n t s
YFF-P
series

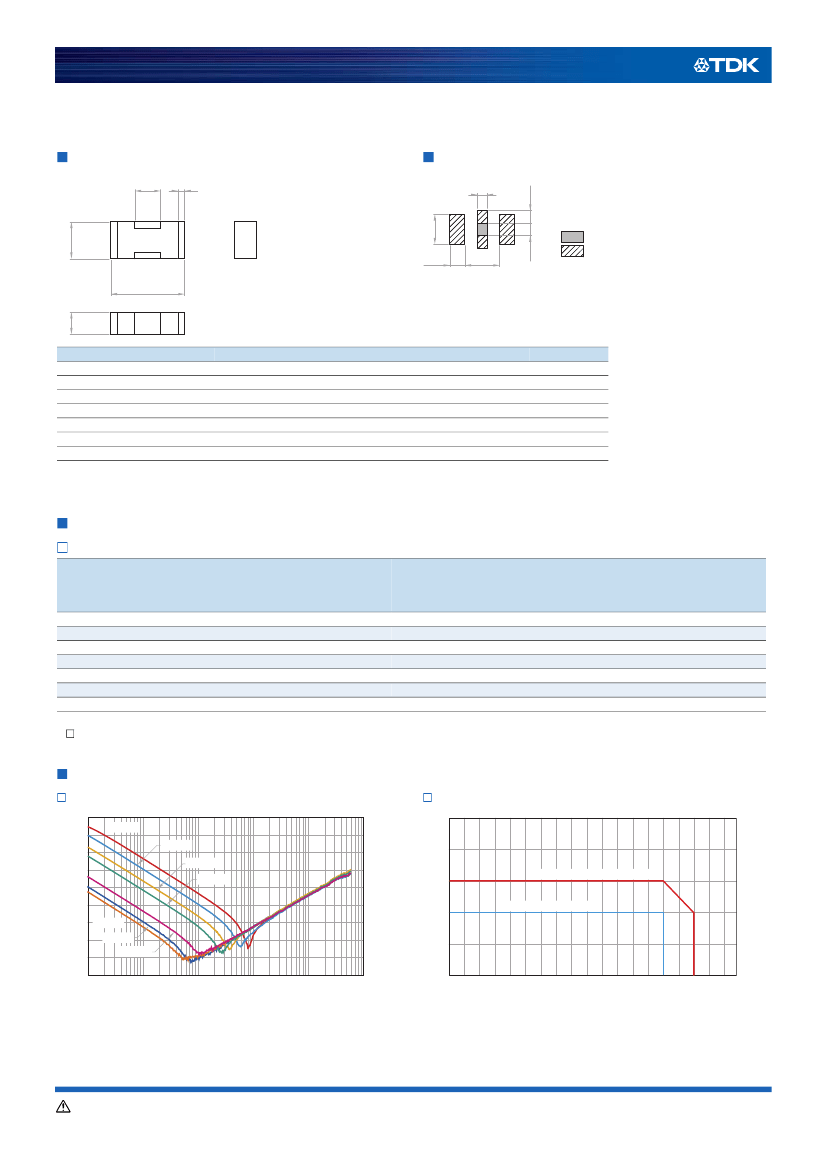

YFF15PC type
SHAPE & DIMENSIONS
C
GND
4
1
IN/OUT
2
GND
L
3
OUT/IN
B
RECOMMENDED LAND PATTERN
0.25
0.19
0.60
0.30
0.70
0.25
Land pattern+Solder resist
Land pattern
Dimensions in mm
Part No.
YFF15PC0G106MT00□N
YFF15PC0G755MT00□N
YFF15PC0G435MT00□N
YFF15PC0G105MT00□N
YFF15PC0J474MT00□N
YFF15PC1A224MT00□N
YFF15PC1C104MT00□N
T
W
L (mm)
1.00±0.20
1.00±0.20
1.05±0.05
1.00±0.05
1.00±0.05
1.00±0.05
1.00±0.05
W (mm)
0.50±0.20
0.50±0.15
0.65±0.05
0.55±0.05
0.55±0.05
0.55±0.05
0.55±0.05
T (mm)
0.50±0.15
0.50±0.15
0.45±0.05
0.30±0.05
0.30±0.05
0.30±0.05
0.30±0.05
B (mm)
0.07min.
0.07min.
0.09min.
0.09min.
0.09min.
0.09min.
0.09min.
C (mm)
0.35±0.10
0.35±0.10
0.30±0.10
0.30±0.10
0.30±0.10
0.30±0.10
0.30±0.10
* Make sure to connect the GND terminal of this product and the GND of the mounting circuit board by using through holes so that the distance between
them is the shortest.
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLES
Insertion loss
40dB frequency range
(MHz)
0.07 to 1000
0.11 to 1000
0.2 to 1000
0.8 to 1000
2
to 1000
4
to 1000
9
to 1000
Rated voltage
Edc
(V)
4
4
4
4
6.3
10
16
Rated current
Idc
(A)
2
2
2
3
3
3
3
Operating
temperature range
(°C)
–55 to 85
–55 to 85
–55 to 85
–55 to 105
–55 to 105
–55 to 105
–55 to 105
Storage temperature
range
(After mounting)
(°C)
–55 to 85
–55 to 85
–55 to 85
–55 to 105
–55 to 105
–55 to 105
–55 to 105
Part No.
YFF15PC0G106MT00
□
N
YFF15PC0G755MT00
□
N
YFF15PC0G435MT00
□
N
YFF15PC0G105MT00
□
N
YFF15PC0J474MT00
□
N
YFF15PC1A224MT00
□
N
YFF15PC1C104MT00
□
N
The part numbers are TDK’s standard specification products.
: Reel size code, 0 (ø178) or 9 (ø330).
ELECTRICAL CHARACTERISTICS GRAPH
INSERTION LOSS vs. FREQUENCY CHARACTERISTICS
0
10
20
Insertion loss(dB)
30
40
50
60
70
80
90
0.1
0G106
0G755
0G435
1
10
100
Frequency (MHz)
1000
10000
1C104
1A224
Rated current(A)
0J474
0G105
4
3
2
1
0
–55
1C104, 1A224, 0J474, 0G105
0G435, 0G755, 0G106
RATED CURRENT vs. TEMPERATURE CHARACTERISTICS (DERATING)
5
–35
–15
5
25
45
65
Ambient temperature(°C)
85
105
125
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160708 / 3tf_commercial_yff-p_en.fm
(4/9)
E M C
C o m p o n e n t s
YFF-P
series

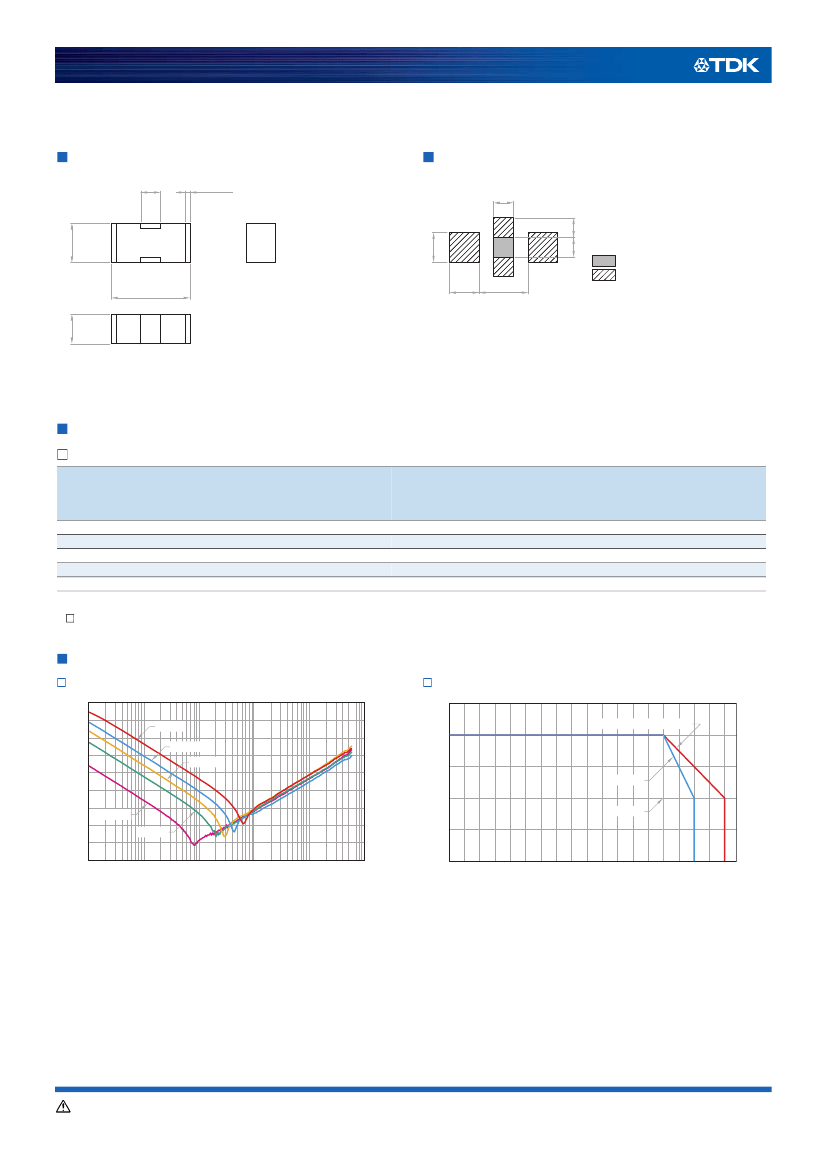

YFF18PC type
SHAPE & DIMENSIONS
0.40± 0.10
GND
4
0.10min.
0.40
RECOMMENDED LAND PATTERN
0.80±0.10
0.60
1
IN/OUT
2
GND
1.60± 0.20
3
OUT/IN
0.400.40
Land pattern+Solder resist
Land pattern
0.60
1.00
Dimensions in mm
* Make sure to connect the GND terminal of this product and the GND of the mounting circuit board by using through holes so that the distance between
them is the shortest.
0.60±0.10
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLES
Insertion loss
40dB frequency range
(MHz)
0.2 to 1000
0.8 to 1000
2 to 1000
3 to 1000
7 to 1000
Rated voltage
Edc
(V)
6.3
6.3
6.3
6.3
16
Rated current
Idc
(A)
4
4
4
4
4
Operating
temperature range
(°C)
–55 to 85
–55 to 105
–55 to 125
–55 to 125
–55 to 125
Storage temperature
range
(After mounting)
(°C)
–55 to 85
–55 to 105
–55 to 125
–55 to 125
–55 to 125
Part No.
YFF18PC0J475MT0H□N
YFF18PC0J105MT0H□N
YFF18PC0J474MT0H□N
YFF18PC0J224MT0H□N
YFF18PC1C104MT0H□N
The part numbers are TDK’s standard specification products.
: Reel size code, 0 (ø178) or 9 (ø330).
ELECTRICAL CHARACTERISTICS GRAPH
INSERTION LOSS vs. FREQUENCY CHARACTERISTICS
0
10
20
Insertion loss(dB)
30
40
50
60
70
80
90
0.1
1
10
100
Frequency (MHz)
1000
10000
0
–55
–35
–15
5
25
45
65
Ambient temperature(°C)
85
105
125
0J475
0J105
0J474
Rated current(A)
0J224
1C104
RATED CURRENT vs. TEMPERATURE CHARACTERISTICS (DERATING)
5
1C104, 0J224, 0J474
4
3
0J105
2
0J475
1
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
