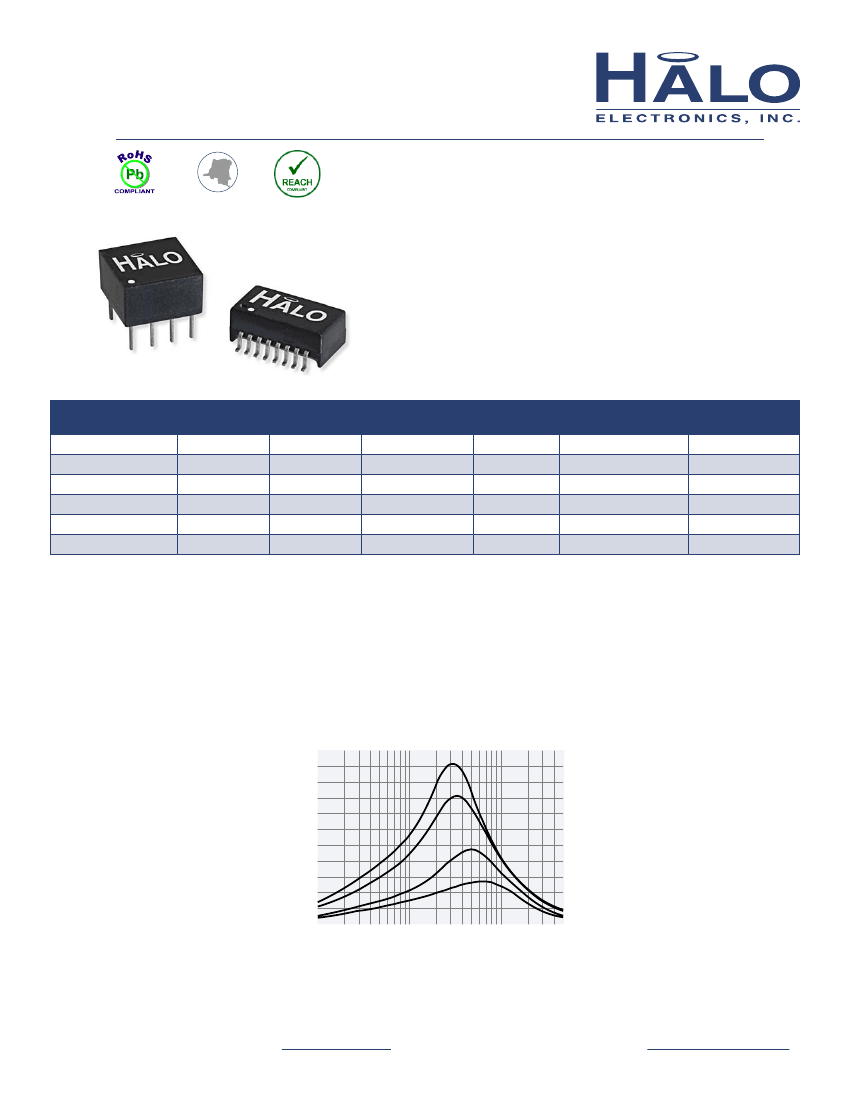

Dual 1:1 CMC Filters
DIL and SMD Packages
Conflict
FREE
Product Features:
Standard series of dual CMC filters for Data
Communications and Telecom applications.
These devices should be located on the LIU side of
the protection circuitry in Telecom products.
500Vrms Hi-Pot
UL recognized materials
Part Number
LG01-0346N1LF
LD01-0166F4LF
LD01-0366F4LF
LG01-0356N1LF
LG01-0856N1LF
LG01-1006N1LF
Package
SMD
DIL
DIL
SMD
SMD
SMD
OCL
(µH)
35 Min.
16 Min.
36 Min.
35 Min.
85 Typ.
100 Typ.
Cw/w
(pF max)
15
15
20
10
20
25
DCR
(Ω max)
0.30
0.25
0.25
0.30
0.55
0.65
Impedance/Freq.
Curve (Typ.)
B
A
B
B
C
D
Temp
Range
-40 to +85 °C
0 to +70 °C
0 to +70 °C
-40 to +85 °C
-40 to +85 °C
-40 to +85 °C
Notes:
1. Not recommended for applications providing remote power feed.
2. LF suffix is RoHS compliant and Pb-Free. RL suffix is RoHS compliant (exemption 7a, expected to expire July 2016
5K
IMPEDANCE (Ω)
4K
3K
2K
1K
0
1
10
D
C
B
A
FREQUENCY (MHz)
100
500
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com

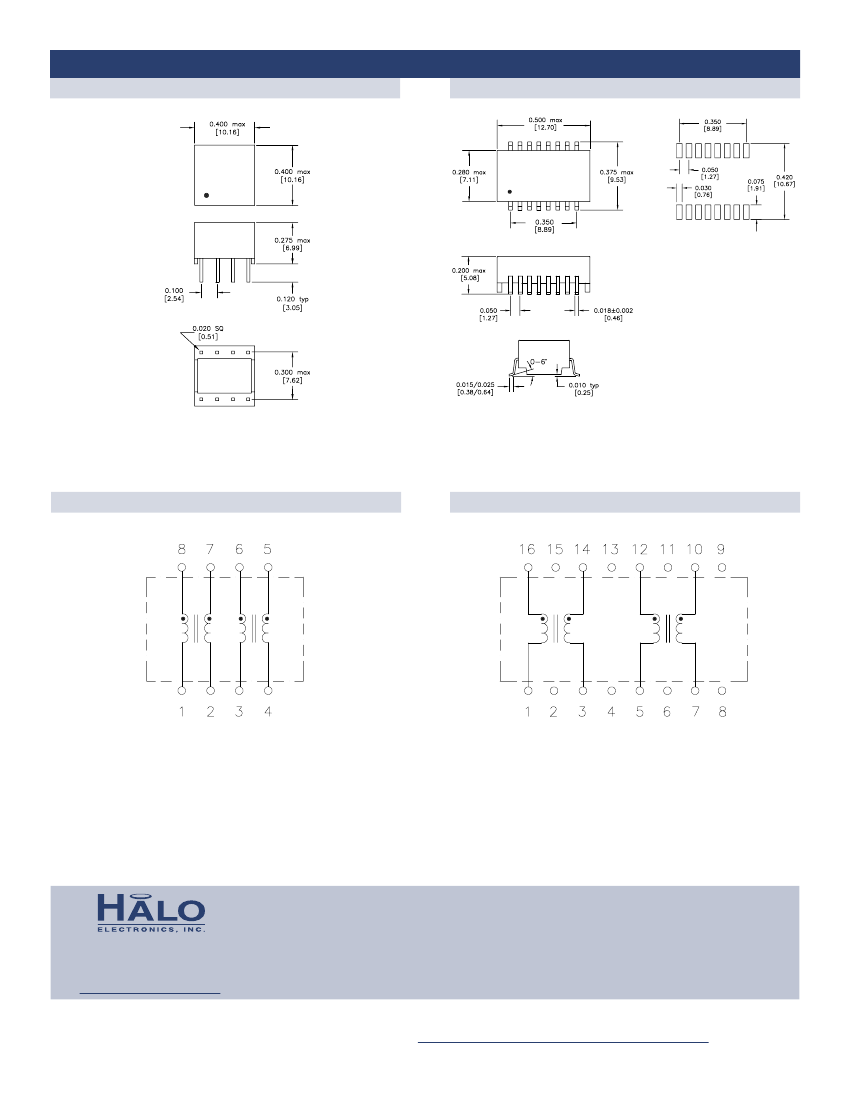

DIL Package (F4)
Dual 1:1 CMC Filters
SMD Package (N)
Recommended
Solder Pad Dimensions
Dimensions: inches [mm]
Dimensions: inches [mm]
Co-Planarity: 0.004 [0.10]
Schematic for DIL Package
Schematic for SMD Package
US Patent Numbers for SMD products
5,656,985
6,297,721 B1
6,297,720 B1
6,320,489 B1
6,344,785 B1
6,662,431 B1
2880 Lakeside Drive #116
Santa Clara, CA 95054
(650) 903-3800
www.haloelectronics.com
HALO
®
Electronics is a leading supplier of high quality communication magnetics
including signal transformers, filters, CMR chokes, PoE power transformers,
DC/DC converters, and integrated Ethernet connectors. HALO’s leading edge
technology solutions are manufactured in ISO9001 and ISO14001 factories
offering high quality products at a competitive price.
© Copyright 2015 HALO Electronics, Inc. All rights reserved.
Revised 02/2015 Download the latest version at
www.haloelectronics.com/pdf/discrete-dual-cmc.pdf
