DIODE MODULE
FEATURES
* Cathode & Anode Common
* 3 Phase Half Bridge Circuit
* High Surge Capability
* UL Recognized, File No. E187184
30A/800V
PE308N
PF308N

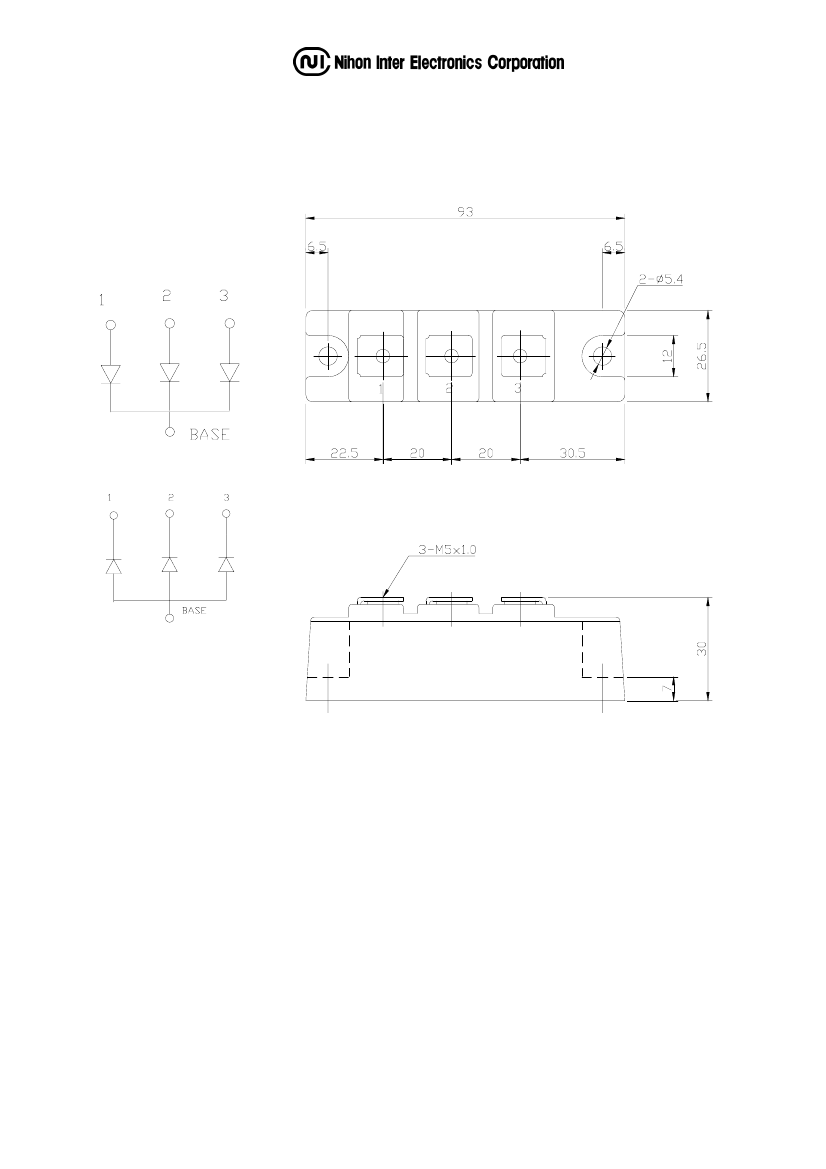

OUTLINE DRAWEING
PE
TYPICAL APPLICATIONS
* Rectified For General Use
PF
Maximum Ratings
Parameter
Repetitive Peak Reverse Voltage *1
Non Repetitive Peak Reverse Voltage *1
Approx Net Weight:155g
Symbol
V
RRM
V
RSM
Type / Grade
PE308 / PF308
800
960
Unit
V
Max Rated
Value
Parameter
Average Rectified Output Current *1
Surge Forward Current *1
I Squared t *1
Operating JunctionTemperature Range
Storage Temperature Range
Case mounting
Mounting torque
Terminals
I
O(AV)
I
FSM
I
2
t
Tjw
Tstg
Ftor
Conditions
50Hz Half Sine Wave condition
Tc=125°C
3 Phase Tc=121°C
50 Hz Half Sine Wave,1cycle
Non-repetitive
2msec to 10msec
Unit
A
A
A
30
27
600
Greased
M5 Screw
M5 Screw
1800
A
2
s
-40 to +150
°C
-40 to +125
°C
2.4 to 2.8
N
•
m
2.4 to 2.8

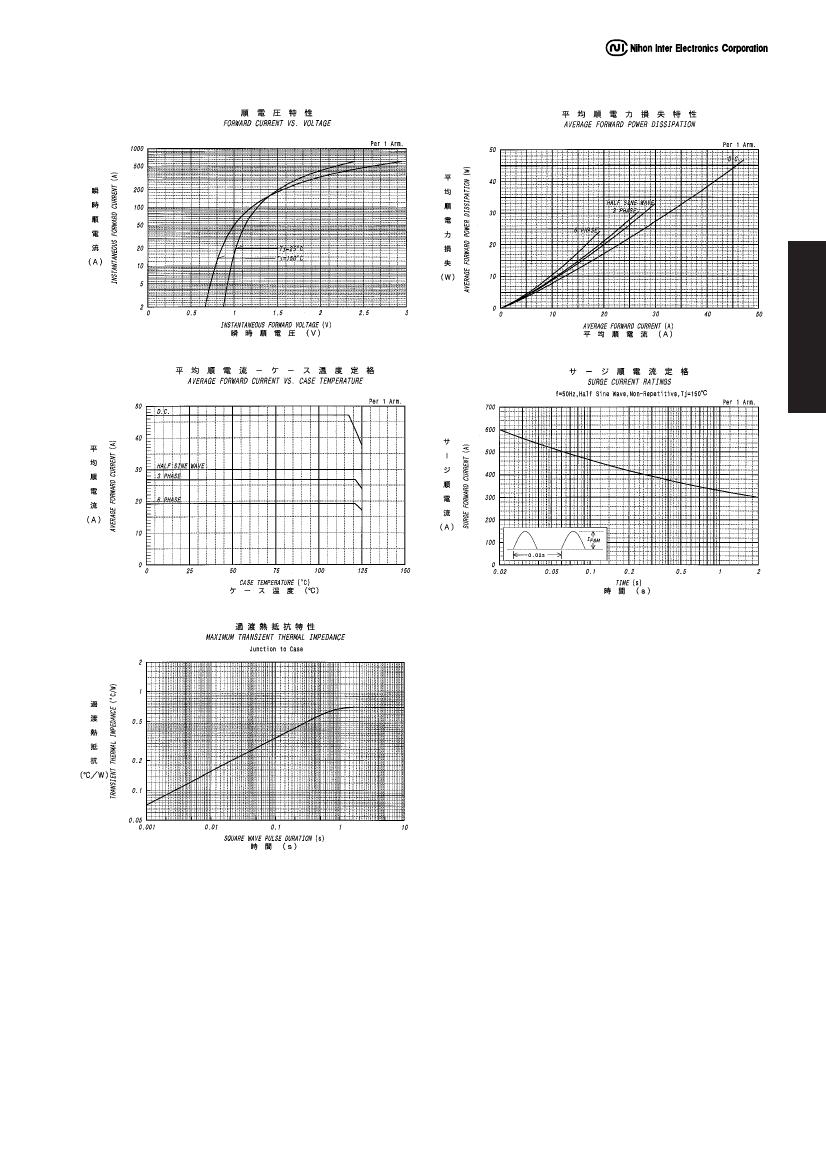

Electrical
•
Thermal Characteristics
Characteristics
Peak Reverse Current *1
Peak Forward Voltage *1
Thermal Resistance *1
*1: Value Per 1Arm
Symbol
Test Conditions
Max. Unit
10
1.25
0.7
0.2
mA
V
°C/W
I
RM
V
RM
= V
RRM,
Tj= 150°C
V
FM
I
FM
= 90A, Tj=25°C
Rth(j-c) Junction to Case
Base Plate to Heat Sink with Joint
Rth(c-f)
Compound
