THYRISTOR MODULE
90A / 300V to 600V
P F T 9 0 3 N
P F T 9 0 6 N

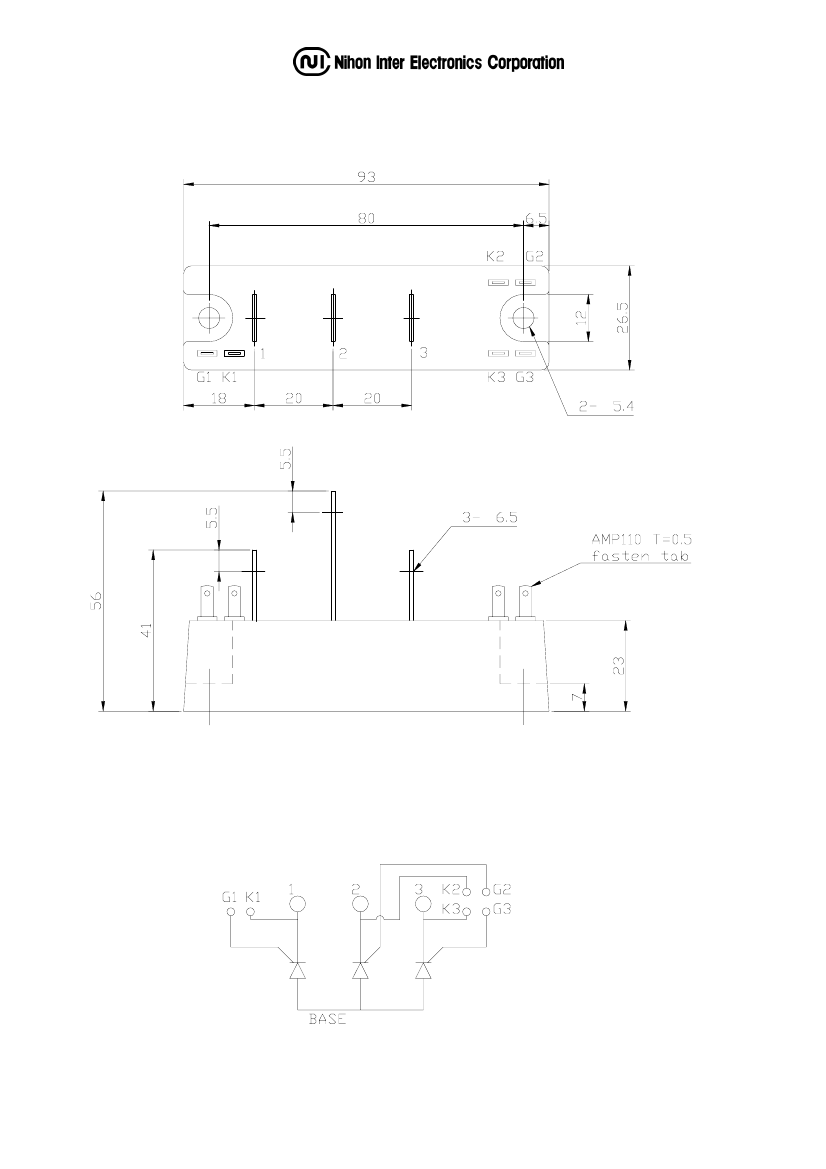

OUTLINE DRAWING
FEATURES
* 3 Phase Anode Common
Half Bridge Circuit
* High Surge Capability
* UL Recognized, File No. E187184
TYPICAL APPLICATIONS
* Rectified For General Use
φ
φ
Maximum Ratings
Parameter
Repetitive Peak Off-State Voltage
Non Repetitive Peak Off-State Voltage
Repetitive Peak Reverse Voltage
Non Repetitive Peak Reverse Voltage
Approx Net Weight:140g
Symbol
V
DRM
V
DSM
V
RRM
V
RSM
Grade
PFT903N
PFT906N
Unit
V
V
300
400
300
400
600
700
600
700
Max Rated
Value
Parameter
Average Rectified Output Current
RMS On-State Current
Surge On-State Current
I Squared t
Peak Gate Power
Average Gate Power
Peak Gate Current
Peak Gate Voltage
Peak Gate Reverse Voltage
Operating JunctionTemperature Range
Storage Temperature Range
Case mounting
Mounting torque
Terminals
Value per 1 Arm
I
O(AV)
I
T(RMS)
I
TSM
I
2
t
P
GM
P
G(AV)
I
GM
V
GM
V
RGM
Tjw
Tstg
Ftor
Conditions
50Hz Half Sine Wave condition
Tc=92°C
50 Hz Half Sine Wave,1Pulse,
Non-Repetitive
2msec to 10msec
Unit
A
A
A
90
140
1350
Greased
M5 Screw
M6 Screw
9100
A
2
s
5
W
1
W
2
A
10
V
5
V
-40 to +150
°C
-40 to +125
°C
2.4 to 2.8
N
•
m
2.5 to 3.5
