MPSP100-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MPSP100-24

MPSP100-24: DescriptionBoard Connector, 24 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size208KB，2 Pages; ManufacturerPANCON CONNECTORS; Environmental Compliance

Download Datasheet Parametric View All

MPSP100-24 Overview

Board Connector, 24 Contact(s), 1 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT

MPSP100-24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

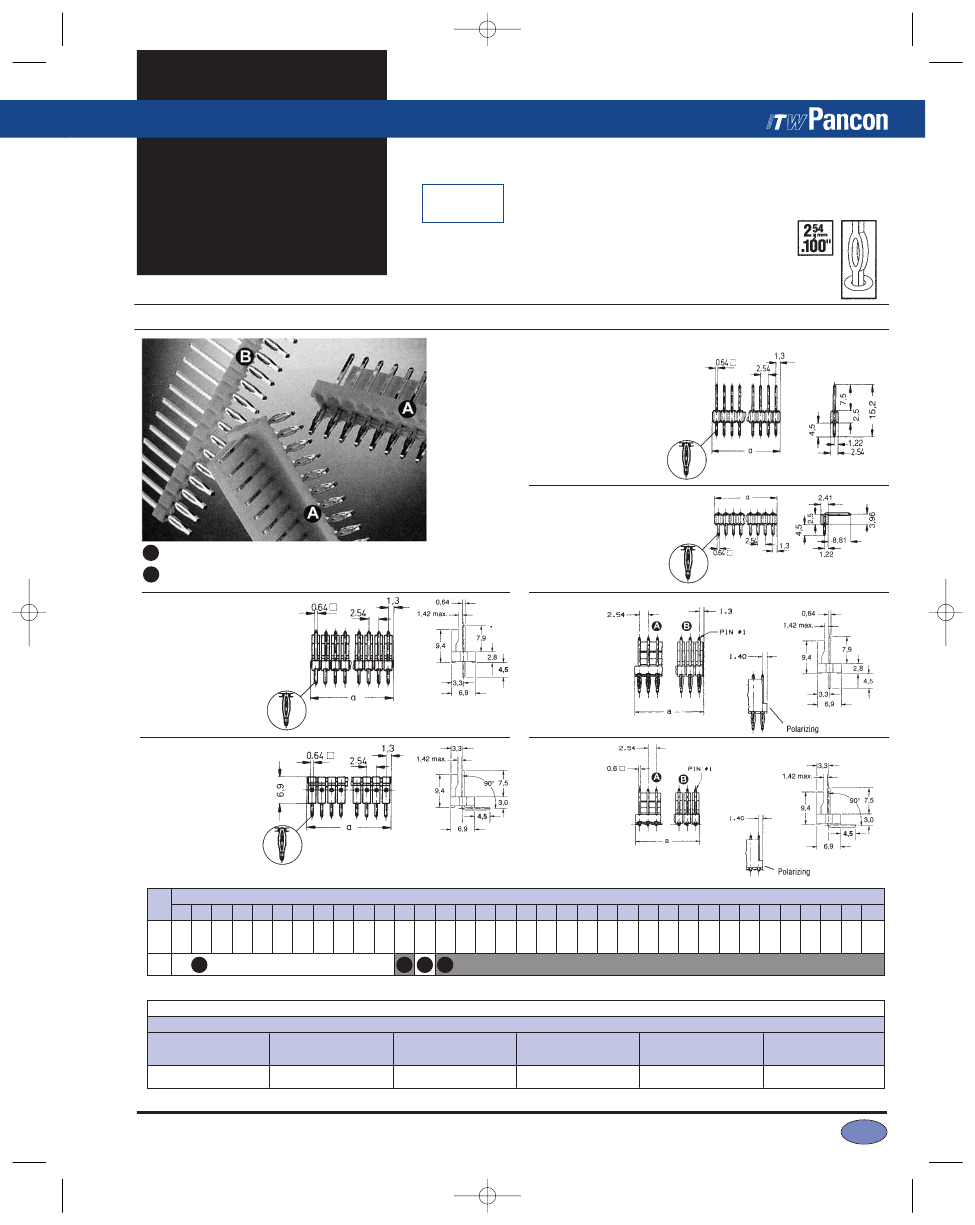

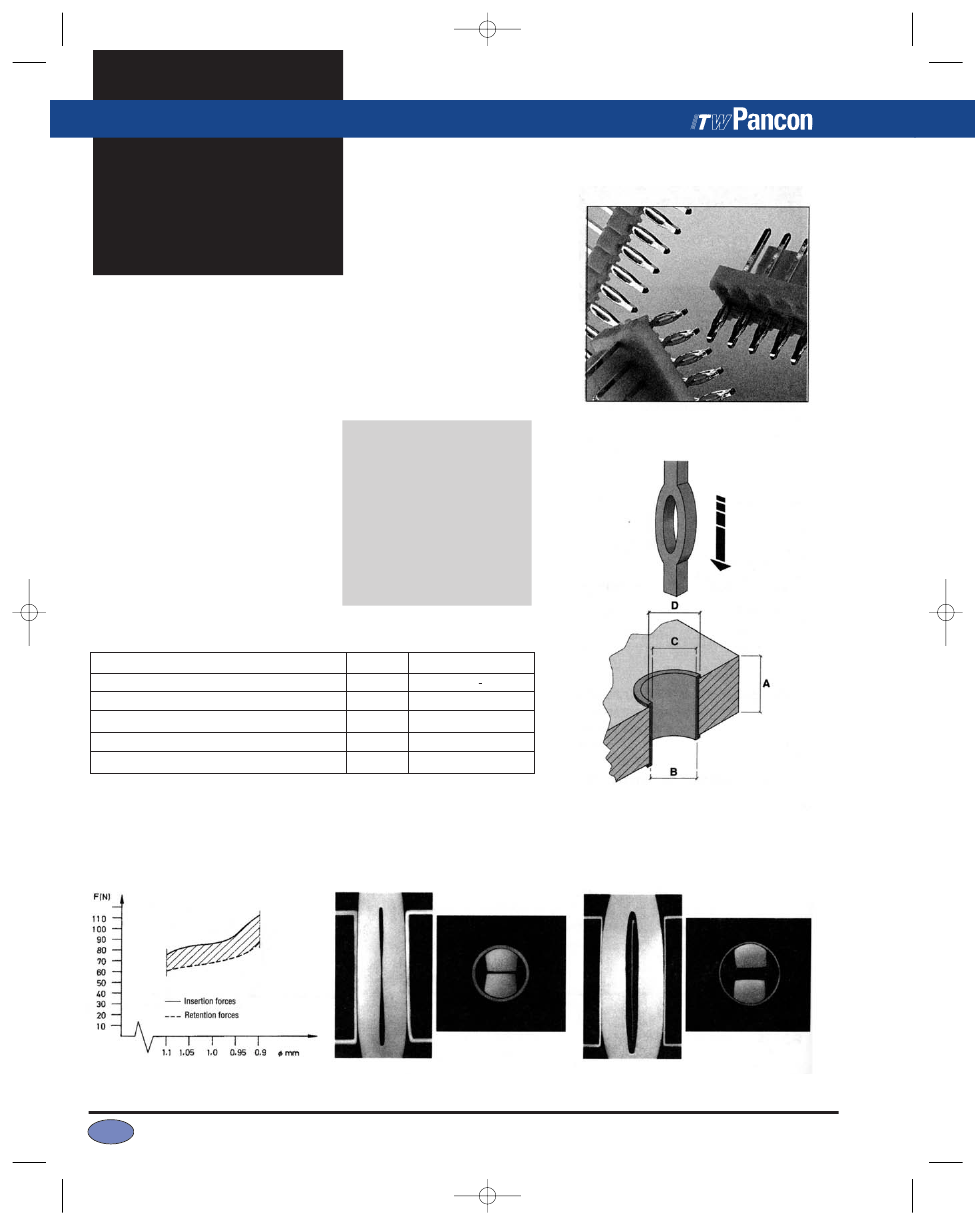

ITWCatalog3rdEd_F.qxp

8/1/07

1:15 PM

Page 24

Mas-Con

Press-In Header in

Press-In technique

Features of the

Press-In Technique

• Gas tight connection, resistant

for gas, corrosion and vibration

• Contact design of compliant pin:

Eye-of-the-needle

• Two beams for unidirectional flexing

• Male Connections with right angle

and straight pins

• Termination tools

Press-fit technique

P.C.B thickness

drill size

finished hole size

complete

copper

tin-lead

1,6 – 3,2 mm

1,15

+0,03

0,94 – 1,09 mm

1,65 mm

25 – 76µm

5 – 15 µm min.

• Low contact resistance

• No thermal load on PCIs

• Visible wiring

• Part loaded possible

• No “dry” joints

Insertion and retention Forces

– for various drill sizes –

(Forces initially in board of 1,6 –3,2 mm thickness)

MINIMUM (Ø 0,94 mm)

MAXIMUM (Ø 1,09 mm)
