95A1A-B24-A15

Description
Potentiometers 5/8" 10K 10% Square Single Turn
CategoryPassive components    The resistor
File Size465KB,5 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Download Datasheet Parametric View All

95A1A-B24-A15 Online Shopping

Suppliers Part Number Price MOQ In stock
95A1A-B24-A15 - - View Buy Now

95A1A-B24-A15 Overview

Potentiometers 5/8" 10K 10% Square Single Turn

95A1A-B24-A15 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionPanel Mount, 6350
Reach Compliance Codecompliant
Actuator directionHORIZONTAL
Actuator typeSHAFT
structureSingle Turn
gang number1
Manufacturer's serial number95
Installation featuresPANEL MOUNT
Number of terminals3
number of turns1
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height17.45 mm
Package length15.88 mm
Package shapeRECTANGULAR PACKAGE
Package formPanel Mount
Package width12.7 mm
Rated power dissipation(P)2 W
Rated temperature70 °C
resistance10000 Ω
resistance lawLINEAR
Resistor typePOTENTIOMETER
rotation angle240 deg
series95
size code6350
surface mountNO
technologyCERMET
Temperature Coefficient-150,150 ppm/°C
Terminal shapeLUG
Tolerance10%
Base Number Matches1
PL
IA
N
T
Features
n
Available in a variety of pin-out
configurations
n
Virtually infinite electrical circuit isolation
n
Metal or plastic shaft options
n
RoHS compliant*
F
RE
E
LE
AD
*R
oH
S
CO
M

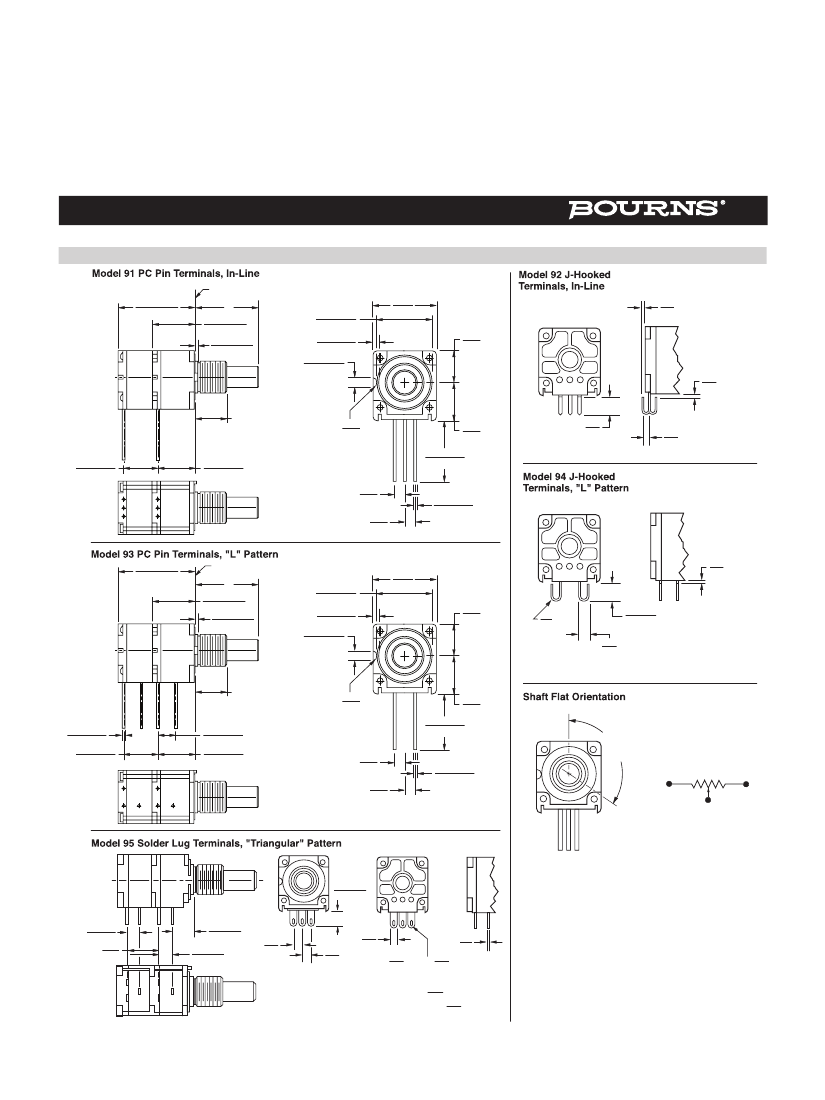

Model 91, 92, 93, 94 & 95 - 5/8 ” Square Single-Turn Panel Control
Conductive Plastic Element
Cermet Element
Initial Electrical Characteristics
1
Standard Resistance Range
Linear Tapers (A, B, E, & H) .........................(B & E) 1 K ohms to 1 megohm ......................... (A & H) 100 ohms to 1 megohm
Audio Tapers (C, D, F, G, S, & T) .................(D,G,S, & T) 1 K ohms to 1 megohm ................. (C & F) 1 K ohms to 1 megohm
Total Resistance Tolerance ...............................10 % or 20 % .................................................... 5% or 10%
Independent Linearity .......................................±5 % .................................................................. ±5 %
Absolute Minimum Resistance .........................2 ohms maximum .............................................. 2 ohms maximum
Effective Electrical Angle ..................................(Linear tapers) 240 ° ± 5 °.................................. (Linear tapers) 240 ° ± 6 °
(Audio tapers) 225 ° ± 5 ° .................................. (Audio tapers) 225 ° ± 6 °
Contact Resistance Variation ...........................±1 % .................................................................. ±1 % or 3 ohms (whichever is greater)
Dielectric Withstanding Voltage (MIL-STD-202, Method 301)
Sea Level ....................................................1,500 VAC minimum .......................................... 1,500 VAC minimum
70,000 Feet .................................................500 VAC minimum ............................................. 500 VAC minimum
Insulation Resistance (500 VDC) ......................1,000 megohms minimum ................................. 1,000 megohms minimum
Power Rating (Voltage Limited By Power Dissipation or 350 VAC, Whichever Is Less)
+70 °C Single Section Assembly ................(Linear tapers) 1 watt ......................................... (Linear tapers) 2 watts
(Audio tapers) 0.5 watt ...................................... (Audio tapers) 1 watt
+70 °C Multiple Section Assembly .............(Linear tapers) 0.5 watt/section ......................... (Linear tapers) 1 watt/section
(Audio tapers) 0.25 watt/section ....................... (Audio tapers) 0.5 watt/section
+125 °C .......................................................0 watt................................................................. 0 watt
Theoretical Resolution ......................................Essentially infinite .............................................. Essentially infinite
Environmental Characteristics
1
Operating Temperature Range .......................... -40 °C to +125 °C ................................................-40 °C to +125 °C
Storage Temperature Range.............................. -55 °C to +125 °C ................................................-55 °C to +125 °C
Temperature Coefficient Over Storage
Temperature Range.......................................... ±1,000 ppm/°C.....................................................±150 ppm/°C
Vibration (Single Section) ................................... 15 G ......................................................................15 G
Total Resistance Shift ................................... ±2 % maximum....................................................±2 % maximum
Voltage Ratio Shift ........................................ ±5 % maximum....................................................±5 % maximum
Shock (Single Section) ....................................... 30 G ......................................................................30 G
Total Resistance Shift ................................... ±2 % maximum....................................................±2 % maximum
Voltage Ratio Shift ........................................ ±5 % maximum....................................................±5 % maximum
Load Life ............................................................ 1,000 hours ..........................................................1,000 hours
Total Resistance Shift ................................... ±10 % maximum..................................................±5 % maximum
Rotational Life (No Load) ................................... 100,000 cycles .....................................................100,000 cycles
Total Resistance Shift ................................... (Linear tapers) 10 ohms or ±15 % TRS max. ......(All tapers) ±5 % TRS max.
(whichever is greater)
(Audio tapers) ±20 % maximum
Contact Resistance Variation
@ 50,000 cycles ........................................... (Linear tapers) ±2 %.............................................±2 %
(Audio tapers) ±3 % .............................................±3 %
Moisture Resistance (MIL-STD-202, Method 103, Condition B)
Total Resistance Shift ................................... (Linear tapers) ±10 % TRS maximum .................(All tapers) ±5 % TRS maximum
(Audio tapers) ±20 % TRS maximum
Insulation Resistance (500 VDC) .................. 100 megohms minimum ......................................100 megohms minimum
IP Rating ............................................................ IP 40 .....................................................................IP 40
Moisture Sensitivity Level .................................. 1............................................................................1
ESD Classification (HBM) .................................. N/A .......................................................................N/A
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
