LFXTAL008231Bulk datasheet, PDF

Datasheet> All Categories > Passive components> LFXTAL008231Bulk

LFXTAL008231Bulk: DescriptionCrystals 32.7680kHz pF 2.5C; CategoryPassive components; File Size150KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL008231Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL008231Bulk	-	-	View	Buy Now

LFXTAL008231Bulk Overview

Crystals 32.7680kHz pF 2.5C

LFXTAL008231Bulk Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD Frequency Products
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	Cylinder
Load Capacitance	12.5 pF
Frequency	32.768 kHz
Tolerance	20 PPM
Frequency Stability	20 PPM
Drive Level	1 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	13.1 mm
Height	5 mm
Packaging	Bulk
Product	Crystals
Type	Quartz Crystal
Mounting Style	SMD/SMT
Factory Pack Quantity	100

Preview

Download Datasheet

View All

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL008231Bulk

Description

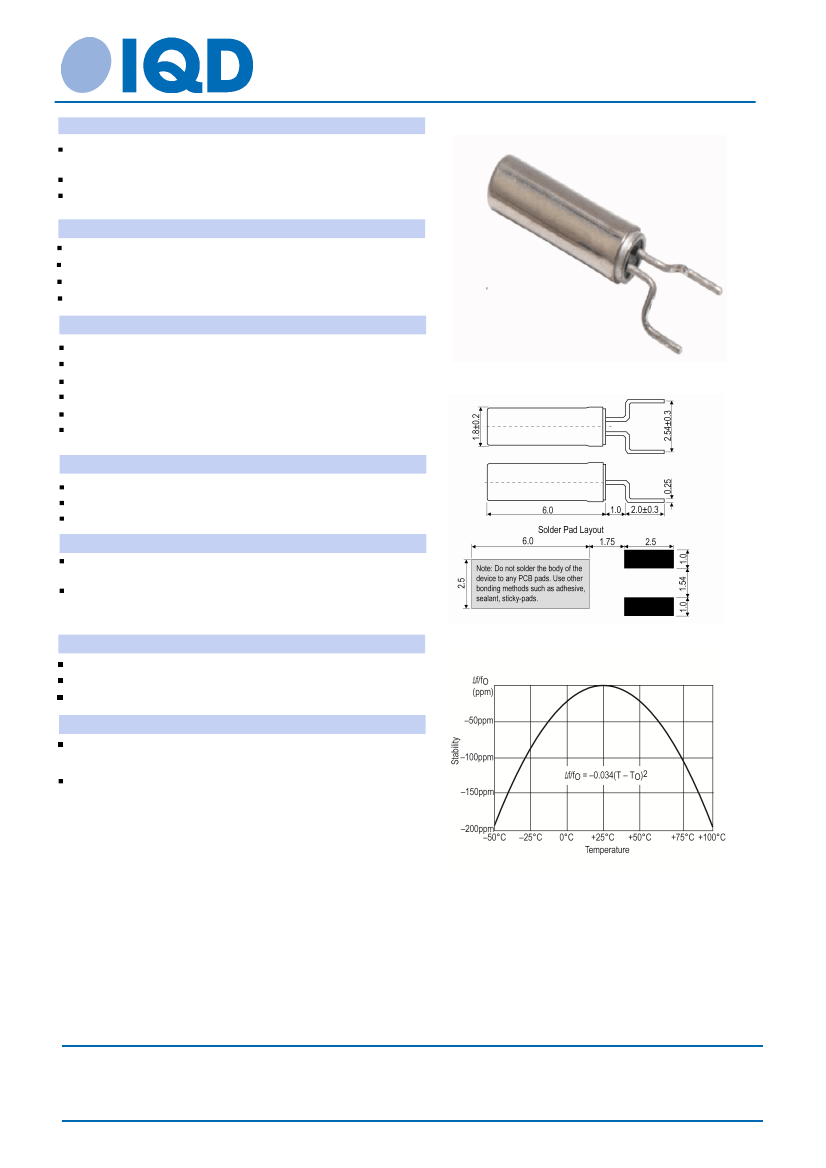

2 x 6mm watch crystal with pre-formed legs to make a SMD

package.

Model

CFPX-56

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Ageing

Electrical Parameters

32.7680kHz

±20.00ppm

@ 25°C

±5ppm max in 1st year

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

12.50pF

1.6pF typical

1.0µW max

Outline (mm)

Motional Capacitance (C1) 3.2fF typ

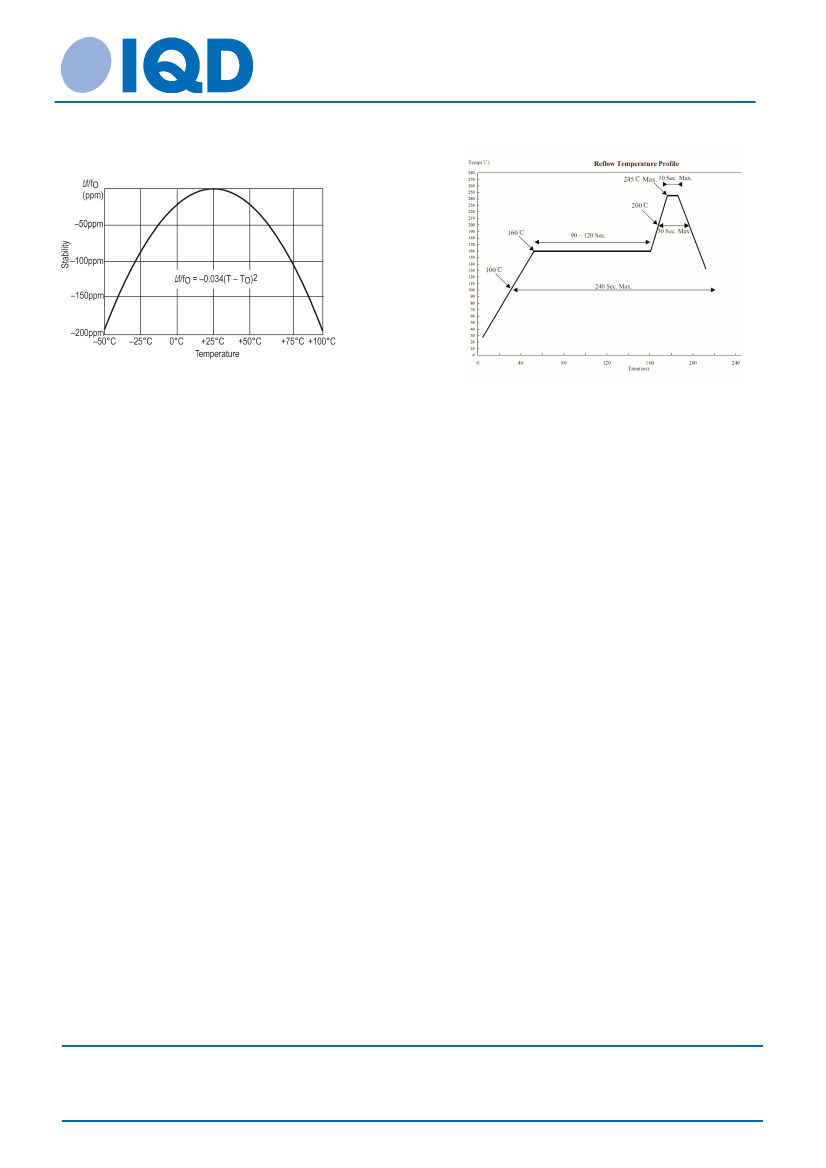

Frequency Stability Coefficient: -0.034ppm/°C² ±0.006ppm/°C²

Environmental Parameters

High Temperature Storage: 85°C for 24hrs

Drop: 75cm drop (3 times) onto hard wooden board

Storage Temperature Range: -40 to 85°C

Manufacturing Details

Suitable for reflow soldering at 245°C max for 10sec max x 1

cycle

Note: Do not solder the body of the device to any PCB pads.

Use other bonding methods such as adhesive, sealant,

sticky-pads.

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 15 Feb 17 10:21 using Part Data Sheet V1.00014
