H0013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> H0013

H0013: DescriptionAudio Transformers / Signal Transformers 10/100Base-TX SMD 350uH .65Ohms 1-Port; CategoryPassive components; File Size172KB，4 Pages; ManufacturerPulse

Download Datasheet Parametric Compare View All

H0013 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H0013	-	-	View	Buy Now

H0013 Overview

Audio Transformers / Signal Transformers 10/100Base-TX SMD 350uH .65Ohms 1-Port

H0013 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse
Product Category	Audio Transformers / Signal Transformers
RoHS	N
Number of Channels	Single
Product	LAN
Type	Module
Application	10/100 PC Card
Factory Pack Quantity	40

Preview

Download Datasheet

View All

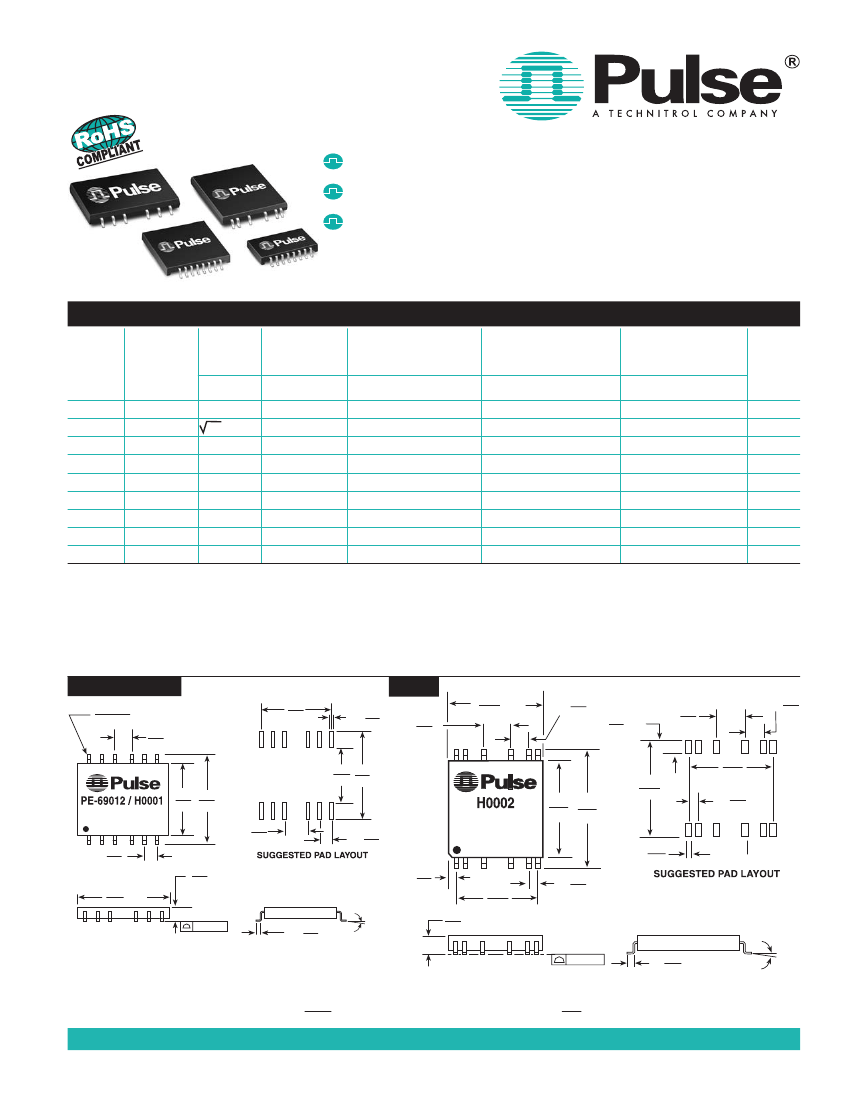

10/100 PC CARD LAN

MAGNETICS MODULES

RoHS-5 peak reflow temperature rating 235°C

RoHS-6 peak reflow temperature rating 245°C

Low profile packages from .094” (2,39mm) to .078”

(1,98mm) for PC card and cardbus applications

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

RoHS-5

Compliant

Part

Number

RoHS-6

Compliant

Part

Number

Turns Ratio

(±5%)

Insertion Loss

(dB MAX)

100 kHz-100 MHz

30 MHz

Return Loss

(dB MIN)

60 MHz 80 MHz

Differential to Common

Mode Rejection

(dB MIN)

30 MHz

50 MHz 100 MHz

Crosstalk

(dB MIN)

30 MHz 62 MHz 100 MHz

Hipot

(Vrms MIN)

PE-69012

H0001

H0002

H0009

H0013

H0019

H0020

H0022

H0025

⎯

H0009 NL

H0013 NL

H0019NL

H0020NL

H0022NL

H0025NL

1:1

2 :1

1:1

-1.3

-2.0

-1.3

-0.9

-1.0

-2.0

-18

-16

-18

-16

-18

-13

-12

-13

-12

-14

-12

-11

-10

-11

-12

-40

-30

-35

-40

-42

-40

-35

-30

-33

—

-35

-30

-20

-30

-33

-30

-40

-50

-45

-50

-45

-40

-35

-45

-40

-45

-35

-30

-40

-37

-35

-40

-37

1500

Add “T”

for Tape & Reel packaging, e.g. PE-69012T.

MSL (Moisture

Sensitivity Level): a=1, b=2, c=3, d=4, e=5.

RoHS-5:

Product does not contain 5 out of the 6 banned substances specified in the RoHS directive (product contains lead in applications considered solder).

RoHS-6:

Product does not contain 5 out of the 6 banned substances specified in the RoHS directive. Some internal connections may contain lead in high-temperature

solder (solder alloys containing more than 85% lead).

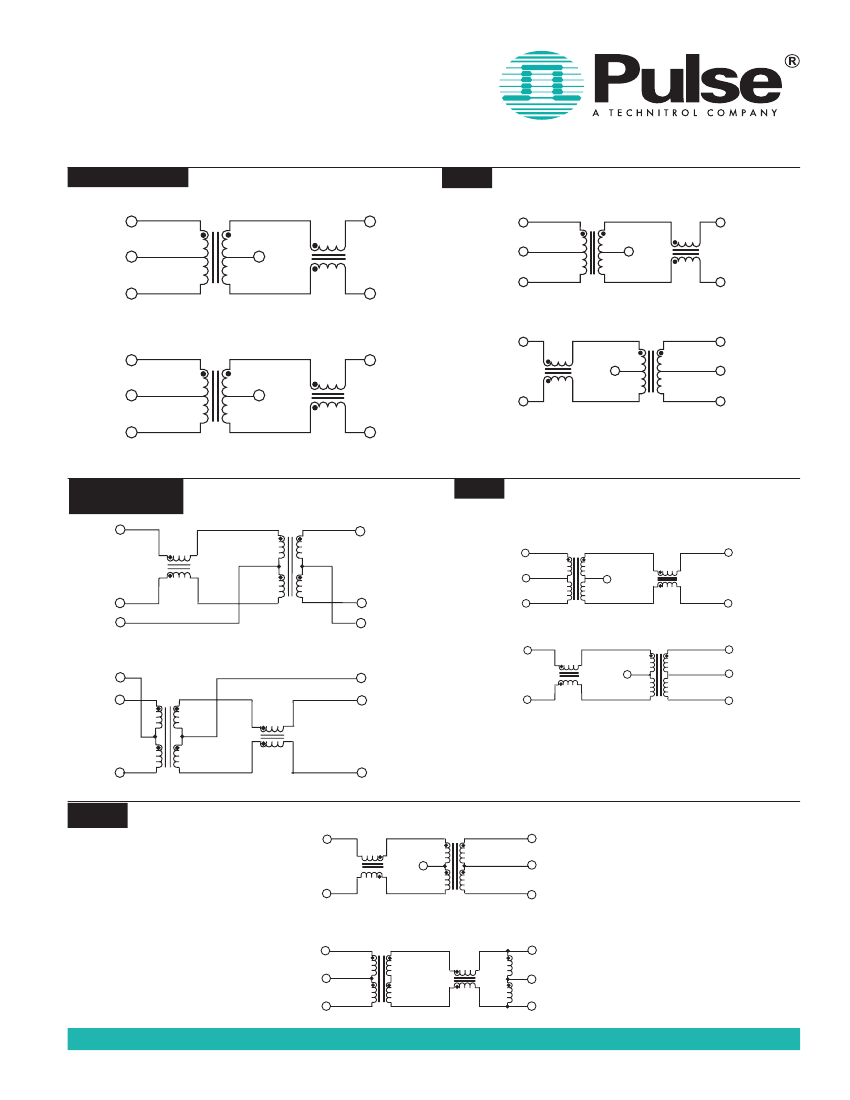

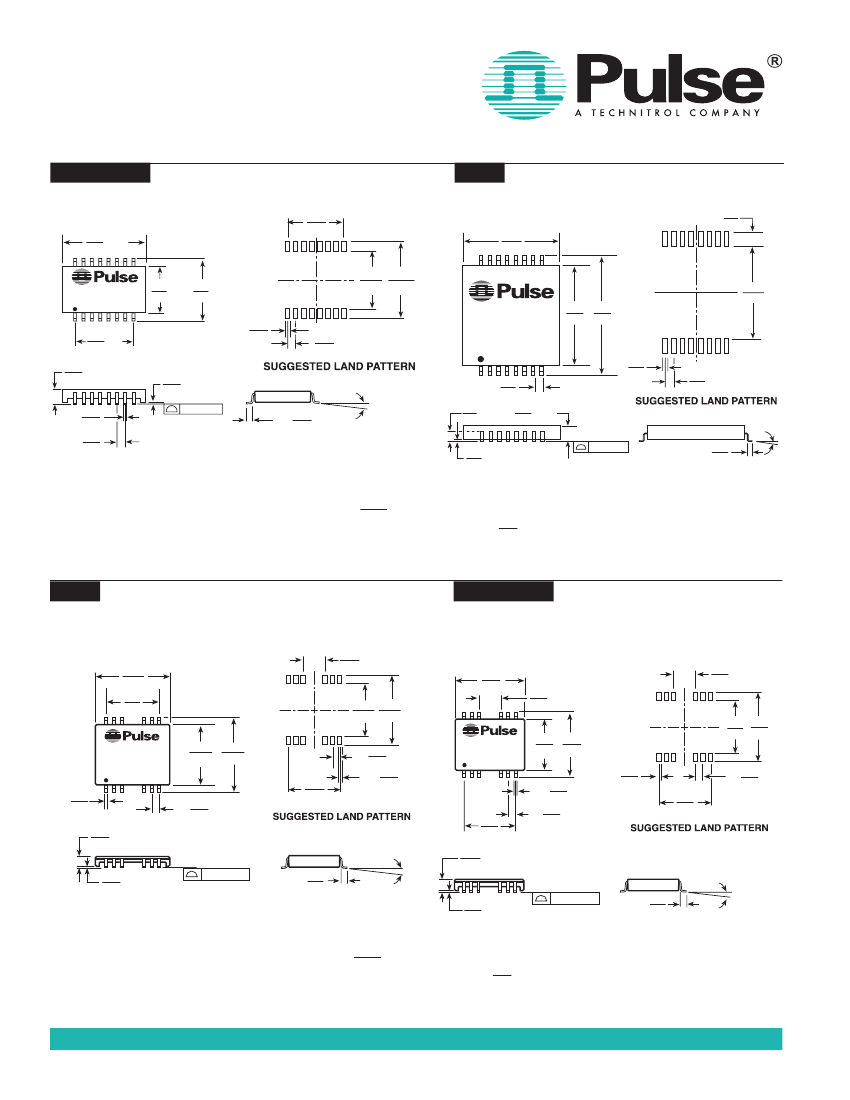

Mechanicals

PE-69012, H0001

.010 X .020

0,25 X 0,51

.200

5,08

.585 .705

14,86 17,91

.525 .685

13,34 17,40 MAX

.200

5,08

.600

15,24

.030

12X

0,76

H0002

.150

3,81

.600

MAX

15,24

.100

2,54

.080

TYP

2,03

.150

3,81

.100

2,54

Date Code

Country of Origin

.100

2,54

.094

MAX

2,39

.800

MAX

20,32

.004/0,10

12 Surfaces

.040

12 X

1,02

.100

2,54

DATE CODE

COUNTRY OF ORIGIN

.650

.800 MAX

16,51 20,32

.820

20,83

.450

11,43

.050

1,27

TYP

.075

1,91

.050

2,27

.030

0,76

0° 8°

.450

15,24

.084

MAX

2,13

0° 8°

.004/0,10

12 Surfaces

12X .040

1,02

Weight

. . . . . . . .1.3 grams

Tape & Reel

. . . . . .600/reel

Tube

. . . . . . . . . . . .25/tube

Inches

.010

Dimensions:

mm Unless otherwise specified, all tolerances are ±

0,25

Weight

. . . . . . . .1.2 grams

Tape & Reel

. . . . . .900/reel

Tube

. . . . . . . . . . . 35/tube

USA 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Shanghai

86 21 32181071

•

China 86 769 5538070

•

Taiwan 886 2 26980228

www.pulseeng.com

H304.G (8/06)
