3483R-680M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 3483R-680M

3483R-680M: DescriptionFixed Inductors 68uH 20% .6ohm SMT Power Inductor; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric View All

3483R-680M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3483R-680M	-	-	View	Buy Now

3483R-680M Overview

Fixed Inductors 68uH 20% .6ohm SMT Power Inductor

3483R-680M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2929
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2929
structure	RECTANGULAR PACKAGE
core material	FERRITE
DC Resistance	0.43 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package height	3.3 mm
Package length	7.3 mm
Package form	SMT
Package width	7.3 mm
method of packing	TR, 13 Inch
Maximum rated current	0.0006 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Copper (Sn96.0Cu4.0)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES

TI )

RA C

T D

EN (mA

RR M

CU IMU

AN )

ST S

SI HM

RE M (O

DC MU

(µ

CE kHz

AN 0

CT 10

DU @

IN 0%

±2

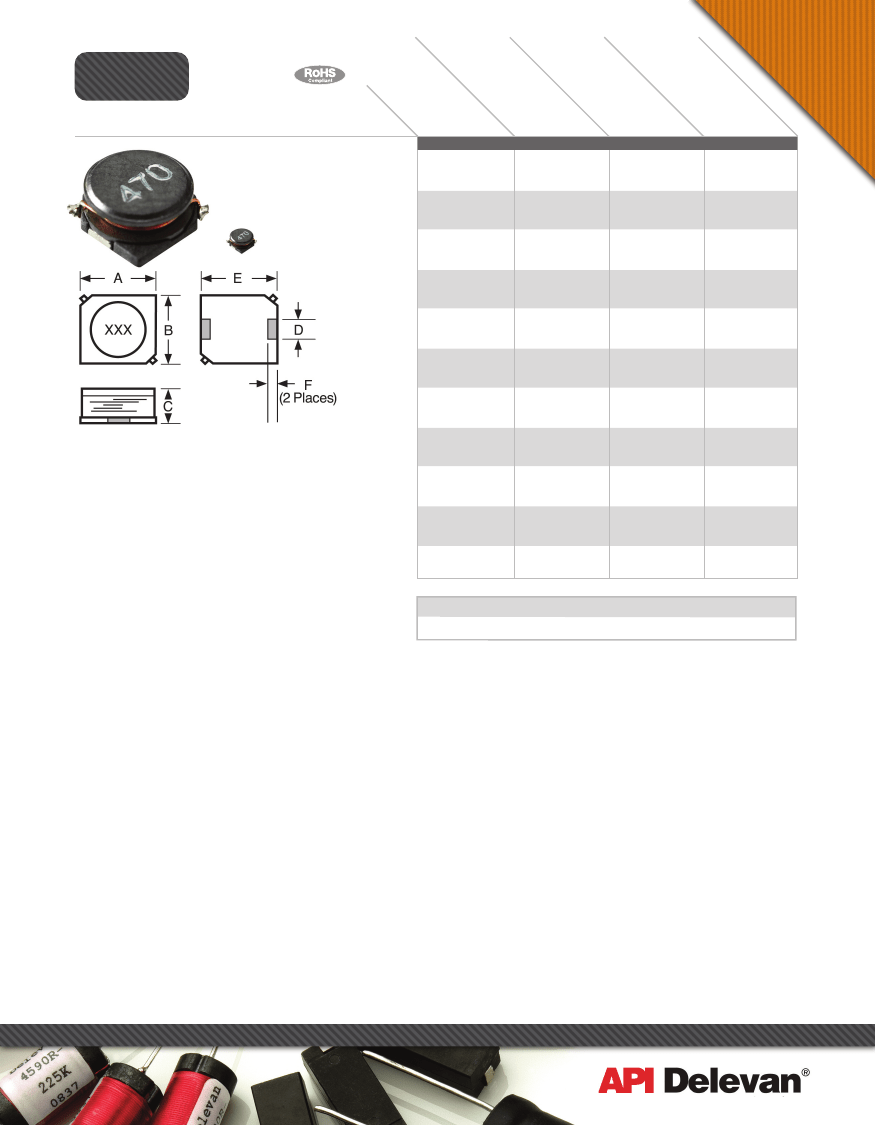

3483R

Surface Mount Power Inductors

Actual Size

Physical Parameters

Inches

0.267 to 0.287

0.106 to 0.130

0.070 to 0.087

0.130 to 0.185

0.051 to 0.067

Millimeters

6.70 to 7.30

2.70 to 3.30

1.80 to 2.20

3.30 to 4.70

1.30 to 1.70

1R0M

1R5M

1R8M

2R2M

3R3M

4R7M

6R8M

100M

120M

150M

180M

220M

270M

330M

390M

470M

560M

680M

820M

101M

121M

151M

181M

221M

271M

331M

391M

471M

561M

681M

821M

102M

SERIES 3483R - UNSHIELDED FERRITE CORE

1.0

0.020

3.20

1.5

0.023

2.85

1.8

0.025

2.80

2.2

0.035

2.50

3.3

0.040

2.20

4.7

0.045

2.00

6.8

0.060

1.60

10.0

0.080

1.40

12.0

0.085

1.30

15.0

0.110

1.10

18.0

0.130

1.05

22.0

0.150

1.00

27.0

0.190

0.95

33.0

0.210

0.85

39.0

0.270

0.75

47.0

0.310

0.70

56.0

0.390

0.65

68.0

0.430

0.60

82.0

0.490

0.50

100.0

0.650

0.45

120.0

0.700

0.40

150.0

0.850

0.35

180.0

1.100

0.33

220.0

1.250

0.30

270.0

1.450

0.28

330.0

2.000

0.25

390.0

2.250

0.23

470.0

2.600

0.22

560.0

3.700

0.20

680.0

4.300

0.18

820.0

4.900

0.16

1000.0

5.600

0.15

Operating Temperature Range

–20°C to +85°C

Inductance

Measured with no DC current at 100 kHz

Current Rating at +25° Ambient

40°C temperature rise maximum.

DC that will decrease the inductance by 10% maximum.

Final Termination Finish

100% Matte Tin (Sn)

Marking

Components are marked with three characters.

In the instance of two digits and a letter R, the R indicates

a decimal point and the remaining digits indicates the

inductance in uH. When three digits are present, the ﬁrst

two digits indicate the inductance in uH and the third digit

indicates the number of trailing zeros where a zero

indicates that there are no trailing zeros.

Example: 3483R-1R5M (1.5 H)

1R5

Packaging

Tape and Reel

(12mm): 13" reel, 1000 pieces max.; 7" reel not available.

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

3/2013
