PT200S8: DescriptionDIODE MODULE 200A/800V; File Size125KB，3 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet View All

PT200S8 Overview

DIODE MODULE 200A/800V

Preview

Download Datasheet

View All

DIODE MODULE

FEATURES

* Isolated Base

* 3 Phase Bridge Circuit

* Designed Power Circuit Board

* High Surge Capability

* UL Recognized, File No. E187184

200A/800V

PT200S8

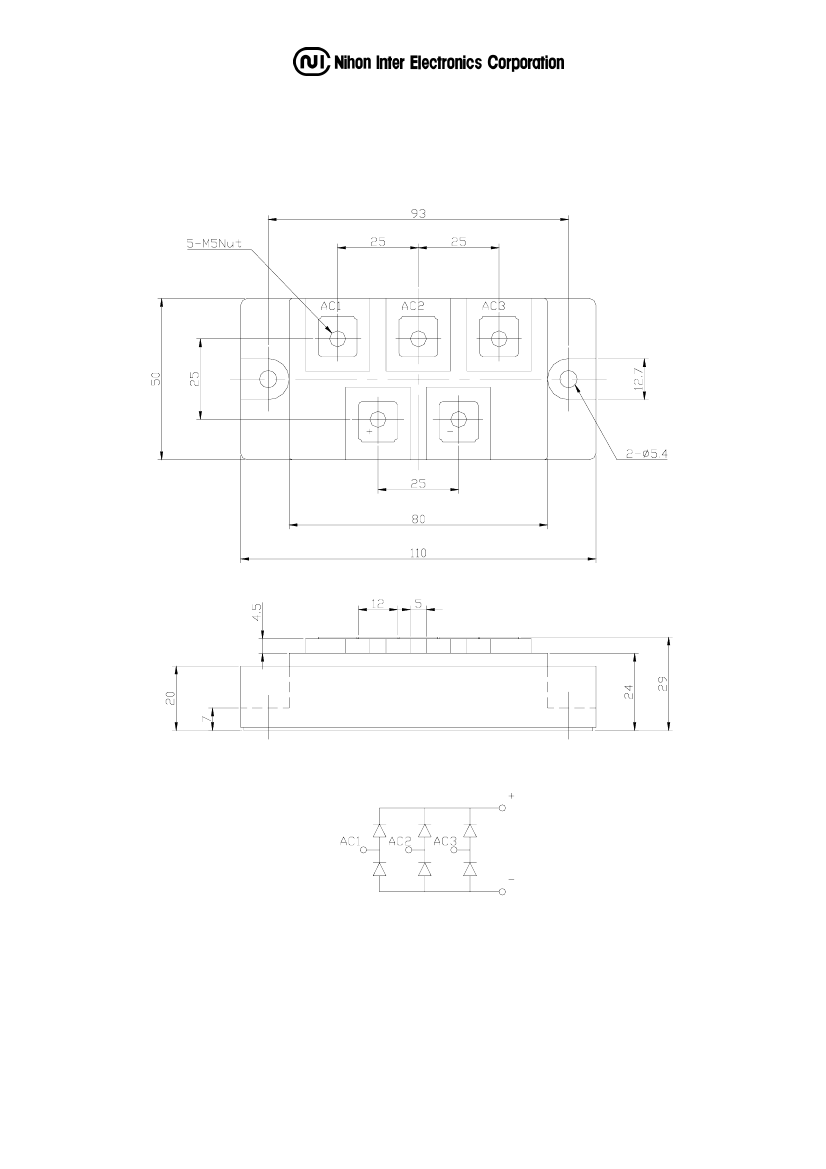

OUTLINE DRAWING

TYPICAL APPLICATIONS

* Rectified For General Use

Maximum Ratings

Parameter

Repetitive Peak Reverse Voltage *1

Non Repetitive Peak Reverse Voltage *1

Approx Net Weight:370g

Symbol

RRM

RSM

Type / Grade

PT200S8

800

1000

Unit

Max Rated

Value

Parameter

Average Rectified Output Current

Surge Forward Current *1

I Squared t *1

Operating JunctionTemperature Range

Storage Temperature Range

Isoration Voltage

Case mounting

Mounting torque

Terminals

O(AV)

FSM

Tjw

Tstg

Viso

Ftor

Conditions

3-Phase Full Wave Rectified

Tc=Tt(Terminal)=103°C

50 Hz Half Sine Wave,1Pulse

Non-repetitive

2msec to 10msec

Unit

200

1850

170000

-40 to +150

°C

-40 to +125

°C

Base Plate to Terminals, AC1min

2000

Greased

M5 Screw

2.4 to 2.8

•

2.4 to 2.8

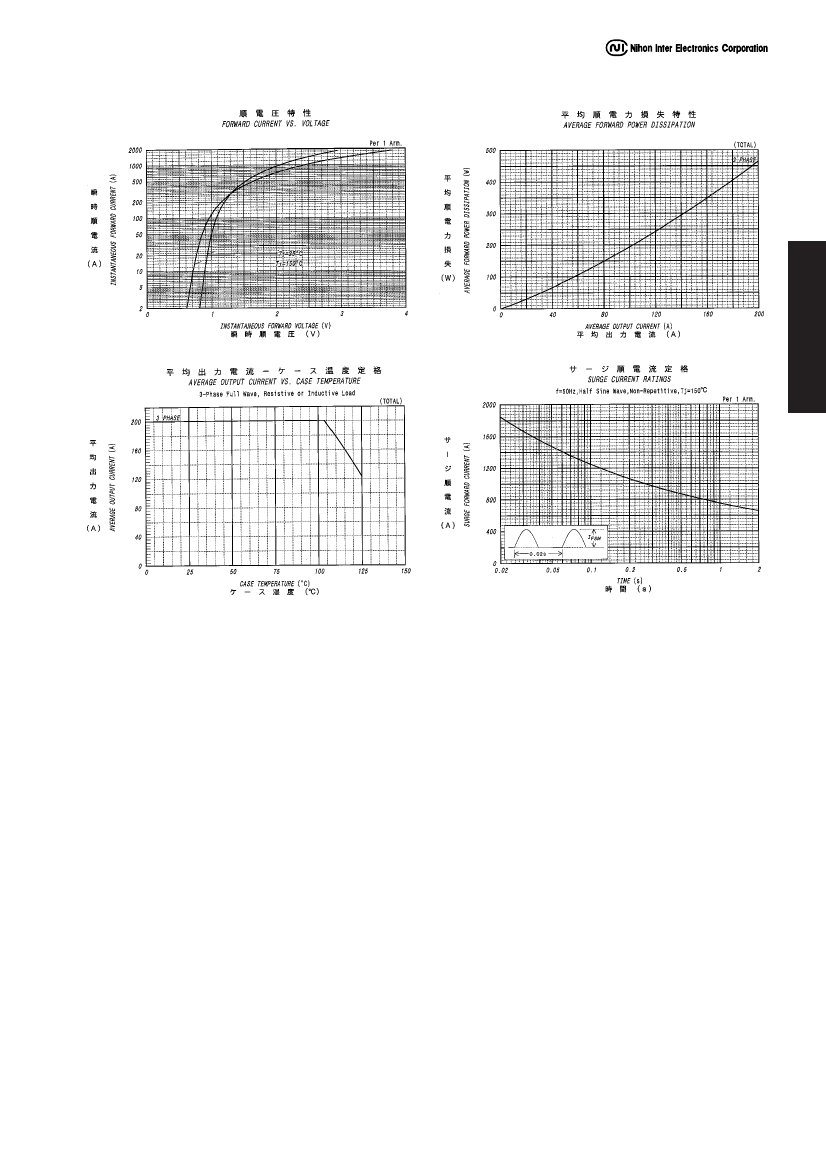

Electrical

•

Thermal Characteristics

Characteristics

Peak Reverse Current *1

Peak Forward Voltage *1

Thermal Resistance

*1: Value Per 1Arm

Symbol

Test Conditions

Max. Unit

1.2

0.1

0.06

°C/W

= V

RRM,

Tj= 150°C

= 200A, Tj=25°C

Rth(j-c) Junction to Case (Total)

Base Plate to Heat Sink with Thermal

Rth(c-f)

Compound (Total)
