1N5333B THRU 1N5388B
5W
SILICON ZENER DIODE
V
Z
: 3.3 - 200 Volts
P
D
: 5 Watts
FEATURES :
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
0.142 (3.6)
0.102 (2.6)
DO-15
1.00 (25.4)
MIN.
0.300 (7.6)
0.230 (5.8)
MECHANICAL DATA :
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
* Case : DO-15 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.4 gram
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T
L
= 75
°
C (Note1)
Maximum Forward Voltage at I
F
= 1 A
Junction Temperature Range
Storage Temperature Range
Note :
(1) T
L
= Lead temperature at 3/8 " (9.5mm) from body
Symbol
P
D
V
F
T
J
Ts
Value
5.0
1.2
- 65 to + 200
- 65 to + 200
Unit
W
V
°
C
°
C
Fig. 1 POWER TEMPERATURE DERATING CURVE
5
P
D
, MAXIMUM DISSIPATION
(WATTS)
4
3
2
1
0
L = 3/8" (9.5mm)
0
25
50
75
100
125
150
175
200
T
L
, LEAD TEMPERATURE (
°
C)
1N5333B THRU 1N5388B
5W
SILICON ZENER DIODE
ELECTRICAL CHARACTERISTICS
(Rating at 25 °C ambient temperature unless otherwise specified)
Nominal Zener
Voltage
V
Z
@ I
ZT
(V)
I
ZT
(mA)
Z
ZT
@ I
ZT
(
Ω
)
Maximum Zener
Impedance
Z
ZK
@ I
ZK
(
Ω
)
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Maximum Reverse
Leakage Current
I
R
@ V
R
(
µ
A)
300
150
50
10
5.0
1.0
1.0
1.0
1.0
10
10
10
10
7.5
5.0
5.0
2.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
(V)
1.0
1.0
1.0
1.0
1.0
1.0
2.0
3.0
3.0
5.2
5.7
6.2
6.6
6.9
7.6
8.4
9.1
9.9
10.6
11.5
12.2
12.9
13.7
14.4
15.2
16.7
18.2
19.0
20.6
21.2
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
45.5
47.1
51.7
56.0
62.2
66.0
69.2
76.0
83.6
91.2
98.8
106
114
122
129
137
144
152
Maximum DC
I
ZM
(mA)
1440
1320
1220
1100
1010
930
856
790
765
700
630
580
545
520
475
430
395
365
340
315
295
280
265
250
237
216
198
190
176
170
158
144
132
122
110
100
93.0
86.0
79.0
76.0
70.0
63.0
58.0
54.5
52.5
47.5
43.0
39.5
36.6
34.0
31.6
29.4
28.0
26.4
25.0
23.6
Type No.
Zener Current
1N5333B
3.3
380
3.0
400
1N5334B
3.6
350
2.5
500
1N5335B
3.9
320
2.0
500
1N5336B
4.3
290
2.0
500
1N5337B
4.7
260
2.0
450
1N5338B
5.1
240
1.5
400
1N5339B
5.6
220
1.0
400
1N5340B
6.0
200
1.0
300
1N5341B
6.2
200
1.0
200
1N5342B
6.8
175
1.0
200
1N5343B
7.5
175
1.5
200
1N5344B
8.2
150
1.5
200
1N5345B
8.7
150
2.0
200
1N5346B
9.1
150
2.0
150
10
125
2.0
125
1N5347B
1N5348B
11
125
2.5
125
1N5349B
12
100
2.5
125
1N5350B
13
100
2.5
100
14
100
2.5
75
1N5351B
1N5352B
15
75
2.5
75
1N5353B
16
75
2.5
75
1N5354B
17
70
2.5
75
1N5355B
18
65
2.5
75
1N5356B
19
65
3.0
75
1N5357B
20
65
3.0
75
1N5358B
22
50
3.5
75
1N5359B
24
50
3.5
100
1N5360B
25
50
4.0
110
1N5361B
27
50
5.0
120
1N5362B
28
50
6.0
130
1N5363B
30
40
8.0
140
1N5364B
33
40
10
150
1N5365B
36
30
11
160
1N5366B
39
30
14
170
1N5367B
43
30
20
190
1N5368B
47
25
25
210
1N5369B
51
25
27
230
1N5370B
56
20
35
280
1N5371B
60
20
40
350
1N5372B
62
20
42
400
68
20
44
500
1N5373B
1N5374B
75
20
45
620
82
15
65
720
1N5375B
1N5376B
87
15
75
760
91
15
75
760
1N5377B
1N5378B
100
12
90
800
1N5379B
110
12
125
1000
1N5380B
120
10
170
1150
1N5381B
130
10
190
1250
140
8.0
230
1500
1N5382B
1N5383B
150
8.0
330
1500
1N5384B
160
8.0
350
1650
1N5385B
170
8.0
380
1750
1N5386B
180
5.0
430
1750
1N5387B
190
5.0
450
1850
1N5388B
200
5.0
480
1850
Note :
(1) Suffix " B " indicates
±
5% tolerance, suffix " A " indicates
±
10% tolerance.
1N5333B THRU 1N5388B
RATINGS AND CHARACTERISTIC CURVES

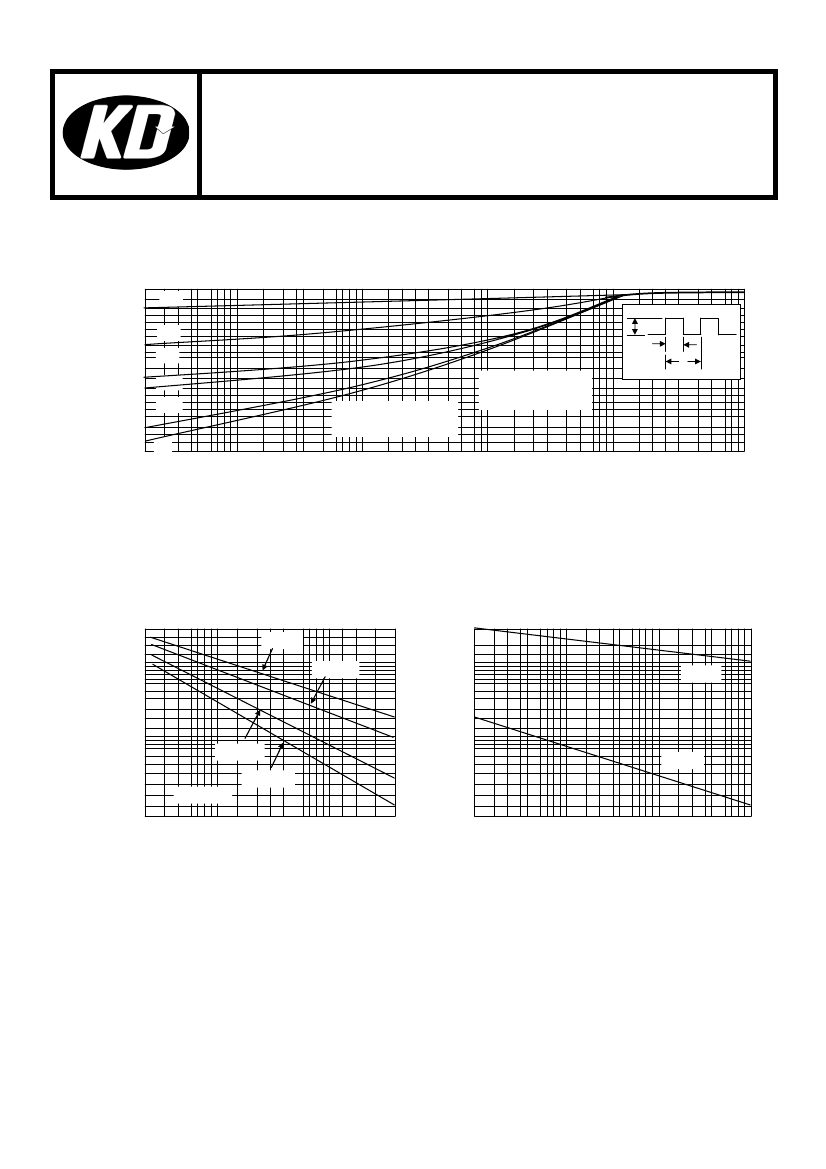

Fig 2. Typical Thermal Response L, Lead Length = 3/8 Inch
θ
JL
(t,D),Transient Thermal Resistance
Junction-To-Lead (°C/W)
20
10
5
2
1
0.5
D=0
0.2
0.001
D=0.5
D=0.2
D=0.1
D=0.05
D=0.01
NOTE:BELOW 0.1 SECOND, THERMAL
RESPONSE CURVE IS APPLICABLE
TO ANY LEAD LENGTH (L)
DUTY CYCLE , D = t
1
/t
2
SINGLE PULSE
∆
T
JL
=
θ
JL
(t)P
PK
REPETITIVE PULSE
∆
T
JL
=
θ
JL
(t,D)P
PK
P
PK
t
1
t
2
0.005 0.01
0.05
0.1
0.5
1
5
10
50
100
t,TIME (SECONDS)
Fig.3 Maximum Non-Repetitive Surg Current
versus Nominal Zener Voltage
Ir, PEAK SURGE CURRENT (AMPS)
20
10
4
2
1
0.4
0.2
0.1
*SQURE WAVE
PW=100 ms*
PW=1000 ms*
PW=1 ms*
PW=8.3 ms*
Fig. 4 Peak Surg Current versus
Pulse Width
Ir, PEAK SURGE CURRENT (AMPS)
30
20
10
5
2
1
0.5
0.2
0.1
1
10
100
1000
Vz = 200 V
40
Vz = 3.3 V
3
4
6 8 10
20
30 40
80
100
200
NORMINAL Vz (V)
PW, PULSE WIDTH (ms)
