3364W-1-105E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3364W-1-105E

3364W-1-105E: DescriptionTrimmer Resistors - SMD 1Mohms 25% 4mm Square; CategoryPassive components The resistor; File Size286KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3364W-1-105E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3364W-1-105E	-	-	View	Buy Now

3364W-1-105E Overview

Trimmer Resistors - SMD 1Mohms 25% 4mm Square

3364W-1-105E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	4 MM, RECTANGULAR, 3 PINS, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	1.5 mm
Package length	4.5 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.8 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.2 W
Rated temperature	70 °C
resistance	1000000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	260 deg
size code	1815
surface mount	YES
technology	CERMET
Temperature Coefficient	-250,250 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	25%

Preview

Download Datasheet

View All

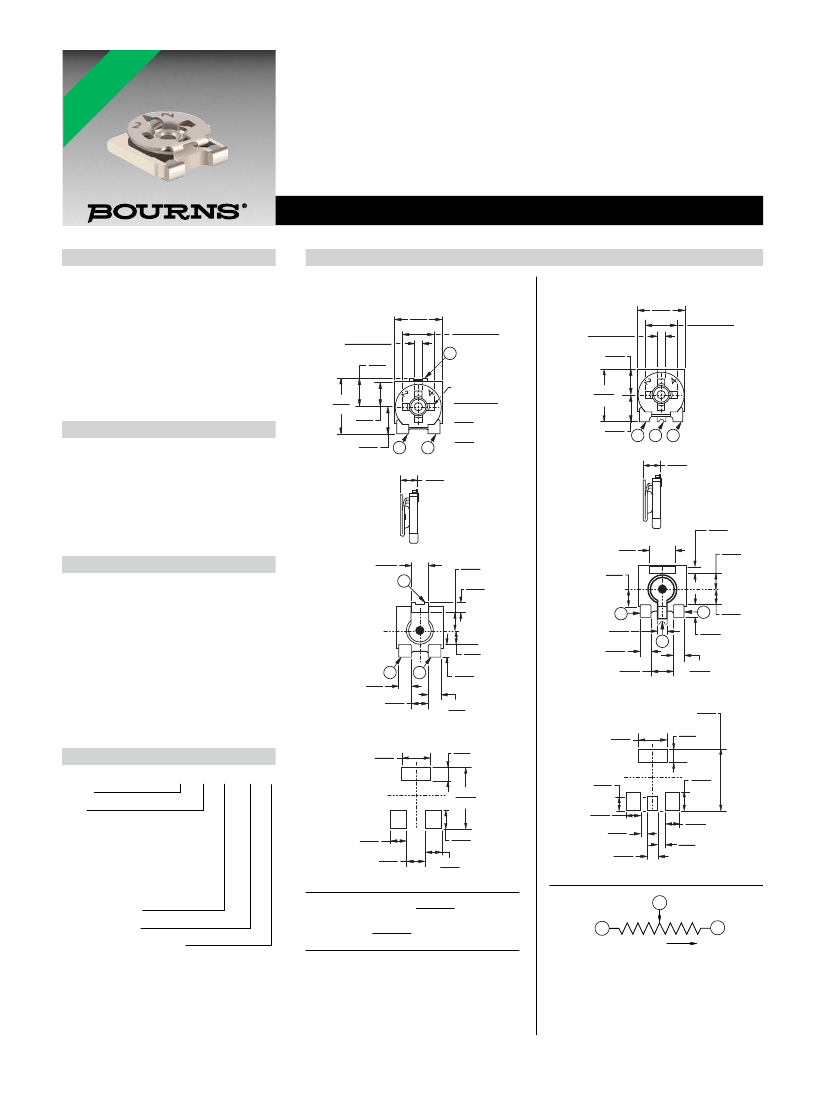

Features

■

SMD Single-Turn / Cermet / Industrial

Open Frame

■

Cross slot rotor designs suitable

for automatic adjustment equipment

■

Supplied in 12 mm embossed tape,

compatible with automatic pick-and-place

assembly equipment

■

Recommended for reﬂow solder

processing only

■

RoHS compliant* - see

processing

information

on lead free surface mount

trimmers

■

For trimmer applications/processing

guidelines,

click here

3364 - 4 mm Square Trimpot

Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

......................100 ohms to 1 megohm

(see standard resistance table)

Resistance Tolerance ........... ±25 % std.

End Resistance

<1K............................... 20 ohms max.

>1K............................................... 2 %

Contact Resistance Variation

(Voltage Divider) .................. 5 % max.

Resolution ................................... Inﬁnite

Adjustment Angle ..................260 °±20 °

Environmental Characteristics

Power Rating (50 volts max.)

70 °C ...................................... 0.2 watt

Temperature Range ... -40 °C to +100 °C

Temperature Coeﬃcient ... ±250 ppm/°C

Humidity ................500 hours (5 %

ΔTR)

Load Life.................................500 hours

0.2 watt @ 70 °C (5 %

ΔTR)

Rotational Life ..... 20 cycles (15%

ΔTR)

Physical Characteristics

Torque............................ 20 to 200 g-cm

Mechanical Angle ................ Continuous

Marking....................... Resistance code,

manufacturer’s full part number

and date code on packaging

Terminals ......................... Solder coated

Standard Packaging ... 1000 pcs./7 ˝ reel

Adjustment Tool..............................H-90

Aqueous cleaning not recommended.

Reﬂow solder processing recommended

Product Dimensions

Common Dimensions

3364W, X

3-Terminal

3.80

(.150)

0.55 ± 0.15

(.022 ± .006)

2.50 ± 0.15

(.098 ± .006)

3364A, B

3-Terminal

3.80

(.150)

0.55 ± 0.15

(.022 ± .006)

2.00

(.079)

4.20

(.165)

2.20

(.087)

2.50 ± 0.15

(.098 ± .006)

2.30

(.091)

4.50

(.177)

2.00

(.079)

2.20

(.087)

ADJ. CROSS SLOT

0.55

.15

(.022

.006) WIDE

0.35

DEEP

(.014)

2.50

LONG

(.098)

1.50

MAX.

(.059)

1.50

MAX.

(.059)

0.50

(.020)

1.40

(.055)

2.00

(.079)

1.50

(.059)

0.80

(.031)

1.35

(.053)

1.40

(.055)

0.80

(.031)

0.80

(.031)

1.90

(.075)

0.99

(.039)

0.80

(.031)

1.20

(.047)

0.95

(.037)

0.12

(.047)

1.00

(.039)

1.60

(.063)

0.95

(.037)

SUGGESTED PWB LAYOUT

2.40

(.094)

5.08

(.200)

1.10

(.043)

SUGGESTED PWB LAYOUT

How To Order

2.40

(.094)

1.10

(.043)

3364 X - 1 - 103 E

Model

Style

Orientation of parts in tape:

Styles W,A

Terminals toward sprocket holes

Styles X,B

Terminals away from sprocket

holes

Standard Product

Resistance Code

Embossed Tape Designator

E = 1000 pcs./7 ” reel (-1 standard)

Consult factory for other available options.

1.30

(.051)

1.60

(.063)

5.10

(.201)

1.20

(.047)

1.20

(.047)

0.60

(.024)

0.80

(.031)

1.50

(.059)

1.50

(.059)

1.20

(.047)

0.60

(.024)

1.30

(.051)

DIMENSIONS:

TOLERANCES: ±

0.25

(.010)

(INCHES)

EXCEPT WHERE NOTED

CCW

CLOCKWISE

WIPER

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

3364W-1-105E Related Products

	3364W-1-105E	3364A-1-203G	3364A-1-103G	3364W-1-203G	3364X-1-503G
Description	Trimmer Resistors - SMD 1Mohms 25% 4mm Square	Trimmer Resistors - SMD 20Kohms 25% 4mm Square	Trimmer Resistors - SMD 10Kohms 25% 4mm Square	Trimmer Resistors - SMD TRIMMER - SMD 4MM SQ ST CERMET	Trimmer Resistors - SMD 50Kohms 25% 4mm Square
Tolerance	25%	25 %	25%	25%	25%
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	Bourns	-	Bourns	Bourns	Bourns
Reach Compliance Code	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99
structure	Rectangular	-	Trimmer Pot	Trimmer Pot	Trimmer Pot
JESD-609 code	e3	-	e3	e3	e3
Maximum operating temperature	100 °C	-	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C
Package height	1.5 mm	-	1.5 mm	1.5 mm	1.5 mm
Package length	4.5 mm	-	4.2 mm	4.5 mm	4.5 mm
Package form	SMT	-	SMT	SMT	SMT
Package width	3.8 mm	-	3.8 mm	3.8 mm	3.8 mm
method of packing	TR, EMBOSSED, 7 INCH	-	TR, EMBOSSED, 14.5 INCH	TR, 14.5 Inch	TR, 14.5 Inch
Rated power dissipation(P)	0.2 W	-	0.2 W	0.2 W	0.2 W
resistance	1000000 Ω	-	10000 Ω	20000 Ω	50000 Ω
Resistor type	TRIMMER	-	TRIMMER	TRIMMER	TRIMMER
rotation angle	260 deg	-	260 deg	260 deg	260 deg
size code	1815	-	1715	1815	1815
technology	CERMET	-	CERMET	CERMET	CERMET
Temperature Coefficient	-250,250 ppm/°C	-	-250,250 ppm/°C	-250,250 ppm/°C	-250,250 ppm/°C
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
