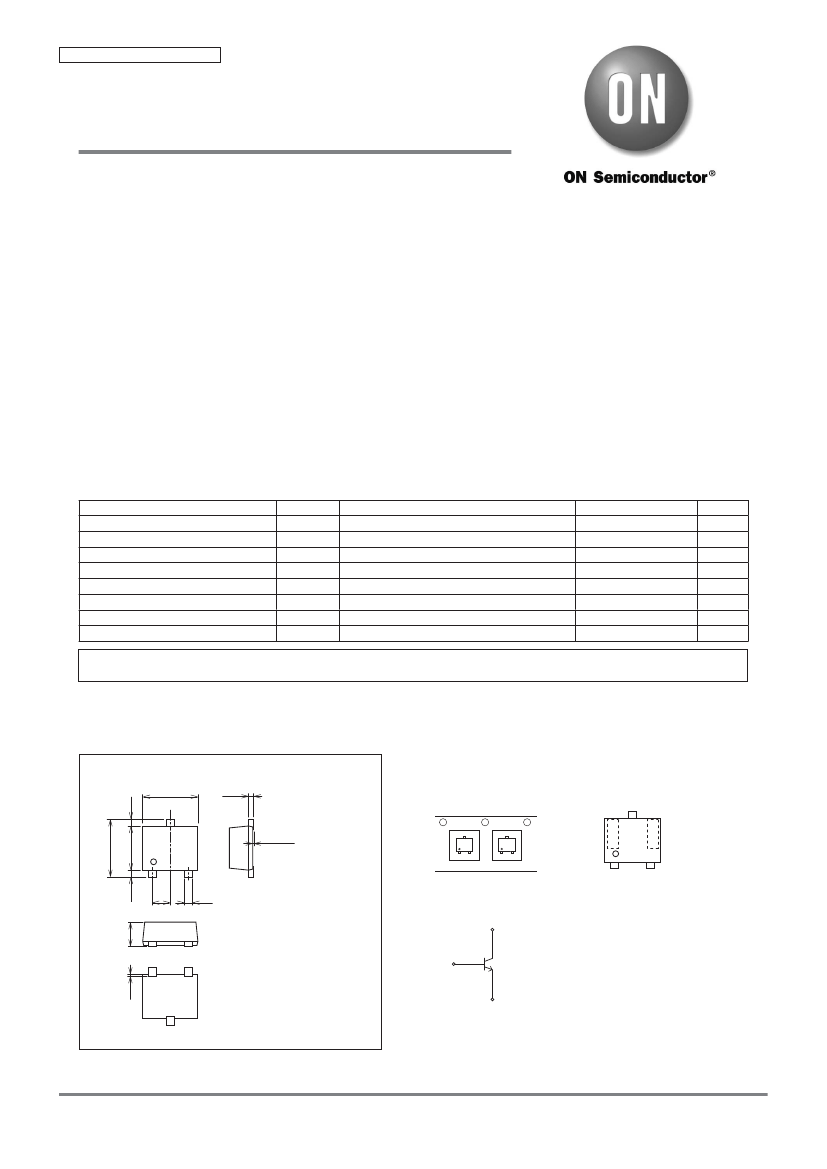

Low-frequency Amplifier, high-speed switching, small motor drive
Features
•
•
•
•
•
Large current capacity
Low collector-to-emitter saturation voltage (resistance)) : RCE(sat) typ=330m
Ω
[IC=0.7A, IB=35mA]
Ultrasmall package facilitates miniaturization in end products
Small ON-resistance (Ron)
Halogen free compliance
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tj
Tstg
When mounted on ceramic substrate (600mm
×0.8mm)
2
Conditions
Ratings
40
30
5
700
1.4
600
150
-55 to +150
Unit
V
V
V
mA
A
mW
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
