Electrical
Current Rating (Amperes)
10 AWG
8 AWG
Voltage Rating
UL 1977 (AC/DC)
Grounding
UL 2238, Sec 37.8
UL 1977
45
60
CSA
30
40
Materials
Shell, Housing
& Sealing Nut
Contact Holders
600
PC/PBT
Mechanical
Environmental Seal
IEC 60529
UL 50E
Wire Size
Operating Temperature
UL 1977
Mating Cycles (no load)
Mating Force (nominal)
Unmating Force
Contact Retention Force (min)
Touch Safe (IEC 60529)
IP 68
Pass
10 to 8 AWG
6.0 to 8.4 mm²
-40 to 105°C
-40 to 221°F
250 min
28 lbf
125 N
12 lbf
53 N
50 lbf
222 N
IP 20
(socket side only)
PBT- GF
Contact Retention Clip
Be-Cu
Latch
Flammability
Weatherability
Sockets
Pins
Silver = Ag
Gold = Au
Stainless Steel
UL 94 V-0
UL 746C F1
Copper - Ag plating over Ni
Copper - Ag plating over Ni
Nickel = Ni
Pass
Contact Resistance (average)
.300 Milliohms
| ORDERING INFORMATION |
SPEC Pak
®
is a highly configurable environmentally sealed connector. For convenience, follow the steps below to
determine component part numbers.

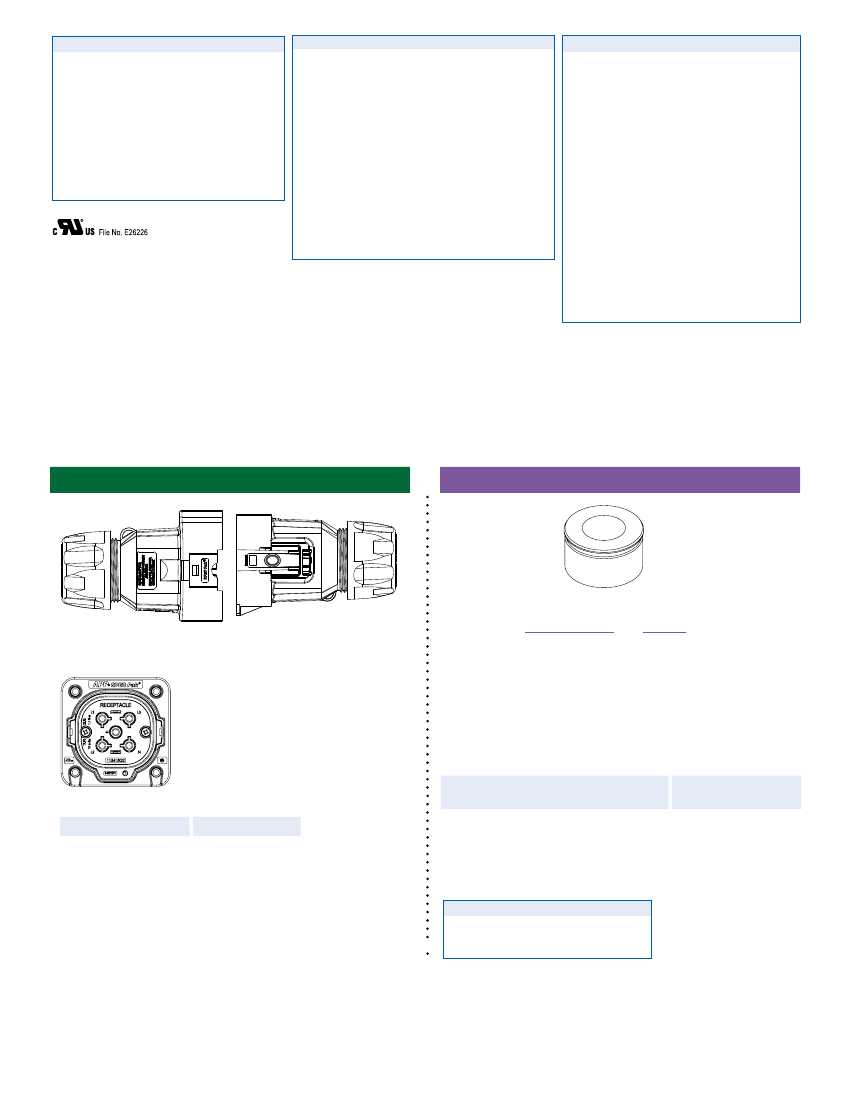

Step 1: Select Shell
Step 2: Select Sealing Gland
* Define:
SK1-076D05
Inline Receptacle
SK6-076D05
Plug
Wires
- Discrete ____________
- Bundled ____________
Number of Wires
Wire OD
_____________
_____________
* Select wire protection that will accommodate the number of
wires and outer diameter (OD) of the wire used in your application.
* Wire protection is required for use with inline receptacles
(SK1-076D0) and plugs (SK6-076D05) to obtain IP68 seal.
Number
of Holes
Cable Range Wire
Outer Diameter mm (in)
Sealing Grommet Only
- Part Numbers -
10
B02130P7
SK2-076D05
Panel Mount Receptacle & Gasket
Description
Minimum Quantity .........
Inline Receptacle Shell
Plug Shell
Panel Mount Receptacle
Receptacle Cover
Plug Cover
- Part Numbers -
25
SK1-076D05
SK6-076D05
SK2-076D05
SK9-076
SK9P-076
Minimum Quantity ..........................................
1
18.0 - 24.0 mm (0.79” - 0.85”)
Other sealing grommets available, please inquire.
Torque Requirements
Hand tighten. Using a 44 mm wrench or strap
wrench, tighten an additional 3/4—1 turn.
Contact holders are available with multiple keys, please inquire.
“© 2016 Anderson Power Products, Inc. All rights reserved. SPEC Pak
®
is a registered trademarks of Anderson Power Products, Inc.”
All Data Subject To Change Without Notice

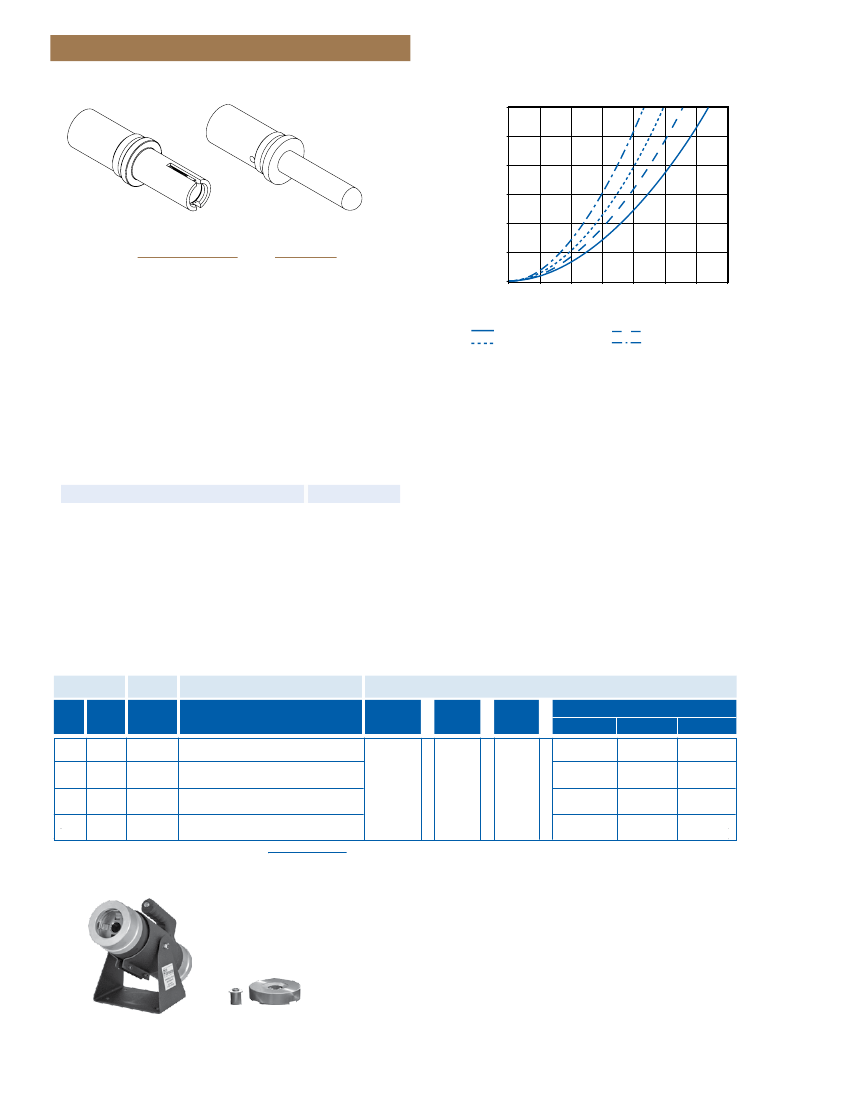

Step 3: Select Contacts
| TEMPERATURE CHART |
60
50
Temperature (°C)
40
30
20
10
0
0
10
20
30
40
50
60
70
5 Position Mid Power SPEC Pak
®
Temperature Rise
Socket
Pin
* Define:
Contacts
- Power
- Other
Number of Circuits
_____________
_____________
Wire Gauge
__________
__________
Amps (continuous): ____ Max amps at ____ volts
* Select power and/or ground contacts appropriate for your wire
size (AWG or mm²).
• Sockets are used in the receptacles
(part numbers SK1-076D05 & SK2-076D05)
• Pins are used in the plug
(part number SK6-076D05)
Description
Minimum Quantity ...............................................
Power Drawer
®
#8 socket crimp, ground
Power Drawer
®
#8 socket crimp, standard mate
Power Drawer
®
#8 plug crimp, ground
Power Drawer
®
#8 plug crimp, standard mate
Power Drawer
®
#8 plug crimp, pre-mate
- Part Numbers -
10
SC08-GH
SC08-SN
PP08SGH
PC08SSN
PC08FSN
Amperes Applied
8 AWG 4 Positions
10 AWG 4 Positions
8 AWG 5 Positions
10 AWG 5 Positions
| TOOLING |
Wire Size
Part
Number
Power
Contact
Pneumatic
Bench Tool
Crimp Tools
Daniels Mfg Tool*
+
Die
+
Locator
OR
AWG
MM²
Description
Tool
Die
Locator
#8/10
#8/10
#8/10
#8/10
8.4/6.0
8.4/6.0
8.4/6.0
8.4/6.0
SC08-GH
SC08-SN
PP08SGH
PC08SSN
POWER DRAWER CONT.#8 SOC.CRIMP,
FIRST MATE
POWER DRAWER CONT.#8 SOC.CRIMP,
STD.MATE
POWER DRAWER CONT.#8 PIN,CRIMP,
STD.MATE, FIRST MATE
POWER DRAWER CONT.#8 PIN,CRIMP,
STD.MATE
1387G1
1388G6
1389G19
M22520/23-01 M22520/23-2 M22520/23-9
M22520/23-01 M22520/23-2 M22520/23-9
M22520/23-01 M22520/23-2 M22520/23-9
M22520/23-01 M22520/23-2 M22520/23-9
* Must contact Daniels directly for this tooling option,
www.dmctools.com.
Locator
1387G1
Die
All Data Subject To Change Without Notice
“© 2016 Anderson Power Products, Inc. All rights reserved. SPEC Pak
®
and Power Drawer
®
are registered trademarks of Anderson Power Products, Inc.”

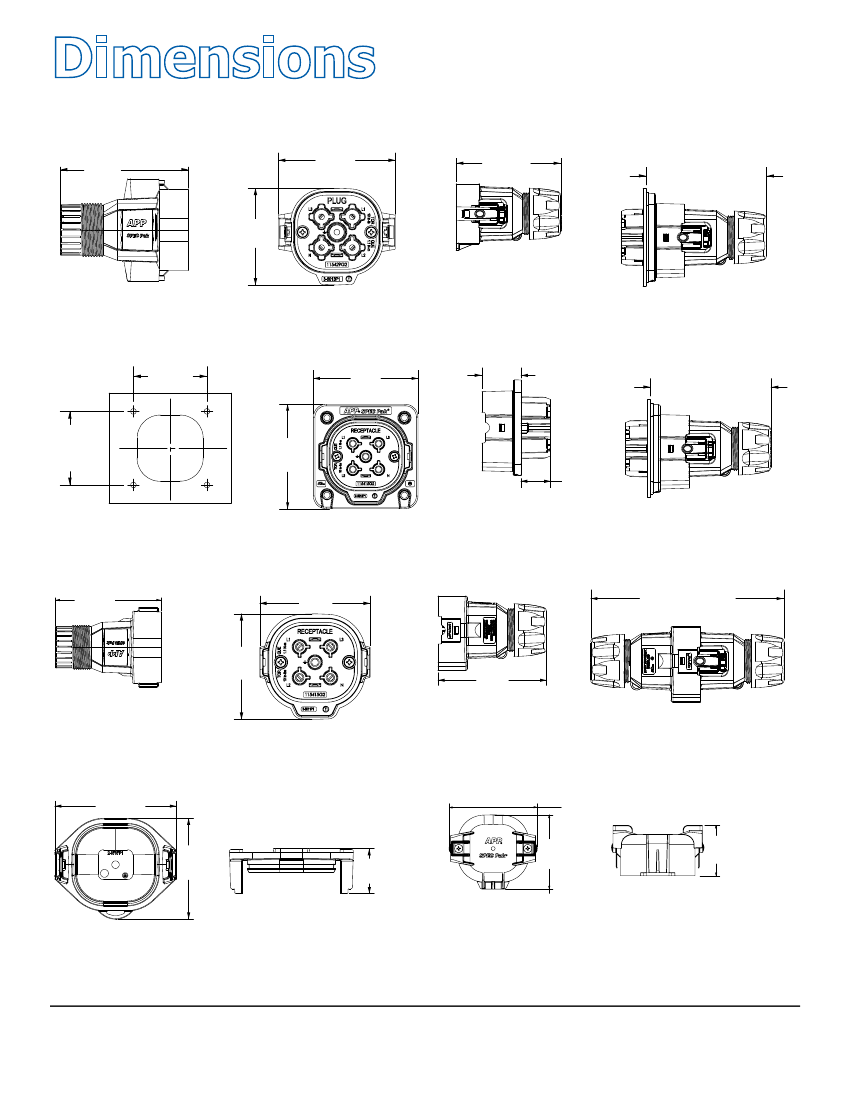

| PLUG MID POWER |
Top View
[ 3.73 ]
94.7
Front View
[ 2.98 ]
75.8
Side View
[ 3.09 ]
99.0
Mated View
[ 4.4 ] 111.0
Mated Length to
Panel Receptacle
[ 2.47 ]
62.8
| PANEL MOUNT RECEPTACLE MID-POWER |
Panel Cut Out
[ 2.36 ]
60.0
Front View
[ 3.19 ]
81.0
Side View
[ 1.31 ]
33.2
Mated View
[ 4.4 ] 111.0
Mated Length to
Panel Receptacle
[ 2.36 ]
60.0
[ 3.19 ]
81.0
[ 0.98 ]
25.0
| INLINE RECEPTACLE MID-POWER |
Top View
[ 3.76 ]
95.5
Front View
[ 2.83 ]
71.8
Side View
Mated View
[ 6.9 ] 175.0
Mated Length to Plug
[ 2.70 ]
68.6
[ 3.9 ]
100.0
| PLUG COVER KIT |
Front View
[ 3.03 ]
77.0
| RECEPTACLE COVER KIT |
Side View
Front View
[ 2.93 ]
74.5
Side View
[ 2.52 ]
63.9
[ 1.10 ]
28.0
[ 2.47 ]
62.8
[ 1.59 ]
40.5
DS-MPSPAK5P REV 1,
2017-0014
All Data Subject To Change Without Notice
© 2017 Anderson Power Products, Inc. All rights reserved. SPEC Pak
®
, Power Drawer
®
, APP
®
, Anderson Power Products
®
and the APP logo are registered trademarks of Anderson Power Products, Inc.
