74302-1205 datasheet, PDF - EEWORLD Datasheet

74302-1205: DescriptionTelecom and Datacom Connector, 50 Contact(s), Female, Right Angle, Solder Terminal, #4-40, Receptacle; CategoryThe connector; File Size315KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

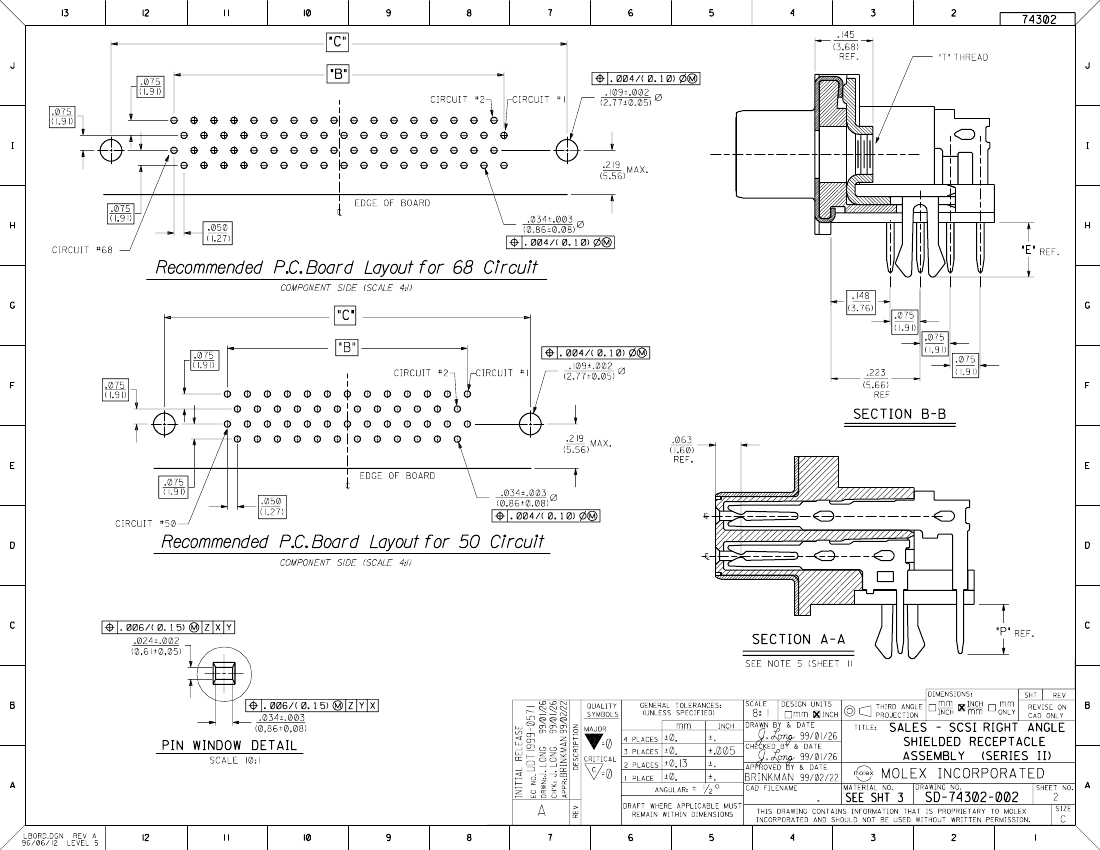

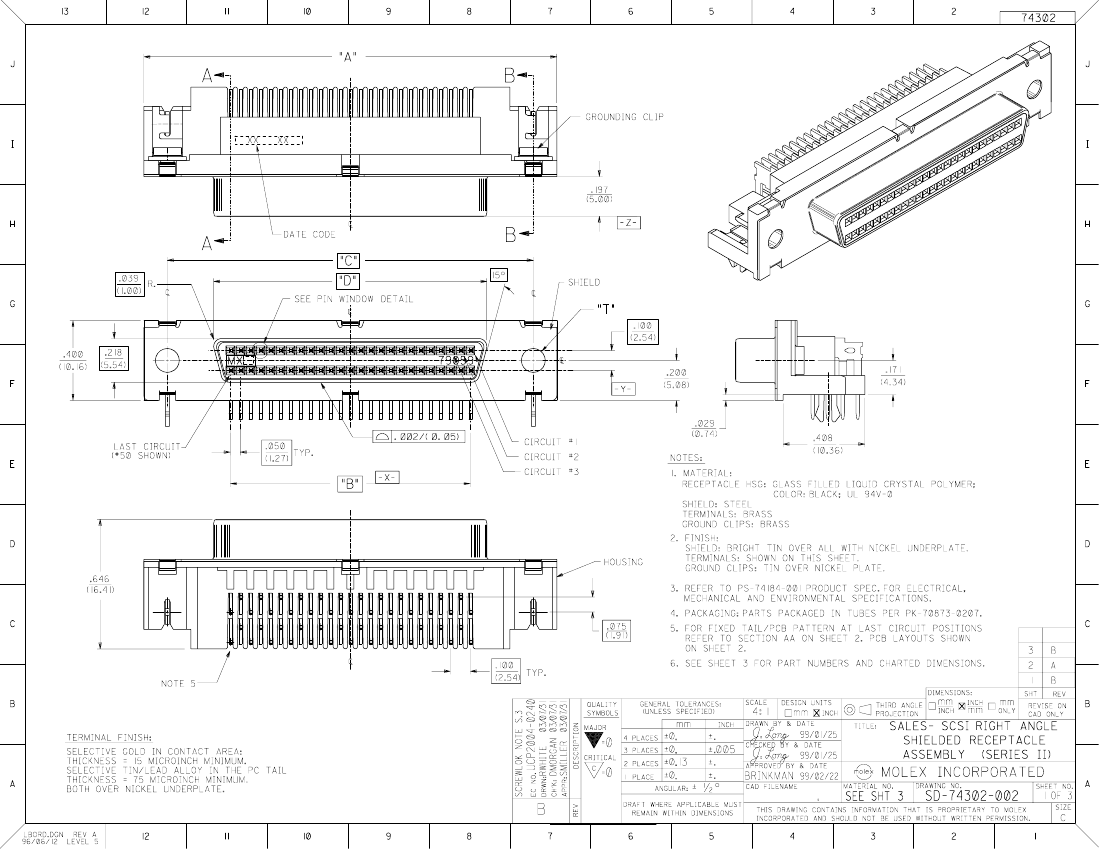

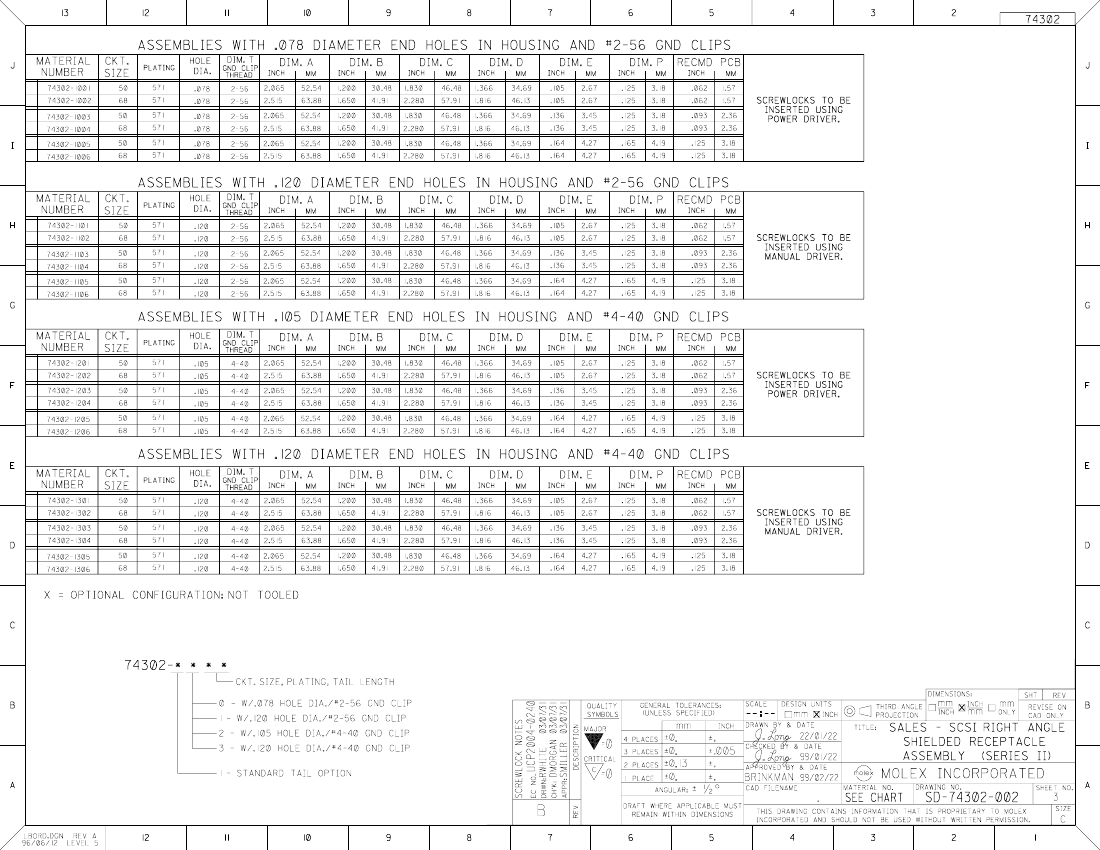

74302-1205 Overview

Telecom and Datacom Connector, 50 Contact(s), Female, Right Angle, Solder Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	STAGGERED CONFIGURATION, SHIELDED
Board mount options	SPLIT BOARD LOCK
body width	0.406 inch
subject depth	0.448 inch
body length	2.065 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	PLASTIC
MIL compliance	NO
Manufacturer's serial number	74302
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Maximum operating temperature	75 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1
