TR/3216FF1.5-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> TR/3216FF1.5-R

TR/3216FF1.5-R: DescriptionSurface Mount Fuses 32VAC/DC 1.5A Fast Acting Chip Fuse; CategoryCircuit protection Circuit protection; File Size240KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

TR/3216FF1.5-R Overview

Surface Mount Fuses 32VAC/DC 1.5A Fast Acting Chip Fuse

TR/3216FF1.5-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 63 VDC: 50 A, JOULE-INTEGRAL-NOM AT 63 VDC: 0.093
Fusing characteristics	FAST
body width	1.6 mm
body height	0.89 mm
Body length or diameter	3.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Manufacturer's serial number	3216FF
Installation features	SURFACE MOUNT
method of packing	TAPE AND REEL
physical size	3.2mm x 1.6mm x 0.89mm
Rated breaking capacity	50 A
Rated current	1.5 A
Rated voltage (AC)	32 V
Rated voltage (DC)	63 V
Guideline	CSA
surface mount	YES
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

Technical Data

3001

Effective

October

2017

Supersedes

May

2017

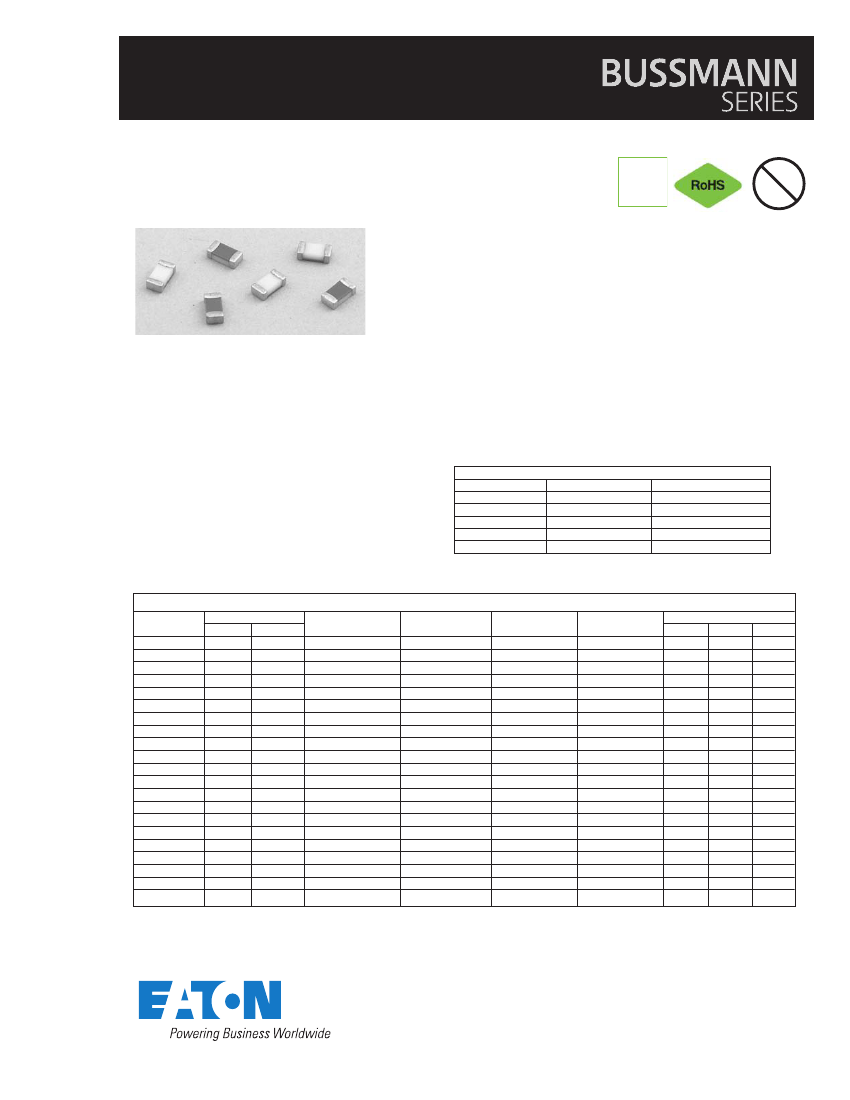

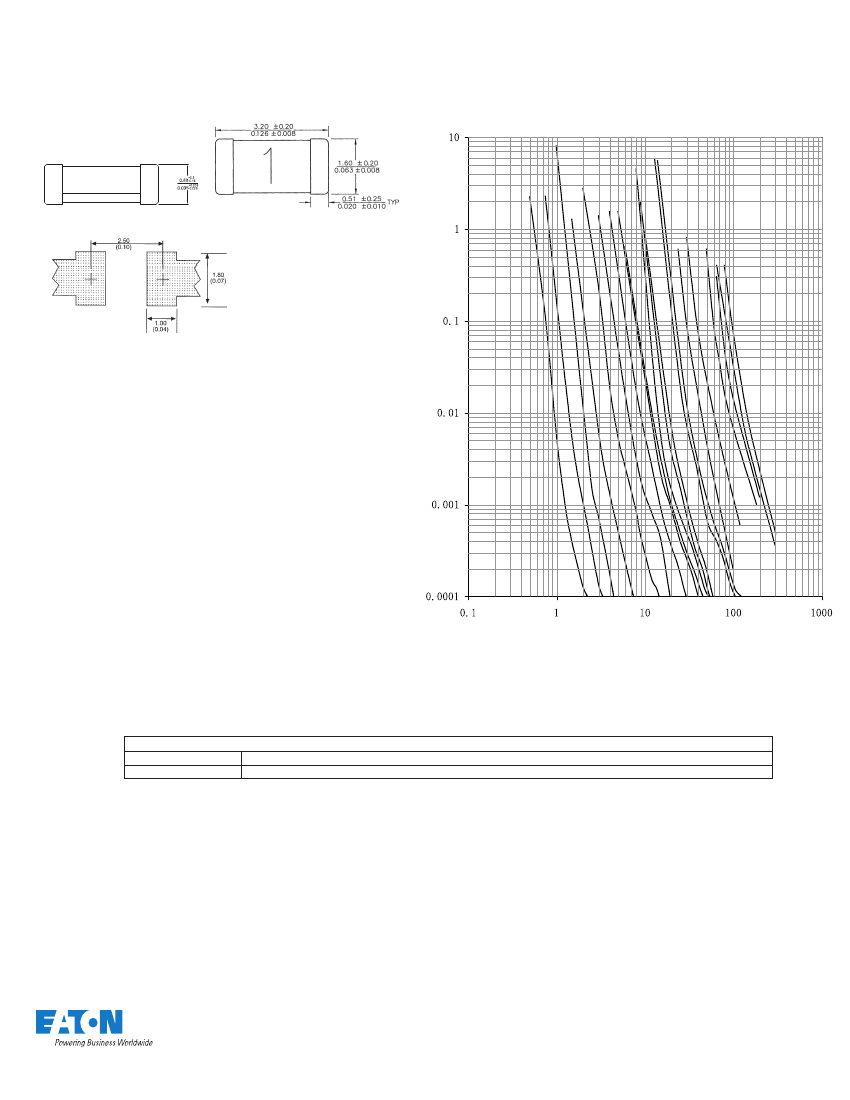

3216FF

Fast-acting Chip™ surface mount fuse

Environmental data

FREE

HALOGEN

Product features

•

AEC-Q200 qualified (250 mA to 7 A)

Fast-acting surface mount fuse

Ratings up to 30 amps

Excellent temperature and cycling characteristics

Compatible with reflow and wave solder

•

Thermal Shock: MIL-STD-202, Method 107,

Test Condition B (-65 °C to +125 °C)

•

Vibration: MIL-STD-202, Method 204,

Test Condition C (55 Hz - 2 kHz, 10 G)

•

Moisture Resistance: MIL-STD-202, Method

106,10 day cycle

•

Solderability: ANSI/J-STD-002, Test B

•

Additional resistance to solder heat test: MIL-

STD-202G Method 210F Condition A

•

Operating Temperature: -55 ºC to +125 ºC

•

AEC-Q200 qualified (250 mA to 7 A)

Ordering

•

Specify packaging and product code (i.e.,

TR/3216FF250-R)

Amp Rating

250mA - 30A

1.25A - 3A

250mA - 3A

4A - 7A

10A - 30A

Electrical Characteristics

% of Amp Rating

100%

200%

250%

350%

Opening Time

4 Hrs. Min.

60 Sec. Max.

5 Sec. Max.

1 Sec. Max.

5 Sec. Max.

Agency information

•

UL Recognition Guide JDYX2 & File E19180.

•

CSA Component Acceptance: 053787 C 000 &

Class No: 1422 30.

•

cURus

Recognition File: E19180, Guide JDYX2/

JDYX8

Soldering method

•

Wave Immersion: 260 °C, 10 sec max.

•

Infrared Reflow: 260 °C, 30 sec max.

Part

Number

3216FF250-R

3216FF375-R

3216FF500-R

3216FF750-R

3216FF1-R

3216FF1.25-R

3216FF1.5-R

3216FF2-R

3216FF2.5-R

3216FF3-R

3216FF4-R

3216FF4.5-R

3216FF5-R

3216FF6.5-R

3216FF7-R

3216FF10-R

3216FF12-R

3216FF15-R

3216FF20-R

3216FF25-R

3216FF30-R

Volt Ratings

Vdc

Speci cations

Interrupting Rating* Typical DC Cold

(amps) AC/DC

Resistance

(Ω)**

3.5000

1.7500

0.9800

0.5400

0.2190

0.1700

0.1190

0.0660

0.0460

0.0360

0.0180

0.0160

0.0140

0.0086

0.0070

150

0.0045

150

0.0039

150

0.0031

150

0.0018

250

0.0014

300

0.0012

Vac

Typical Melt

t (A

DC***

0.00038

0.00077

0.00190

0.0053

0.030

0.046

0.093

0.126

0.260

0.275

0.337

0.405

0.534

2.294

3.623

2.0

7.0

25.5

48.6

32.0

43.0

Typical Voltage

Drop (V)†

1.40

0.73

0.66

0.63

0.20

0.18

0.16

0.14

0.13

0.11

0.10

0.09

0.076

0.078

0.062

0.070

0.066

0.060

0.057

0.068

Agency Approvals

CSA

cURus

*AC Interrupting Rating measured at rated voltage with a unity power factor; DC Interrupting Rating measured at rated voltage, time constant of less than 50 microseconds, battery source

**Typical DC Cold Resistance measured at 10% of rated current

***Typical Melting I2t measured with a battery bank at rated DC voltage, 10x-rated current, not to exceed IR, time constant of calibrated circuit less than 50 microseconds (6.5A - 30A measured at interrupting

rating) †Typical Voltage Drop measured at rated current after temperature stabilizes. It is recommended that fuses be mounted with ceramic (white) side facing up.

Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at elevated ambient temperatures.
