80716300000: DescriptionFuses with Leads (Through Hole) 300V IEC TL 6.3A TE7; CategoryCircuit protection Circuit protection; File Size544KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

80716300000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	80716300000	-	-	View	Buy Now

80716300000 Overview

Fuses with Leads (Through Hole) 300V IEC TL 6.3A TE7

80716300000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME LAG
body width	6.4 mm
body height	9.2 mm
Body length or diameter	12.4 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	TE7
JESD-609 code	e3
Joule integral nominal	1063 J
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
method of packing	AMMO PACK; TAPE AND REEL
physical size	12.4mm x 6.4mm x 9.2mm
Rated breaking capacity	100 A
Rated current	6.3 A
Rated voltage	300 V
Rated voltage (AC)	300 V
Guideline	CUL; KC; IEC; PSE; UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE

Preview

Download Datasheet

View All

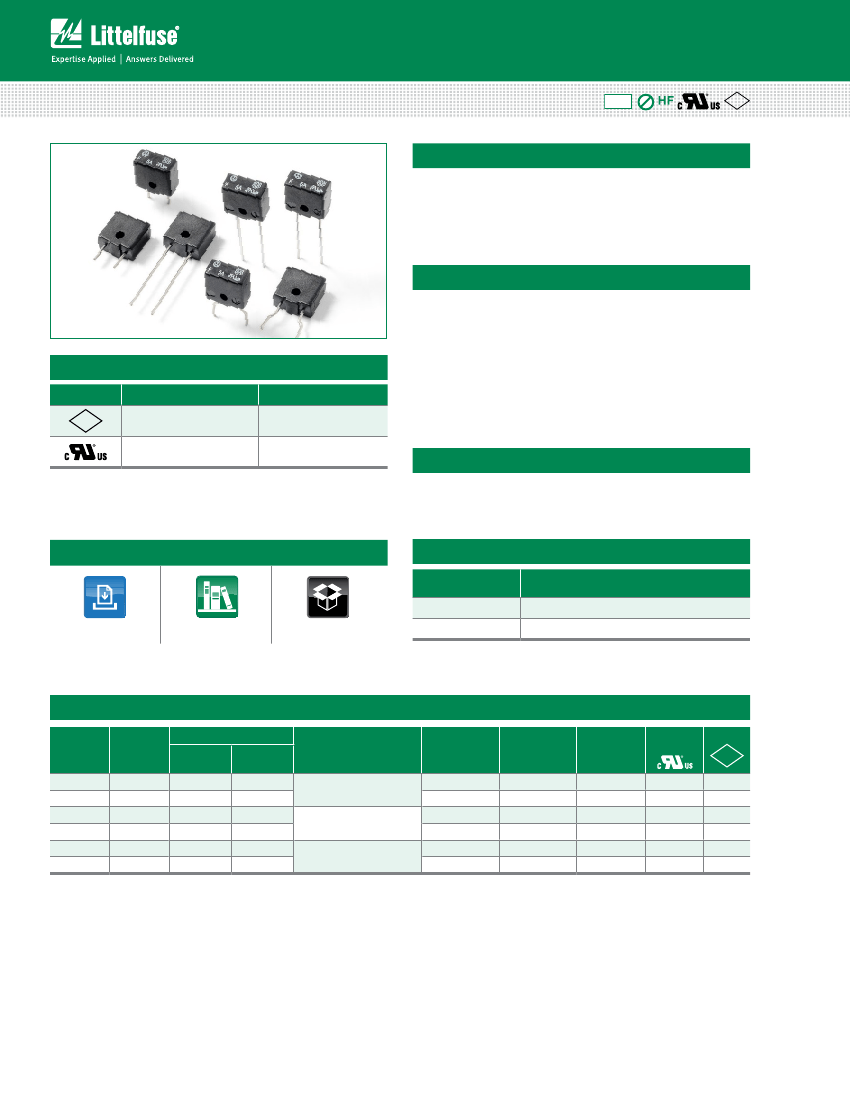

Radial Lead Fuses

TE5

®

> Fast Acting 450V Fuse > 808 Series

808 Series TE5

®

Fast-Acting 450V Fuse

Description

RoHS

Pb

PS

E

The 450V TE5

®

Fast-acting Fuse is designed to enable

compliance with the RoHS Directive. This product is fully

compatible with lead-free solder alloy. This device is UL

Recognized for protecting components or internal circuits

against overcurrent conditions at high DC voltages.

Features

• Reduced PCB space

requirements

• Direct solderable or

plug-in versions

• Low internal resistance

• Halogen free, Lead-free,

and RoHS compliant

• Shock safe casing

Applications

• DC/DC Converter

• Transformer-less AC/DC

Circuit

Additional Information

Electrical Characteristics

% of Ampere

Rating

100%

Opening Time

4 Hours, Minimum

10 Seconds, Maximum

Agency Approvals

Agency

PS

E

Agency File Number

Ampere Range

• Vibration resistant

• Antimony-free

• Ideal for high voltage DC

applications

• Very high breaking

capacity of 10kA at rated

DC voltage

NBK060111-JP1021A

E67006

2.00A - 5.00A

• Data Centers

• Telecom/Datacom

Central Offices

Datasheet

Resources

Samples

200%

Electrical Characteristics

Ampere

Rating

(A)

2.00

2.50

3.00

3.15

4.00

5.00

Notes:

1. This fuse is not recommended for use in DC circuits where the available prospective short-circuit current is less than 300A at rated voltage.

2. Cold resistance measured at less than 10% of rated current at 23°C.

3. An operating current of 80% or less of rated current is recommended, with further derating required at elevated ambient temperature.

4. Have special electrical characteristic needs? Contact Littelfuse to learn more about application specific options.

Amp

Code

1200

1250

1300

1315

1400

1500

Max Voltage Rating (V)

AC

250

DC

450

350

250

Interrupting Rating

1

Nominal Cold

Resistance

2

(Ohms)

0.069

0.054

0.042

0.038

0.027

0.022

200A@250VAC

300A to 10kA@450VDC

200A@250VAC

300A to 10kA@350VDC

200A@250VAC

300A to 10kA@250VDC

Nominal

Melting I

2

t

10xI

N

(A

2

sec)

0.0610

0.0898

0.2007

0.2191

0.5445

1.1584

Max Voltage

Drop

1.0xI

N

(mV)

342

300

276

270

240

215

Agency

Approval

x

PSE

PS

E

x

Application testing is strongly recommended. Specifications are subject to change without notice.

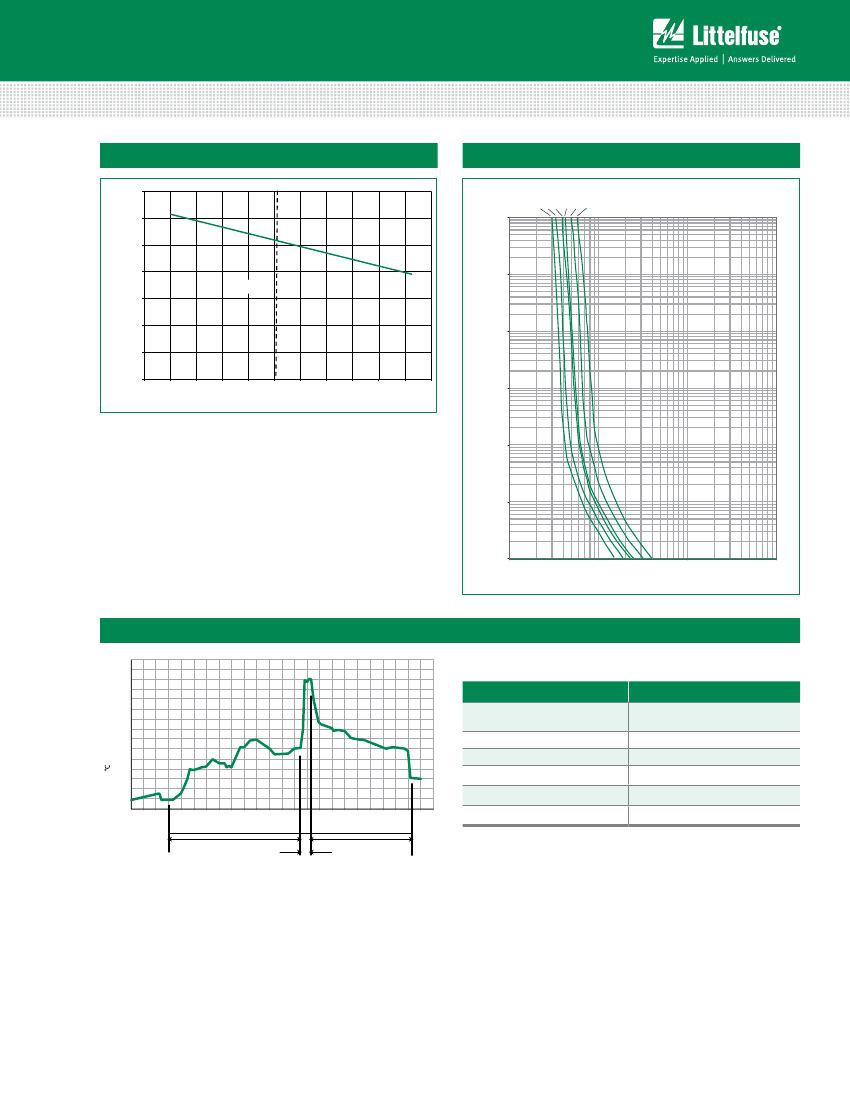

Revised: 02/06/18
