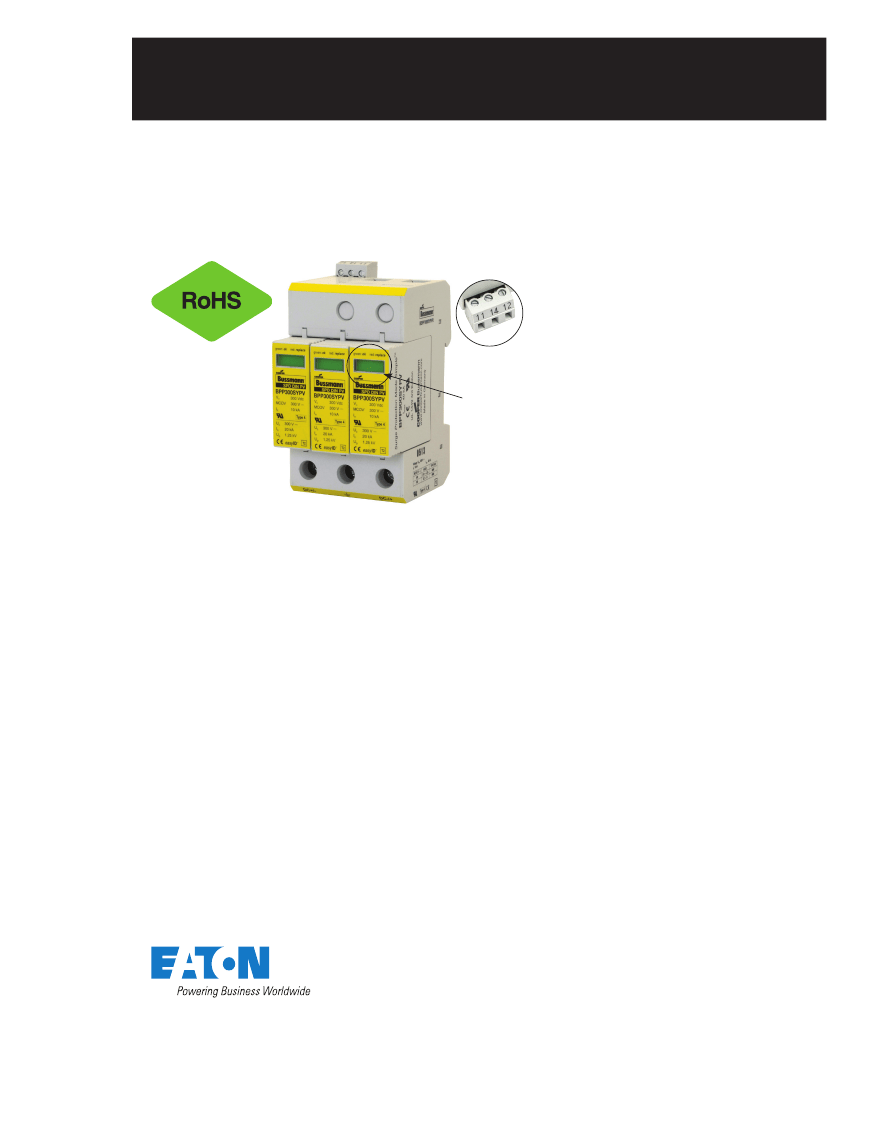

modules that feature a disconnection device in the
event of an overload and are mechanically keyed
to prevent the use of an incorrect replacement
module.
In case of insulation faults in the generator circuit,
a reliable and tested fault-resistant Y circuit
prevents damage to the surge protective devices.
Mounting
•
35 mm DIN-Rail
Warranty
•
Five years
Technical Data 10091
Effective Janaury 2015
Dimensions - mm:

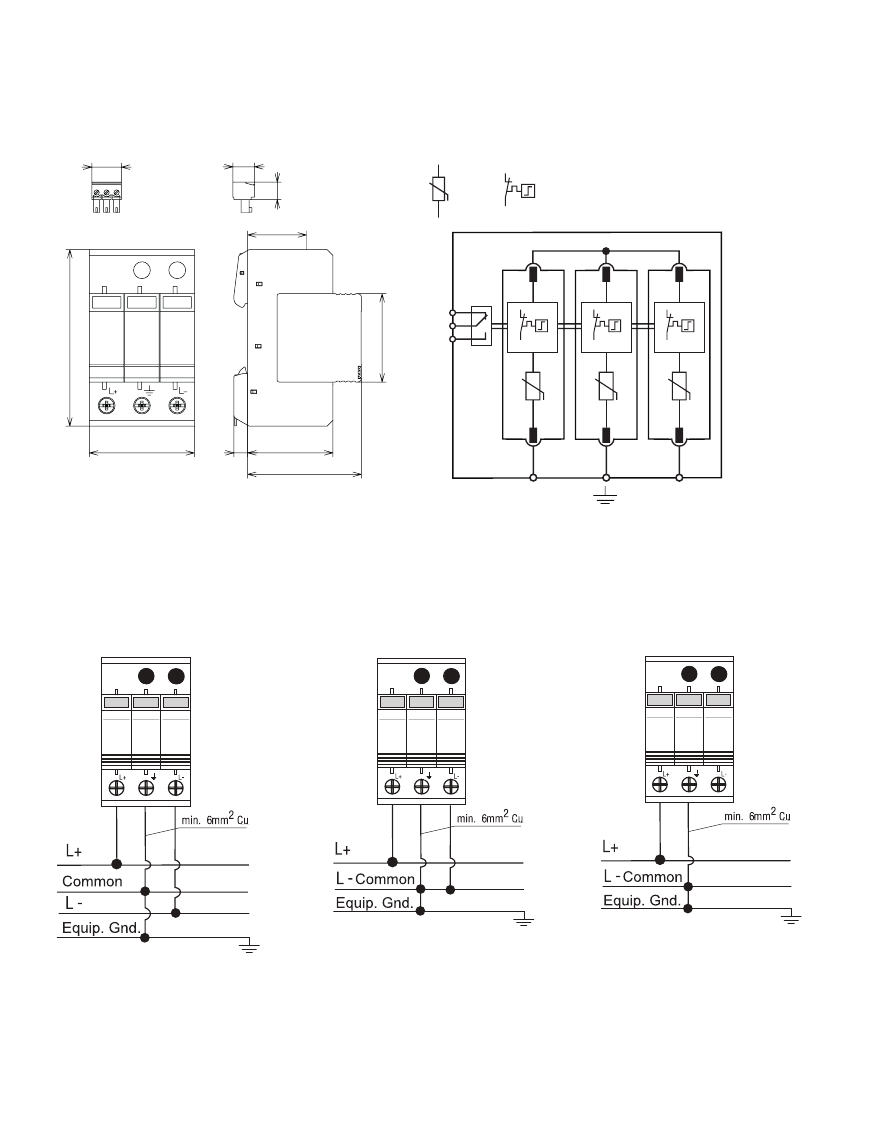

Module circuit diagrams:
15.3
11.0
9.0
Shown with optional remote contact signaling
MOV
Thermal disconnector
30.0
90.0
54.0
(3TE)
7.0
43.5
58.0
DC+/–
BSPP3600YPV(R)
BSPP31000YPV(R)
45.0
12
11
14
Shown with optional remote contact signaling.
DC–/+
Typical application schematics:
Application A
Two energized poles/modes
Application B
One energized pole/mode
Application C
One energized pole/mode*
2
Eaton.com/bussmannseries
Technical Data 10091
Effective Janaury 2015
Ordering information:
Nominal PV system voltage
Catalog numbers (base + modules)
Replacement modules:
Specifications
Nominal PV system voltage
UCPV per EN50539-11*
System MOV MCOV
Max system discharge current (8/20µs) [I
max
]
Voltage protection level
[U
P
]
at 5kA [U
P
]
W/O remote contact signaling
W/ remote contact signaling
600Vdc
BSPP3600YPV
BSPP3600YPVR
BPP300SYPV
1000Vdc
BSPP31000YPV
BSPP31000YPVR
BPP500SYPV
Short-circuit withstand capability [ISCPV]
Technology
Operating temperature range [T
U
]
Nominal discharge current (8/20µs) (DC+
∆
DC-) (DC+/DC-
∆
PE) [I
n
]
Response time [t
A
]
Operating state/fault indication
Min.
Conductor ratings and cross-sectional area:
Max.
Mounting
Enclosure material
Degree of protection
Capacity
Agency information:
Warranty
Remote contact signaling
Contact signaling type
AC switching capacity (Volts/Amps)
Cross-sectional area
Ordering information
AC
DC
600V
1000V
600Vdc
1000Vdc
700Vdc
1170Vdc
40kA
40kA
=2.5kV
=4.0kV
=2.0kV
=3.5kV
125A
Fault resistant Y MOV circuit
-40°C to +80°C
20kA
=25ns
Green (good) / Red (replace)
60/75°C 1.5mm
2
/ 14AWG Solid/Flexible
60/75°C 35mm
2
/ 2AWG stranded / 25mm
2
/ 4AWG flexible
35mm DIN-Rail per EN 60715
UL 94V0 Thermoplastic
IP20
3 Modules, DIN 43880
UL UL 1449 3rd Edition (Type 2)
IEC EN 50539-11, IEC 61643-11 Type 2, IEC 61643-11 Class II
Two Years**
Changeover contact
250V / 0.1A
250V / 0.1A; 125V / 0.2A; 75V / 0.5A
60/75°C Max. 1.5mm
2
/ 14AWG solid/flexible
Order from catalog numbers above
* Maximum continuous operating voltage for PV applications.
** See Eaton’s Bussmann Division SPD limited warranty statement (3A1502) for details at www.cooperbussmann.com/surge.
Eaton.com/bussmannseries
Technical Data 10091
Effective Janaury 2016
Typical application schematics:
Application A
Two energized poles/modes
Application B
One energized pole/mode
Application C
One energized pole/mode*
* BSPP31000YPV(R) 1000Vdc one energized pole/mode requires the following:
1. Use a suitable electrical insulator to keep a 10mm min. safety distance from the PV-SPD and other grounded parts in the housing.
2. No metal covers are in the area of the module release buttons as shown.
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document are
by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit
distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once
a product has been selected, it should be tested by the user in all possible applications.
