10x38mm Photovoltaic Fuse Links for Solar Panel Applications
1A to 20A, 1000Vdc Solar PV Series
Description:
A range of fuse links in a 10x38mm
package specifically designed for the
protection and isolation of photovoltaic
strings. The fuse links are capable of
interrupting low overcurrents associated with
faulted PV (reverse current, multi-array
fault) string arrays.
Catalogue Symbol:
PV-(amp
PV-(amp
PV-(amp
PV-(amp
rating)A10F
rating)A10-T
rating)A10-1P
rating)A10-2P
Packaging:
MOQ: 10
Packaging 100% recyclable
Class of Operation:
Fuse Size:
Fuse Holders:
gPV and UL PV fuse links
10x38mm
PCB Clip: 1A3400-09
Modular fuse holder:
CHM1D-PV-IEC
CHPV1U (1-pole non-indicating)
CHPV1IU (1-pole neon indicating)
IEC 60269-6, UL 2579, CSA,
CCC (1-15A), RoHS compliant,
UL Listed (1-15A) E335324
Technical Data:
Rated Voltage:
1000Vdc
Amps:
1-6A, 8-15A and 20A
Rated Breaking Capacity:
UL
IEC
1-6A
10kAdc 40kAdc
8-15A
10kAdc 33kAdc
20A
N/A
10kAdc
Min Interrupting Rating:
1.3 x In
Standards/Approvals:
PV Fuse Coordination w/: Thin film cells and 4”, 5” and 6”
crystalline silicon cells.
Time Constant:
1-3ms

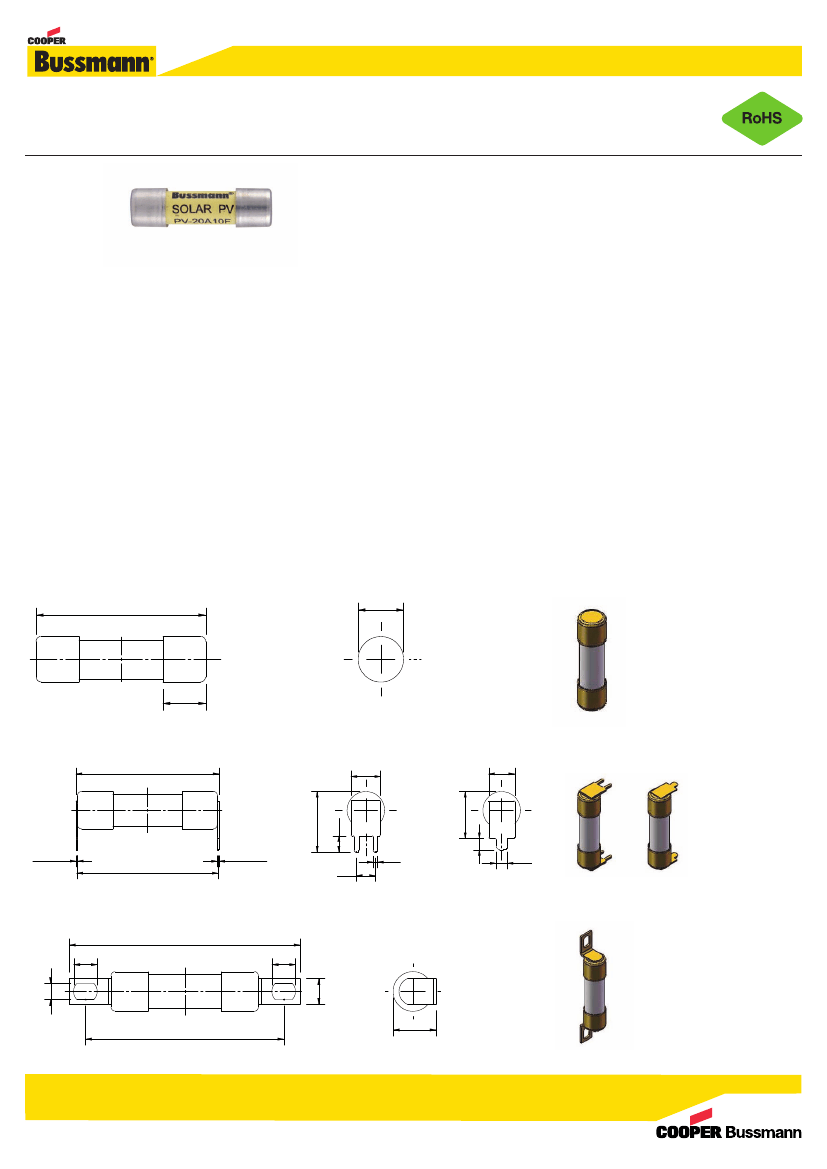

Dimensions - mm
Cylindrical PV-**A10F
PCB Fixing PV-**A10-1P
7\SH 3
7\SH 3
7\SH 3
7\SH 3
Bolt Fixing PV-**A10-T
01-12
BU-SB101222
Form No.Solar-DS
Page 1 of 3
Data Sheet 720110
10x38mm Photovoltaic Fuse Links for Solar Panel Applications
1A to 20A, 1000Vdc Solar PV Series
Technical Data
Part Number
PV-1A10F
PV-2A10F
PV-3A10F
PV-3-5A10F
PV-4A10F
PV-5A10F
PV-6A10F
PV-8A10F
PV-10A10F
PV-12A10F
PV-15A10F
PV-20A10F
Current
Rating
(Amps)
1
2
3
3.5
4
5
6
8
10
12
15
20
Energy Integrals I
2
t (A
2
s)
Pre-Arcing Total at 1000V
0.15
1.2
4
6.6
9.5
19
30
3
7
12
22
34
0.4
3.4
11
18
26
50
90
32
70
120
220
350
Watts Loss
0.8 I
n
0.8
0.6
0.8
0.9
1.0
1.0
1.1
1.2
1.2
1.5
1.7
2.1
I
n
1.5
1.0
1.3
1.4
1.5
1.6
1.8
2.1
2.3
2.7
2.9
3.6

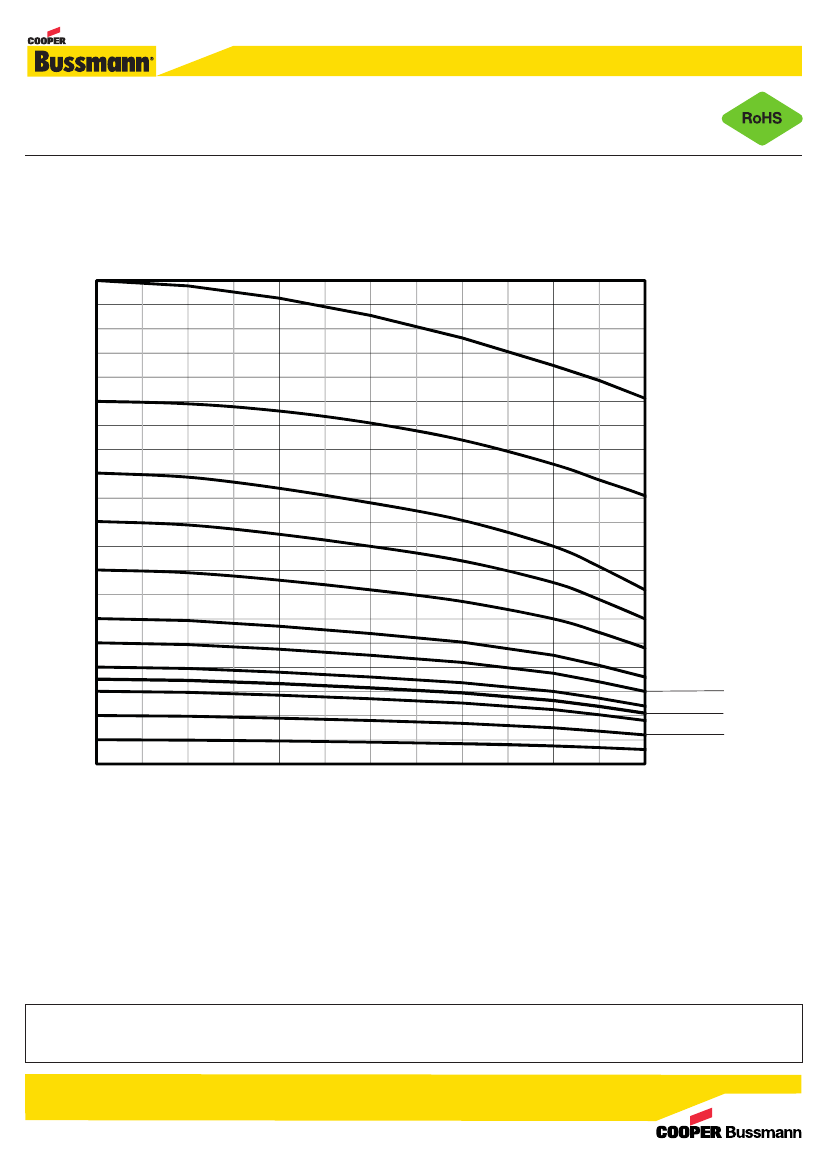

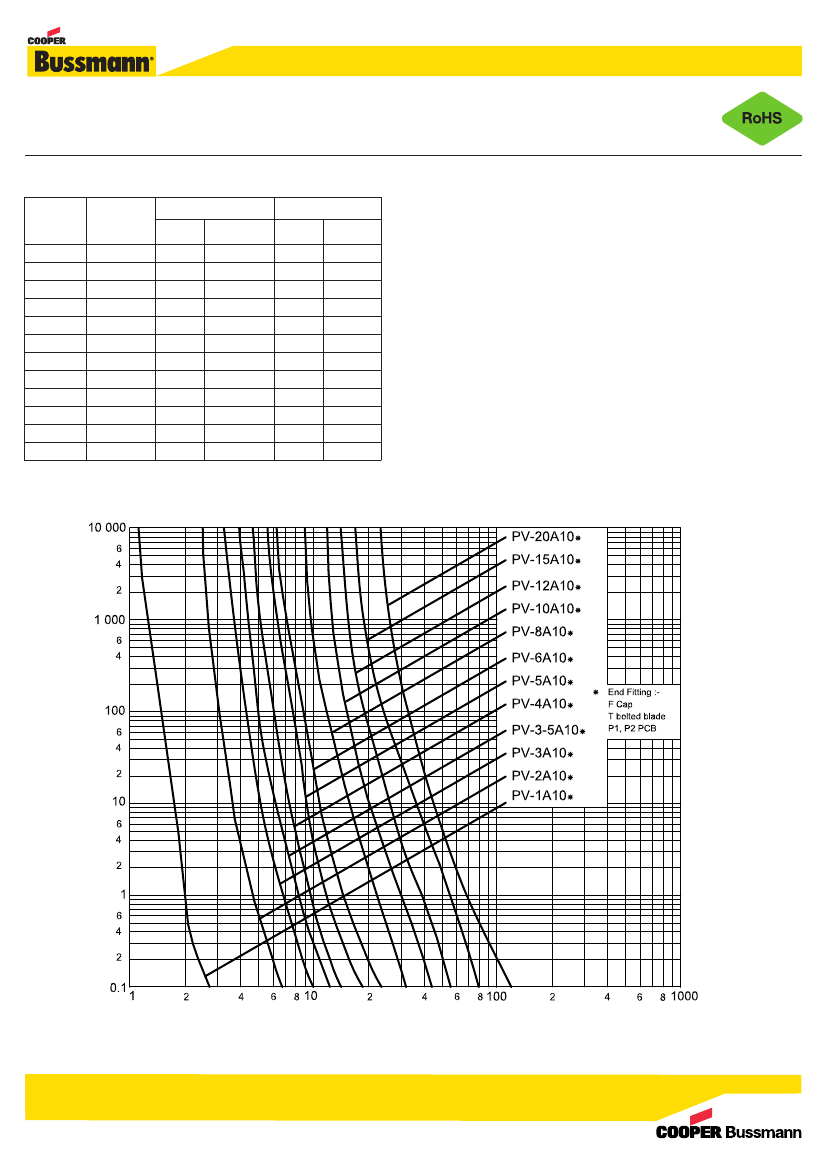

Time-Current Characteristics
Time in Seconds (s)
Available Current, DC-Time Constant 1-3ms (Amps)
01-12
BU-SB101222
Form No.Solar-DS
Page 2 of 3
Data Sheet 720110
10x38mm Photovoltaic Fuse Links for Solar Panel Applications
1A to 20A, 1000Vdc Solar PV Series
Temperature Derating
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
20
30
40
50
60
70
Current Carrying Capability (A)
Current carrying capability
apability
20A
PV20A10#
15A
PV-15A10#
12A
PV12A10#
10A
PV-10A10#
8A
PV-8A10#
6A
PV-6A10#
PV-5A10#
5A
4A
PV-4A10#
PV-3-5A10#
3.5A
3A
PV-3A10#
PV-2A10#
2A
1A
PV-1A10#
80
Ambient Temperature - Celsius
ambient temperature
# = fixing sty
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by defini-
tion uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications.
Cooper Bussmann reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann
also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user
