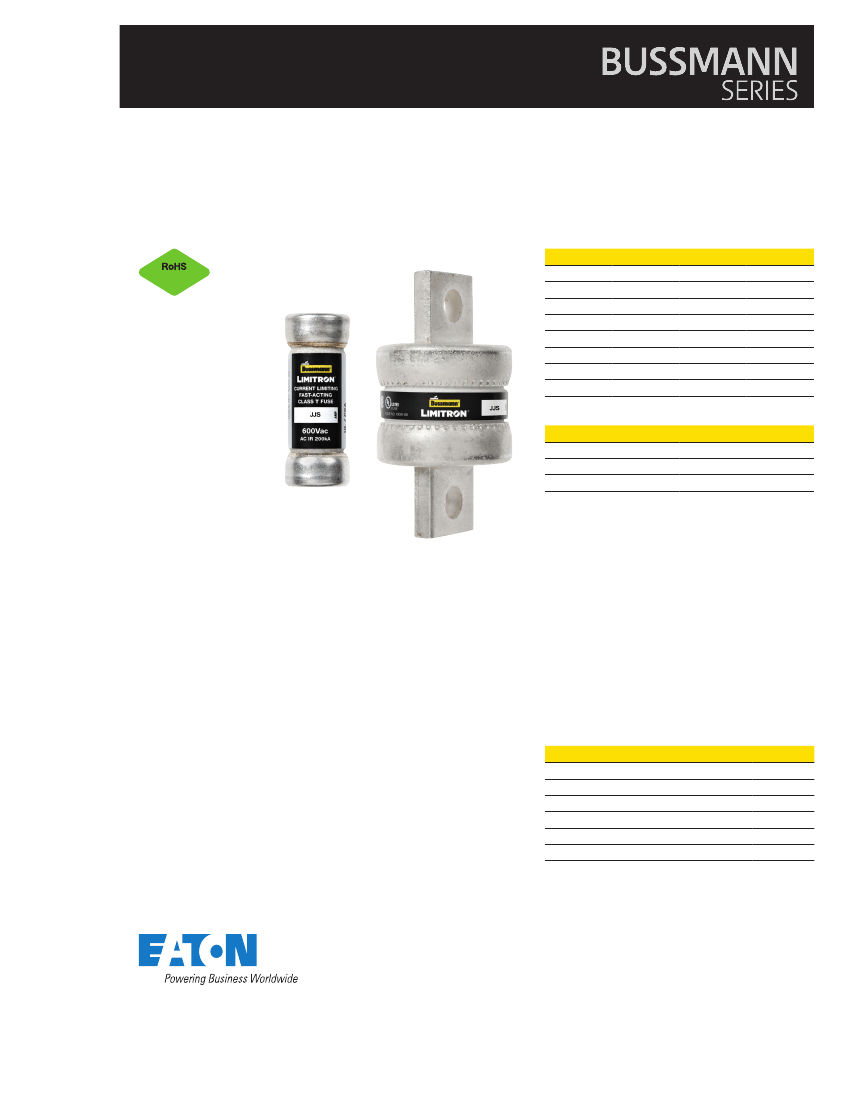

Technical Data1029
Effective December 2017
Supersedes March 2017
JJS Limitron™ 600Vac, 1-800A, fast-acting
Class T fuses
2011/65/EU
Catalog numbers (amps)
JJS-1
JJS-30
JJS-2
JJS-35
JJS-3
JJS-40
JJS-6
JJS-45
JJS-10
JJS-50
JJS-15
JJS-60
JJS-20
JJS-70
JJS-25
JJS-80
JJS-90
JJS-100
JJS-110
JJS-125
JJS-150
JJS-175
JJS-200
JJS-225
JJS-250
JJS-300
JJS-350
JJS-400
JJS-450
JJS-500
JJS-600
JJS-800
Carton quantity
Amp rating
Up to 60
70–100
110–800
Carton qty.
10
5
1
Features:
•
Catalog Symbol:
•
Provides 10X better current limitation to help
prevent equipment damage caused by short-
circuit events.
200 kA Interrupting rating complies with NEC
®
Section 110.9 for today’s large capacity systems.
Fast-acting fuse helps prevent equipment
damage caused by short-circuit events.
Small, space-saving fuses provide a high
degree of current limitation on short-circuits for
excellent component protection.
Ideal for critical industrial or commercial
applications that have specific current limitation
requirements.
•
JJS-(amp)
•
Description:
Eaton’s Bussmann™ series Limitron™ advanced
protection Class T current-limiting, fast-acting
fuses.
•
Specifications:
Ratings
•
•
•
•
Volts — 600 Vac
Amps — 1-800 A
IR
— 200 kA Vac RMS Sym.
Recommended fuse blocks*
Amp rating
up to 30
35-60
70-100
110-200
225-400
450-600
1-pole
T60030-1_
T60060-1_
T60100-1_
T60200-1_
T60400-1_
T60600-1_
2-pole
T60030-2_
T60060-2_
T60100-2_
—
—
—
3-pole
T60030-3_
T60060-3_
T60100-3_
1B0089
—
—
Agency Information
•
UL
®
Listed, Std. 248-15, Class T, Guide JDDZ,
File E4273
CSA
®
Certified, C22.2 No. 248.15, Class 1422-
02, File 53787
CE
RoHS complaint
•
•
•
* For additional information, see data sheet no. 1116.
Technical Data
Effective December 2017
JJS — 600Vac, 1-800A, fast-acting Class T fuses
Dimensions – in
1.5
Dia. 0.56
1 to 30 A
Custom designs
3.63
2.72
1.73
1
Printed circuit board versions available up to 60 amps. Consult your
Bussmann series product representative for details.
UL Component Recognized, Guide JFHR2, File E56412.
Dimensions — in
225 to 400 A
1.56
Dia. 0.81
35 to 60 A
Ø 0.406
1.885
0.200 min.
0.750
0.795
1.00
3.98
2.95
1.78
1.25
450 to 600 A
2.95
2.36
1.64
0.75
70 to 100 A
Ø 0.484
0.324
Ø 0.281
3.25
2.5
1.66
0.88
110 to 200 A
4.33
3.17
1.88
1.562"
0.500
1.75
Ø 0.563
0.150"
0.806"
1.432"
Ø 0.344
601 to 800 A
0.806"
2
Eaton.com/bussmannseries
Technical Data 1029
Effective December 2017
JJS — 600Vac, 1-800A, fast-acting Class T fuses

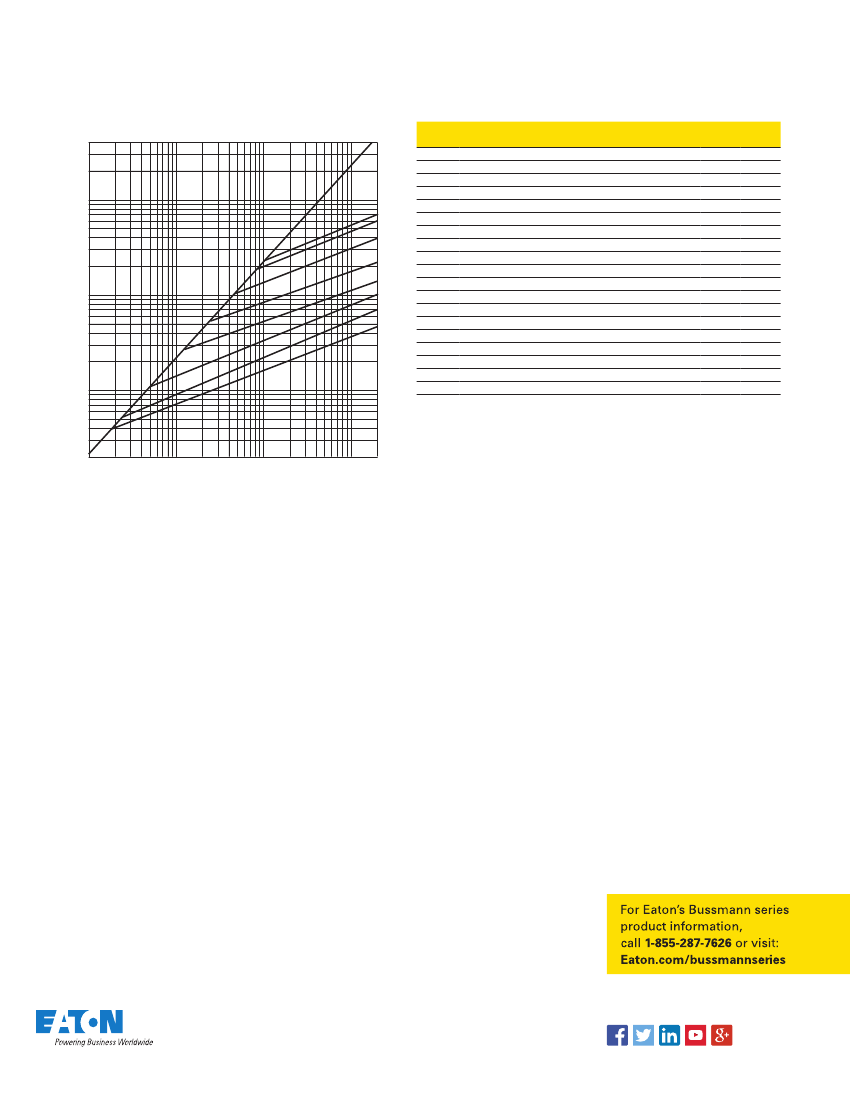

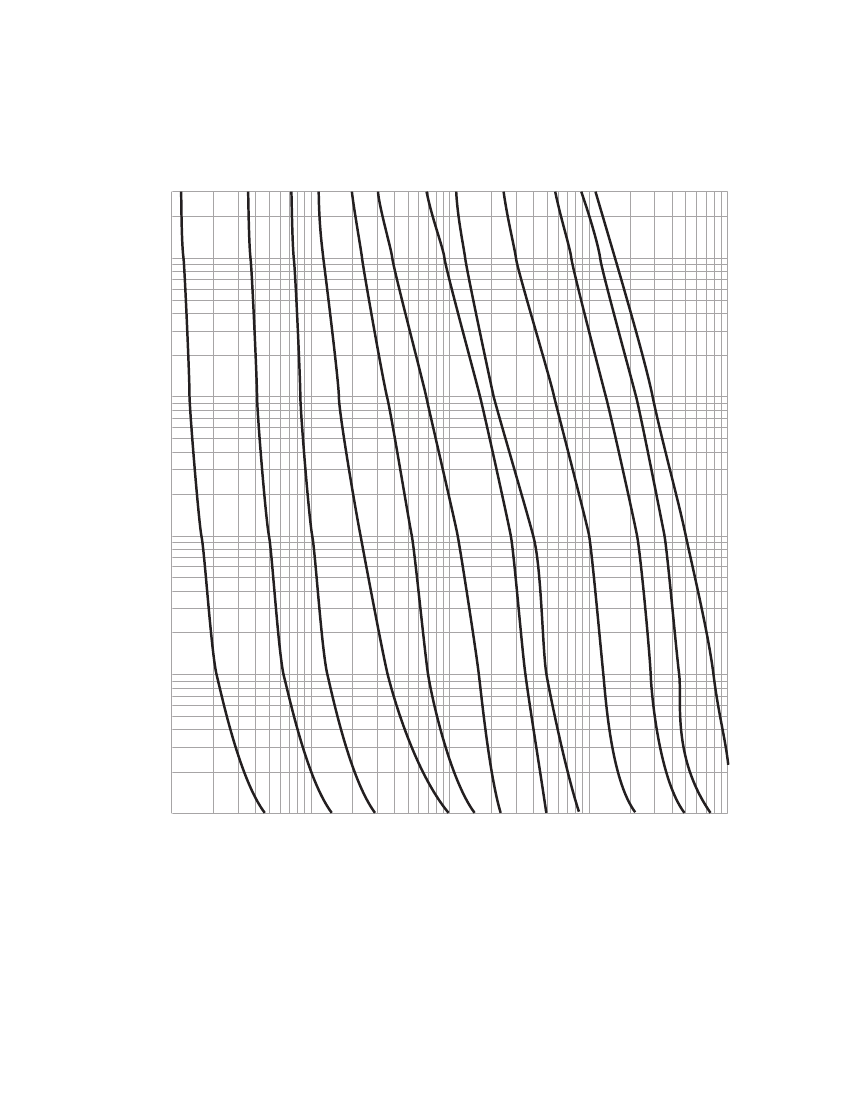

Current-limitation curves
INSTANTANEOUS PEAK-LET-THROUGH CURRENT IN AMPS
AMP RATING
800
600
400
200
100
60
30
15
400,000
300,000
200,000
100,000
80,000
60,000
40,000
30,000
20,000
10,000
8000
6000
4000
3000
2000
1000
800
600
400
300
200
Current-limiting effects
B
Prosp.
S.C.C.
Let-through current (apparent RMS Sym. vs. fuse rating)
—
15A
30A
60A
100A
200A
400A
600A
800A
500
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
5000
1000
1000
1000
2000
3000
4000
5000
5000
10,000
1000
1000
1000
2000
3000
6000
8000
9000
15,000
1000
1000
2000
3000
4000
7000 10,000 11,000
20,000
1000
1000
2000
3000
4000
7000 10,000 12,000
25,000
1000
1000
2000
3000
5000
7000 11,000 13,000
30,000
1000
1000
2000
3000
5000
8000 12,000 14,000
35,000
1000
1000
2000
3000
5000
9000 13,000 15,000
40,000
1000
2000
2000
4000
5000
9000 13,000 15,000
50,000
1000
2000
2000
4000
6000 10000 14,000 17
,000
60,000
1000
2000
3000
4000
6000 10000 16,000 18,000
70,000
1000
2000
3000
4000
7000 11000 17
,000 19,000
80,000
1000
2000
3000
4000
7000 11000 17
,000 20,000
90,000
1000
2000
3000
4000
7000 12000 18,000 21,000
100,000
2000
2000
3000
5000
7000 12,000 19,000 22,000
150,000
2000
3000
4000
6000
8000 14,000 22,000 25,000
200,000
2000
3000
4000
6000
9000 16,000 24,000 28,000
A
100
200
300
400
600
800
1000
6000
8000
10,000
20,000
30,000
40,000
60,000
80,000
100,000
200,000
2000
3000
4000
RMS SYMMETRICAL CURRENT IN AMPS
A-B = ASYMMETRICAL AVAILABLE PEAK (2.3 X SYM RMS AMPS)
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document are
by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit
distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once
a product has been selected, it should be tested by the user in all possible applications.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
Eaton.com
Bussmann Division
114 Old State Road
Ellisville, MO 63021
United States
Eaton.com/bussmannseries
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No. 1029 — BU-SB13737
December 2017
Eaton, Bussmann and Limitron are valuable
trademarks of Eaton in the U.S. and other
countries. You are not permitted to use
the Eaton trademarks without prior written
consent of Eaton.
CSA is a registered trademark of the Canadian
Standards Group.
NEC is a registered trademark of the National
Fire Protection Association, Inc.
UL is a registered trademark of the
Underwriters Laboratories, Inc.
Follow us on social media to get the
latest product and support information.
Eaton.com/bussmannseries
