TMOV20RP320ML2T7 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> TMOV20RP320ML2T7

TMOV20RP320ML2T7: DescriptionVaristors THERMALLY PROTECTED VARISTOR 20MM; CategoryPassive components The resistor; File Size829KB，7 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

TMOV20RP320ML2T7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TMOV20RP320ML2T7	-	-	View	Buy Now

TMOV20RP320ML2T7 Overview

Varistors THERMALLY PROTECTED VARISTOR 20MM

TMOV20RP320ML2T7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Littelfuse
Reach Compliance Code	compliant
Circuit RMS maximum voltage	320 V
Maximum energy absorption capacity	270 J
JESD-609 code	e3
Manufacturer's serial number	ITMOV
Installation features	THROUGH HOLE MOUNT
Package form	Radial
Resistor type	VARISTOR
surface mount	NO
technology	METAL OXIDE FILM
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

Metal-Oxide Varistors

(MOVs)

Industrial High Energy Thermally Protected Varistors > TMOV 34S Varistor Series

TMOV

34S Varistor Series

Description

RoHS

Agency Approvals

Agency

Standard

UL1449

QC42201-C001,

QC42201-A001,

IEC 60950-1 (Annex Q)

IEC 61051-1,

IEC 61051-2,

IEC 60950-1 (Annex Q)

Agency File Number

E320116

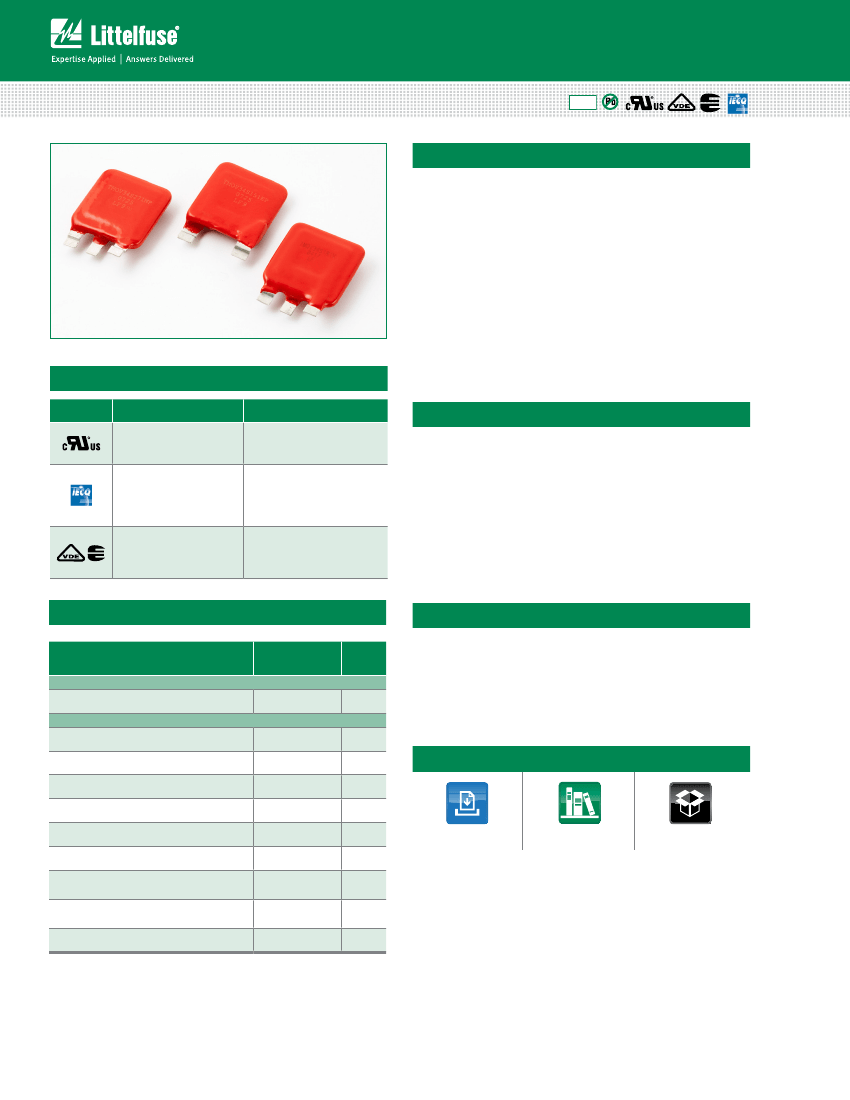

The Littelfuse TMOV

34S thermally protected varistor

series consists of a 34mm square format varistor element

(MOV) with an integral thermally activated element. This

element is designed to open in the event of overheating

due to abnormal overvoltage, limited current conditions.

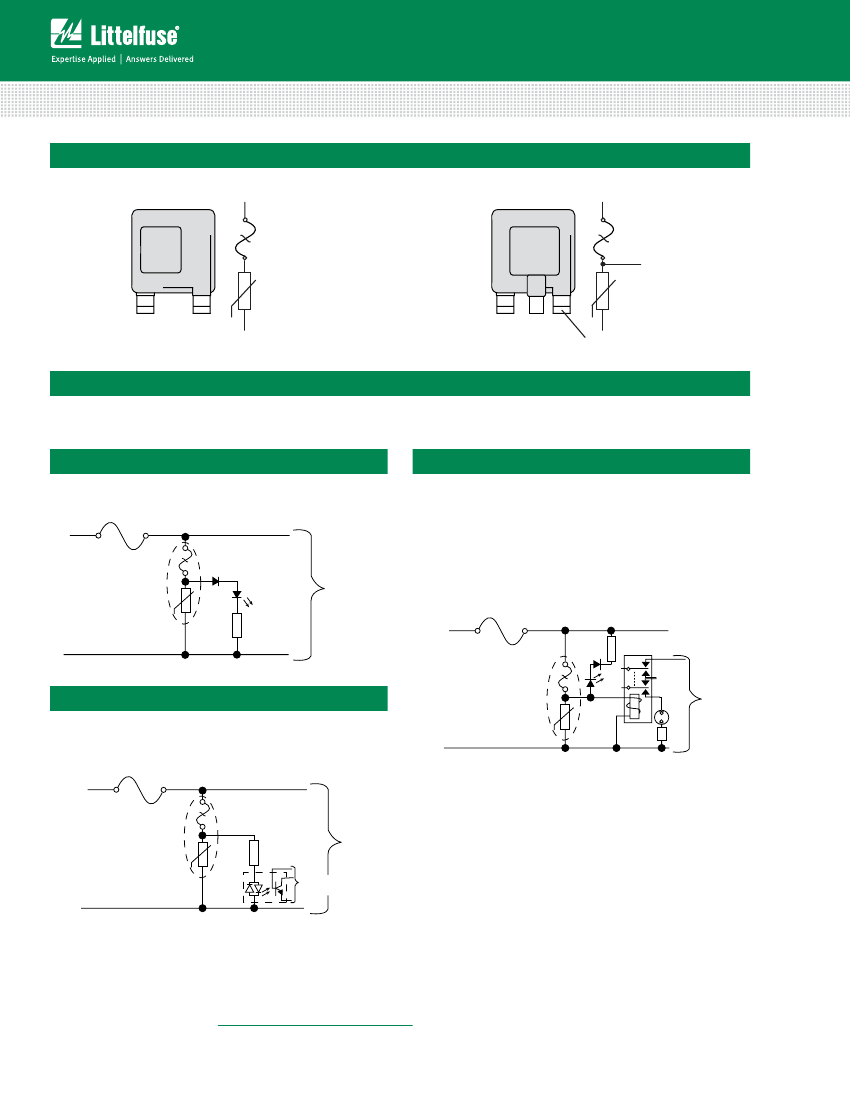

Certain TMOV

34S varistor are offered with a "monitor"

lead which may be connected to signalling circuity to

indicate if the MOV has been disconnected from the circuit.

TMOV

34S varistor series offer quick thermal response due

to the close proximity of the integrated thermal element

to the MOV body. The integrated configuration also offers

lower inductance than most discrete solutions resulting

in improved clamping performance to fast over voltage

transients.

Features

•

IECQ-C BSI 15.0009

High peak current

rating to 40 kA

-55ºC to +85ºC

operating temp

RoHS Compliant and

Lead–free Available

Alternative design

available with

narrow 3mm wide

monitor (right) lead

•

Alternative design

available with 2 leads

only (no monitor lead)

•

40021525

•

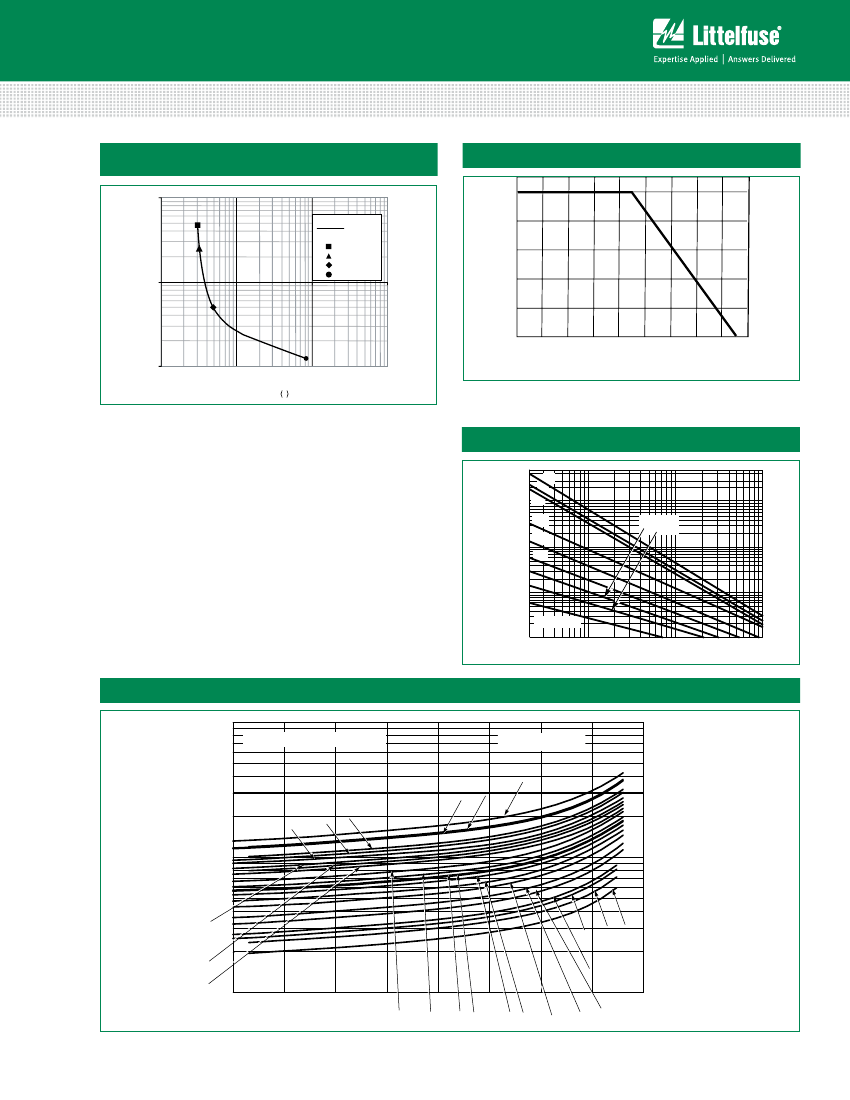

Absolute Maximum Ratings

• For ratings of individual members of a series, see Device Ratings and Specifications chart

Applications

TMOV34S

Varistor Series

115 to 750

Continuous

Steady State Applied Voltage:

AC Voltage Range (V

M(AC)RMS

)

Transients:

Peak Pulse Current (I

)

For 8/20µs Current Wave, single pulse

Single Pulse Energy Range

For 2ms Current Wave

Operating Ambient Temperature Range (T

)

Storage Temperature Range (T

STG

)

Temperature Coefficient (a

) of Clamping

Voltage (V

) at Specified Test Current

Hi–Pot Encapsulation (Isolation Voltage

Capability)

COATING Insulation Resistance

Units

•

SPD Products

AC Panel Protection

Modules

UPS (Uninterruptable

Power Supply)

•

Inverters

AC/DC Power Supplies

up to 40,000

Additional Information

280 to 1200

-55 to + 85

-55 to + 125

<0.01

2500

1000

ºC

%/ºC

MΩ

Datasheet

Resources

Samples

* Contact your Littelfuse product representative to discuss alternatives and

for additional information.

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause per-

manent damage to the device. This is a stress only rating and operation of the device at

these or any other conditions above those indicated in the operational sections of this

specification is not implied.

Specifications are subject to change without notice.

Revised: 09/14/17
