158-P08ECH381VH-E datasheet, PDF

Datasheet> All Categories > The connector> 158-P08ECH381VH-E

158-P08ECH381VH-E: DescriptionPluggable Terminal Blocks 8P TERM BLK HEADER; CategoryThe connector; File Size72KB，1 Pages; ManufacturerKobiconn; Environmental Compliance

Download Datasheet Parametric Compare View All

158-P08ECH381VH-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	158-P08ECH381VH-E	-	-	View	Buy Now

158-P08ECH381VH-E Overview

Pluggable Terminal Blocks 8P TERM BLK HEADER

158-P08ECH381VH-E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Kobiconn
Product Category	Pluggable Terminal Blocks
RoHS	Details
Number of Positions	8 Position
Pitch	3.81 mm
Termination Style	Through Hole
Current Rating	8 A
Voltage Rating	300 V
Packaging	Bulk
Mounting Angle	Vertical
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Terminal Blocks

158-P02ECH381VH-E, 158-P03ECH381VH-E, 158-P04ECH381VH-E, 158-P05ECH381VH-E,

158-P06ECH381VH-E, 158-P07ECH381VH-E, 158-P08ECH381VH-E, 158-P09ECH381VH-E,

158-P10ECH381VH-E, 158-P11ECH381VH-E, 158-P12ECH381VH-E

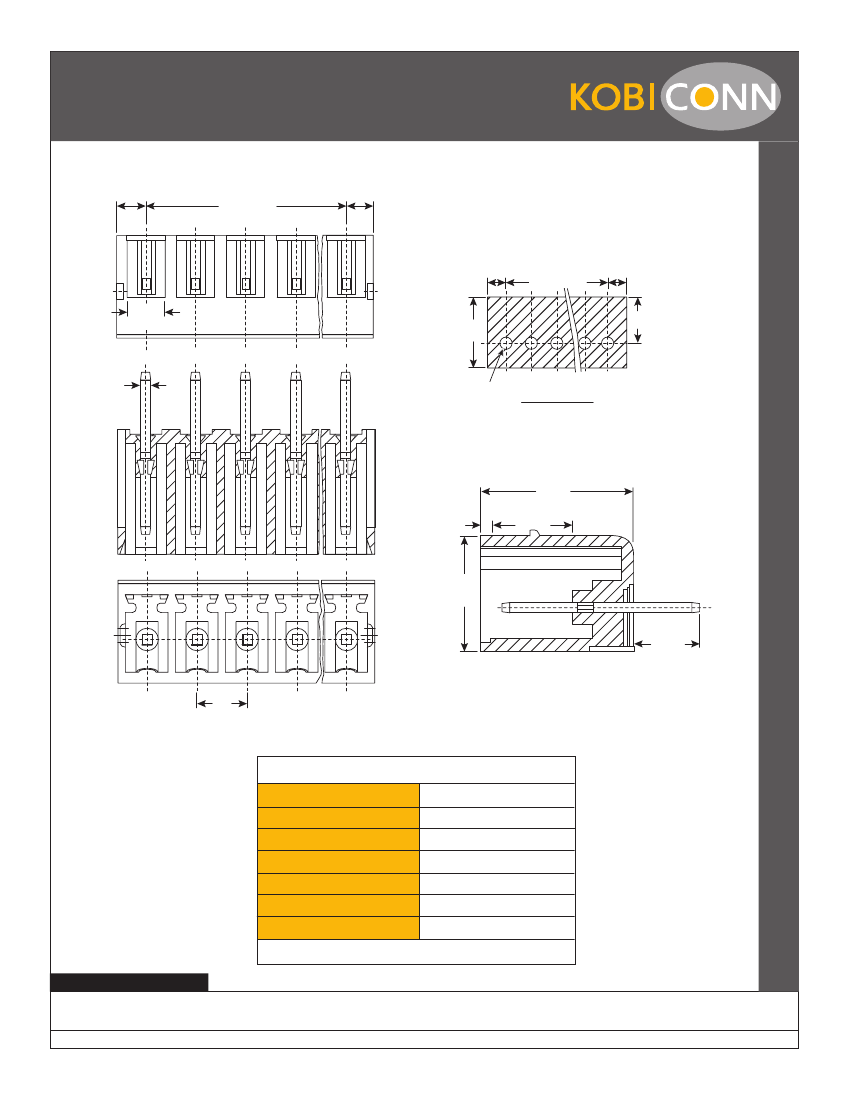

Terminal Blcoks

2.30

(.091)

3.81x(P-1)

(.15x(P-1)

2.30

(.091)

2.30

(.091)

3.81x(P-1)

(.15x(P-1))

2.30

(.091)

2.60

(.102)

7.2

(.283)

4.2 (.165)

158-P02ECH381VH-E, 158-P03ECH381VH-E, 158-P04ECH381VH-E, 158-P05ECH381VH-E, 158-P06ECH381VH-E, 158-P07ECH381VH-E,

158-P08ECH381VH-E, 158-P09ECH381VH-E,158-P10ECH381VH-E, 158-P11ECH381VH-E, 158-P12ECH381VH-E

0.80

(.03)

ø1.2~1.3

P.C.B. LAYOUT

.60

(.024)

9.20

(.362)

5.00

(.197)

7.00

(.276)

3.40

(.134)

Dimensions: mm (in.)

3.81±0.03

(.15±.001)

SPECIFICATIONS

Rating:

Pitch:

300V 8A

3.81 mm

Insulation Withstand Voltage:

1000 VAC min.

Insulation Resistance:

Temperature Range:

Solder Pin:

Housing:

1000 MΩ or more @ 500VDC

-40°C ~ +130°C

Copper, tin plated

PBT, green

RoHS Compliant

Date Last Revised: 4-13-07

Available from Mouser Electronics

1-800-346-6873 / www.mouser.com

KC-

301126

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
