K88-ED-9S-BR

Description
D-Sub Standard Connectors 3.8mm 9P RECPT PCB BRD LOCK
CategoryThe connector
File Size199KB,2 Pages
ManufacturerKycon
Download Datasheet Parametric View All

K88-ED-9S-BR Online Shopping

Suppliers Part Number Price MOQ In stock
K88-ED-9S-BR - - View Buy Now

K88-ED-9S-BR Overview

D-Sub Standard Connectors 3.8mm 9P RECPT PCB BRD LOCK

K88-ED-9S-BR Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerKycon
Product CategoryD-Sub Standard Connectors
RoHSN
Number of Positions9 Position
Contact GenderSocket (Female)
Termination StyleThrough Hole
Mounting AngleStraight
Number of Rows2 Row
Shell Size1 (E)
Contact PlatingGold
Current Rating7.6 A
GenderFemale
TypeReceptacle
Shell PlatingTin
Insert ArrangementE09
Shell MaterialSteel

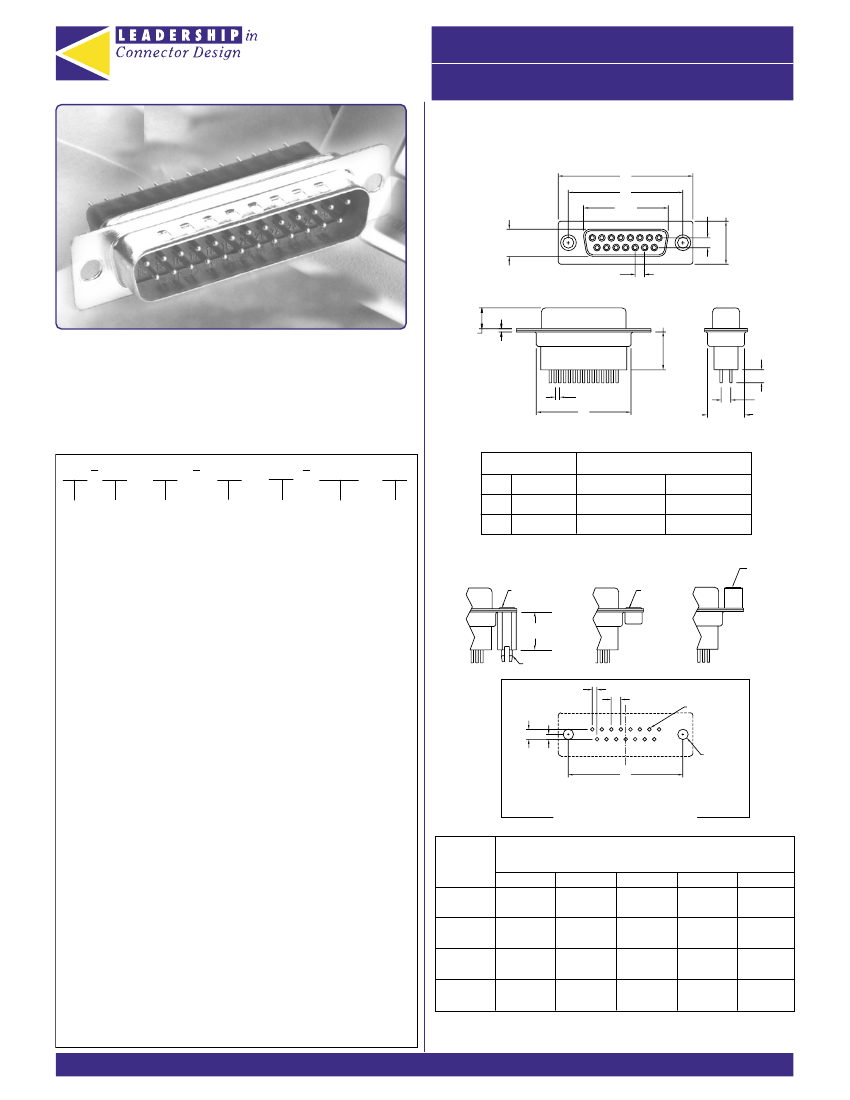

D-SUBMINIATURE CONNECTORS
KYCON
K88 Series
K88 Series Dimensions
Dimensions in mm [In]
C
B
A, A1
8.36 Plug Interior,
7.90 Socket Exterior
2.77 [.109]
5.9 Plug,
6.0 Socket
K88 Series
Vertical PCB Mount
High Profile
Ordering Information
K88
B
F
Pin
Length
0.99 [.039]
10.98 Max.
12.55 [.494]
2.84 [.112]
L1
1.385 [.054]
D
10.72±0.25
2.84 [.112]
Recommended Pin Lengths and Board Locks
25
S
BRBJ
30
Pin Length (L1)
(D)
3.80mm
5.20mm
7.20mm
(E)
(F)
Board Lock Type and Length (L2)
(BR)
(BRA)
(BRB)
-K Option
#4-40 UNC
Bushing
11.00mm
12.70mm
14.50mm
-R Option
#4-40 UNC
Internal
Thread
Series Shell
Type
Number Contact
of
Type
Contacts
Mounting Plating
Options Options
Type
K88-Kycon D-Subminiature Connector Vertical
PCB Termination, High Profile
Shell Size
E-9 Contacts
A-15 Contacts
B-25 Contacts
C-37 Contacts
Pin Length
D-Precision Formed 3.80mm
E-Precision Formed 5.20mm
F-Precision Formed 7.20mm
Number of Contacts
9, 15, 25, 37
Contact Type
P-Pin Contact (Plug)
S-Socket Contact (Receptacle)
Mounting Options
K-with (4-40) Bushings
KJ-with (4-40) Bushings and (4-40) Hex Jack Screws
BR-with (4-40) Tin Plated 11.00mm long Boardlocks
BRJ-with (4-40) Tin Plated 11.00mm long Boardlocks
and (4-40) Hex Jack Screws
BRA-with (4-40) Tin Plated 12.70mm long Boardlocks
BRAJ-with (4-40) Tin Plated 12.70mm long Boardlocks
and (4-40) Hex Jack Screws
BRB-with (4-40) Tin Plated 14.50mm long Boardlocks
BRBJ-with (4-40) Tin Plated 14.50mm long Boardlocks
and (4-40) Hex Jack Screws
R-with Round Riveted Jack Screws
Plating Options and Performance Specifications
(see page 4)
-BR, -BRA , -BRB Option
#4-40 UNC
L2
Board Lock
1.385 [.054]
2.77 [.109]
Ø1.09 [.043]
2.84 [.112]
1.42 [.056]
Ø3.05 [.120]
B
(Top View)
Recommended PCB Layout
Number
of Contacts
(Shell Size)
9 (E)
15 (A)
25 (B)
37 (C)
Dimensions (Inch/mm)
A
.643
16.33
.971
24.66
1.511
38.38
2.159
54.84
A1
.666
16.92
.994
25.25
1.534
38.96
2.182
55.42
B
.984
24.99
1.312
33.32
1.852
47.04
2.500
63.50
C
1.213
30.81
1.541
39.14
2.088
53.04
2.729
69.32
D
.755
19.18
1.083
27.51
1.614
41.00
2.272
57.71
A = Exterior of Female Shell (S)
A1 = Interior of Male Shell (P)
2002
18
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
