Connector component - HC-B 16-TFQ-76/O1STM(32G-25G) - 1586002
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

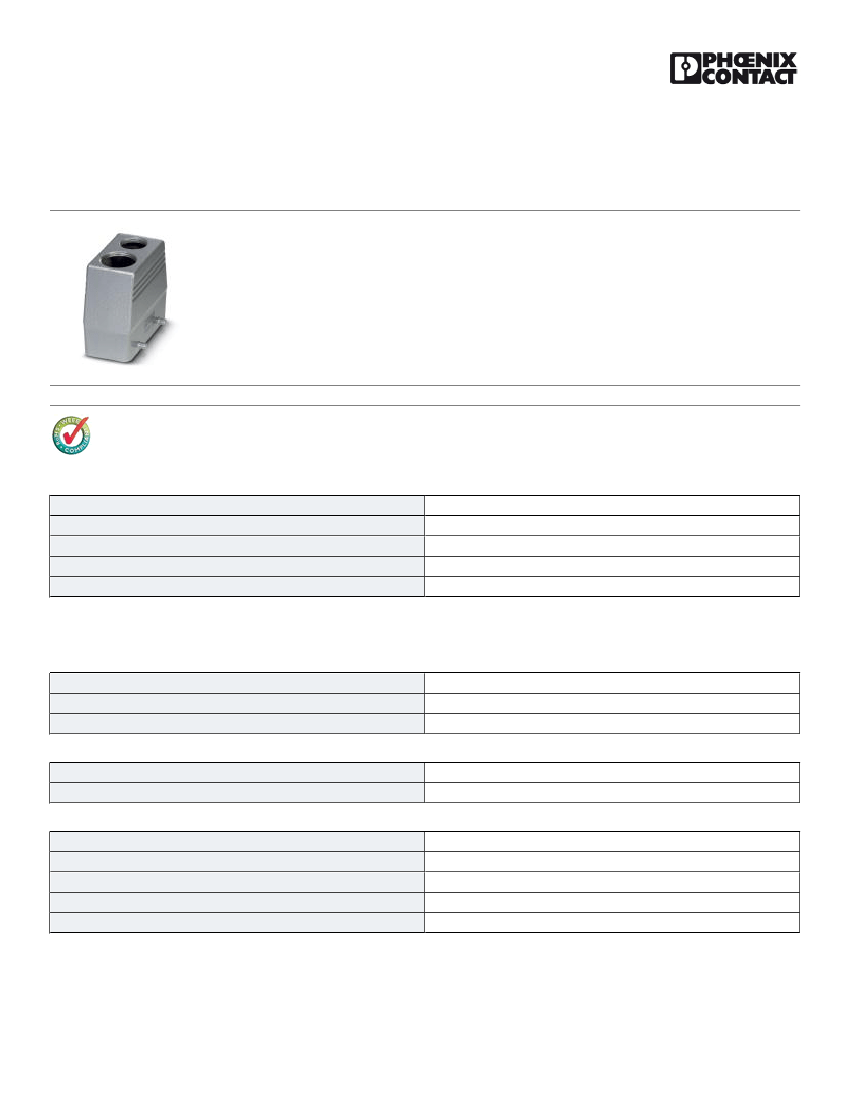

HEAVYCON B16 sleeve housing, for double locking latch, height: 76 mm, with 1 x M32/1 x M25 thread, straight
cable outlet
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 PCE
10 PCE
275.69 GRM
85369010
Germany
Technical data
Dimensions
Height
Width
Length
76 mm
43 mm
94 mm
Ambient conditions
Degree of protection of housing (IP)
Ambient temperature (operation)
IP65
-40 °C ... 125 °C
General
Note
Design
Housing type
Housing material
Housing surface material
For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K
B16
Sleeve housings
Aluminum die-cast
Powder-coated, gray
12/5/13 Page 1 / 3
https://www.phoenixcontact.com/us/products/1586002
Connector component - HC-B 16-TFQ-76/O1STM(32G-25G) - 1586002
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27143424
27143424
27143424
27440209
27440209
ETIM
ETIM 3.0
ETIM 4.0
EC000437
EC000437
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261502
31261502
31261502
31261502
31261502

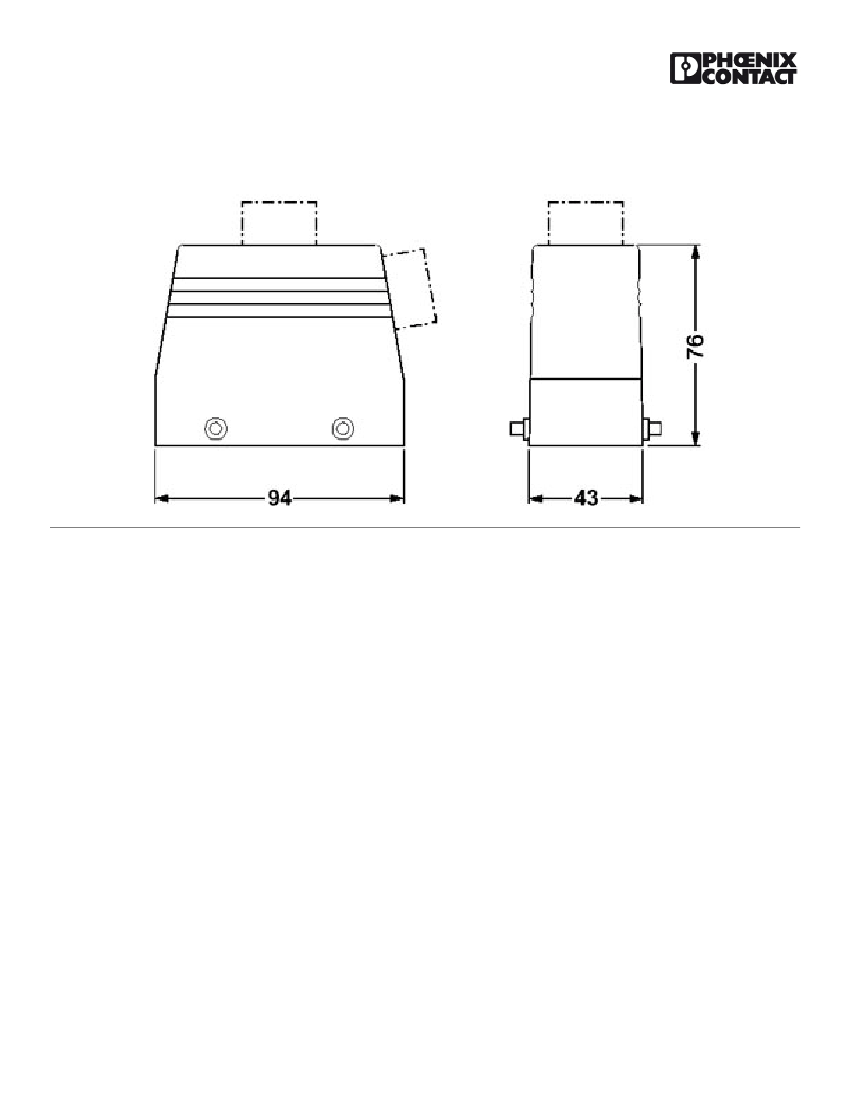

Drawings
Dimensioned drawing
93,5
45
h
12/5/13 Page 2 / 3
https://www.phoenixcontact.com/us/products/1586002
Connector component - HC-B 16-TFQ-76/O1STM(32G-25G) - 1586002
Dimensioned drawing
© Phoenix Contact 2013 - all rights reserved
