53266-0629 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53266-0629

53266-0629: DescriptionHeaders & Wire Housings 7.0 WtB Wafer Assy R B Wafer Assy RA 6Ckt; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

53266-0629 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53266-0629	-	-	View	Buy Now

53266-0629 Overview

Headers & Wire Housings 7.0 WtB Wafer Assy R B Wafer Assy RA 6Ckt

53266-0629 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TRAY PAKAGING
Board mount options	PEG
body width	0.311 inch
subject depth	0.559 inch
body length	1.598 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	8.896 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED PBTP
MIL compliance	NO
Plug contact pitch	0.276 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	7 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N
Base Number Matches	1

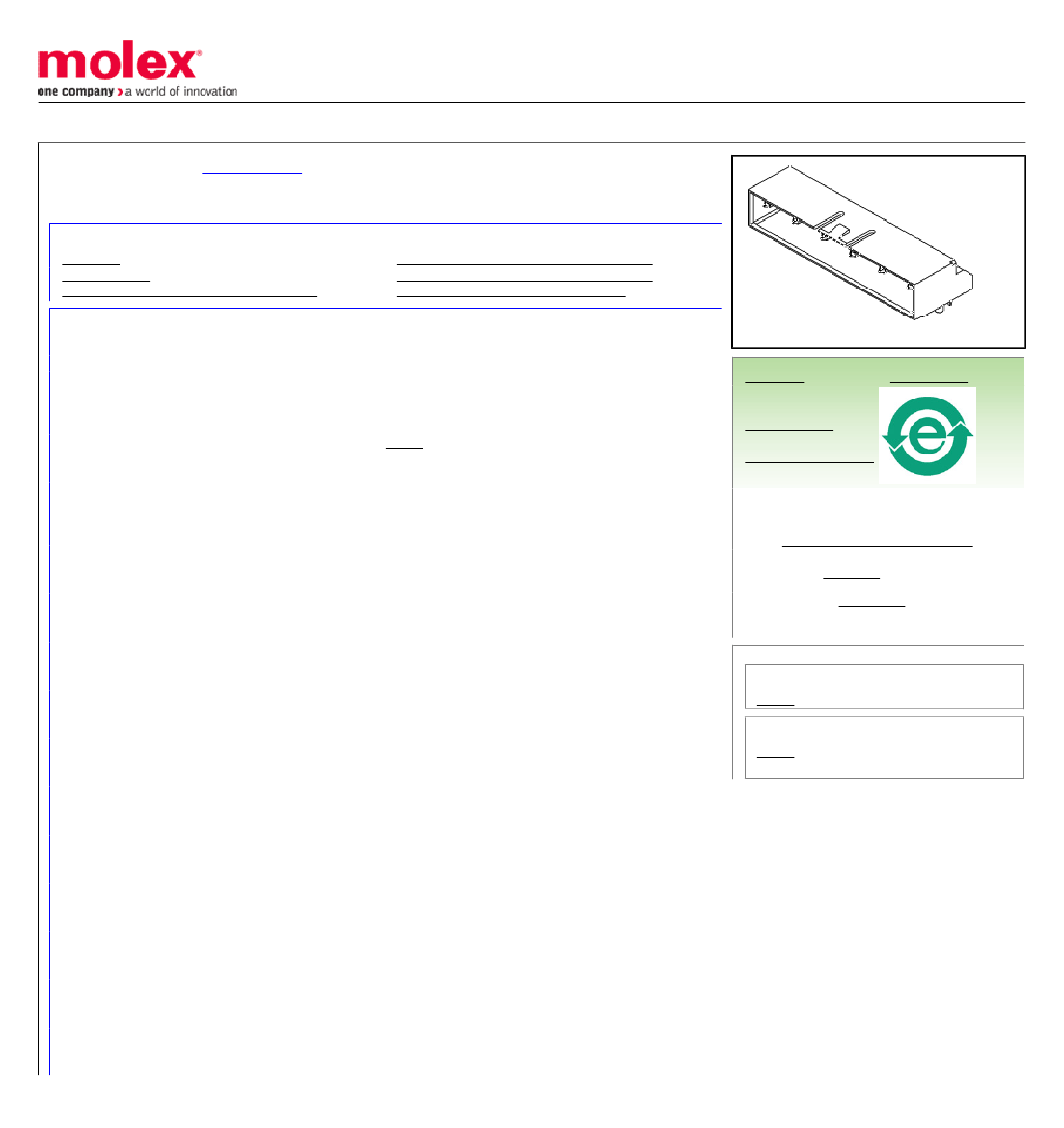

Preview

Download Datasheet

View All

This document was generated on 07/09/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

53266-0629

Active

7.00mm Pitch Header, Right Angle, Lead-Free, 6 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51067-007 (PDF)

Product Specification PS-51067-020 (PDF)

Product Specification PS-51067-021 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

R72081037

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Product Name

UPC

PCB Headers

53266

Power, Wire-to-Board

N/A

822348210794

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

94V-0

None

Yes

9.70mm

Brass

Tin

2655.200/mg

Right Angle

3.50mm

Yes

None

1.60mm

Tray

7.00mm

1.016µm

Yes

Fully

-40°C to +105°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.
