A60-113-271N414 datasheet, PDF

Datasheet> All Categories > The connector> A60-113-271N414

A60-113-271N414: DescriptionModular Connectors / Ethernet Connectors 10P/8C MAGNETIC JACK W/ LED LATCH-UP 15u; CategoryThe connector; File Size343KB，6 Pages; ManufacturerEDAC; Environmental Compliance

Download Datasheet Parametric View All

A60-113-271N414 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A60-113-271N414	-	-	View	Buy Now

A60-113-271N414 Overview

Modular Connectors / Ethernet Connectors 10P/8C MAGNETIC JACK W/ LED LATCH-UP 15u

A60-113-271N414 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	EDAC
Product Category	Modular Connectors / Ethernet Connectors
RoHS	Details
USOC Codes	RJ45
Number of Positions	8 Position
Number of Ports	1 Port
Termination Style	SMD/SMT
Shielding	Shielded
Contact Plating	Gold
Housing Material	Nylon
Mounting Angle	Right
Factory Pack Quantity	300

Preview

Download Datasheet

View All

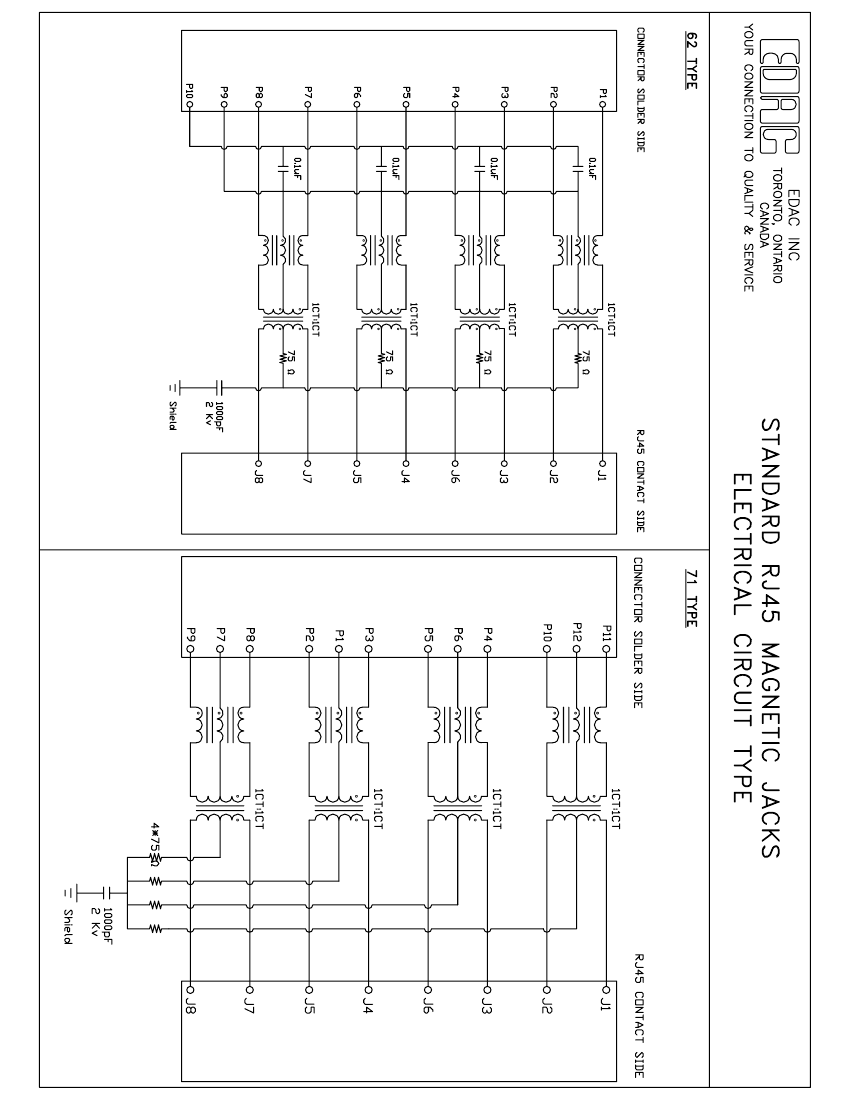

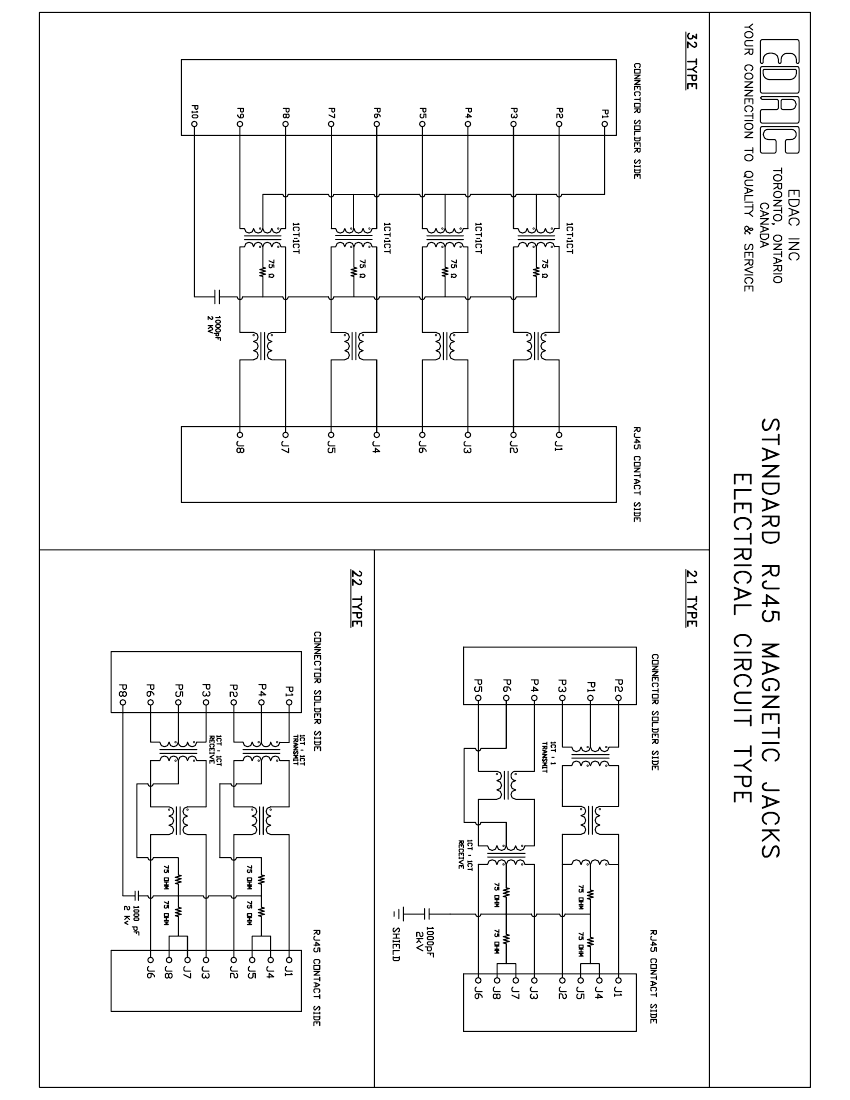

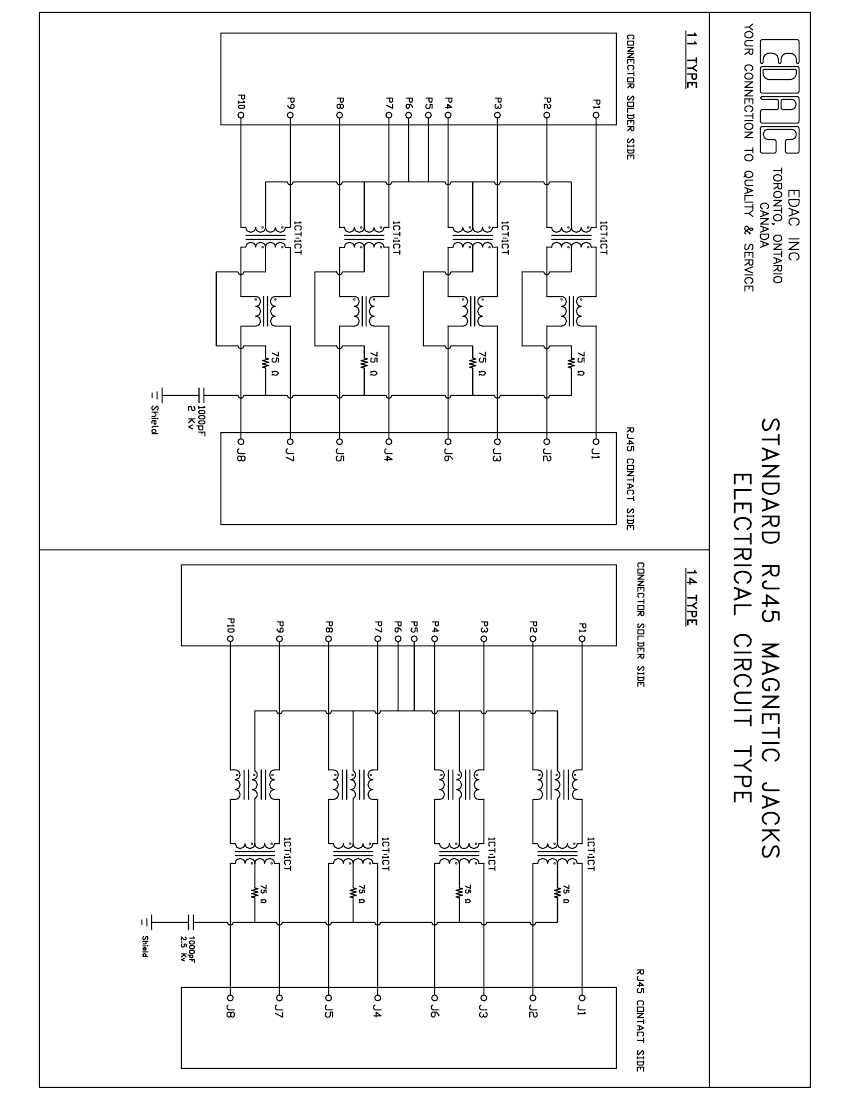

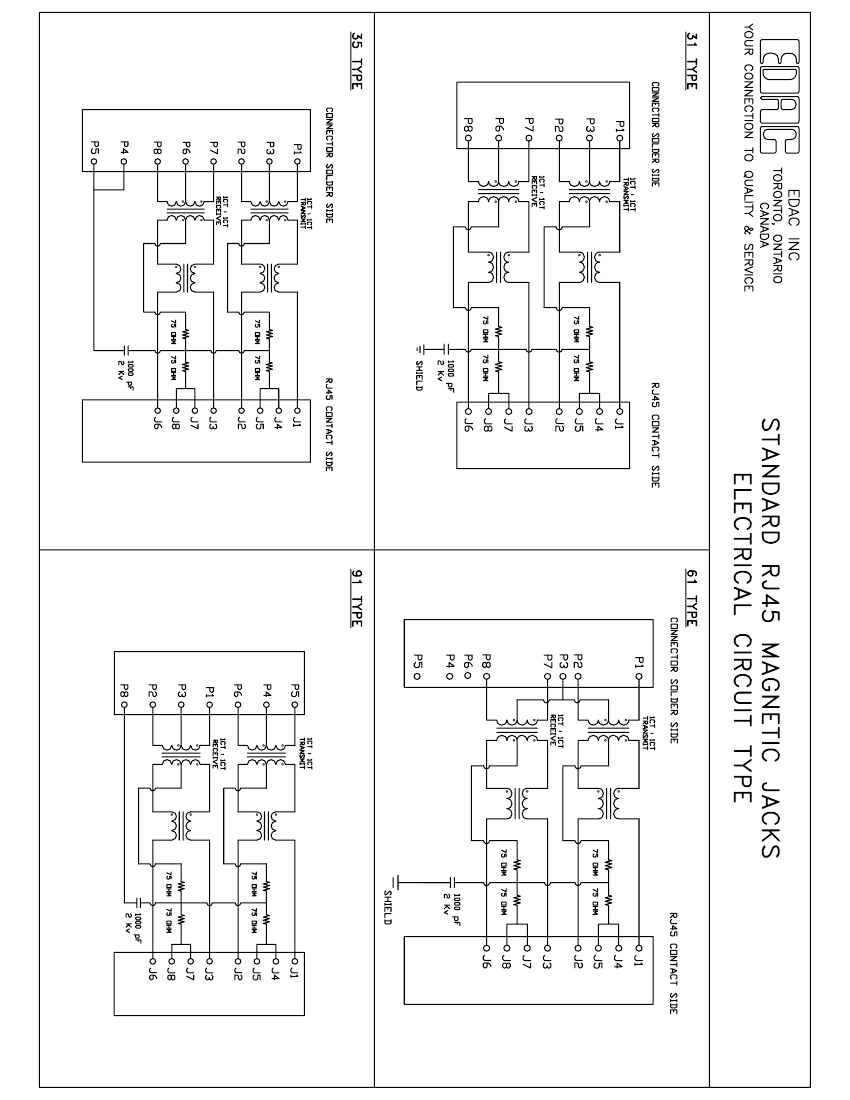

STANDARD RJ45 MAGNETIC JACKS

A60

Description:

•

Magnetic jacks are integrated connectors that combine network magnetics

with RJ 45 modular jack connectors. Magnetic jacks combine connectivity with

signal conditioning, electro magnetic interference suppression and signal

isolation. These parameters were previously performed by separate and discrete

magnetic components mounted on the PCB board.

•

Available as single or stacked multiport options they are used in Data, Telecom,

Networking and Home Entertainment markets for applications such as Servers,

Hubs, Routers, Printers, Computers, Set Top Boxes and Digital TV’s.

•

MATE WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.

Features:

•

10/100 or 1000 Base T options – Full IEEE 802.3 compliance

•

Integrated Magnetics – Provides signal integrity, DC isolation and protection for PHY chip

•

Integrated Design ‐ Reduces component inventory and process costs

•

Spring fingers on shells ‐ Guaranteed advanced EMI/RFI suppression

•

LED options available ‐ Visual indication of port status and activity information for user

•

Tab Up or Down options ‐ Complete design for board and unit compatibility

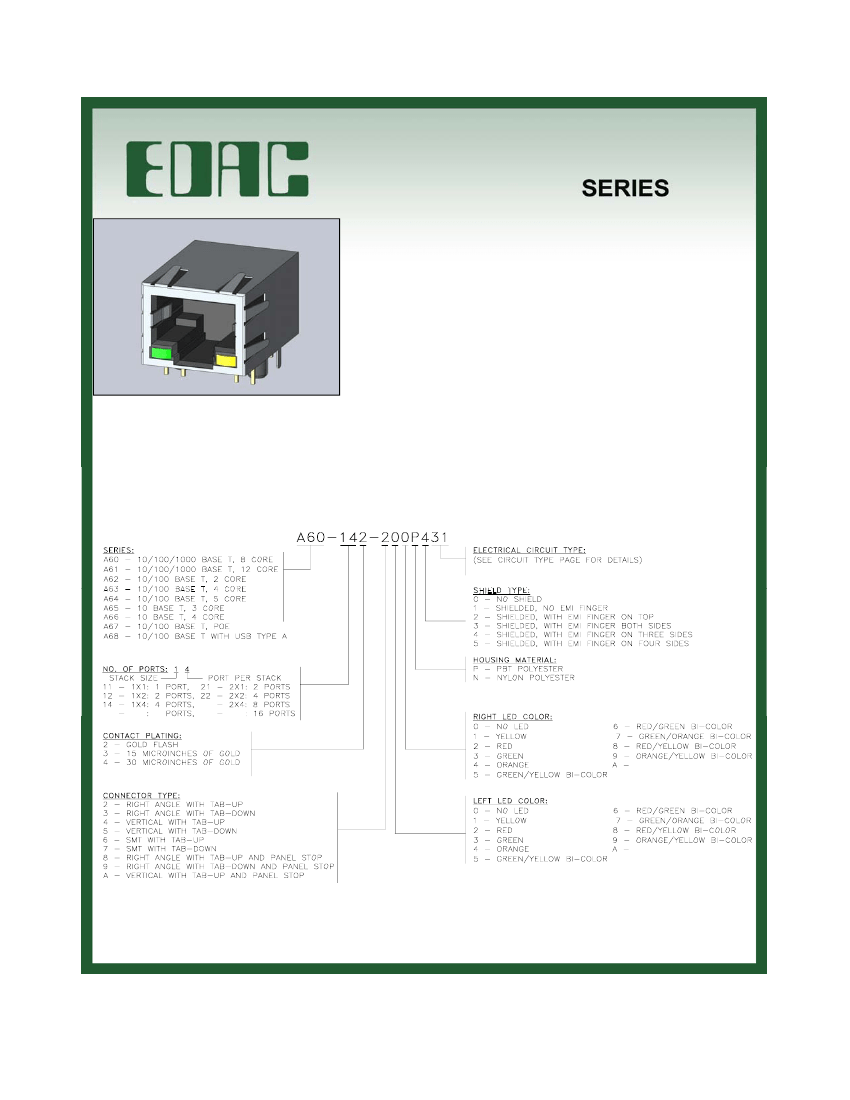

Example Part Number:

1x6

2x6

Phone: (416) ‐ 754 ‐ 3322

Fax: (416) ‐ 754 ‐ 3299

Email: CustomerService@edac.net

Website: www.edac.net
