8955.0/G: DescriptionDIN Rail Terminal Blocks IO/2G, I/O Module, 24VDC [1]; CategoryThe connector; File Size173KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

8955.0/G Overview

DIN Rail Terminal Blocks IO/2G, I/O Module, 24VDC [1]

8955.0/G Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Altech
Product Category	DIN Rail Terminal Blocks
Type	Interface Modules
Number of Positions	2 Position
Current Rating	5 A
Voltage Rating	24 VDC
Length	57.8 mm
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Interfaces

Isolated I/O Opto Carrier, 35 or 32 DIN Rail

I/O Isolated

TS35x7.5 37mm (1.46 in.)†

TS32x15 42mm (1.65 in.)†

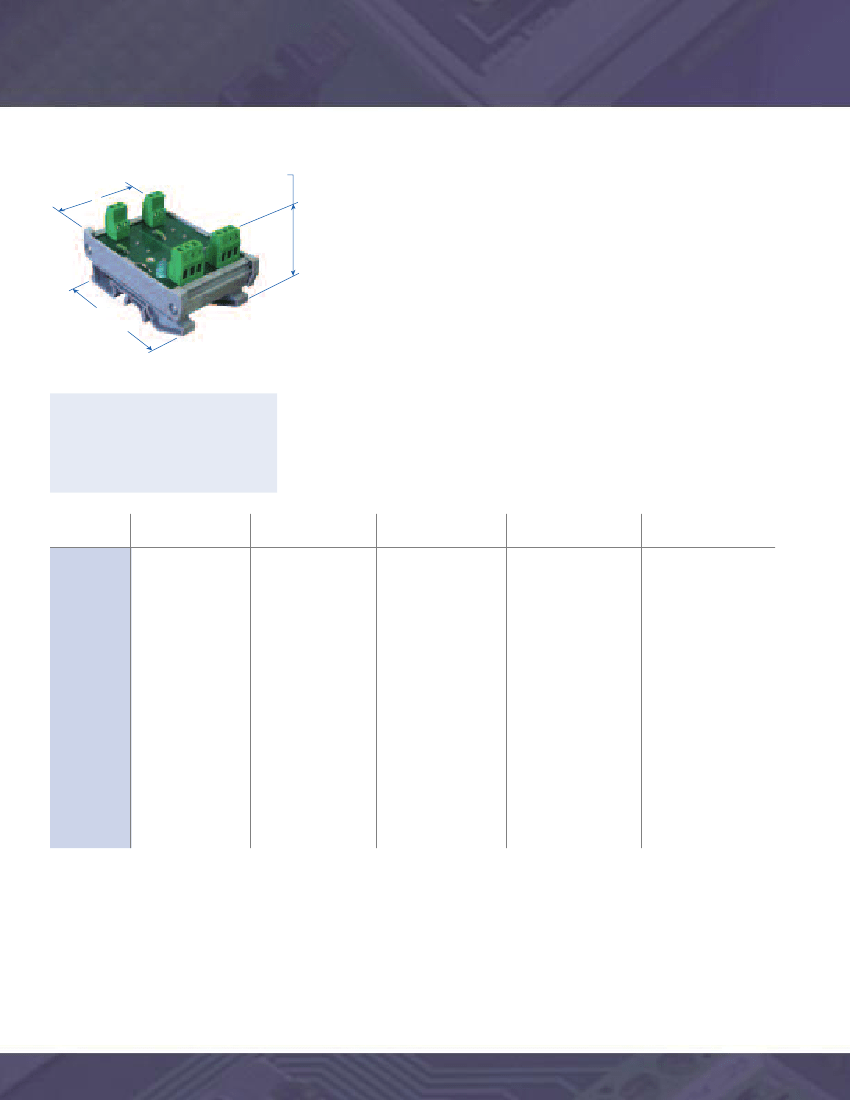

Mount standard opto coupler input/output (I/O) modules in a high density arrange-

ment for logic output to field devices, or for input of field data to the controller. I/O

modules optically isolate ICs and PLCs from damaging field voltage spikes and line

noise, while controlling up to 3 Amp field current with less than 20mA logic current.

Altech I/O Module Carriers can accept up to 16 industry standard 0.6 in. (15.24mm)

I/O modules in any combination: Input, Output, AC or DC from most manufacturers.

• Screw-Cage Clamp Connection

• Integral Sockets, Retaining Nut

• Field Voltage Rating: 280V AC/DC

• LED Indication, Fuse Protection

• DIN Rail Mount, Panel Mount Available

Custom designs can be accommodated!

Technical Information

Fuse Rating...........5A/125C AC

Wire Range ...........0.5-4 mm

/ 22-12 AWG

Torque ...................0.5-4 Nm / 4 lbs-in.

Stripping Length ...8 mm

Part Number

8954.0/B

8954.0/E

8954.0/G

8955.0/B

8955.0/E

8955.0/G

8956.0/B

8956.0/E

8956.0/G

8957.0/B

8957.0/E

8957.0/G

m .)

m in

8 .43

Low current LED with dropping resistor for high resistance

pull-up and low logic sink/source current requirements.

Type

I/O I-1B

I/O I-1E

I/O I-1G

I/O I-2B

I/O I-2E

I/O I-2G

I/O I-4B

I/O I-4E

I/O I-4G

I/O I-8B

I/O I-8E

I/O I-8G

Position

1 Position

2 Position

4 Position

8 Position

Logic Voltage

5V DC

15V DC

24V DC

5V DC

15V DC

24V DC

5V DC

15V DC

24V DC

5V DC

15V DC

24V DC

LED

Green

Yellow

Red

Green

Yellow

Red

Green

Yellow

Red

Green

Yellow

Red

Module Length (L)

in mm (in)

34.5 (1.36)

57.8 (2.28)

114 (4.49)

226 (8.90)

Fuse rating limits field side rating.

- PCB Traces, Field Side: 10A/300V

- PCB Traces, Logic Side: 1A with 6A Bus

- Terminal Blocks: 15A/300V

†

Dimension is to top board, add height of relay

to determine clearance.

3A/250V fuse available, please consult Altech.

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE
