3M
™

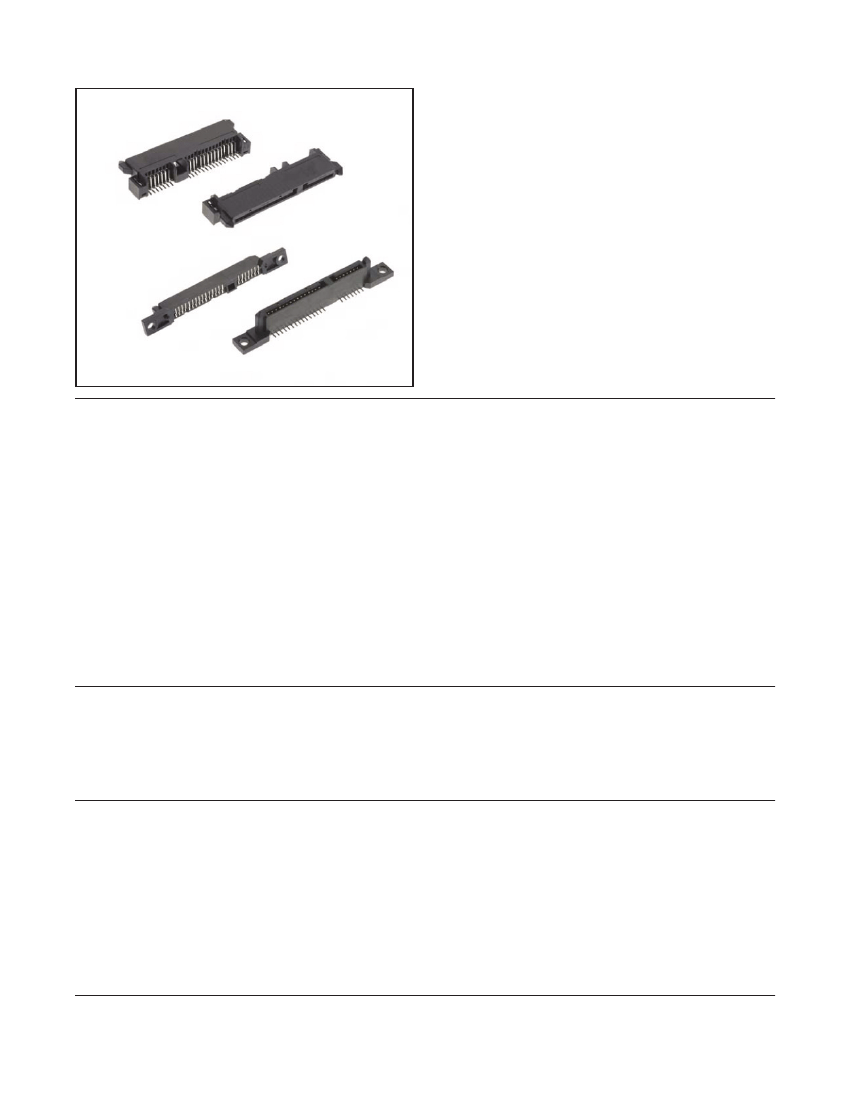

Serial Advanced Technology Attachment (SATA) Connector
Host Receptacle, Vertical and Right Angle, Std Height, Surface Mount Receptacle
•
•
•
•
•
•
•
5622 Series
22-position signal and power combination
Input/ouput connector for backplane applications
EMLB contacts for "hot swap"
Blind mate polarization for easy cable attachment
Capable of accepting HDD fitted with SATA header
Meets SATA2.6 Specification
PCB retention clip aids manufacturing (right angle
only)
•
See regulatory information appendix (RIA)
for chemical compliance information
(E1 and C1 apply)
Date Modified: May 15, 2009
TS-2201-C
Sheet 1 of 5
Physical
Insulation
Material: High Temperature Thermoplastic
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 50 μ" min. [ 1.27 μm ] Nickel
Wiping Area: 30 μ" min. [ 0.76 μm ] Gold
Solder Tails: 100 μ" min. [ 2.54 μm ] Matte Tin
Marking:
3M Logo
Electrical
Current Rating:
1.5 A
Insulation Resistance:
10
3
MΩ min.
Withstanding Voltage:
500 VAC at sea level
Environmental
Temperature Range:
-40°C to +85ºC
UL File No.: E68080
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Serial Advanced Technology Attachment (SATA) Connector
Host Receptacle, Vertical and Right Angle, Std Height, Surface Mount Receptacle
Right Angle Surface Mount Standard Height
5622 Series
2X Ø1.50
[Ø0.059]
1.70
[0.067]
36.19
[1.426]
38.05
[1.499]
40.43
[1.593]
2.08
[0.082]
22X 0.40
[0.016]
40.43
[1.593]
5.67
[0.223]
36.19
[1.426]
17.78
[0.701]
5.01
[0.197]
1.90
[0.075]
7.62
[0.300]
6X 1.27
[0.050]
PIN S1
1.90
[0.075]
3.50
[0.138]
2.00
[0.079]
12.87
[0.507]
11.17
[0.440]
6.74
[0.266]
2.83
[0.111]
DIM "A"
SEE NOTE
14X 1.27
[0.050]
PIN P15
1.15
[0.045]
8.25
[0.325]
33.19
[1.308]
37.42
[1.474]
mm
[inch]
Tolerance Unless Noted
.0
mm
±0.5
.00
±0.25
.000
±0.127
[ ] Dimensions for Reference Only
Note: PCB Thickness (mm)
1.45 to 1.78 DIM 'A' = 2.43
TS-2201-C
Sheet 2 of 5
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Serial Advanced Technology Attachment (SATA) Connector
Host Receptacle, Vertical and Right Angle, Std Height, Surface Mount Receptacle
5622 Series
14X 1.27
[0.050]
2X 1.00
[0.039]
2X 2.08
3.00 [0.082]
[0.118]
37.42
[1.474]
8.25
[0.325]
7.62
[0.300]
6X 1.27
[0.050]
22X 2.40
[0.095]
1.91
[0.075]
2.50
[0.098]
2X 0.76
[0.030]
2X Ø1.60
[Ø0.063]
22X 0.90
[0.035]
33.19
[1.308]
2X R0.50
[R0.020]
2X R0.90
[R0.035]
RECOMMENDED P.C.B. LAYOUT
TOLERANCE : ± 0.05 [.002] TOP VIEW
Ordering Information
(right angle, SMT)
5622 - 1200 - ML
(RIA E1 & C1 Apply)
TS-2201-C
Sheet 3 of 5
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Serial Advanced Technology Attachment (SATA) Connector
Host Receptacle, Vertical and Right Angle, Std Height, Surface Mount Receptacle
Vertical Surface Mount Standard Height
5622 Series
0.60
[0.024]
Ø1.19
[0.047]
Ø0.80
[0.032]
2X 0.50
[0.020]
5.50
[0.217]
17.78
[0.701]
1.27
[0.050]
1.91
[0.075]
2.11
[0.083]
1.45
[0.057]
2.45
[0.097]
7.62
[0.300]
0.50
[0.020]
38.05
[1.499]
0.70
[0.028]
0.40
[0.016]
5.08
[0.200]
33.69
[1.327]
36.19
[1.426]
0.30
[0.012]
8.26
[0.325]
1.90
[0.075]
45.00
[1.773]
40.43
[1.593]
54.50
[2.147]
50.00
[1.970]
mm
[inch]
Tolerance Unless Noted
.0
mm
±0.5
.00
±0.25
.000
±0.127
[ ] Dimensions for Reference Only
TS-2201-C
Sheet 4 of 5
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Serial Advanced Technology Attachment (SATA) Connector
Host Receptacle, Vertical and Right Angle, Std Height, Surface Mount Receptacle
Vertical Surface Mount Standard Height
5622 Series
37.75
[1.487]
31.75
[1.251]
Ø1.30
[Ø0.051]
PIN P1
17.78
[0.701]
0.05
[0.002]
22X 0.60
[0.024]
2.35
[0.093] TYP
Ø0.90
[Ø0.035]
2X Ø2.55
[Ø0.100]
1.90
[0.075]
TYP 1.27
[0.050]
50.00
[1.970]
PIN S1
7.62
[0.300]
RECOMMENDED PCB LAYOUT
TOLERANCE: ± 0.05 [0.002]
Ordering Information
(vertical, SMT, standard height, with mounting flanges)
5622 - 2222 - ML
(RIA E1 & C1 Apply)
Note: Holes in flange sized for M2 screw - use pan or round heads
only (screws/nuts not included).
TS-2201-C
Sheet 5 of 5
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
