76091-5003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 76091-5003

76091-5003: DescriptionI/O Connectors Stacked SFP+ 2X2 con nn assy w/ tin tails; CategoryThe connector; File Size42KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76091-5003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76091-5003	-	-	View	Buy Now

76091-5003 Overview

I/O Connectors Stacked SFP+ 2X2 con nn assy w/ tin tails

76091-5003 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	I/O Connectors
RoHS	Details
Product	SFP Connectors
Gender	Female
Number of Positions	80 Position
Pitch	0.8 mm
Voltage Rating	120 VAC/DC
Contact Plating	Gold
Mounting Style	Through Hole
Termination Style	Through Hole
Mounting Angle	Right
Packaging	Tray
Color	Black
Current Rating	500 mA
Housing Material	Thermoplastic
Contact Material	High Performance Alloy (HPA)
Flammability Rating	UL 94 V-0
Number of Ports	4
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	72
Unit Weight	1.764333 oz

Preview

Download Datasheet

View All

This document was generated on 02/28/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

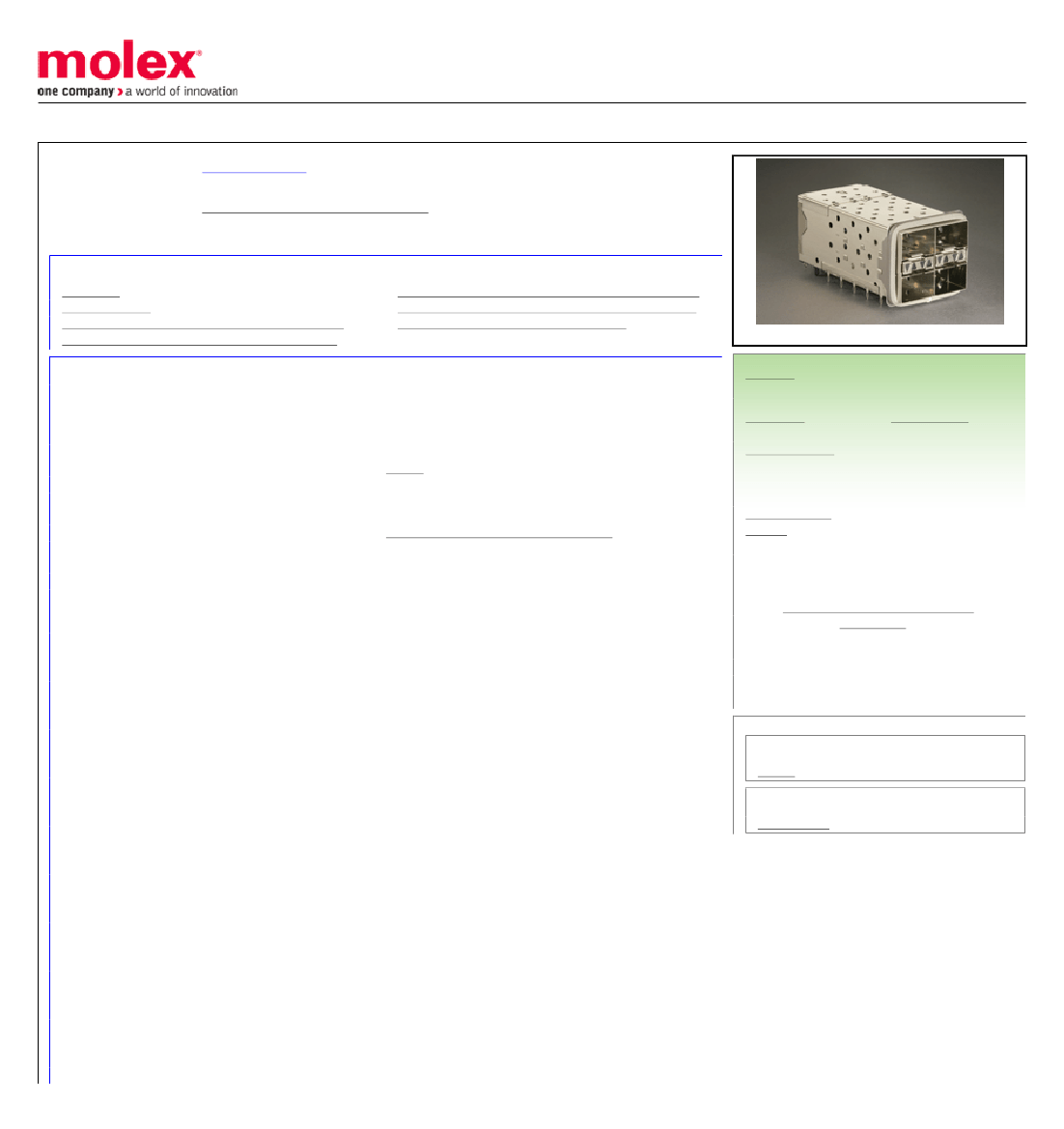

Description:

0760915003

Active

SFP+ and SFP Interconnect Solutions

Small Form-factor Pluggable Plus (SFP+) Stacked 2-by-2 Multi-Port Connector with 2

Outer Lightpipe Ports, Elastomeric Gasket, 80 Circuits, Tin (Sn) Tails

Documents:

3D Model

Drawing (PDF)

Product Specification TS-76092-999-001 (PDF)

Application Specification AS-75310-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Component Type

Electrical Model

Overview

Product Name

Type

UPC

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Application Specification AS-76090-001-001 (PDF)

Packaging Specification PK-75714-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

I/O Connectors

76091

Module-to-Board

Receptacle

Yes

SFP+ and SFP Interconnect Solutions

SFP Plus

N/A

883906495046

N/A

160

Black, Clear (Blue Tint)

100

94V-0

Female

None

Yes

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic, Polycarbonate

50.018/g

Right Angle

2.07mm

Yes

1.57mm

Tray

0.80mm

0.762µm

Yes

Search Parts in this Series

76091 Series

Use With

75951-0999 SFP Dust Plug
