380AA001M1206A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 380AA001M1206A

380AA001M1206A: DescriptionCircular MIL Spec Backshells NON ENV STRN RLF RC LOW PROF 90DEG MED; CategoryThe connector Connector bracket; File Size43KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

380AA001M1206A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380AA001M1206A	-	-	View	Buy Now

380AA001M1206A Overview

Circular MIL Spec Backshells NON ENV STRN RLF RC LOW PROF 90DEG MED

380AA001M1206A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

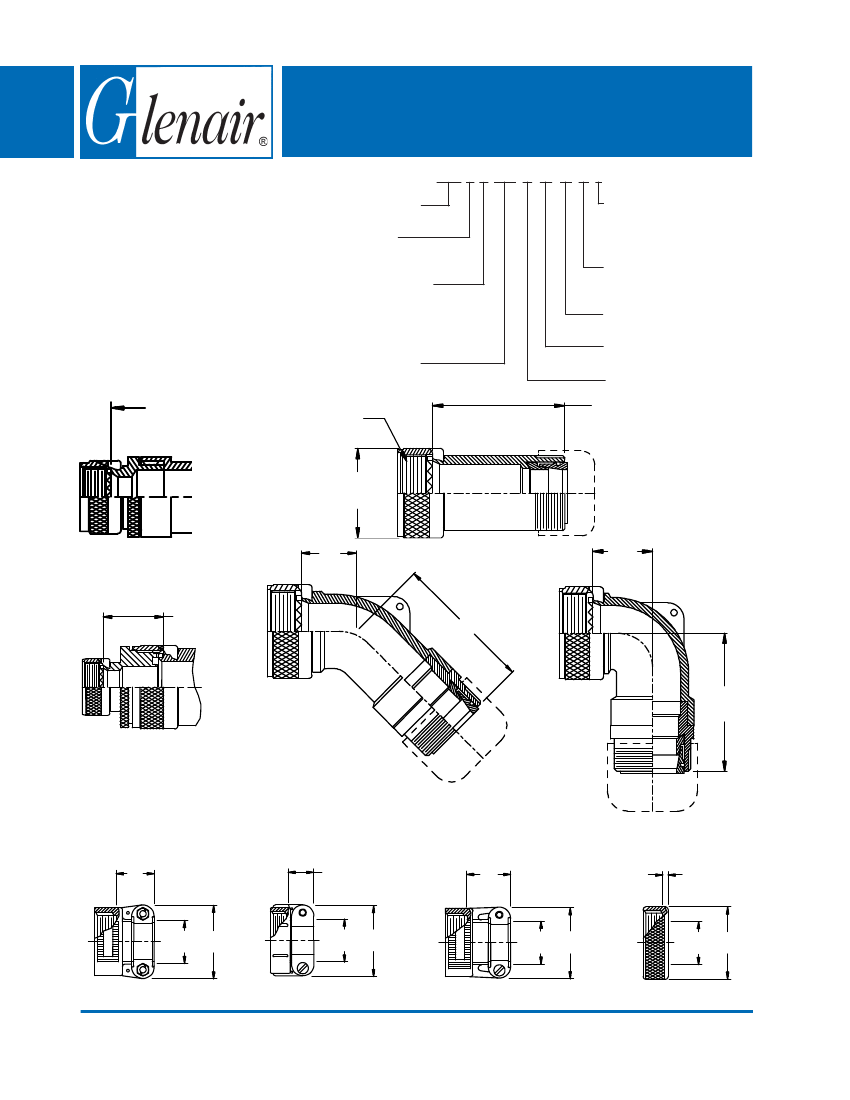

380-001

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type A - Rotatable Coupling - Low Profile

CONNECTOR

DESIGNATOR

380 F S 001 M 16 10 M 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Finish (Table II)

Length ± .060 (1.52)

Minimum Order Length 1.5 Inch

(See Note 4)

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(H, A, M, D)

Cable Entry (Tables X, XI)

Shell Size (Table I)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE A OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Minimum Order Length 2.0 In. A Thread

(Table I)

(See Note 4)

C Typ.

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

(Table III)

F (Table III)

(Table III)

STYLE 2

(45° & 90°

See Note 1)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 14
