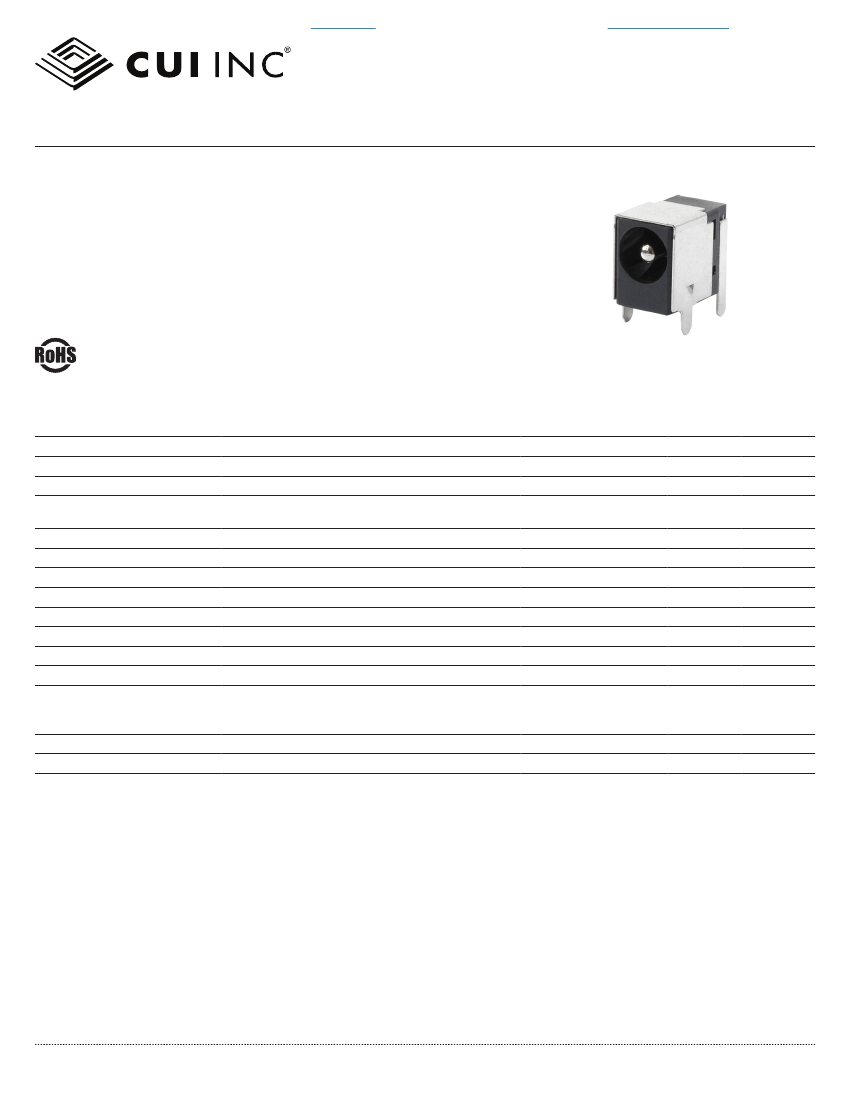

1. When measured at a current of less than 100 mA/1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-047A
│
DESCRIPTION:
DC POWER JACK
date
04/14/2016│
page
2 of 3

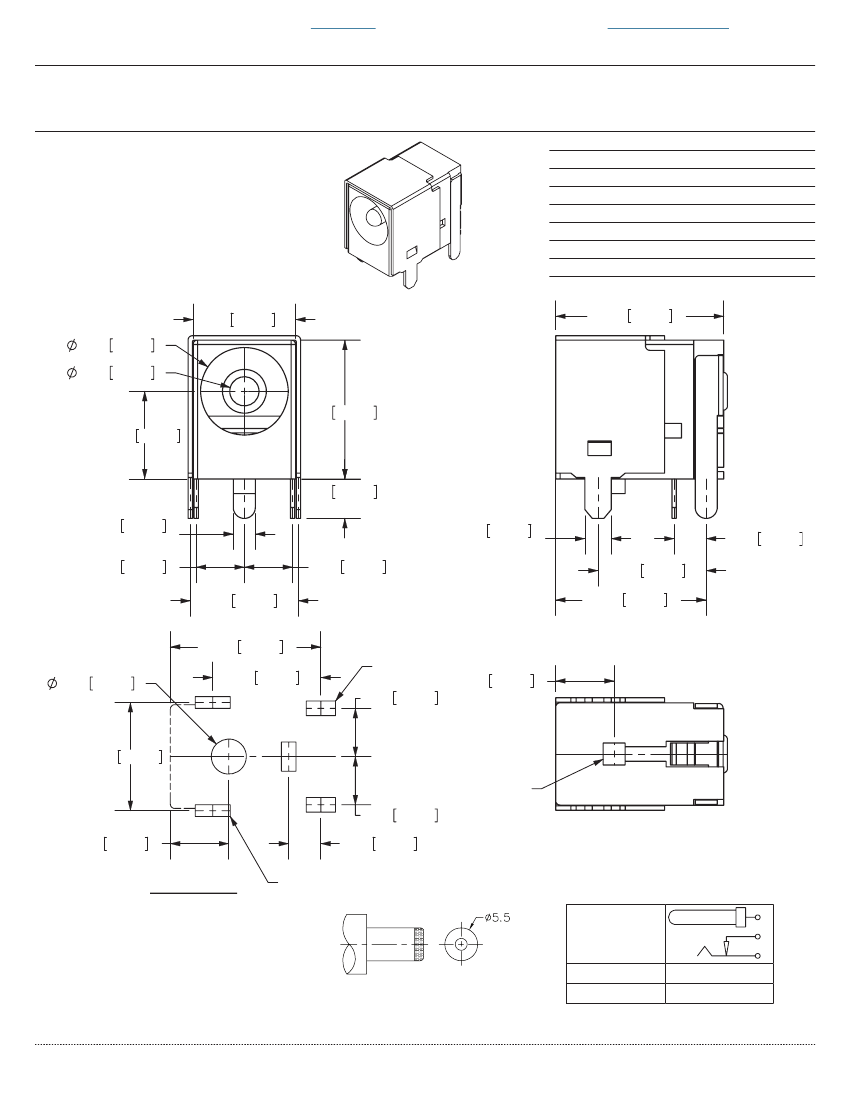

MECHANICAL DRAWING
units: mm[inches]
tolerance:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
shield
plastic
copper
brass
copper alloy
brass
brass
PBT
PLATING
nickel
tin
tin
tin
nickel
7.0 0.276
6.00 0.236
2.00 0.079
9.5 0.374
6.00 0.236
11.5 0.453
3 2
1.50 0.059
(TYP)
3.3 0.130
7.4 0.291
10.3 0.406
2.40 0.094
1
2.7 0.106
(TYP)
1.80 0.071
(2 PLCS)
3.3 0.130
7.4 0.291
10.3 0.406
2.2 0.087
7.4 0.291
3
1.00X2.00
(3 PLCS)
3.3 0.130
4.00 0.157
2
7.4 0.291
1
3.3 0.130
4.00 0.157
PCB LAYOUT
TOP VIEW
0.80X2.40
(2 PLCS)
2.2 0.087
1.50X1.50
SCHEMATIC
Model
Center Pin
PJ-047A
Ø2.0 mm
1
3
2
MATING PLUG
Jack Insertion Depth: 8.3 mm
Note:
1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-047A
│
DESCRIPTION:
DC POWER JACK
date
04/14/2016│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
description
initial release
shield plating material changed from tin to nickel
applied new spec template
increased voltage rating
date
07/30/2007
09/30/2009
01/02/2014
04/14/2016
The revision history provided is for informational purposes only and is believed to be accurate.
