MS27291-101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> MS27291-101

MS27291-101: DescriptionCircular MIL Spec Backshells STRAIN RELIEF SHELL SIZE 10; CategoryThe connector Connector bracket; File Size47KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MS27291-101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS27291-101	-	-	View	Buy Now

MS27291-101 Overview

Circular MIL Spec Backshells STRAIN RELIEF SHELL SIZE 10

MS27291-101 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Factory Lead Time	11 weeks
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MS27291
Military connector accessories name	STRAIN RELIEF
Base Number Matches	1

Preview

Download Datasheet

View All

Misc. Backshells

and Accessories

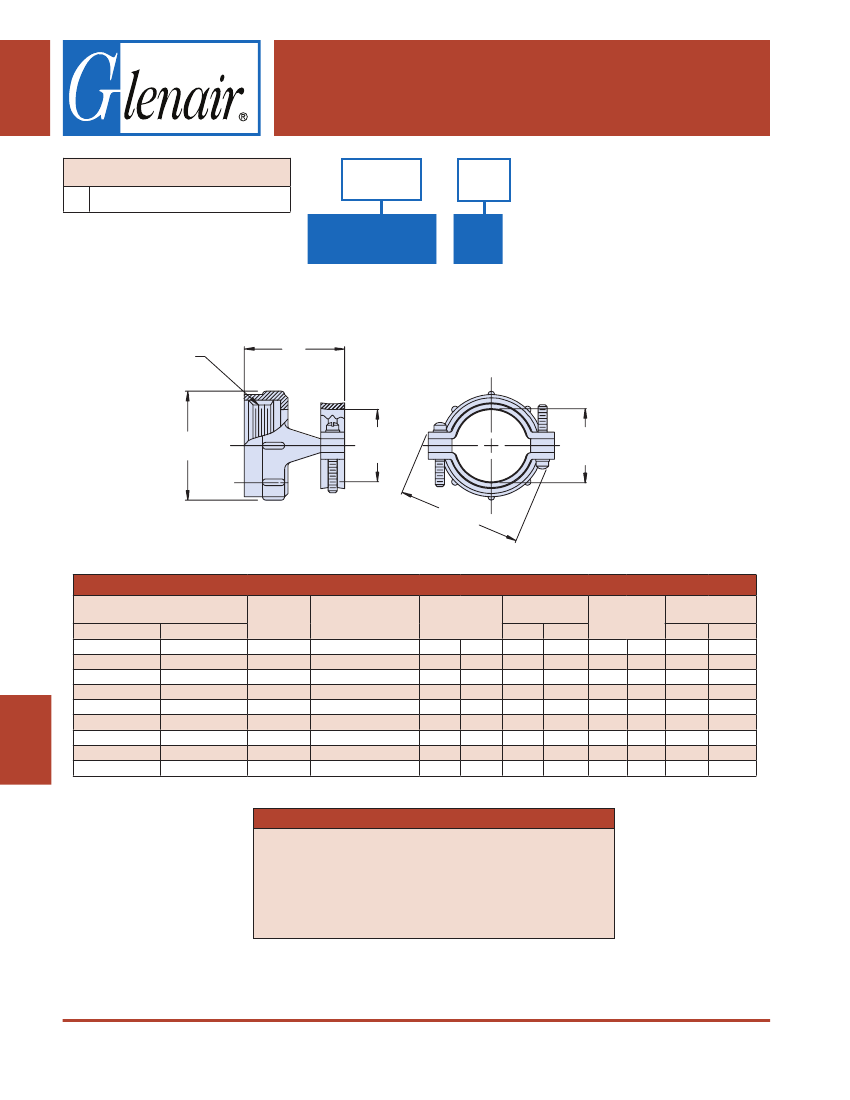

CONNECTOR DESIGNATOR:

MS27291

Straight Non-Self-Locking Strain Relief

MIL-DTL-26500

Basic

Part Number

Dash

Number

MS27291

401

A Thread

TABLE I: Dash Number, Shell Size, Thread and Dimensions

Dash No. For Use with

Class Connectors

R and F

101

201

301

401

501

601

701

801

901

Shell Size

Ref.

A Thread

Class 2B

.562 - 24 UNEF

.750 - 20 UNEF

.812 - 20 UNEF

.938 - 20 UNEF

1.062 - 18 UNEF

1.312 - 18 UNEF

.438 - 28 UNEF

1.188 - 18 UNEF

1.438 - 18 UNEF

Max

.731

.919

.981

1.106

1.231

1.481

.606

1.356

1.606

(18.6)

(23.3)

(24.9)

(28.1)

(31.3)

(37.6)

(15.4)

(34.4)

(40.8)

±.015

.935

1.170

.935

1.170

(.4)

(23.7)

(29.7)

(23.7)

(29.7)

Max

.914

1.026

1.090

1.250

1.358

1.604

.789

1.481

1.729

(23.2)

(26.1)

(27.7)

(31.8)

(34.5)

(40.7)

(20.0)

(37.6)

(43.9)

ØG

±.005

.270

.400

.460

.610

.690

.940

.186

.816

1.066

(.1)

(6.9)

(10.2)

(11.7)

(15.5)

(17.5)

(23.9)

(4.7)

(20.7)

(27.1)

APPLICATION NOTES

Finish: Class R and F–anodize, Class G, Chrome Plated

Assembly to be identified with manufacturer’s name and

part number, space permitting.

For complete dimensions, see the applicable Military

Specification.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

G-4
