17-100950 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 17-100950

17-100950: DescriptionModular Connectors / Ethernet Connectors Protective Cover Metal M28 Type; CategoryThe connector Connector bracket; File Size681KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

17-100950 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	17-100950	-	-	View	Buy Now

17-100950 Overview

Modular Connectors / Ethernet Connectors Protective Cover Metal M28 Type

17-100950 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	17-10
Base Number Matches	1

Preview

Download Datasheet

View All

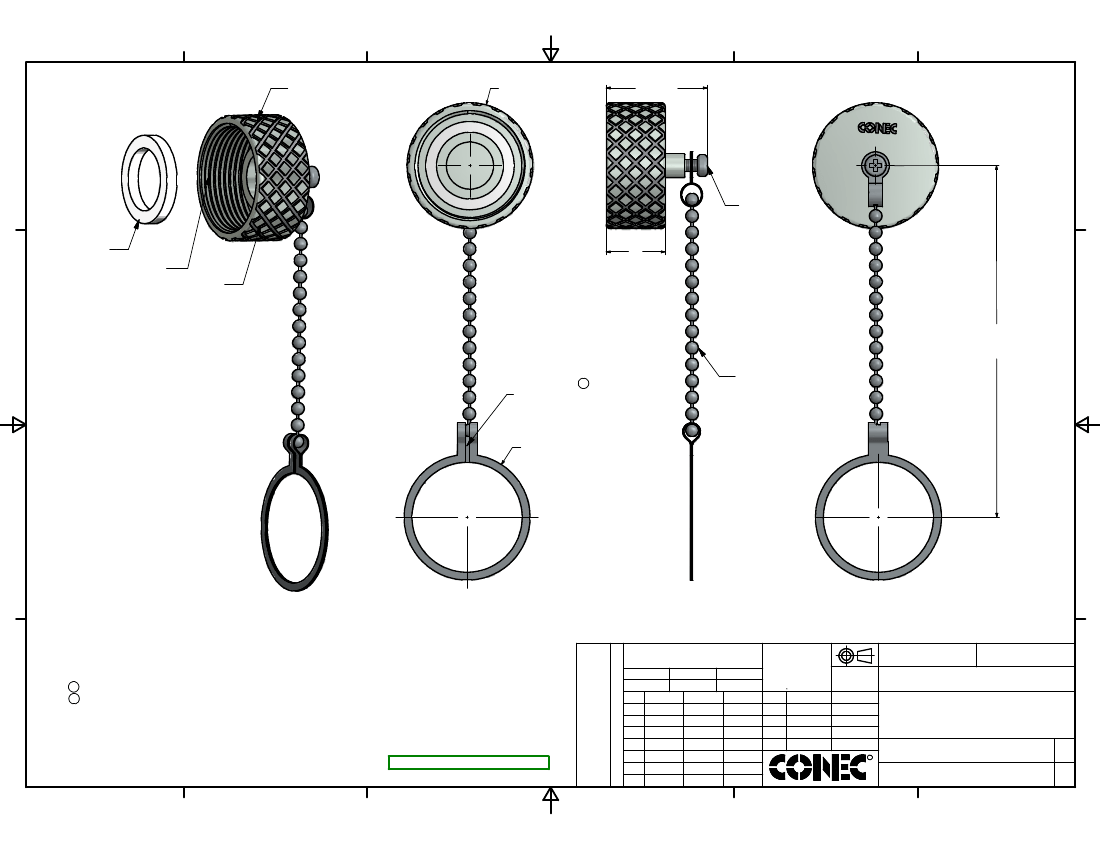

Protective Cover

M28 Thread Screw Type

Metal Version

25.6 REF.

Screw

Cover Gasket

M28 Thread

Knurl

Install the split

face towards Panel

Ball Chain

89 REF.

Notes:

THIS DRAWING MAY NOT BE COPIED OR REPRODUCED

IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD

PARTY WITHOUT WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION

DOT NOT ALTER CAD DRAWING BY HAND

1. Material and Finish:

- Metal Cover: Brass, Nickel Plated

- Ball Chain: Copper Alloy, Nickel Plated

- Screw: Copper Alloy, Nickel Plated

- Cover Gasket: Silcon, Color:

White

Customer:

Approval Date

Unless otherwise specified

Tolerance

Name

Title

0 PLC

1 PLC

2 PLC

3 PLC

ANGLES

0.50

0.38

0.25

0.10

Scale: 1.5:1

Autodesk

Inventor

Name

Vincent Ke

J. Chaudry

Dim. in mm

Material: See Notes

Title:

2007

Draw.

Appd.

Date

Oct. 06

Protective Cover Assembly Kit

Metal Version

Industrial Ethernet Connector (IP67)

2. Operating Temperature: -40

C to +85

DIN

Rev.

Directive 2002/95/EC RoHS Compliant

1 x d Jan/24/2014 Vincent Ke

Norm

1 x c Apr/01/2010 Vincent ke

D-old

1 x b Jun/01/2009 Vincent Ke

original

Changes

Date

Name

Drawing No.: 17K1A111

Part No.: 17-100950

Sheet

1/1
