D38999/22HW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> D38999/22HW

D38999/22HW: DescriptionCircular MIL Spec Tools, Hardware & Accessories DUMMY RECEPTACLE; CategoryThe connector; File Size130KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

D38999/22HW Overview

Circular MIL Spec Tools, Hardware & Accessories DUMMY RECEPTACLE

D38999/22HW Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Tools, Hardware & Accessories
RoHS	N
MIL Type	MIL-DTL-38999 III
Product	Accessories
Type	Dummy Stowage Receptacle
For Use With	D38999 TV Series Connectors
Qualification	EREL
Factory Pack Quantity	1
Unit Weight	1.269863 oz

Preview

Download Datasheet

View All

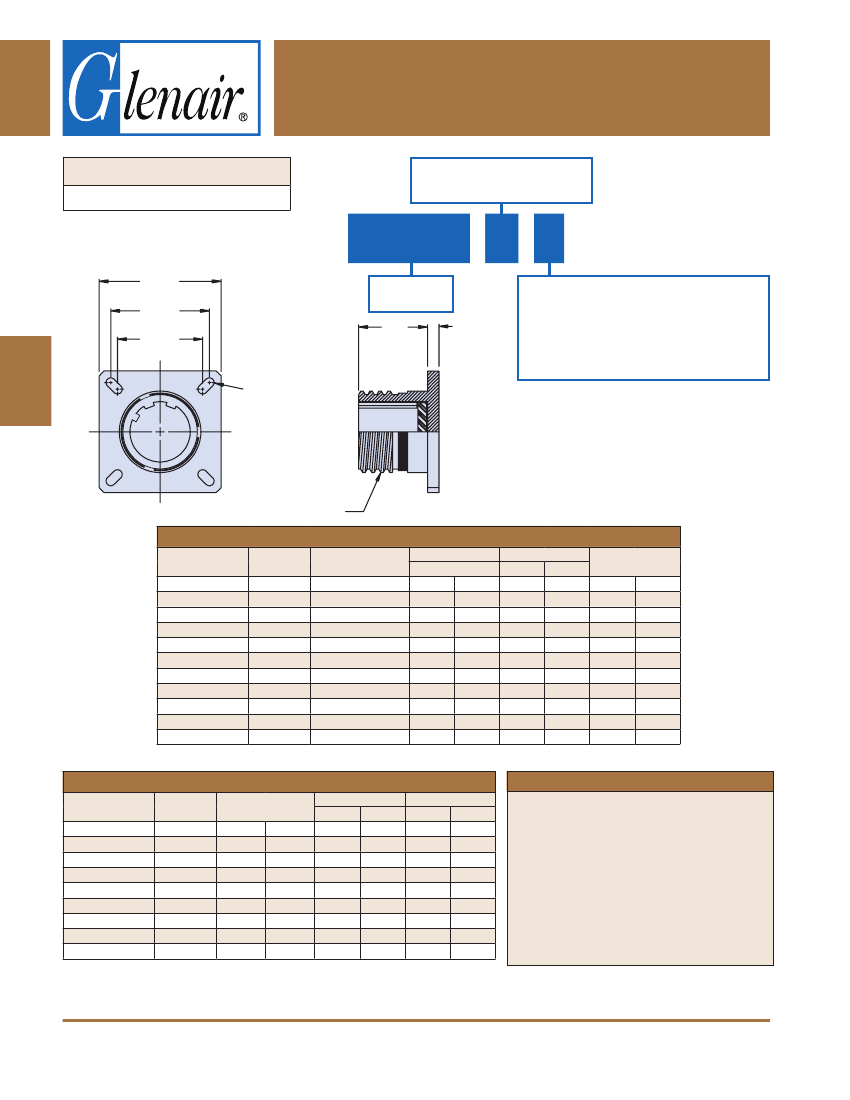

D38999/22

Dummy Stowage Receptacle

Threaded Coupling

MIL-DTL-38999

MATING CONNECTOR

MIL-DTL-38999 Series III

Shell Size Code

(For shell size codes A, A1 and

A2, see notes)

D38999/22

F Sq.

E Typ.

D Typ.

Basic

Part No.

Class per Spec

= Aluminum, Electroless Nickel

= Composite, Cadmium Plated, Olive Drab

= Corrosion-Resistant Steel Passivate

= Composite, Electroless Nickel Plated

= Aluminum, Cadmium Plated, Olive Drab

G Dia

A Thread

TABLE I: Shell Size Code and Dimensions

Shell

Size Code

(See Note 6)

(See Note 4)

(See Note 5)

Shell

Size Ref.

Thread

.625-.1P-3LTS

.750-.1P-3LTS

.875-.1P-3LTS

1.000-.1P-3LTS

1.187-.1P-3LTS

1.250-.1P-3LTS

1.375-.1P-3LTS

1.500-.1P-3LTS

1.625-.1P-3LTS

B -0.0

Max

.820

(20.83)

.820

(20.83)

.820

(20.83)

.820

(20.83)

.820

(20.83)

.820

(20.83)

.820

(20.83)

.820

(20.83)

.790

(20.07)

.790

(20.07)

.790

(20.07)

+.012

.098

.126

(0.3)

(2.5)

(3.2)

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

(15.09)

(18.26)

(20.62)

(23.01)

(24.61)

(26.97)

(29.36)

(31.75)

(34.93)

TABLE I: Shell Size Code and Dimensions

Shell

Size Code

Shell

Size Ref.

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.500

(18.26)

(20.62)

(23.01)

(24.61)

(26.97)

(29.36)

(31.75)

(34.93)

(38.10)

F -0.0

+.012

(0.3)

.937

(23.8)

1.031

(26.2)

1.126

(28.6)

1.220

(31.0)

1.311

(33.3)

1.437

(36.5)

1.563

(39.7)

1.689

(42.9)

1.811

(46.0)

ØG

+.008

(0.2)

.128

(3.25)

.128

(3.25)

.128

(3.25)

.128

(3.25)

.128

(3.25)

.128

(3.25)

.128

(3.25)

.154

(3.91)

.154

(3.91)

APPLICATION NOTES

Assembly to be identified with

manufacturer’s name and part number,

space permitting.

For complete dimensions, see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

Shell size code “A1” is for polarization C, E

and N only.

Shell size code “A2” is for polarization A, B

and D only.

Shell size code “A” is universal polarization

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Rev. 08.28.15

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

C-4

E-Mail: sales@glenair.com
