REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
JUN-24-2014
BY
BEN
APPR
TOMMY
13/16-20 UNEF THREAD
MASTER KEYWAY
.2
4-ø3
TITLE:
Ø22.2
23.0
28.6

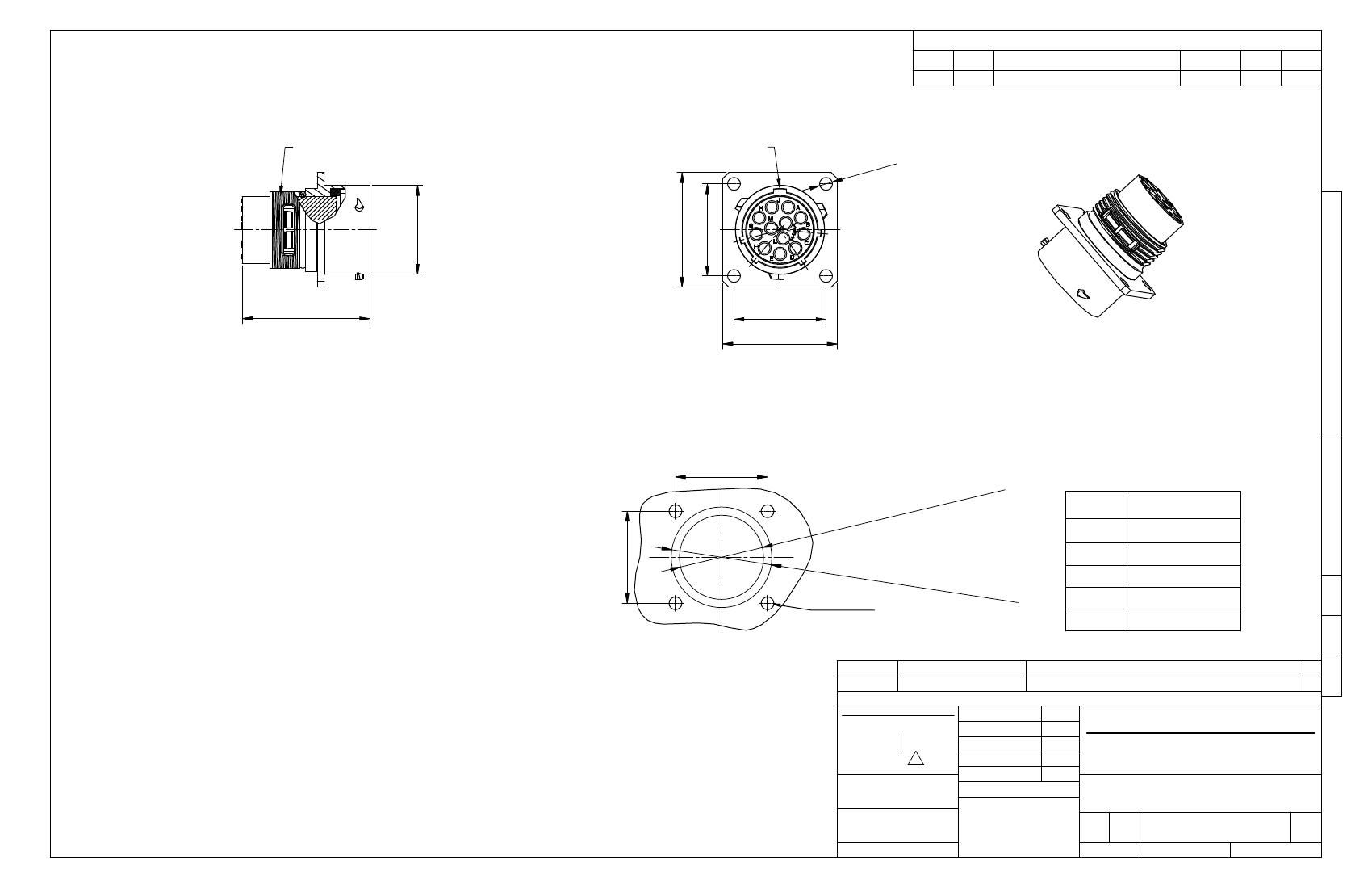

ECO-MATE,RECEPTACLE,SIZE 14,12POS, PIN.
32.5 Max
23.0
28.6
DWG NO:
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
SEAL GASKET：NBR.
O-RING : NBR.
2. SPECIFICATIONS：
2.1 RATED CURRENT：13A (MAX).
2.2 RATED VOLTAGE：300V（AC/DC）.
2.3 OPERATING TEMPERATURE：-40°C ½+105°C.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@2000 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES MIN.
2.8 ROHS COMPLIANT.
3. SUITABLE CONTACTS ：16# CONTACTS.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
23.0
ng)
ounti
lM
Pane
Front
+0.2
(For
ø21
0
ø25.1
+0.2
(
0
RT001412P*H
KEY POS
N
W
X
Y
Z
PART NUMBER
RT001412PNH
RT001412PWH
RT001412PXH
RT001412PYH
RT001412PZH
23.0
For Rea
r
4-ø3.2
+0.2
0
Panel M
ounting)
REV:
B1
SH:
1
PANEL CUT OUT REFERENCE
QUANTITY
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
JUN-24-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,RECEPTACLE,
SIZE 14,12POS, PIN.
TYPE
DWG NO:
REVISION
B
C-
RT001412P*H
SHEET
B1
1
OF
