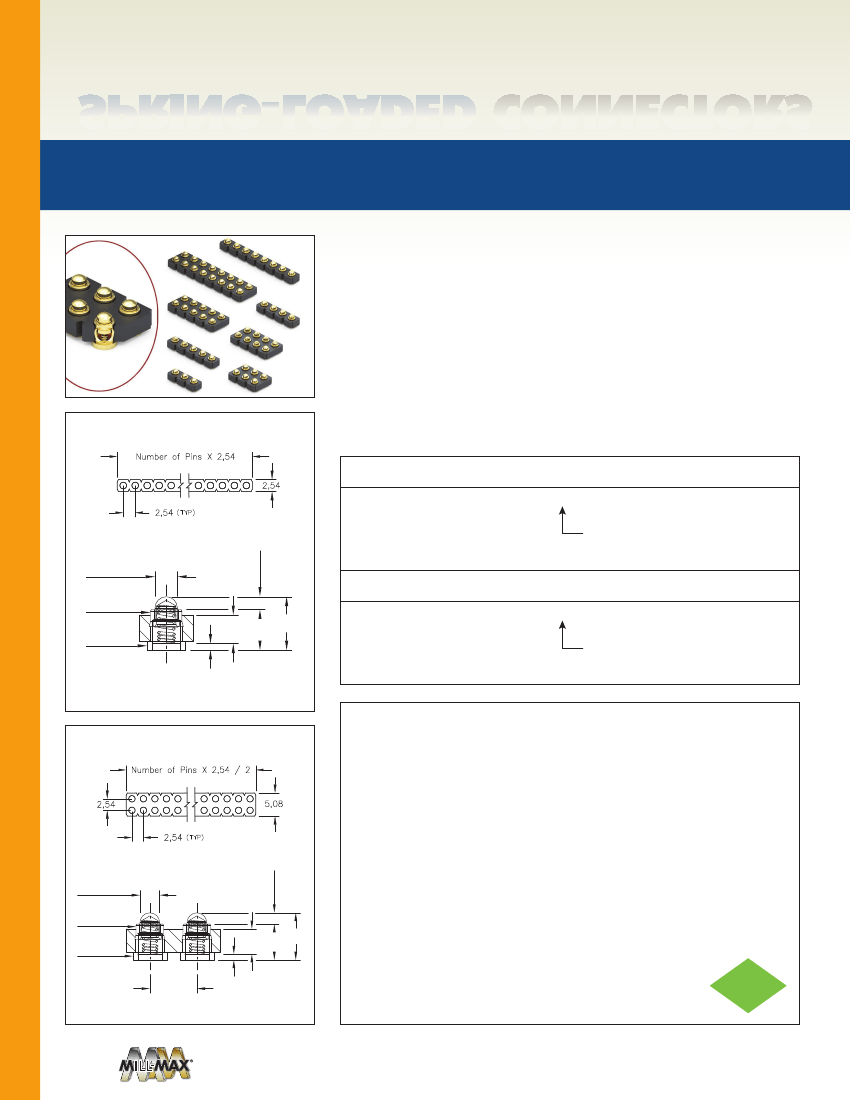

SPRING-LOADED
CONNECTORS
SERIES 815 & 817 • 2,54 GRID SURFACE MOUNT, ULTRA LOW PROFILE •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on 2,54 grid, available in a height of 2,54, supplied in single and
double row contact strips
• Precision-machined piston / base and gold-plated components assure up to 1,000,000
cycle life durability
• Pistons have a 0,3 mid. stroke and a 0,61 max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• 815 & 817 series contact strips are designed for manual placement onto a 2,08 Ø solder
pad prior to reflow soldering
SINGLE ROW Series 815
Number of Pins X 2,54
2,54
2,54
ORDERING INFORMATION
Single Row Series 815
815-22-0XX-30-001101
Specify number of contacts
01-32
1,07 DIA.
Stroke
For 815 and 817 Tape & Reel packaging, see page 12.1
Double Row Series 817
2,54
1,5 DIA.
1,83 DIA.
0,61
1,27 1,93
817-22-0XX-30-001101
Specify number of contacts
04-72
0,41
For 815 and 817 Tape & Reel packaging, see page 12.1
DOUBLE ROW Series 817
Number of Pins X 2,54 / 2
PAGE 6 | SPRING-LOADED CONNECTORS
2,54
5,08
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm gold over
2,54μm nickel
Spring: Beryllium copper-plated 0,25μm gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke (0,3): 60 grams
Durability: Up to 1,000,000 cycles
Coplanarity: 0,13 (Single Row up to 10 pins; Double Row up to 20 pins),
For higher pin counts, contact Technical Support
Electrical:
2,54
Technical Specifications
2,54
1,07 DIA.
1,5 DIA.
1,83 DIA.
Stroke
0,61
1,27 1,93
2,54
0,41
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW max.
Insulation resistance: 10,000MW min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
