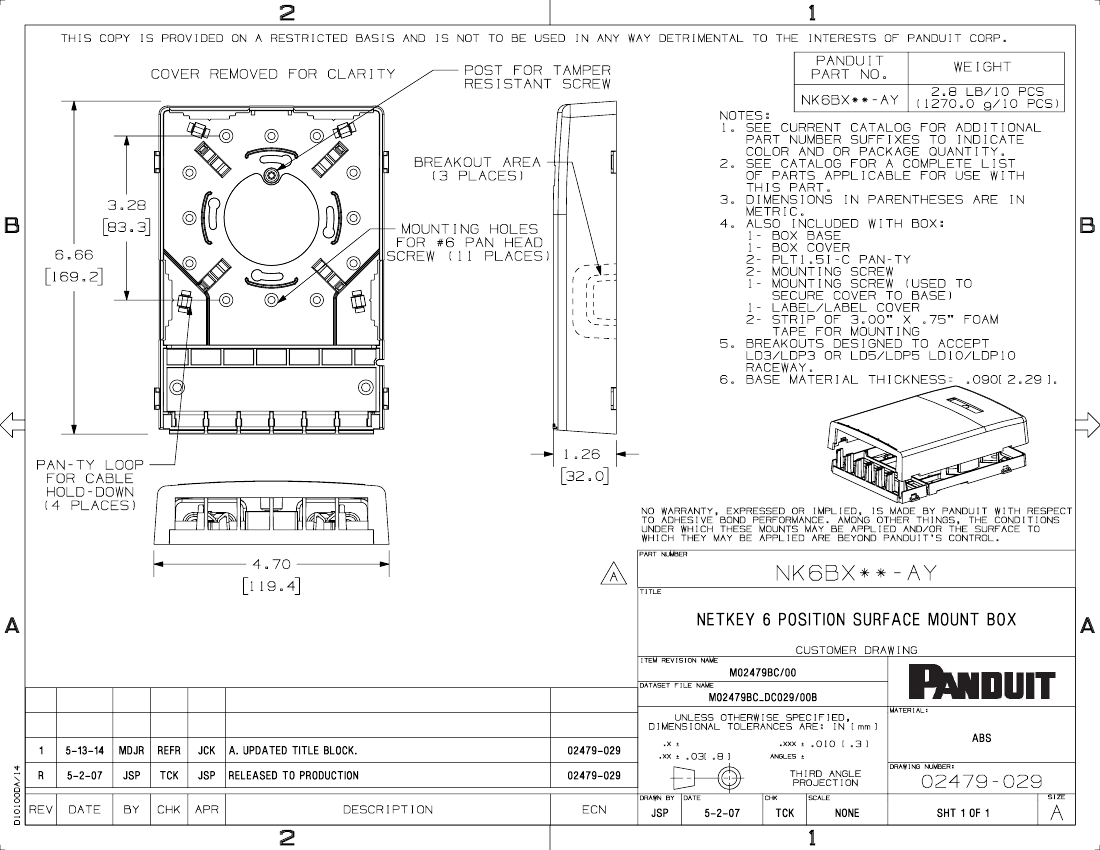

COVER REMOVED FOR CLARITY
POST FOR TAMPER
RESISTANT SCREW
1
PANDUIT
PART NO.
NK6BX**-AY
WEIGHT
2.8 LB/10 PCS
(1270.0 g/10 PCS)
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
BREAKOUT AREA
(3 PLACES)
3.28
B
6.66
169.2
83.3
MOUNTING HOLES
FOR #6 PAN HEAD
SCREW (11 PLACES)
NOTES:
1. SEE CURRENT CATALOG FOR ADDITIONAL
PART NUMBER SUFFIXES TO INDICATE
COLOR AND OR PACKAGE QUANTITY.
2. SEE CATALOG FOR A COMPLETE LIST
OF PARTS APPLICABLE FOR USE WITH
THIS PART.
3. DIMENSIONS IN PARENTHESES ARE IN
METRIC.
4. ALSO INCLUDED WITH BOX:
1- BOX BASE
1- BOX COVER
2- PLT1.5I-C PAN-TY
2- MOUNTING SCREW
1- MOUNTING SCREW (USED TO
SECURE COVER TO BASE)
1- LABEL/LABEL COVER
2- STRIP OF 3.00" X .75" FOAM
TAPE FOR MOUNTING
5. BREAKOUTS DESIGNED TO ACCEPT
LD3/LDP3 OR LD5/LDP5 LD10/LDP10
RACEWAY.
6. BASE MATERIAL THICKNESS= .090[2.29].
B
PAN-TY LOOP
FOR CABLE
HOLD-DOWN
(4 PLACES)
1.26
32.0
NO WARRANTY, EXPRESSED OR IMPLIED, IS MADE BY PANDUIT WITH RESPECT
TO ADHESIVE BOND PERFORMANCE. AMONG OTHER THINGS, THE CONDITIONS
UNDER WHICH THESE MOUNTS MAY BE APPLIED AND/OR THE SURFACE TO
WHICH THEY MAY BE APPLIED ARE BEYOND PANDUIT'S CONTROL.
PART NUMBER
4.70
119.4
A
TITLE
NK6BX**-AY
NETKEY
6
POSITION
SURFACE
MOUNT
BOX
CUSTOMER DRAWING
ITEM REVISION NAME
A
A
M02479BC/00
DATASET FILE NAME
M02479BC_DC029/00B
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
1
D10100DA/14
5-13-14
5-2-07
DATE
MDJR
REFR
JCK
A.
UPDATED
TITLE
BLOCK.
RELEASED
TO
PRODUCTION
02479-029
02479-029
.X
.XX
.XXX
.010 [.3]
DRAWING NUMBER:
ABS
.03[.8]
ANGLES
R
JSP
TCK
JSP
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
02479-029
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
JSP
5-2-07
TCK
NONE
SHT
1
OF
1
A
2
1
