CDLM3M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> CDLM3M

CDLM3M: DescriptionLighting Cables Male to Male Harness 8-way Molex; CategoryWire/cable; File Size228KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CDLM3M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDLM3M	-	-	View	Buy Now

CDLM3M Overview

Lighting Cables Male to Male Harness 8-way Molex

CDLM3M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	DIALIGHT
Product Category	Lighting Cables
RoHS	Details
Connector End A	Socket
Connector End B	Socket
Gender	Male / Male
Packaging	Bulk
Color	Black
Factory Pack Quantity	10

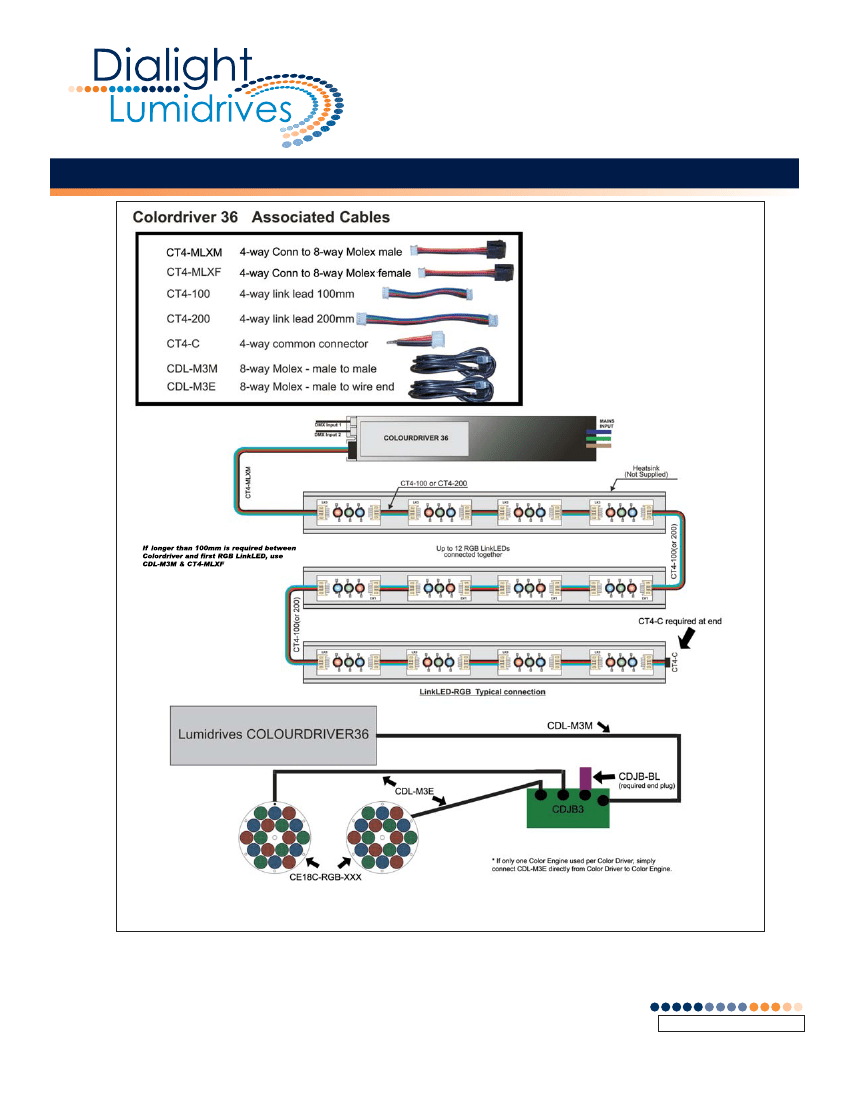

Preview

Download Datasheet

View All

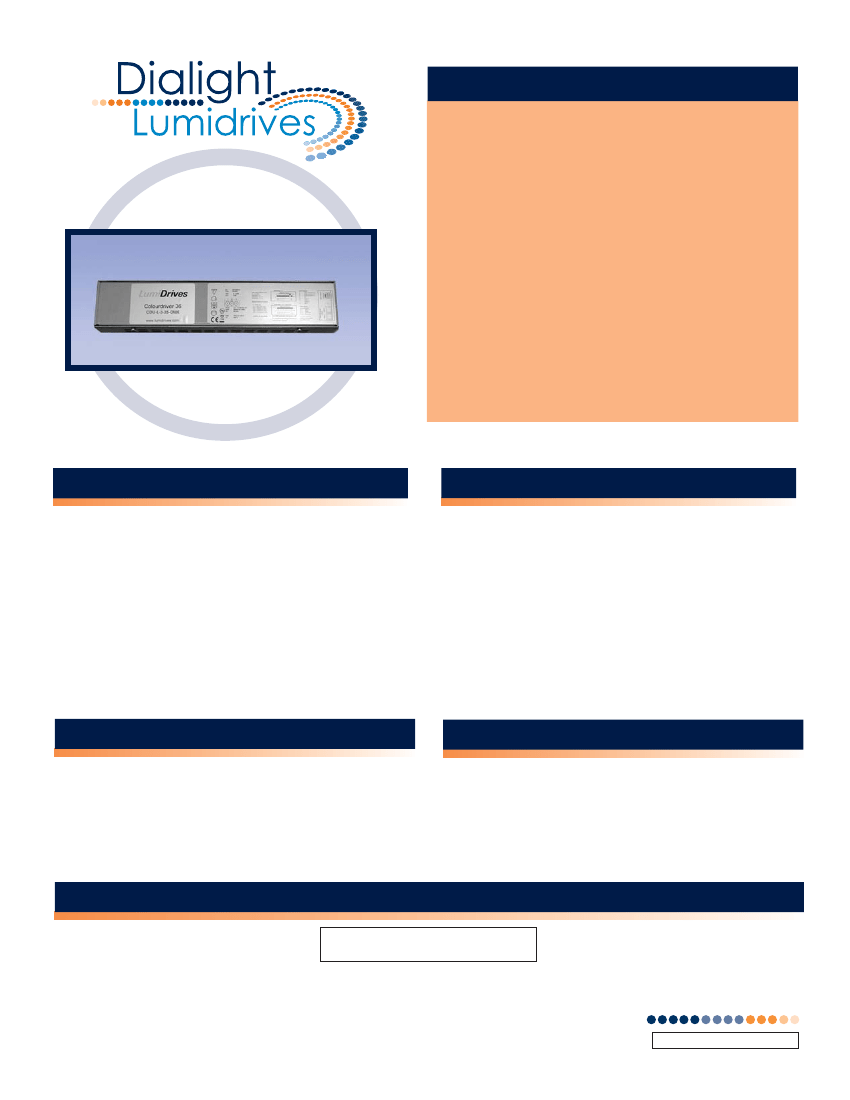

FEATURES / BENEFITS

3 fully addressable constant current outputs to

separately control and drive red, blue and green

LED circuits, making infinite combinations of

colors possible

Drives up to 12 LEDs per channel, 36 total

Digital dimming level from 0% to 100%

On board DMX compliant control interface

Dip switch programmable for DMX channel or

standard color-changing program

Short and open circuit protected

Remote mountable up to 30 meters (95’)

Available Color Kinetics pass through license,

consult factory for details

COLOR DRIVER 36

WITH DMX CONTROL CAPABILITY

OPERATING CONDITIONS

Operating Ambient temperature -10ºC to +40ºC

(14ºF to 104ºF)

Maximum case temperature 65ºC (149ºF)

Input voltage 110-240 VAC / 50-60 Hz

Power consumption, 6-54W

Power factor = 0.95

Output current = 350mA at 100%

Dimming control = DMX512 or

pre-programmed color changing sequence

505 addresses possible per system

out

:4.8 - 48 VDC

APPLICATION

Appropriate driver for any Dialight-Lumidrives

color engine or RGB LinkLED system.

Dynamic RGB color mixing

Decorative lighting

Entertainment lighting

Theme lighting

MECHANICAL DIMENSIONS

310mm X 55mm X 45mm

(12.20” x 2.17” x 1.77”)

2 Mounting slots for M3 screws

CONTROL/INTERFACE

DMX input via RJ45 connector

Dip switch programmable for DMX channel

or standard color-changing program

For standard color changing sequence, set dip

switches to channel 511

PART NUMBER

CDU-L-3-35-DMX

Dialight Corporation

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEXLUMCD36DMX_C

CDLM3M Related Products

	CDLM3M	CDLM3E
Description	Lighting Cables Male to Male Harness 8-way Molex	Lighting Cables Male to Wire Harness 8-way Molex
Product Attribute	Attribute Value	Attribute Value
Manufacturer	DIALIGHT	DIALIGHT
Product Category	Lighting Cables	Lighting Cables
RoHS	Details	Details
Connector End A	Socket	Socket
Connector End B	Socket	Socket
Gender	Male / Male	Male
Packaging	Bulk	Bulk
Factory Pack Quantity	10	10
